Gardner Bender B2000 Cyclone Electric Conduit Bender Review: One Shoe, Every Size, Built for Production

On a commercial or industrial electrical job, conduit bending isn't a one-off task. You may be running hundreds of sticks of conduit across multiple trade sizes over the course of a single project, and hand-bending at that volume costs time, reduces consistency, and takes a physical toll on the crew. A production conduit bender is a huge improvement in all aspects.

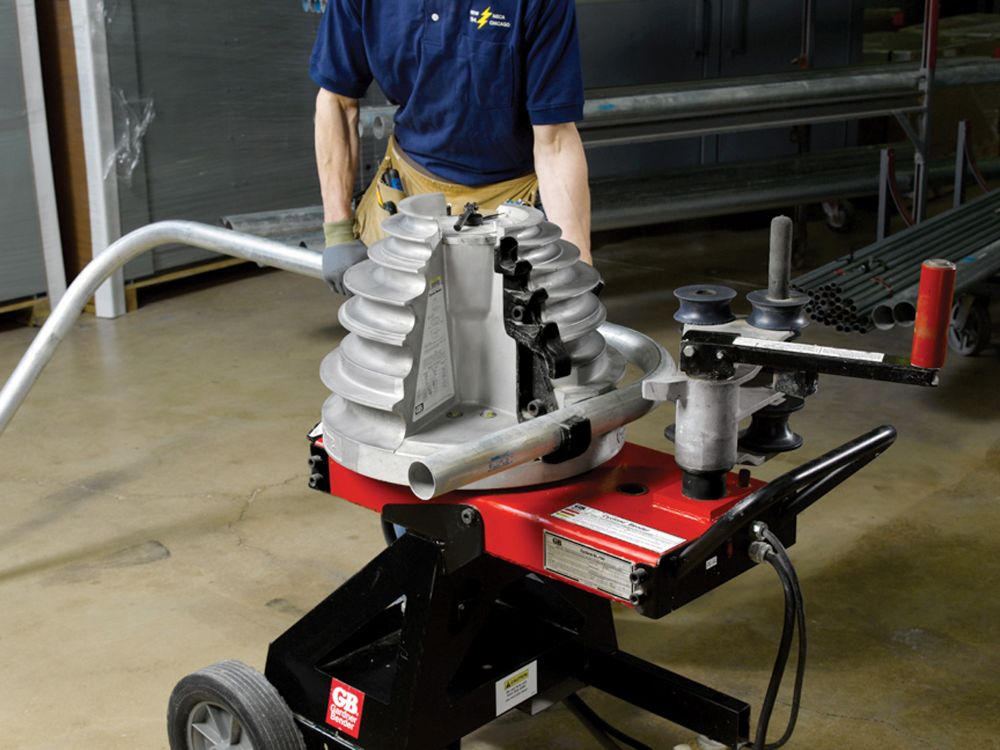

The Gardner Bender B2000 Cyclone Electric-Powered Conduit Bender is built specifically for that kind of production work. It handles 1/2 inch through 2 inch Rigid, Rigid aluminum, EMT, IMC, and PVC-coated Rigid conduit from a single bending shoe with no additional parts or shoe swaps. Easy-Dial settings take the guesswork out of bend angles, and the horizontal and vertical bending positions make accurate offsets straightforward to execute on the job.

It's made in the USA and has been a production-grade option for electrical contractors who need consistent, repeatable bends across a full conduit run.

• (1) B2000 Cyclone Electric-Powered Conduit Bender, 115V/15A
• (1) Weather-Resistant Cover

The B2000 Cyclone is a self-contained electric production conduit bender built for electricians, electrical contractors, and conduit fabricators who bend pipe regularly and need consistent results across a job. The machine runs on a 110/115V AC, 15 amp, 1 HP DC motor and uses a single bending shoe to handle all six conduit sizes from 1/2 inch through 2 inch. The roller housing uses a single urethane roller support arm and three sets of nylon rollers to guide the conduit through the bend cleanly.

The Easy-Dial settings on the B2000 are the core of how it operates on a production job.

Rather than relying on a crew member to manually judge bend angles or mark conduit by hand, the operator dials in the target degree, positions the conduit, and runs the bend. The machine produces repeatable bends at the same degree with minimal setup between bends.

Gardner Bender designed the dial system specifically to reduce training time, so apprentices and newer crew members can produce accurate bends quickly without extensive experience on the machine.

The B2000 bends in both horizontal and vertical positions, which is what allows accurate offset bends to be made in the field. Running offsets on horizontal runs and then bending saddles or kicks in vertical position without repositioning the conduit to a separate setup is a practical time saver on a production conduit job. PVC-coated Rigid conduit is supported from 1/2 inch through 1-1/2 inch on the same single shoe.

Gardner Bender manufactures the B2000 in the USA and covers it with a one-year warranty. At 408 pounds and 47 inches by 33 inches by 43 inches, it is a full-size production bender intended for shop or jobsite deployment where forklift access or heavy material handling equipment is available for staging.

The single most significant design decision on the B2000 is the universal bending shoe. Most electric conduit benders require a different shoe for each conduit size, which means stopping the job to swap shoes, storing multiple shoes on site, and keeping track of which shoe corresponds to which size. The B2000 eliminates all of that. One shoe handles 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch, and 2 inch conduit across Rigid, Rigid aluminum, EMT, IMC, and PVC-coated Rigid, with no additional parts required.

On a production conduit job where the crew is running multiple trade sizes across the same project, the time savings from not having to swap shoes between sizes accumulates quickly. The operator loads the next stick, dials the bend, and runs it. The machine does not require a change over every time the conduit size changes. That simplicity also reduces the chance of an incorrect shoe being loaded for a size, which is a real source of mis-bent conduit on jobs where multiple sizes are running at the same time.

PVC-coated Rigid is supported on the same shoe from 1/2 inch through 1-1/2 inch. For jobs in corrosive environments, direct buried applications, or industrial facilities where PVC-coated Rigid is specified, the B2000 handles that material without a separate machine or setup.

Consistent bend angles are the difference between a conduit run that fits and one that requires field corrections. The B2000's Easy-Dial settings let the operator select a target bend angle on the dial, run the bend, and repeat the same bend across every stick in the run without remeasuring or re-marking between bends. The machine returns to the exact same degree setting every time the operator uses it, which is the foundation of a repeatable production bending process.

Gardner Bender designed the dial system specifically to reduce the training time required to produce accurate bends. An apprentice with limited bending experience can produce professional results on the B2000 faster than on a mechanical bender that requires hands-on feel and manual angle judgment. The pendant controller includes a hook attachment that frees both hands while working the conduit through the bending process, which matters when handling 2 inch Rigid that takes two hands to position and guide.

The B2000 also bends in both horizontal and vertical positions, which is what makes accurate offset bends achievable without repositioning the machine or flipping the conduit to a different setup. Running a standard offset in vertical position, then switching to horizontal to continue the run, keeps the work moving without extra steps between bends.

The B2000 runs a 1 HP DC motor powered by 110/115V AC at 15 amps, which is a standard circuit requirement on commercial jobsites and construction facilities. The motor delivers enough torque to bend 2 inch Rigid steel conduit, which is the heaviest and most demanding application in the machine's rated capacity.

Voltage fluctuations are a real issue on active construction sites where the electrical infrastructure may not be fully commissioned, and the B2000 addresses that with automatic low-volt and high-volt shutoff. If supply voltage drops below 95V or rises above 132V, the machine shuts down automatically to protect the motor and circuit board from damage.

This specific circuit board is designed with a resettable circuit breaker rather than a replaceable fuse. If the current draw exceeds the board's threshold, the breaker trips, and the operator resets it immediately.

The On/Off switch on the B2000 allows the machine to be powered down for extended periods without disconnecting from the power source.

At 408 pounds, the B2000 is a serious piece of production equipment. Gardner Bender engineered the machine's mobility features around the reality of how production benders move on a job site, which is on wheels and by forklift, not by hand carry.

The base of the B2000 includes rear forklift pockets that allow the machine to be staged, repositioned, and loaded or unloaded directly by a forklift without any additional rigging or pallet setup. The lift hook on the machine provides a tethering point for job-site security, allowing the machine to be secured to a structural element or anchor point when left on an unattended floor or in a staging area. Both features address real job-site concerns around machine security and material handling on active commercial construction projects

Four wheels with two locking casters allow the B2000 to be rolled across a slab, shop floor, or staging area without requiring a forklift for every short reposition. The two locking casters fix the machine in position during bending so the unit does not roll or shift under the load of bending 1-1/2 inch or 2 inch Rigid conduit. The large tire and wheel design is built for increased mobility across uneven surfaces common on active construction sites.

The B2000 includes a built-in storage area for tools and accessories while the machine is in use, which keeps the bending station organized without a separate tool cart alongside the machine. The weather-resistant cover included with the unit protects the machine when it is on site but not in active use, which is standard practice for production equipment left overnight on a multi-day or multi-week installation project.

The B2000 Cyclone is a production-scale electric conduit bender built for electrical contractors, wiremen, and conduit fabricators who bend significant volumes of conduit across multiple trade sizes. Here is where it fits and where it does not.

• Electrical contractors running commercial, industrial, or institutional projects where conduit bending is a daily production task across multiple sizes
• Shops and prefab operations that bend conduit for installation elsewhere, where consistent and repeatable bend angles are a quality requirement
• Jobs running a mix of Rigid, EMT, IMC, and PVC-coated Rigid conduit in the same project, where a single shoe solution avoids constant shoe changes
• Contractors who need a machine that can be staged by forklift and secured on site, rather than a machine designed for bench or truck transport
• Operations that want to reduce training time for new crew members on production bending without sacrificing bend accuracy

• Electricians doing light residential or service work where a hand bender handles the occasional bend without the overhead of a 408-pound production machine
• Jobsites without forklift access or heavy material handling capability, where staging the B2000 becomes a logistics problem
• Operations that need to bend conduit larger than 2 inch, where a separate hydraulic bender is required
• PVC-coated Rigid applications requiring 2 inch, as the B2000's PVC-coated Rigid capacity tops out at 1-1/2 inch
• Sites where only a 20A circuit is available and a dedicated 15A circuit cannot be confirmed


The Gardner Bender B2000 Cyclone solves a real production problem. On a large conduit installation, the combination of multiple trade sizes, the need for consistent bend angles, and the physical demands of bending Rigid conduit manually all add up to time, fatigue, and inconsistency. The B2000 addresses all three of those with a single-shoe universal design, Easy-Dial settings that produce repeatable bends without manual angle judgment, and a 1 HP DC motor capable of handling 2 inch Rigid steel conduit.

The circuit protection features, including automatic low- and high-voltage shutoff and a resettable circuit breaker, are built for the reality of how electrical infrastructure on active construction sites behaves. The forklift pockets, locking casters, lift hook, and weather cover are all practical decisions for a machine that lives on a job site for weeks or months at a time rather than sitting in a controlled shop environment.

 If your operation bends conduit at production volume across a range of trade sizes, the B2000 Cyclone is a machine built for that work.

Made in the USA and backed by a one-year warranty, it is worth a close look for any electrical contractor who is currently absorbing the time cost of hand bending on large commercial or industrial jobs.
