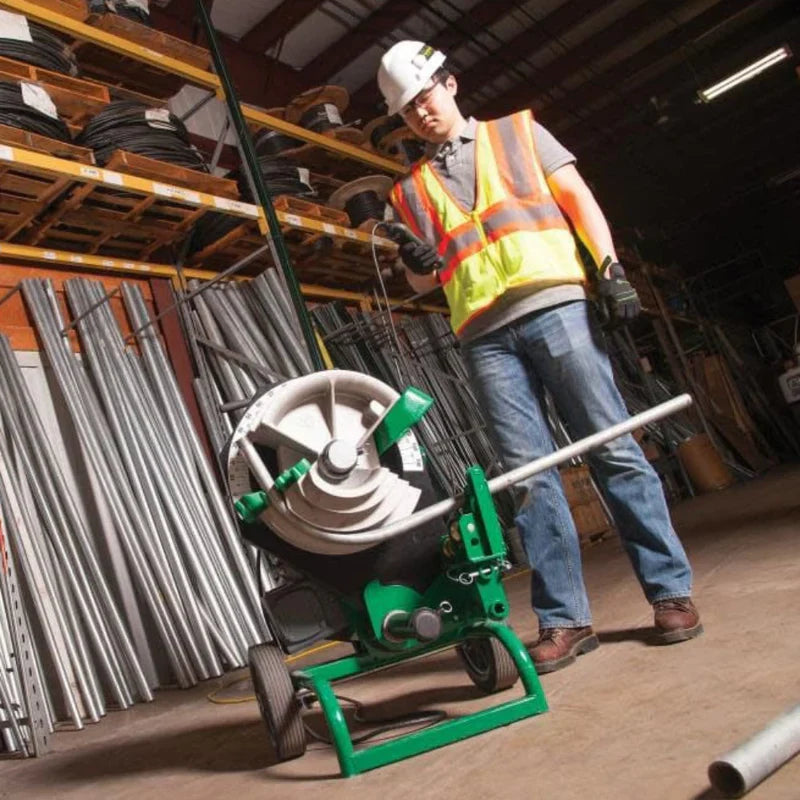

Greenlee 555RSC Electric Classic Bender: Built for Rigid Conduit

Rigid metal conduit is the backbone of commercial and industrial electrical systems. It provides maximum protection for conductors in demanding environments where EMT just will not cut it. When your job calls for rigid conduit, you need a bender that can handle the heavier gauge material without breaking a sweat. That is exactly what the Greenlee 555RSC Electric Classic Bender was built to do.

The 555RSC pairs the legendary 555C power unit with the 28008 rigid shoe group. This combination gives electricians and contractors a purpose built solution for bending 1/2 inch to 2 inch rigid metal conduit (RMC), intermediate metal conduit (IMC), and PVC coated rigid. If your work regularly takes you to factories, warehouses, power plants, or outdoor installations where rigid conduit is specified, this bender deserves a close look.

Here are the key specifications for the Greenlee 555RSC:

• Conduit capacity: 1/2 inch to 2 inch rigid, IMC, EMT, and PVC coated rigid
• Power requirements: 120 VAC, 20 amp GFCI protected
• Weight with rigid shoe group: 320 pounds
• Dimensions: 44 inches tall, 28.5 inches wide, 28.5 inches deep
• Operating temperature range: -5 degrees F to 120 degrees F
• Conduit marking: -10 degrees to 190 degrees
• Safety listing: C/US UL Listed

Rigid metal conduit is not the same as EMT. The walls are thicker. The material is heavier. And bending it requires more force and proper technique to avoid problems. Use the wrong shoes or an underpowered bender, and you risk flattening the conduit, creating egg shaped cross sections, or producing bends that do not meet code.

The rigid shoe grooves on the 555RSC are designed specifically to support the thicker walls and larger outside diameter of RMC and IMC. The shoe cradles the conduit properly throughout the bend, maintaining the round cross section that is required for wire pulling and code compliance. Try using EMT shoes on rigid conduit and you will quickly see the difference in the form of crushed bends and wasted material.

The National Electrical Code (NEC) Article 344 covers rigid metal conduit and where it can be used. RMC is permitted in virtually any environment. You can run it exposed, concealed, buried underground, or encased in concrete. This makes it the go to choice for tough applications.

Industrial facilities often specify rigid conduit because of the physical protection it provides. In factories, warehouses, and manufacturing plants, conduit runs face hazards that would damage lighter gauge materials. Forklifts, heavy equipment, and general industrial activity can all put stress on conduit systems. Rigid conduit stands up to these conditions.

Outdoor installations frequently call for rigid conduit as well. Parking lots, loading docks, equipment yards, and exterior building runs all benefit from the durability of RMC. The threaded connections provide excellent moisture resistance when properly installed.

Corrosive environments present another common application. Chemical plants, water treatment facilities, and coastal locations may specify PVC coated rigid conduit for added protection. The 555RSC can handle PVC coated rigid with the optional 37279 shoe group, making it versatile enough for these specialty jobs.

Rigid conduit is not cheap. When conduit prices rose significantly over the past few years, scrap costs became a real concern for contractors. Every piece of conduit that ends up in the bone pile because of a bad bend is money lost.

Beyond material costs, bad bends create labor costs too. Rework takes time. Pulling wire through a kinked or deformed conduit is harder and may even damage the conductors. If an inspector rejects a run because the bends are not right, you are looking at tearing it out and starting over. All of these factors add up quickly on a job.

The 555C power unit uses a solid state electrical system instead of traditional relays. This design prevents relay failures and arcing that can take a bender out of service. On a busy job where the bender is running hard every day, this kind of reliability matters. You cannot afford to have your bender go down in the middle of a conduit run.

The control system on the 555C optimizes power use to protect the motor and electronics. This means the bender applies the force needed for the bend without wasting energy or stressing components unnecessarily. Over time, this helps extend the working life of the machine.

When something does go wrong, the 555 series was designed with field repair in mind. The simple relay controls allow troubleshooting and repairs to happen on site rather than requiring the bender to be shipped back to a service center. Time is money on a construction project, and getting back up and running quickly can save a job from falling behind schedule.

The handle on the 555C was designed to stay out of the way during bending operations. This prevents interference with the conduit as it moves through the bend. It sounds like a small detail, but anyone who has fought with a poorly positioned handle while trying to make a precise bend knows how frustrating that can be.

The bender runs on 120 VAC with a 20-amp GFCI-protected plug. This means you can power it from a standard outlet, where available, or run it from a generator on remote job sites. The GFCI protection adds a layer of safety that is important on construction sites where conditions may not be ideal.

• 1/2 inch rigid: 4-1/4 inch radius
• 3/4 inch rigid: 5-7/16 inch radius
• 1 inch rigid: 6-15/16 inch radius
• 1-1/4 inch rigid: 8-3/4 inch radius
• 1-1/2 inch rigid: 8-1/4 inch radius
• 2 inch rigid: 9 inch radius

The National Electrical Code sets specific requirements for conduit bends that electricians must follow. NEC Article 344 governs rigid metal conduit installations, including the rules for bending.

One of the most important rules is the maximum number of bends between pull points. The NEC limits conduit runs to no more than 360 degrees of total bends between pulling points like junction boxes or conduit bodies. That works out to four 90 degree bends or the equivalent combination of smaller bends. This rule exists to prevent excessive friction during wire pulling that could damage conductor insulation.

The code also specifies minimum bend radii for different conduit sizes. These requirements ensure that bends do not create kinks or deformations that would reduce the internal cross sectional area. Proper bend radius also makes wire pulling easier and prevents damage to conductors as they are pulled through.

The 555RSC with its rigid shoe group produces bends that meet these code requirements. The shoes are engineered to create the correct radius for each conduit size, taking the guesswork out of the process. When inspectors check your work, properly formed bends help the job pass without issues.

The Greenlee 555RSC ships as a complete package ready for rigid conduit work. You receive:

• One 555C Classic Electric Bender power unit
• One 28008 rigid shoe group (covers 1/2 inch to 2 inch rigid and IMC)

This gives you everything needed to start bending rigid conduit right away. Unlike purchasing the base unit and shoes separately, the 555RSC package ensures you have matched components that work together properly.

While the 555RSC comes set up for rigid conduit, the 555 series power unit can accept other shoe groups to handle different materials. This flexibility means one bender can serve multiple purposes on different jobs.

The Greenlee 23803 EMT shoe group adds the ability to bend 1/2 inch to 2 inch EMT conduit. This is useful when a project calls for both rigid and EMT in different areas. Rather than owning two separate benders, you can swap shoe groups as needed.

For corrosive environments, the Greenlee 37279 PVC-coated rigid shoe group lets you work with 40 mil PVC-coated conduit. This specialty material is common in chemical plants, food processing facilities, and coastal applications where standard galvanized conduit would corrode too quickly.

The Greenlee SG4 Shotgun shoe elevates productivity by bending up to four pieces of conduit simultaneously. It handles rigid, IMC, and EMT in 1/2-inch, 3/4-inch, and 1-inch sizes. For prefabrication work or jobs with high volumes of repetitive bends, this accessory can significantly speed up production.

Factories and manufacturing plants typically spec rigid conduit throughout production areas. Heavy machinery, forklifts, and industrial activity create hazards that would damage lighter conduit types. The 555RSC can handle the volume of bending these jobs require while producing consistent results that keep production moving.

Modern warehouses have extensive electrical systems powering lighting, conveyors, charging stations, and automated equipment. Rigid conduit protects these circuits from the constant loading and unloading in loading docks and storage aisles. A reliable electric bender keeps the job on schedule when there are hundreds of bends to make.

Parking lot lighting, exterior building runs, and equipment yards often require exposed conduit that can withstand weather and physical contact. Rigid conduit with threaded weatherproof fittings provides the durability these installations need. The 555RSC produces clean bends that look professional when the work is visible.

Utility installations and power generation facilities have strict requirements for conduit systems. The heavy gauge rigid conduit used in these applications demands a bender with enough power to produce quality bends in the larger sizes. The 555RSC handles up to 2 inch rigid, covering most feeder and distribution runs in these facilities.

At 320 pounds with the rigid shoe group attached, the 555RSC is not something you carry around by hand. Two wheels on the base help with moving it around the job site, but you will still want to plan where to set it up. For multi floor projects, getting the bender to upper floors requires coordination and possibly a crane or hoist.

The 20 amp draw means you need a dedicated circuit or a generator capable of handling the load. On new construction where temporary power may be limited, plan ahead to ensure you have adequate power where you need to set up the bender. The GFCI protection built into the plug adds safety but requires a properly functioning circuit.

Bending operations need room for the conduit to move freely. A ten foot stick of rigid conduit takes up space, and multiple bends require room to rotate and reposition the pipe. Set up in an area with adequate clearance to work efficiently without constantly fighting for space.

Greenlee has been making tools for trade professionals since 1862. The company started as a woodworking tool manufacturer in Illinois and expanded into electrical tools as the industry grew. Today, Greenlee is part of Emerson's Professional Tools group alongside the RIDGID brand.

The 555 series in particular has been an industry standard since 1968. Over five decades of use by electricians across the country has proven the design. When contractors talk about the "Triple Nickel," they are referring to a machine with a proven track record in the field.

The Greenlee 555RSC Electric Classic Bender was designed with a specific purpose in mind. It takes the proven 555 series platform and pairs it with a rigid shoe group to create a complete solution for bending heavier gauge conduit.

Rigid metal conduit is not going away. Industrial facilities, outdoor installations, and high protection applications will continue to require it. Having the right tool for the job makes that work faster, more accurate, and more profitable.

The solid state electronics, simple controls, and field serviceability of the 555 series have been proven over decades of use. The 28008 rigid shoe group adds the capability to handle RMC and IMC with the precision these materials demand. Together, they give contractors a machine that can tackle the challenging conduit bending jobs that come with commercial and industrial electrical work.

For electricians and contractors who regularly work with rigid conduit, the Greenlee 555RSC delivers the combination of power, precision, and reliability that demanding jobs require.
