Greenlee 854DX Review: The One Shoe Solution for EMT, IMC, and Rigid Conduit Bending

If you've spent time on a commercial job site managing conduit runs, you already know how much time and overhead goes into bending. Having to swap shoes between EMT, IMC, and rigid, and pulling out a torpedo level to check your angle, can be frustrating if you've got different bends to finish. Especially when it comes to re-bending because the first pull came in a couple of degrees short.

It adds up fast, and on a big job with hundreds of bends to make, those inefficiencies show up in your labor hours.

The Greenlee 854DX Electric Conduit Bender was built to eliminate most of those pain points. It bends 1/2" through 2" EMT, IMC, and rigid conduit with a single shoe, stops at exact angles every time, and runs on solid state electronics rated for over a million bends.

For electricians and electrical contractors running medium to large commercial, industrial, or institutional jobs, this is a serious production-bending machine worth understanding in detail.

• (1) 854DX Electric Conduit Bender
• 1/2" to 2" Rigid/EMT/IMC Shoe
• Roller Support
• Digital Pendant

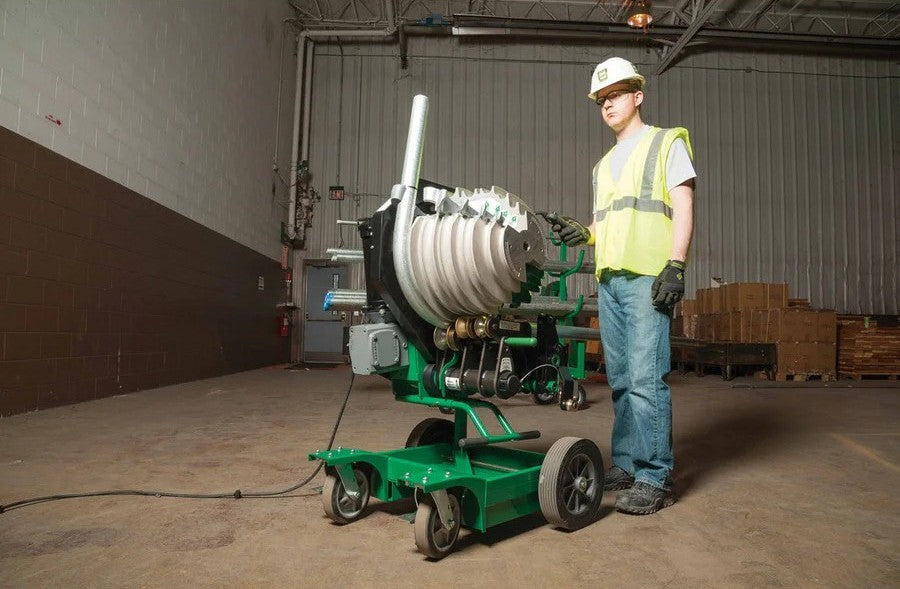

The 854DX is a floor-standing electric conduit bender designed for production bending in commercial and industrial electrical work. It runs on 120VAC with a 20 amp GFCI-protected receptacle, weighs 513 lbs, and is built to be repositioned on job sites through its built-in wheel and frame assembly.

It supports both vertical and tabletop horizontal bending configurations, giving you flexibility depending on your setup and the type of bends you're running.

The name "One Shoe Solution" is the core selling point. One shoe set handles the full range from 1/2" through 2" EMT, IMC, and rigid conduit. That means:

• Less time swapping equipment between conduit types and sizes
• Less overhead invested in a library of separate shoe sets
• Faster transitions when a job calls for mixed conduit throughout the day

Greenlee describes the three defining characteristics of the 854DX simply: Versatile, Accurate, and Reliable. Those aren't just marketing terms. They map directly to specific engineering decisions that separate this bender from lower-cost options.

On a typical commercial job, you might be running multiple conduit types depending on location and application:

• EMT in the walls
• IMC in areas requiring some physical protection
• Rigid in exposed locations or where local code demands it

Without a versatile bender, each conduit type and size requires its own shoe, and each shoe swap takes time. The 854DX handles all of the above with one shoe, from 1/2" through 2".

The bend radius range runs from 4.25 inches (108 mm) at the 1/2" end to 9 inches (228.6 mm) at the 2" end, covering NEC-compliant bending requirements across all supported conduit types and sizes.

The bender also switches between vertical and tabletop horizontal bending configurations without major setup changes. Vertical bending is the standard configuration for most production floor work. Tabletop bending lets you position the conduit flat for certain bend types and working angles. Having both options built into one machine gives you flexibility when the job layout demands it.

For operations that need to bend PVC-coated rigid conduit, the optional 02840 Shoe Group (1/2" to 2") adds that capability without requiring a different machine. PVC-coated rigid is commonly specified in:

• Chemical plants and water treatment facilities
• Food processing facilities
• Coastal and offshore construction
• Any environment with significant corrosion exposure

This is where the 854DX separates itself most clearly from manual and lower-end electric benders. The machine uses an absolute encoder to stop the bend at the exact angle you've dialed in. No guesswork, no eyeballing a reference mark, and no pulling short and hoping the springback lands where you need it.

What is an absolute encoder?

An absolute encoder is a position-sensing device that tracks the exact rotational position of the bending head at all times. Unlike a relative encoder that measures movement from a starting point, an absolute encoder always knows its exact position, even after a power interruption.

This matters on a job site where temporary power losses happen. The 854DX's solid state system is designed to prevent damage from those interruptions, and the absolute encoder means the bender doesn't lose its position reference when power cuts out and comes back.

In practical terms, this translates directly to bend consistency:

• Every 45-degree bend is actually 45 degrees
• Every 90-degree bend hits 90 degrees
• Offsets, saddles, and back-to-back 90s line up clean at the panel and at every junction

Rework on a commercial job because bends came in inconsistent is expensive. The 854DX's angle accuracy is the engineering answer to that problem.

The digital pendant is central to how the 854DX operates. It's the interface between you and the bender's control system, and it does more than just trigger the pull.

Here's what the pendant handles:

• Angle input before each bend
• Real-time progress monitoring as the shoe moves through the arc
• Mode switching between EMT and IMC/rigid bending configurations
• Display of current shoe angle and target angle throughout the bend

The mode switch between EMT and IMC/rigid is a simple button selection on the pendant, not a physical swap. That's a big part of what makes the one-shoe setup work in practice, not just on spec sheets.

For jobs where you're running a mix of conduit types throughout the day, switching modes quickly from the pendant keeps production moving. You're not walking around the machine, adjusting components, or consulting a reference chart. You make your selection and move to the next bend.

A production conduit bender is a capital investment, and the durability of the control electronics is one of the biggest factors in long-term cost of ownership.

Traditional electric benders use contact-based switching systems. The problem with contact-based systems:

• They wear over time
• They're vulnerable to arcing
• Arcing accelerates wear and causes erratic operation
• Eventually, control failures take the machine out of service

The 854DX uses a solid state electronics system. Solid state means no mechanical contacts in the control circuit. No contacts means no arcing. Greenlee rates the solid state electronics on the 854DX for over 1,000,000 bends, which for a busy electrical crew represents years of production bending before the control system becomes a reliability concern.

A few other durability details worth noting:

• Steel rollers inside the bending mechanism handle the physical stress of production bending better than softer materials
• The solid state system prevents damage from temporary power loss, a common job site occurrence
• The 854DX is C/US UL Listed, independently tested and certified for both US and Canadian markets

The 854DX supports two bending positions, giving it flexibility across different job site setups.

Vertical Mode: The standard upright orientation used for most production floor bending. This is the configuration most electricians are familiar with, and it's efficient for running through high volumes of bends on a straightforward layout.

Tabletop Mode: The bending head pivots to a horizontal position. This is useful for:

• Certain bend types that are easier to set up flat
• Working with longer conduit lengths in tighter spaces
• Job site setups where a vertical configuration isn't practical

The built-in wheel and frame assembly makes it practical to reposition the 854DX on a job site even at 513 lbs. The frame keeps the machine stable during bending and mobile when you need to move it.

Adds the ability to bend 1/2" to 2" PVC-coated rigid conduit. PVC-coated rigid is used wherever the conduit needs protection from corrosion, chemical exposure, or physical damage. Common applications include:

• Water treatment and chemical processing plants
• Food processing facilities
• Coastal and offshore construction
• Industrial environments with heavy corrosion exposure

If your work regularly includes these project types, the 02840 shoe group is a practical addition.

The high-production option. The Shotgun Shoe lets you bend up to four pieces of conduit simultaneously. For jobs where you're running large parallel conduit bundles, bending four at once versus one at a time is a significant time multiplier.

A few important notes on the Shotgun Shoe:

• Requires a software update to the 854DX's control system before it can be used
• Call 800-435-0786 to schedule a Greenlee Tool Specialist to download the updated program
• The adapter kit (04030) allows existing Shotgun Shoes from the Greenlee 555 bender to be used on the 854DX, useful for contractors who already own 555 Shotgun Shoes
• If you plan to use the Shotgun Shoe from day one, factor the software update into your setup timeline

This is not a one-man residential service tool. At 513 lbs and 120VAC, it's a production floor bender designed for commercial job sites, contractor shops, and electrical prefab operations.

The 854DX is the right fit for:

• Electrical contractors running commercial, industrial, or institutional projects with high conduit volume
• Jobs where conduit type and size vary throughout the build, like commercial office builds, schools, hospitals, data centers, and manufacturing plants
• Electrical prefab shops building conduit assemblies off-site for installation, where both production speed and angle consistency matter

The 854DX is not the right fit for:

• Service electricians who bend conduit occasionally
• Residential contractors where a lighter-duty manual or portable electric bender gets the job done
• One-person operations where the weight and power requirements aren't practical

The 854DX is built for volume, and it performs best when it's running regularly.

The Greenlee 854DX earns its place on a commercial job site through three practical advantages:

• One shoe handles all your common conduit types and sizes from 1/2" to 2"
• The absolute encoder stops every bend at the exact angle you set, every time
• Solid state electronics are built to last through years of production use without the maintenance headaches of contact-based systems

For electrical contractors running high volumes of conduit across mixed types and sizes, the 854DX reduces shoe swap time, eliminates angle guesswork, and delivers the bend-to-bend consistency that keeps a conduit run looking clean and professional from the panel to the last outlet.

Add the Shotgun Shoe option and the production capacity increases further. It's a purpose-built production tool, and it delivers exactly what it's designed to do.
