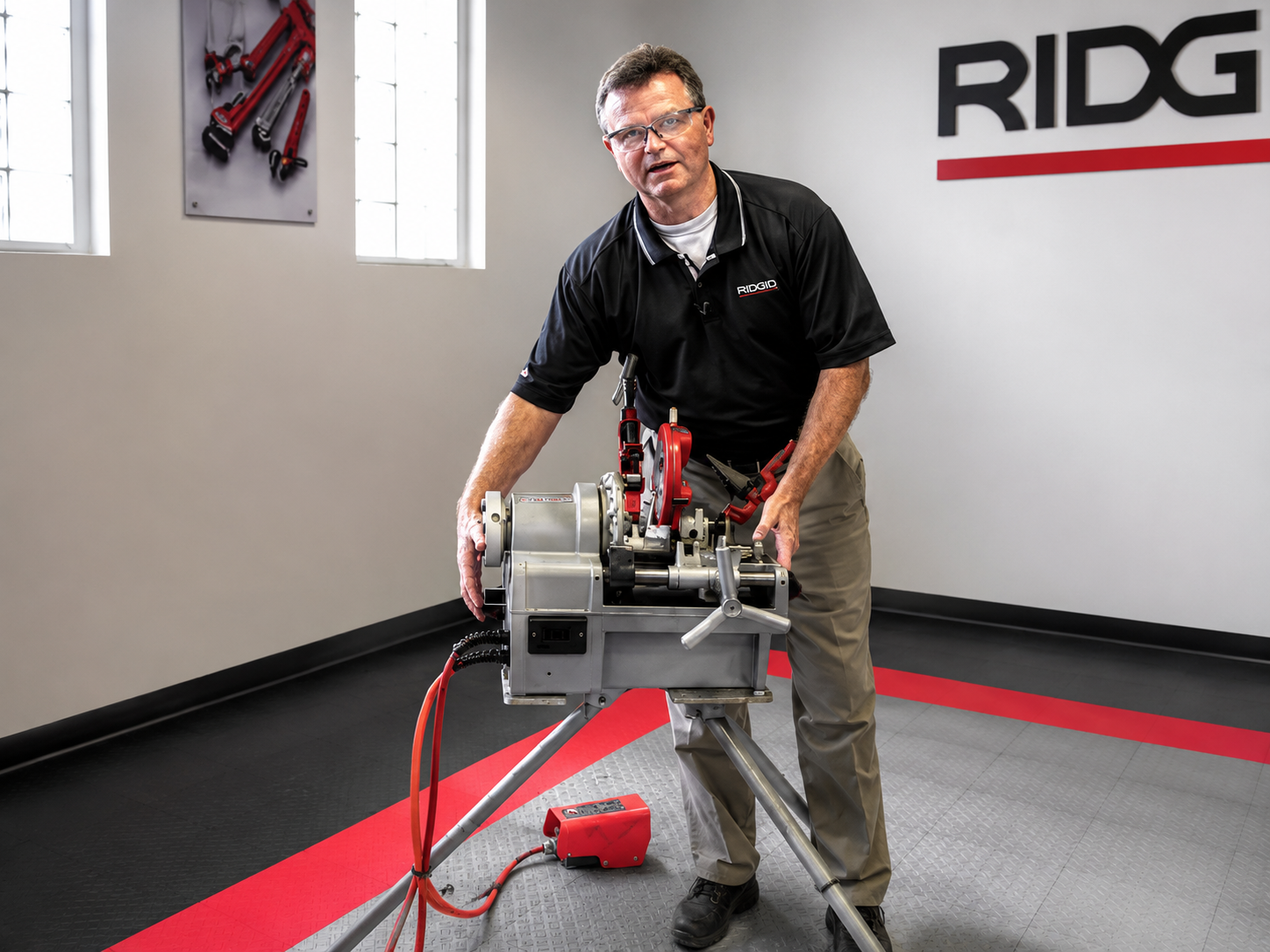

RIDGID 61142 Threading Machine: lightweight design and ½ HP Universal Motor

If you've ever threaded pipe by hand with a ratchet die stock, you know how fast your arms give out. It works fine for a job here and there. But the minute you're facing dozens of cuts on a commercial job or running pipe all day in a shop, you need a machine. That's exactly why the electric pipe threading machine exists.

The RIDGID 61142 is one of the most recognized electric pipe threading machines in the trade. Walk into almost any commercial plumbing or pipefitting job and you're likely to find one sitting on a stand, working through black iron or galvanized without breaking a sweat. It's not flashy. It just works.

This review covers everything you need to know: what it is, what it comes with, how it's built, who it's designed for, and what to watch out for. Whether you're buying your first threading machine or replacing one that's finally worn out, this breakdown will help you make a solid call.

The RIDGID 61142 is a 115V electric pipe threading machine with a 1/2 HP universal motor. It threads pipe from 1/4" up to 1-1/2" and handles bolts from 5/16" to 1". The machine runs at 44 RPM in right-hand operation, which is the standard speed for cutting clean NPT (National Pipe Taper) threads.

It uses a heavy-duty ON/OFF switch and an integral foot switch for hands-free operation, which matters when you're managing pipe with both hands. The front chuck is a hammer type with replaceable rocker action jaw inserts, and the rear centering device uses cam action to hold pipe steady during the threading process.

RIDGID has been building threading machines since the 1920s. The 61142 is part of their professional lineup, built to handle real commercial workloads day in and day out. It carries both CSA Approval and UL Standard certification (NRTLC), which matters on jobs that require certified equipment.

The one-piece aluminum housing is a defining feature of this machine. Aluminum is lighter than steel but still rigid enough to handle job site conditions. Combine that with two easy carrying handles and you've got a machine you can actually move around a shop or load into a service truck by yourself. That portability is a bigger deal than it sounds when you're moving from floor to floor on a commercial job.

One of the reasons the RIDGID 61142 sells well is that it ships fully equipped. You're not buying the machine and then hunting down die heads and dies separately. Here's what's included:

• No. 811A Quick Opening Die Head
• Set of 1/2" – 3/4" Universal Alloy NPT Dies
• Set of 1" – 1-1/2" Universal Alloy NPT Dies
• No. 344 Five Fluted Reamer (1/4" – 1-1/2")
• No. 732 Cutter with Cutter Wheel
• One Gallon RIDGID Nu-Clear Threading Oil

The No. 811A Quick Opening Die Head is the assembly that holds and releases the dies. The "quick opening" design means the dies retract automatically at the end of each cut, which speeds up production and reduces the chance of cross-threading when you pull the pipe back out. It's a professional-grade die head, not a budget accessory.

The two sets of universal alloy NPT dies cover the machine's full pipe capacity: 1/2" to 3/4" and 1" to 1-1/2". NPT is the standard thread type for North American plumbing and gas piping. Universal alloy dies hold an edge longer than standard dies, which means more threads cut before you need to sharpen or replace them. For high-volume threading work, that matters.

The No. 344 reamer handles deburring after each cut. It's five-fluted, which removes material faster and more cleanly than a single-fluted reamer. It covers 1/4" up to 1-1/2" pipe, matching the full range of the machine.

The No. 732 cutter makes clean, square cuts that are essential for getting good threads. You can't thread pipe that wasn't cut straight, so having a quality cutter included from the start keeps you from needing to buy one separately.

The Nu-Clear threading oil is specifically formulated for threading operations. It lubricates the dies during the cut, which extends die life and produces cleaner threads. The machine's through die head oiling system delivers oil directly to where the cutting is happening, and the adjustable flow control lets you dial in the right amount for the pipe size you're working with.

Threading machines used to be big, heavy, shop-floor units that didn't move once you set them up. The RIDGID 61142 changed that with a compact form factor that's actually portable. The one-piece aluminum housing sheds weight without giving up structural integrity. The dual carrying handles mean one person can move it from one location to another without needing a hand.

That portability matters more than it sounds. Plumbers on commercial jobs move from floor to floor. Contractors set up in tight mechanical rooms. If your threading machine can't go where the work is, you're wasting time hauling pipe to a fixed location. The 61142 goes where you need it.

The 1/2 HP universal motor is rated for 25-60 Hz, which means it works on both standard US power (60 Hz) and 50 Hz power found on some generators and international job sites. For most tradespeople working stateside, that's not a daily concern. But for anyone running off a generator or working in facilities with non-standard power, it's a useful spec to have.

The transmission is built for the torque demands of threading. Threading larger diameter pipe in particular puts real stress on a motor and gearbox. The 61142 runs at 44 RPM, which is the right speed for clean NPT threads without burning through die life faster than necessary.

The oiling system on the 61142 is one of its strongest features. Oil feeds through the die head directly to where the cutting is happening, rather than being applied from the outside after the fact. This means more consistent lubrication and less wasted oil.

The adjustable oil flow control lets you dial in how much oil you're using based on pipe size and material. Smaller pipe needs less oil. Larger pipe needs more. You can make that adjustment without stopping the machine, which keeps production moving on high-volume threading jobs.

The foot switch lets you start and stop the machine without taking your hands off the pipe or die head. When you're threading, both hands are usually occupied managing the pipe and guiding the head. The foot switch makes that workflow safer and more efficient.

The integral footswitch hanger is a small design touch that keeps the foot switch cord from dragging on the floor and getting tangled or tripped over. On a busy job site or in an active shop, a stray cord on the floor is a hazard. The hanger eliminates that problem.

The hammer-type front chuck with replaceable rocker action jaw inserts grips pipe securely without crushing or deforming it. The rocker action jaws adjust to different pipe sizes within the machine's capacity range without requiring you to swap out jaw sets constantly.

The cam action rear centering device keeps the pipe aligned with the die head as it feeds through. If your pipe isn't centered, your threads won't be square. A crooked thread means a leaking fitting and a callback. The rear centering device removes the guesswork from alignment and ensures consistent results on every cut.

If you're a plumber, pipefitter, HVAC technician, or industrial maintenance professional who threads pipe regularly in the 1/4" to 1-1/2" range, this machine deserves a serious look.

Plumbers doing commercial work need a machine that can handle volume. A residential job might only need a handful of threaded connections. Commercial work can mean hundreds. The 61142 is built for that kind of output, with a motor and die head designed for continuous use rather than occasional threading.

Pipefitters working on gas lines, compressed air systems, or process piping will appreciate the NPT die sets that come included. Whether you're threading Schedule 40 or Schedule 80, the machine handles it. The cam action rear centering device and rocker jaw front chuck keep things aligned even when you're moving fast.

Contractors who don't thread pipe every day but need a reliable machine when they do will also find the 61142 to be a smart buy. It's not the kind of machine that needs babying between jobs. You set it up, use it, wipe it down, and it's ready when you need it again.

One thing to be clear about: this machine tops out at 1-1/2" pipe. If your work regularly involves 2" or larger pipe, you'll need to step up to a larger machine. The RIDGID lineup includes models like the 1224 and 300 for bigger pipe. But for the vast majority of commercial plumbing and mechanical work in the 1/4" to 1-1/2" range, the 61142 is well matched to the job.

Threading oil helps extend die life, but it doesn't compensate for dull dies. When your threads start looking rough or the machine feels like it's working harder than normal, inspect the dies. Worn dies produce inconsistent threads and put additional strain on the motor. RIDGID sells replacement dies in the same universal alloy spec as the ones included with the 61142.

The adjustable oil flow control is there for a reason. Too little oil and you'll dull your dies faster, produce rougher threads, and risk galling on stainless or harder alloys. Too much oil and you're wasting material and making a mess. Start with a moderate flow and adjust from there based on pipe size and what you're threading.

The No. 344 reamer is included for a reason. Cutting pipe with any cutter leaves a burr on the inside of the pipe. That burr restricts flow, catches debris, and can damage fittings over time. Always deburr before you thread. It adds a few seconds to each cut and saves real headaches later.

The rear centering device needs to be set for the pipe size you're threading. If it's not adjusted correctly, the pipe runs off-center and your threads won't be square. Take a moment to verify the setup every time you switch pipe sizes. It's a quick check that prevents a lot of waste.

Threading oil left sitting on the die head and dies can attract dirt and metal shavings. Over time, contaminated oil degrades thread quality and accelerates die wear. After a work session, close the oil valve, wipe down the die head, and clean up the area around the pump. A few minutes of maintenance extends the life of the machine significantly.

The RIDGID 61142 doesn't try to do everything. It's a professional-grade electric pipe threading machine built to handle pipe up to 1-1/2", and it does that job extremely well. It comes fully equipped with the dies, reamer, cutter, and oil you need to start threading the same day it arrives. The build quality is what you'd expect from RIDGID: solid, functional, and built to last through years of real commercial use.

If you're doing commercial plumbing, pipefitting, HVAC work, or any trade that involves threading pipe regularly in the 1/4" to 1-1/2" range, the RIDGID 61142 is worth the investment. Threading machines aren't a place to cut corners.
