Spectra GL720 Dual Grade Laser: 3,000 Feet of Range and Two-Axis Grade Control

The Spectra GL720 is a dual-grade laser level, which means it sets slope in two directions at the same time. This is a specialized capability that matters when it comes to drainage work, slab pours, site grading, parking lot layout, and anywhere else you need a grade that runs in two axes rather than just one.

Paired with the HL700 receiver, the GL720 can work out to 3,000 feet and hold accuracy to within 1/16 of an inch per 100 feet. Using this laser level advances the way you work on the jobsite through less mental fatigue and more accurate results.

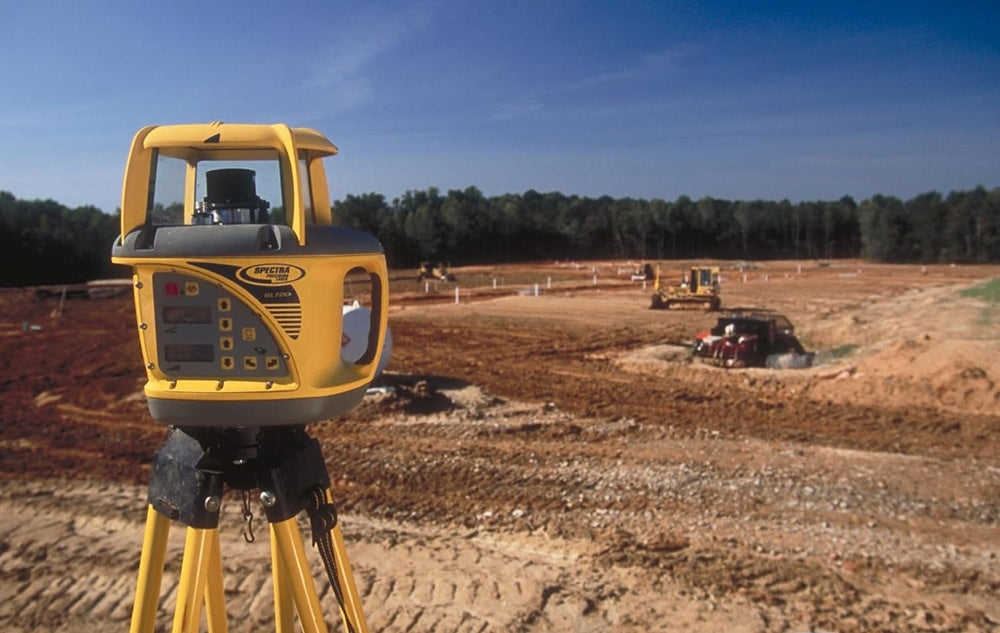

The GL720 is a self-leveling rotating grade laser from Spectra Precision. It projects a 360-degree laser beam and can set grade in both the X and Y axes simultaneously. That's what dual grade means in a practical sense. A standard single-grade laser sets slope in one direction. You tilt it along one axis and the laser projects at that angle. The GL720 sets grade in two directions at once, which opens up a much wider range of applications for contractors doing complex site work.

Spectra rates the GL720 as the longest-range, most accurate, and most durable machine in their rotating laser lineup. It's designed for outdoor construction environments, not for occasional interior layout. The die cast housing, IP66 protection rating, and temperature compensation system all reflect the demands of working on active construction sites in variable conditions.

The GL720 is built for contractors and tradespeople who do precision-grade and level work as part of their regular scope. Concrete flatwork crews use it to hit drainage grades on slabs before the pour. Site grading crews use it for cut and fill operations on large sites. Linemen doing site layout or establishing reference grades over long distances use it for accurate level checks across terrain. Contractors and project supervisors use it to establish benchmark elevations on commercial pads, subdivision grading projects, and civil construction sites where a shorter-range tool just won't reach.

Electricians doing exterior conduit runs or site work use rotating lasers for establishing level reference lines across large areas. Plumbers running underground drain lines need slope control precise enough to meet code requirements; a dual-grade laser makes it repeatable and verifiable to hit those grades. The 3,000-foot working range of the HL700 receiver means this machine isn't limited to small projects. It's built for commercial and civil work at scale.

The laser itself is only half of the system. The HL700 receiver is the tool you use in the field to capture the beam and take readings. It's IP67 rated, which means it's fully dustproof and can handle temporary immersion -- making it more ruggedized than the laser itself. The HL700 has front and rear LCD displays with both audio and visual indicators for high, on-grade, and low readings. You can see your status from either side of the rod and hear the audio tone change as you move into grade. In field conditions where you're moving fast, that combination of audio and visual feedback makes the work go quicker.

The HL700 runs on two standard AA batteries with up to 70 hours of battery life, so you're not burning through batteries constantly on a long project. The receiver includes a C70 rod clamp for mounting on a grade rod, and it comes with both coarse and fine detection modes. Fine mode gives you accuracy to within 3/32 of an inch, which is appropriate for concrete flatwork and drainage work. Coarse mode at 1/2-inch tolerance works for rough grading and cut-and-fill operations where you're moving dirt rather than finishing concrete.

This is the feature that separates the GL720 from single-grade rotating lasers, and it's worth understanding clearly before you decide if you need it. A single-grade laser sets slope along one axis. For simple work -- a single fall on a drainage swale, or a uniform slope along a long run -- that's sufficient. But a lot of real-world concrete and grading work involves grades that run in two directions.

Consider a parking lot that drains from the back left corner to a catch basin at the front right. That requires a grade running front-to-back and a separate grade running left-to-right at the same time. A dual grade laser handles both simultaneously. A slab that needs a pitch across its width and a different pitch along its length is the same story. So is a drainage field, an airport taxiway, or a commercial building pad with complex grading requirements. The GL720 sets grade from -10% to +15% in both axes, which covers the full range of real-world applications in commercial and civil construction.

The GL720 uses die-cast housing, which is more impact-resistant than injection-molded plastic. Its IP66 protection rating means it's fully sealed against dust and protected against powerful water jets; the kind of rain and hose-down conditions you encounter on active construction sites. That's a meaningful level of protection for equipment that lives outdoors on rough jobs.

The machine also includes temperature compensation, which is a feature that matters more than it might seem. Optical and mechanical components in laser instruments are affected by temperature changes, and a laser that's accurate at 60 degrees in the morning may drift as the day heats up to 90 degrees in the afternoon if there's no compensation built in. The GL720 corrects for temperature change automatically, which keeps your grade readings accurate from the start of the day to the end. The rated operating range is -4 degrees to 122 degrees Fahrenheit, which covers virtually any job site condition in North America.

The GL720 runs on a rechargeable 10 Ah NiMH battery pack that Spectra rates for up to 35 hours of continuous use. The battery pack and charger are included in the kit. For a full-day job site, 35 hours means you're not worrying about battery life mid-project. The machine offers three rotation speeds: 300, 600, and 900 RPM.

Faster rotation produces a more visible, consistent beam in bright outdoor conditions, which is important when you're working at long range in direct sunlight. Slower rotation can be easier for the receiver to track at shorter distances. Having three speeds lets you optimize the machine for your working conditions rather than accepting a one-size-fits-all setting.

The Spectra GL720 package includes the GL720 laser, the HL700 receiver, a C70 rod clamp, a 10 Ah NiMH rechargeable battery pack, a battery charger, and a carrying case. That's a complete kit ready to work from day one. The carrying case is worth mentioning because it's a real asset on a job site -- it protects both the laser and receiver during transport, keeps everything organized, and cuts down on the risk of damage between jobs. You're not sourcing accessories separately or building a makeshift case. Everything you need is in the box.

The Spectra GL720 is a professional-grade dual-grade laser built for the kind of work that demands both precision and range.

If you're doing concrete flatwork, site grading, drainage layout, parking lot paving, or any job where grade runs in two directions, this machine makes that work faster, more accurate, and executable with a smaller crew. The 3,000-foot working range of the HL700 receiver means it's not limited to small sites; it's built for commercial and civil work at scale. The IP66 rating, temperature compensation, 35-hour battery life, and rugged die-cast housing all point to a machine designed for daily use in real outdoor conditions, not occasional light-duty leveling.
