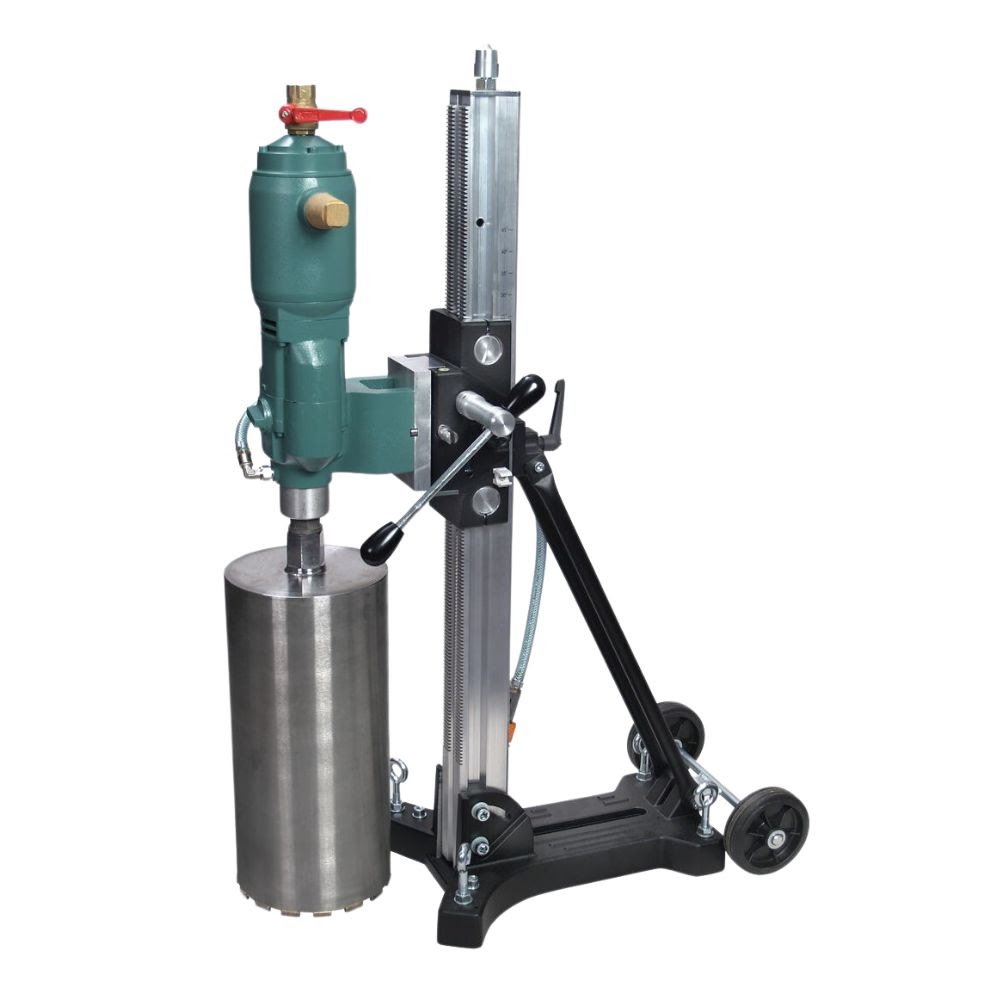

Spitznas CS Unitec 2 1328 0050 SA Wet Air Core Drill |12" Capacity | 3-Speed | w/ Anchor Stand Kit
Free Shipping
$5,201.96
$5,534.00
Unit price
/
Unavailable
Description
Description
CS Unitec 2 1328 0050 SA Includes
- (1) 2 1328 0050 Core Drill
- (1) Anchor Stand
CS Unitec 2 1328 0050 SA Features
- Powerful 3-speed air core drill rig with anchor stand. Drill and Stand can be mounted independently with ease.
- 12" diameter hole capacity in reinforced concrete & more.
- Increased Safety: ATEX certified drill motor for use in EX Zones/Hot work and related areas.
- 3.8 HP Air motor provides excellent power to weight ratio, continuous run time and long life.
- 3 speed gear box (390/700/1350 rpm load speed) for increased bit life and cut quality.
- For professional drilling contractors
- Mechanical slip clutch design
- Machine integrated water supply for easy use.
- Ideal for heavy-duty wet drilling in concrete, reinforced concrete, and asphalt
- Vacuum stand and air powered vacuum pump Available.
CS Unitec 2 1328 0050 SA Specifications
| Motor | 3.8 HP, 123 CFM @ 90 PSI |
| Max. Drilling Diameter | 12" |
| Load Speed | 300/700/1350 RPM |
| Drill Machine (2 1328 0050) ATEX Certification | II 2G Ex h IIB T5 Gb |
| Weight | 69 lbs |
| Power Type | Air |
| Spindle Connection(s) | 1-1/4" x 7 UNC 5/8" x 11 UNC (optional) |
| Air Connection | 3/4" NPT |
| Air Consumption | 123 CFM @ 90 PSI |
| Stand | Rig Mount Core Drill Motor w/ Anchor Stand |
| Stand | BST 300 Anchor Stand (Included)The CS Unitec Spitznas 2 1328 0050 air powered core Drill combines a powerful 3.8 HP motor with a rugged 3-speed gearbox to drill holes up to 12” diameter. The air motor is ATEX certifed for use in EX Zones/Hot work and related areas. No fumes, excellent for confined spaces offer increased safety. Ideal for heavy-duty drilling in concrete, reinforced concrete, asphalt, natural stone and refractory. No other drill in its class is so light and powerful. |
