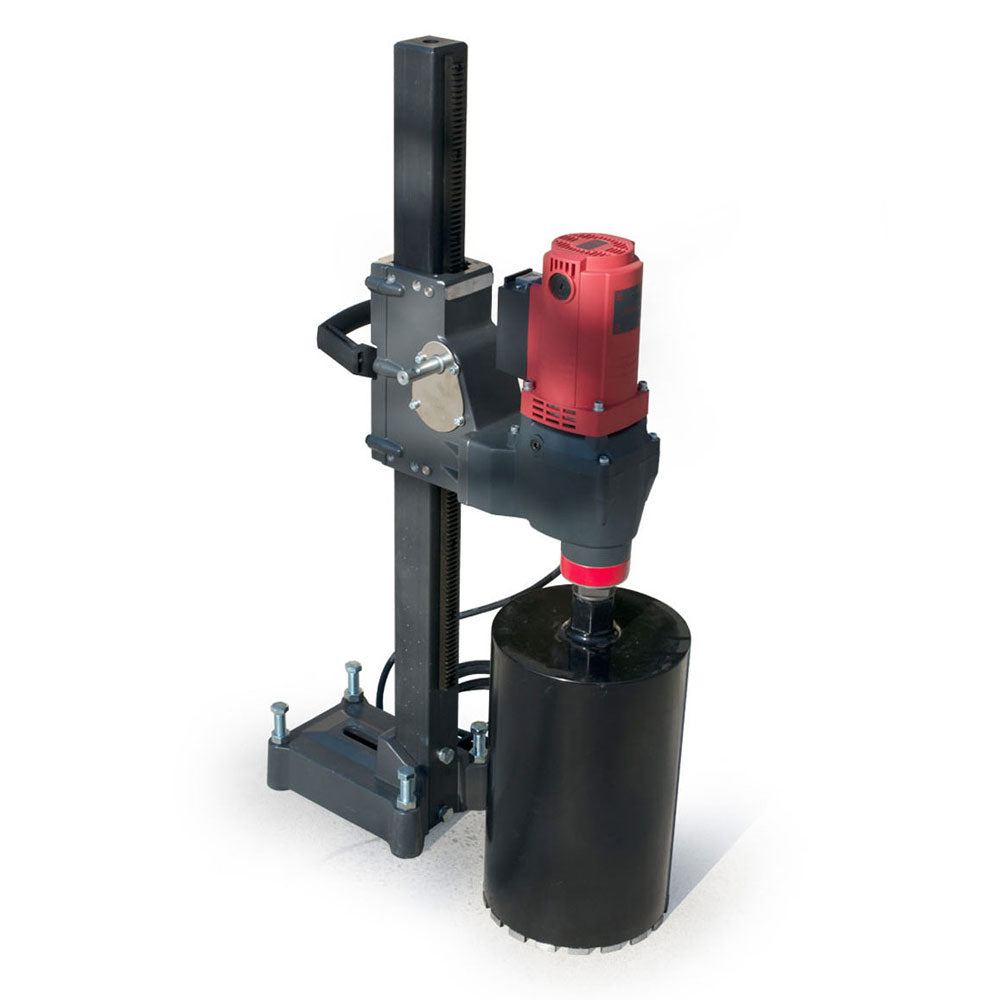

Diamond Vantage SMD12 Hakken Core Drill Rig, 12" Bit Capacity
Free Shipping
$2,512.11
Unit price
/
Unavailable
Description
Description
FEATURES:
• New larger base for enhanced stability
• Spindle thread size 1-1/4”-7 (industry standard)
• Motor comes with slip clutch that can be easily adjusted from outside the motor and can be completed on the job site
• Max core bit length of 26” can be installed
• Feed handle can be placed on either right or left side of carriage for easy drilling close to walls and columns
SPECIFICATIONS:
• Dual speed motor with no load speeds of 360/850 rpm
• 4 adjustable leveling screws form drilling uneven surfaces
• Double insulated construction
• Spindle thread 1-1/4"-7
• Column thickness 2-5/16"
• Stand height 39-3/8"
• Carriage travel 24-3/8"
• Anchor base 7" w x 8-1/2" l
• Clutch type slip
• Speed 360/850 rpm (dual)
• Weight 95 lbs. (43.1 kg)
Smd12 core drill 12” core bit capacity, 115v, 20a drill motor
• New larger base for enhanced stability
• Spindle thread size 1-1/4”-7 (industry standard)
• Motor comes with slip clutch that can be easily adjusted from outside the motor and can be completed on the job site
• Max core bit length of 26” can be installed
• Feed handle can be placed on either right or left side of carriage for easy drilling close to walls and columns
SPECIFICATIONS:
• Dual speed motor with no load speeds of 360/850 rpm
• 4 adjustable leveling screws form drilling uneven surfaces
• Double insulated construction
• Spindle thread 1-1/4"-7
• Column thickness 2-5/16"
• Stand height 39-3/8"
• Carriage travel 24-3/8"
• Anchor base 7" w x 8-1/2" l
• Clutch type slip
• Speed 360/850 rpm (dual)
• Weight 95 lbs. (43.1 kg)
Smd12 core drill 12” core bit capacity, 115v, 20a drill motor
