Fluke | SKU: FLK-729PRO 4M | Barcode: 195112030905

Fluke FLK-729PRO 4M 729 Pro Automatic Pressure Calibrator, 4MPA

Free Shipping

$15,730.99

Description

Fluke 5300476 Description

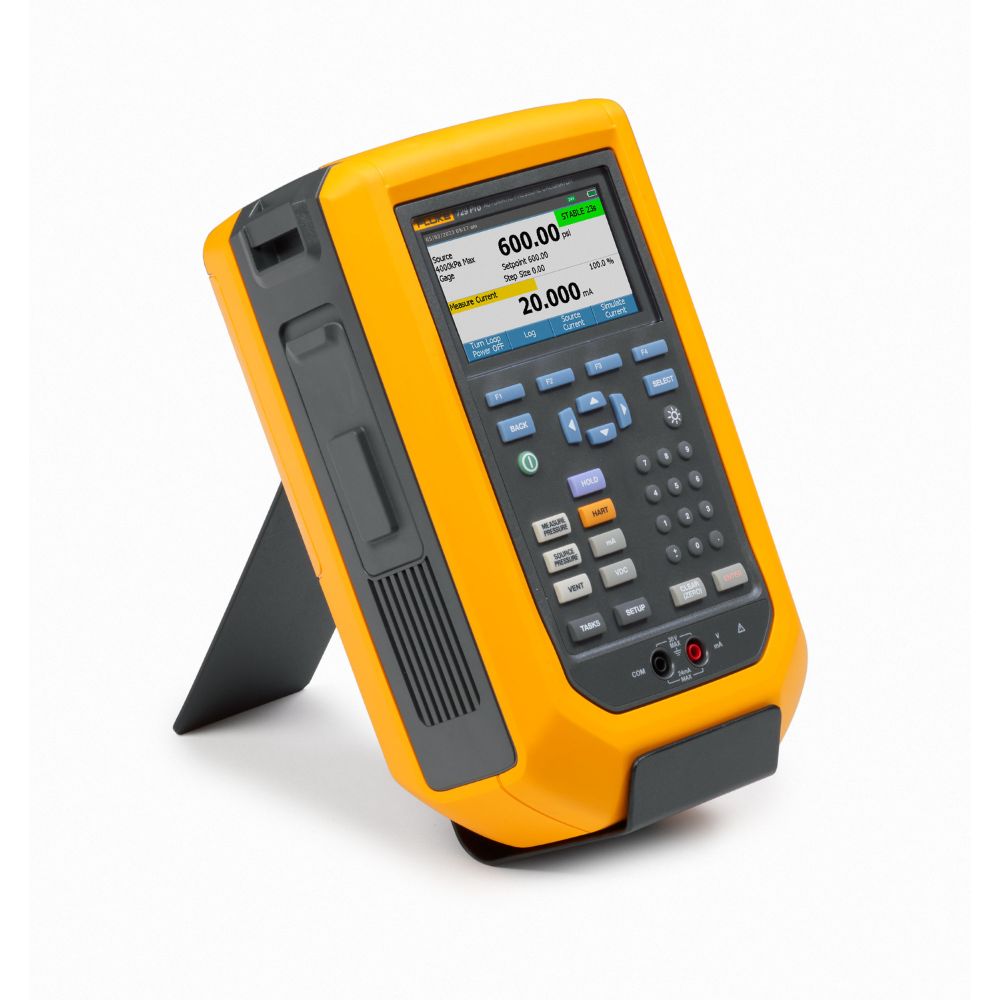

The Fluke 729 Pro 4M Automatic Pressure Calibrator is a portable field pressure calibration tool for lab or field use. This Automatic Pressure Calibrators covers a broad pressure range up to 600 psi. The 729Pro with its’ higher capacity built in electric pump is also much faster to pressures than the standard Fluke-729.

Fluke 5300476 Includes

(1) AC/DC Converter
(1) Power Cord
(1) Rechargeable Lithium-ion Battery
(1) Stackable Test Lead Set
(1) AC280 Sure Grip Hook Set
(1) Alligator Clips
(1) TP220 Test Probes
(1) USB Communication Cable
(1) Flexible Hose
(1) 1/8" FNPT to 1/4" FNPT
(1) 1/8" MNPT to 1/4" MNPT
(1) 1/8" F-NPT to F-M20
(1) 1/4" FBSP to 1/8" FNPT
(1) Pressure Measurement Module
(1) PTFE Tape
(1) Water Drain
(1) Adjustable Quick-Release Hanging Strap
(1) Safety Information and Traceable Calibration Report with Data

Fluke 5300476 Features

Automatically source and measure pressure up to 600 psi to test and calibrate pressure sensors, transmitters and other pressure instruments
Replaceable pressure control modules
Built-in test templates, one-key calibration
HART communication
Pressure leakage testing
Automatic fine-pressure adjustment, automatic pressure stabilization
Powerful, replaceable Li-ion battery
Quick pressure release valve with a muffler
Extend measurement range with 750P Series pressure modules
Measure temperature with 720RTD probe
Bright dual-three-channel /color graphic display
Rugged and portable design with standard 3-year warranty
Absolute and gauge pressure modules up to 7MPa.
Use the modules to change the Fluke 729Pro to a different output pressure range

Fluke 5300476 Specifications

Pressure Control Range	-13 to 600 psi, -90 to 4000 kPa, -0.90 to 40 bar
Pressure Type	Gauge/Absolute (Depends on the type of internal or external pressure module)
Pressure Accuracy and Control Stability	0.02% of FS, 0.005% of FS
Replaceable Pressure Measurement Modules	Yes, 4 Modules
mA Sourcing/Measurement	Yes
Voltage Measurement	Yes
Loop Power	24V DC
Pressure Switch Testing	Yes
Pressure Leakage Testing	Yes
HART Communication	Yes, Basic Commands Supported
Autostep/Auto Ramp	Yes (with customizable speed, mode and style)
Battery	Rechargeable Lithium Battery with Charge Indication (charged in the instrument or separately)
Stability	Pumps to Target Pressure and Automatically Stabilizes
Display	Multi-Color Triple Display
Length	9.4"
Width	4.4"
Height	4.3"
