Fluke | SKU:
OFP2-100-Q

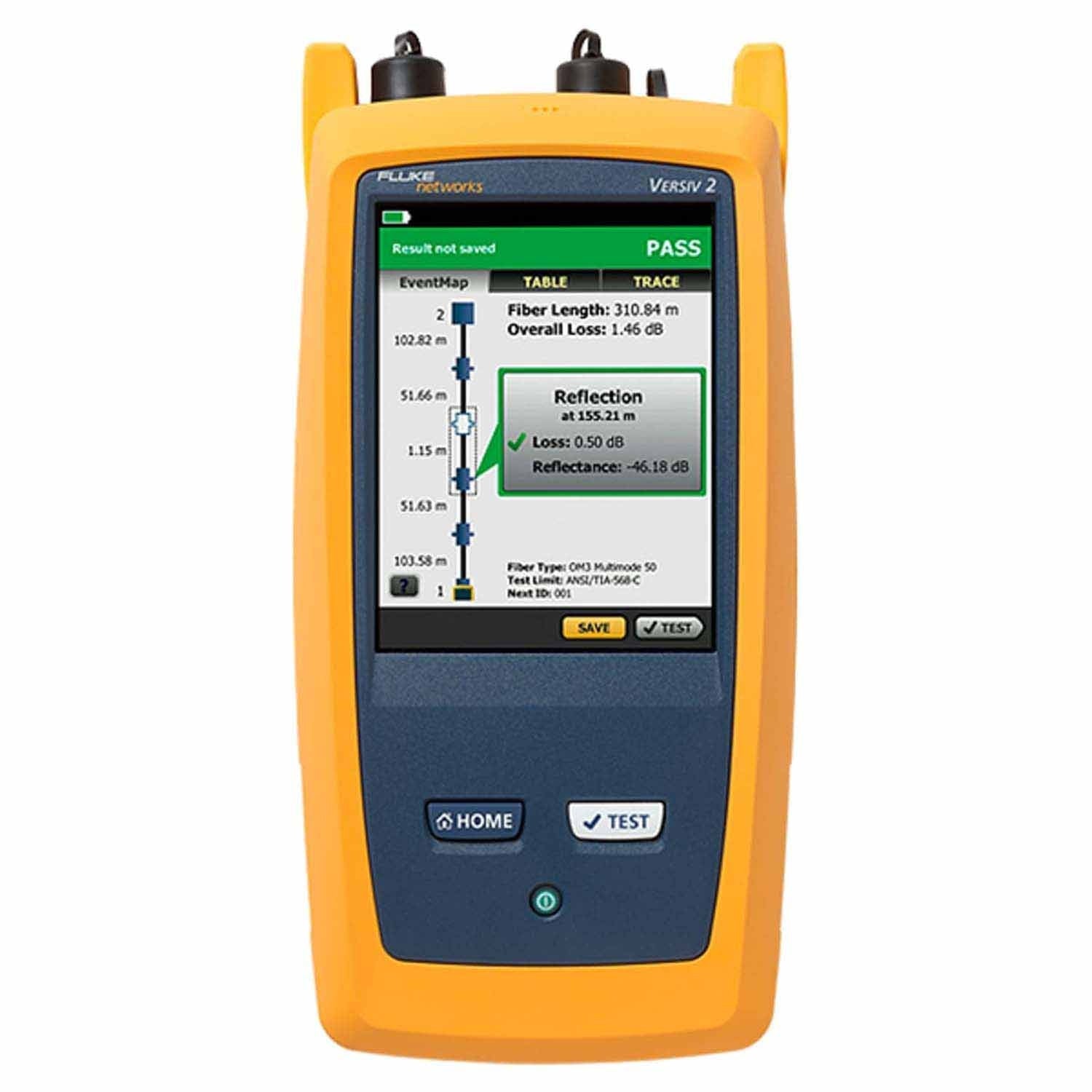

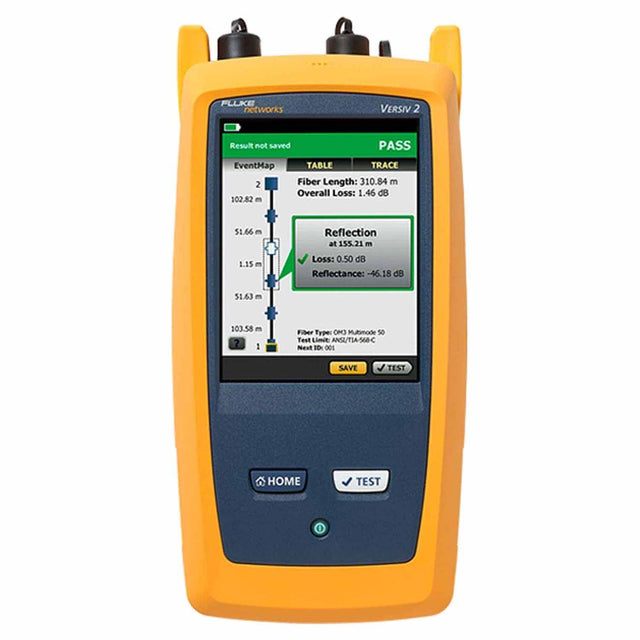

Fluke OFP2-100-Q OptiFiber Pro Quad OTDR V2 with WiFi for Enterprise Fiber Testing
Free Shipping
$15,607.27
Unit price
/
Unavailable
Description
Description
Fluke OFP2-100-Q Description
The Fluke OptiFiber Pro Quad OTDR V2 with WiFi is a high-performance fiber optic tester designed for enterprise and datacenter environments. Featuring a user-friendly touchscreen, advanced event mapping, and fast test times, it enables efficient certification, troubleshooting, and maintenance of both multimode and singlemode fiber networks.
Fluke OFP2-100-Q Includes
- (1) OptiFiber Pro Quad OTDR V2 Mainframe
- (1) Quad OTDR Module
- (1) WiFi Adapter
- (1) Carrying Case
- (1) Power Adapter
- (1) USB Cable
- (1) Shoulder Strap
- (1) Quick Reference Guide
- (1) Software CD
Fluke OFP2-100-Q Features
- Full OTDR capability for multimode and singlemode fiber certification
- Capacitive touchscreen with intuitive gesture-based interface
- Automatic graphic event mapping for connectors and splices
- Ultra-short dead zones for accurate troubleshooting in datacenter fiber links
- Quick Test mode with test times as short as two seconds
- Pass/Fail certification of fiber optic connector endfaces
- SmartLoop OTDR for automated dual-fiber testing
- Compatible with LinkWare Live for real-time job tracking and results management
- Reduces network downtime by quickly identifying faults
- Compliant with ISO and TIA standards
Fluke OFP2-100-Q Specifications
| Fiber Type: | Multimode, Singlemode |
| Wavelengths: | 850, 1300, 1310, 1550 nm |
| Event Dead Zone: | 0.5 m (850 nm), 0.7 m (1300 nm), 0.6 m (1310/1550 nm) |
| Attenuation Dead Zone: | 2.5 m (850 nm), 4.5 m (1300 nm), 3.6 m (1310 nm), 3.7 m (1550 nm) |
| Dynamic Range: | 28 dB (850 nm), 30 dB (1300 nm), 32 dB (1310 nm), 30 dB (1550 nm) |
| Distance Measurement Range: | 9 km (850 nm), 35 km (1300 nm), 80 km (1310 nm), 130 km (1550 nm) |
| Reflectance Range: | -14 dB to -65 dB |
| Pulse Widths: | 3, 5, 20, 40, 200 ns (850 nm); 3, 5, 20, 40, 200, 1000 ns (1300 nm); 3, 10, 30, 100, 300, 1000, 3000, 10000, 20000 ns (1310/1550 nm) |
| Test Time (Auto Setting): | 5 sec (MM), 10 sec (SM) |
| Product Width: | 11.02 in |
| Product Height: | 7.87 in |
| Product Length: | 16.14 in |
| Product Weight: | 7.64 lbs |
| Country of Origin: | United States |
