Jet | SKU: JT9-252720 | Barcode: 662755102769

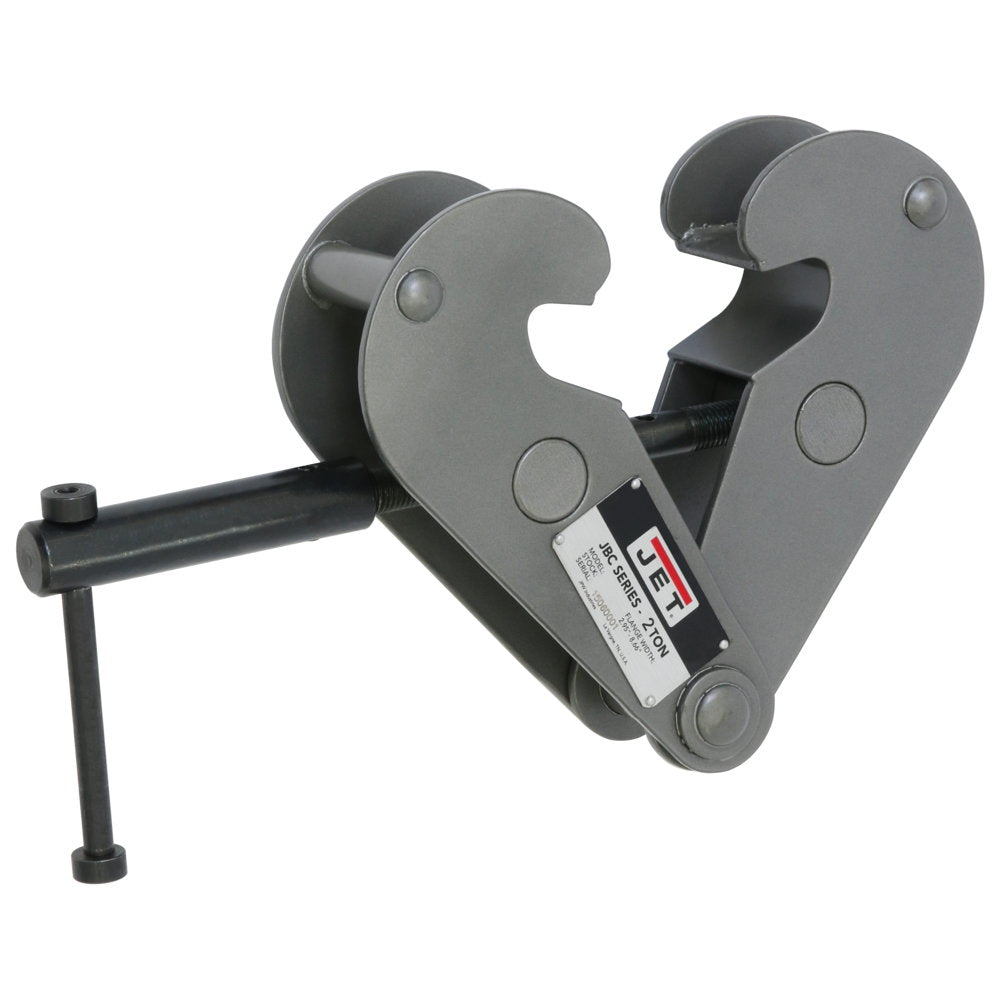

Jet JT9-252720 JBC-2, 2-Ton Beam Clamp

$134.64 ~~$214.00~~

Description

Jet 252720 Description

JET JBC Series features a more robust construction for increased durability and longer life in demanding industrial environments. The JBC Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 10 inches wide. Each JET beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams.

Jet 252720 Features

Durability
Robust construction for increased durability and longer life in demanding industrial environments
Welded, enclosed pockets provide greater stability and durability where the beam clamp attaches to the beam/structure
Larger, thicker diameter pins for increased durability and life
Welded all-steel frame and powder coat finish provide maximum durability and protection
Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
Used for quick mounting of a hoist or for lifting a broad range of beams up to 10-5/8 inches wide for increased versatility
Standards
Complies with ANSI / ASME B30.17 and B30.20 standards
Certification- Load tested to 125% of capacity with certificate

Jet 252720 Specifications

Load Capacity (Metric Tons)	2
Capacity (Lbs.)	4,400
Weight (Lbs.)	14
Maximum Beam Flange Width (In.)	8-2/3
Minimum Beam Flange Width (In.)	3
Load Capacity (Tons)	2
