Ridgid 63813 Description

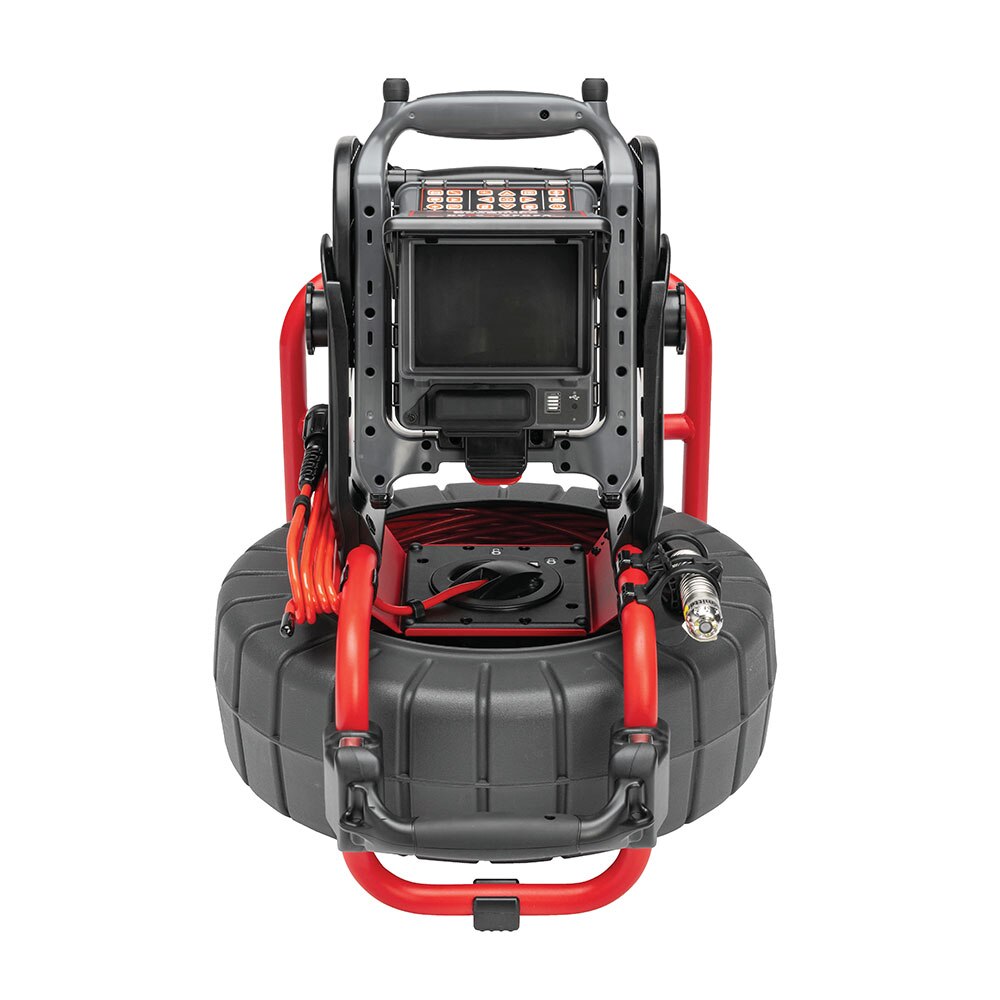

63813 Ridgid SeeSnake Compact 131' M40 w/ CS6x Versa Monitor. SeeSnake Compact M40 Camera System. The Compact M40 has 131' (40 m) of moderately stiff push cable, providing a good compromise between stiffness and the ability to navigate turns. The Compact M40 offers similar performance to the SeeSnake Mini in the popular Compact form factor, combining a small package and all-in-one monitor capability. Now available with TruSenseª technology. The Compact M40 has 131' (40 m) of moderately stiff push cable, providing a good compromise between stiffness and the ability to navigate turns.
Ridgid 63813 Includes
- (1) 63673 - SeeSnake Compact M40 | Reel, Compact M40 25mm SL TruSense
- (1) 64943 - CS6x VERSA System
Ridgid 63813 Features
- Quick-release docking system for fast, efficient job setup with the SeeSnake CS6xPak monitor.
- Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
- Powerful FleXmitter¨ sonde has long range and preserves the camera's ability to make turns.
- High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions
- TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.
Ridgid 63813 Specifications
| Line Capacity | 1.5" to 8" (38 mm to 203 mm) |
| Push Cable Length | 131' (40 m) |
| Push Cable Diameter | 0.36" (9.1 mm) |
| Push Cable Core | 0.14" (3.5 mm) |
| Fiberglass Push Cable Bend Minimum Radius | 3" (76 mm) |
| Weight (without batteries) | 22 lbs. (10 kg) |
| Size Length | 25" (63.5 cm) |
| Width | 14" (35.6 cm) |
| Height | 17" (43.2 cm) |
| Camera Type | 1" (25 mm) |
| Frequency | 512Hz |
| Operating Temperature | 14¡F to 122¡F (-10¡C to 50¡C) |
| Storage Temperature | 14¡F to 158¡F (-10¡C to 70¡C) |
| Ingress Protection (without Monitor) | IPx5 |
