Simpson Strong-Tie ABA66RZ (6") 14Ga Adjustable Standoff Post Base for 6x6 Rough - ZMAX Finish
Description
Description
Simpson ABA66RZ Description

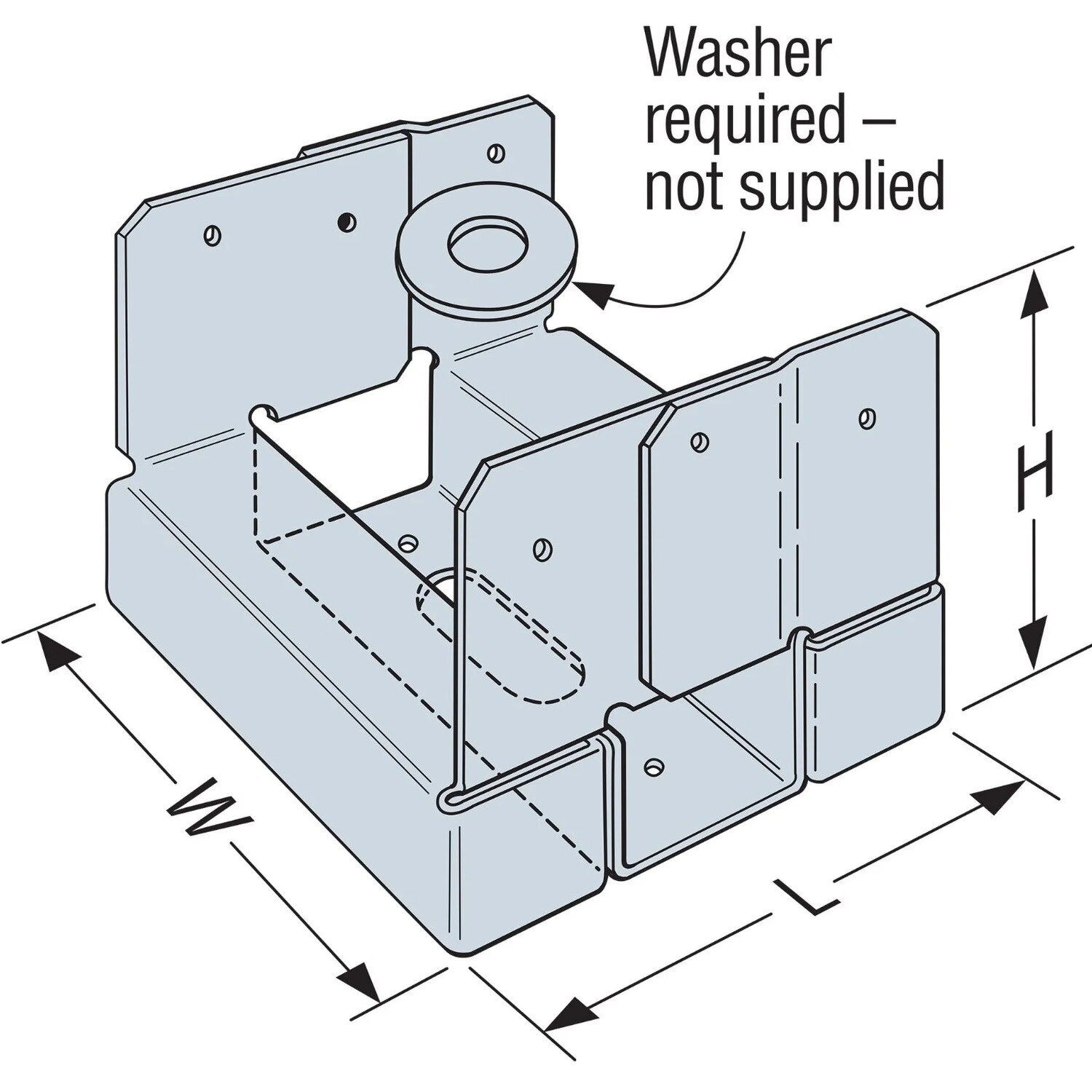

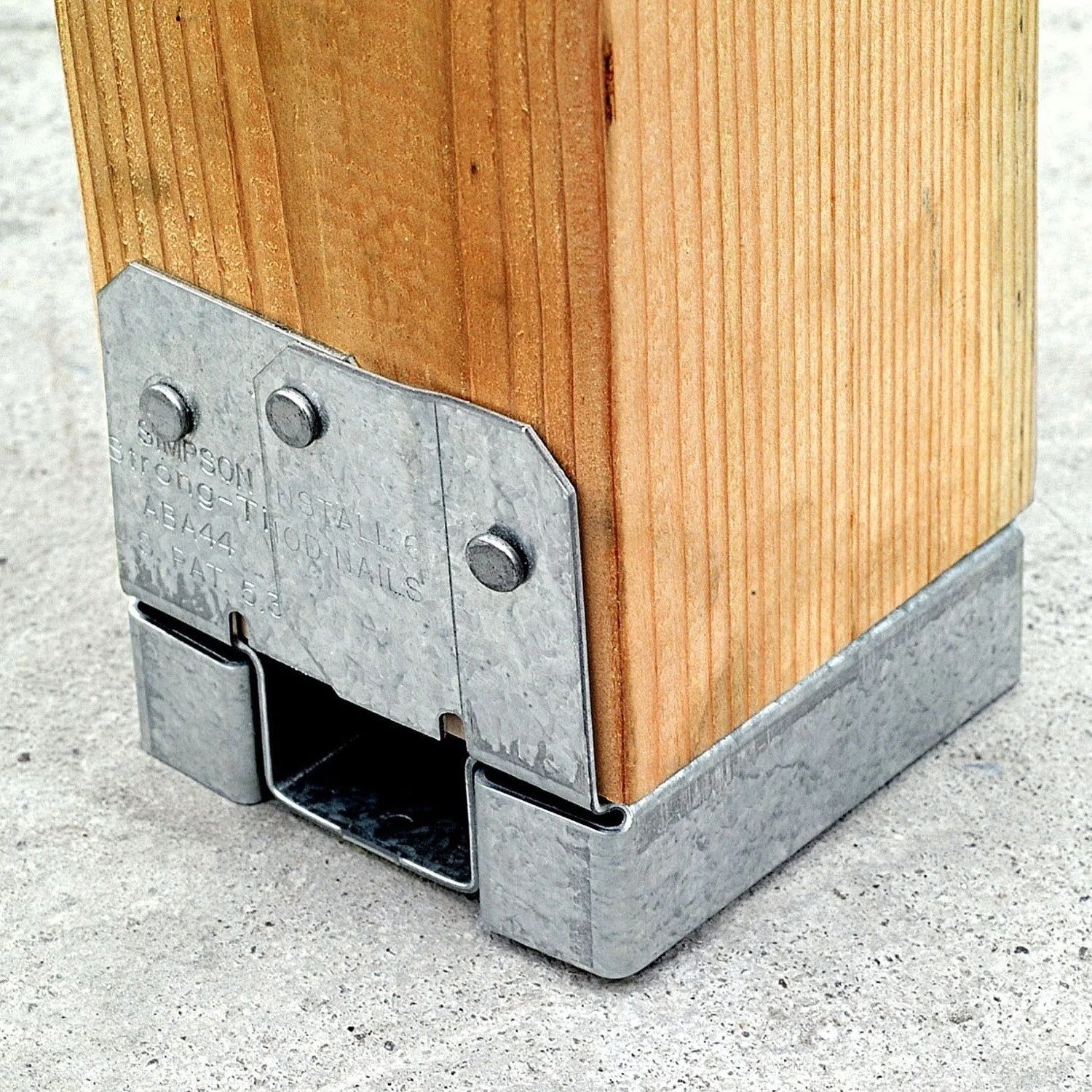

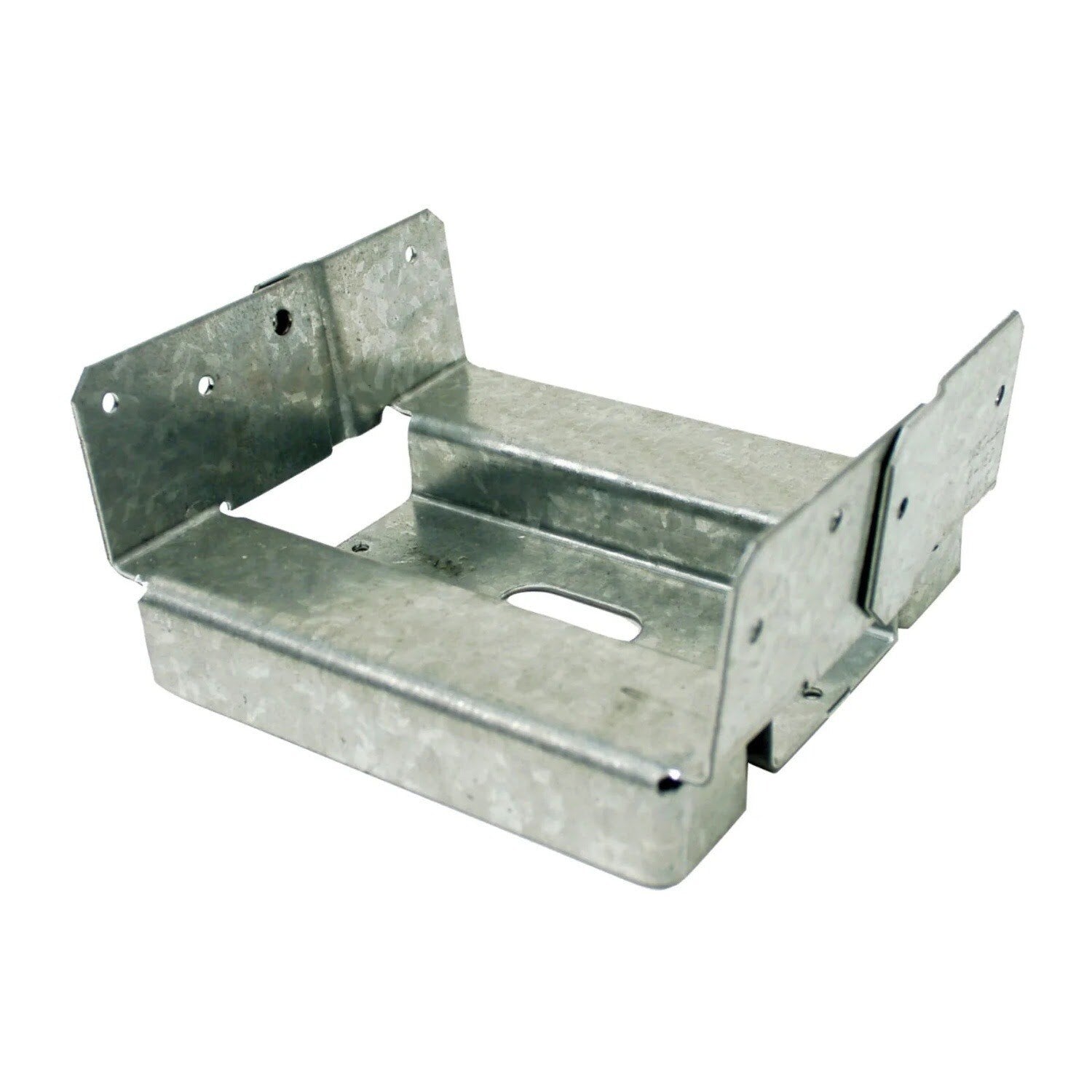

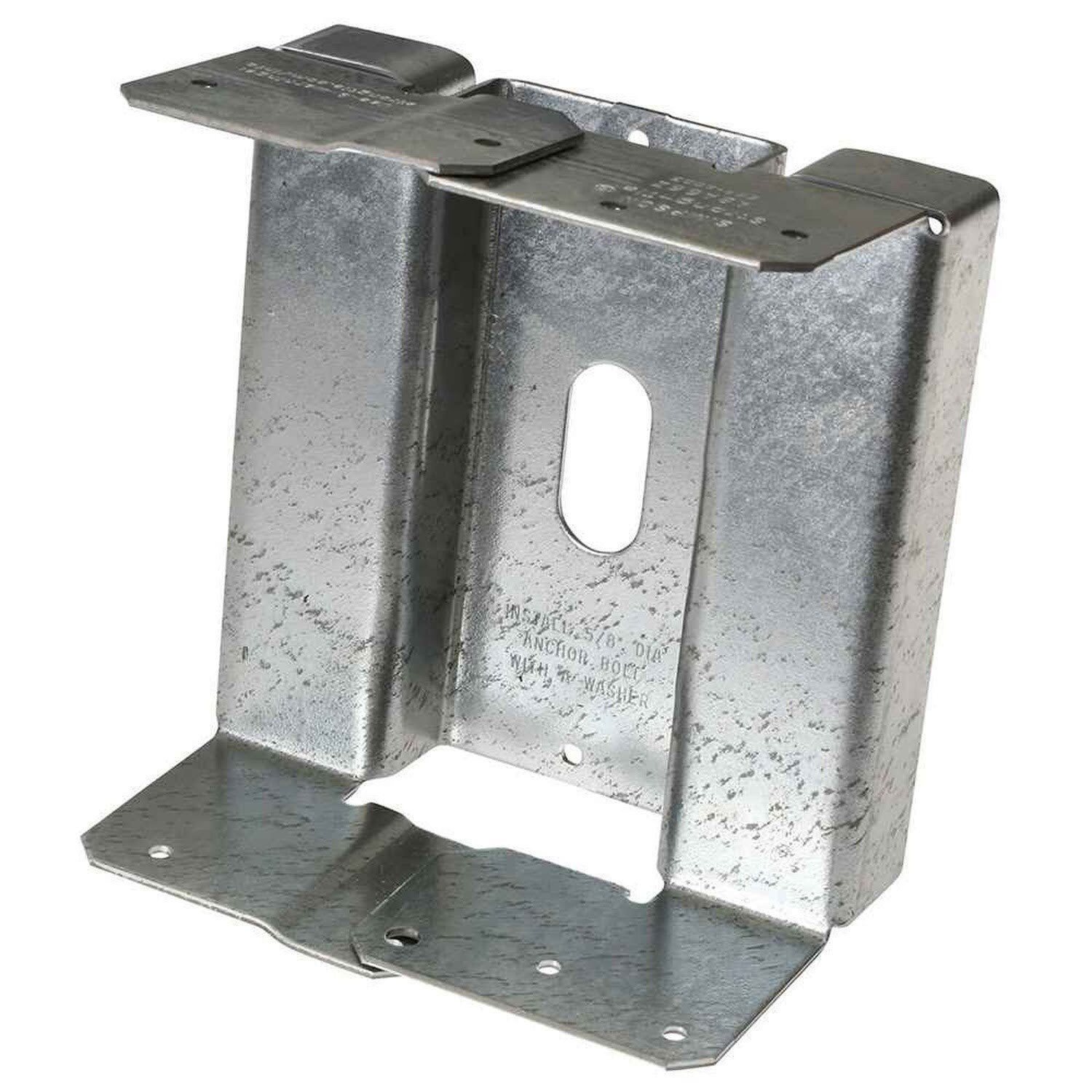

The Simpson ABA66RZ Adjustable Standoff Post Base is designed for rough cut 6x6 lumber, providing secure attachment to concrete with a 1-inch standoff for durability.
Simpson ABA66RZ Includes
- (1) Adjustable Standoff Post Base for 6x6 Rough
Simpson ABA66RZ Features
- 1-inch standoff design prevents rot at the end of the post
- Slotted anchor hole for precise post placement
- Engineered for high uplift loads
- ZMAX coating for corrosion resistance
- Compatible with nails or Strong-Drive SD Connector screws
Simpson ABA66RZ Applications
- Decks: Securely attaches posts to concrete footings
- Construction projects requiring durable post bases
- Outdoor structures exposed to weather or water splash
Simpson ABA66RZ Installation Overview
- Place the base on the anchor bolt and adjust post placement
- Securely tighten the nut on the anchor bolt
- Fasten the post using nails or Strong-Drive SD Connector screws
Simpson ABA66RZ Specifications
Finish | ZMAX |
Material | Steel |
Post Size | Rough Cut 6x6 |
Fasteners Required | (8) 0.162 x 3-1/2" Nails, (1) 5/8" Concrete Anchor |
NOTE: Ensure the correct fasteners are used and installed in the proper positions to achieve the published load values
