Simpson Anchors | SKU:
ACH6Z
Simpson Strong-Tie ACH6Z (5-1/2" x 8-1/2") 18Ga Adjustable Post Cap - ZMAX Finish
$23.44
Unit price
/
Unavailable
Description
Description

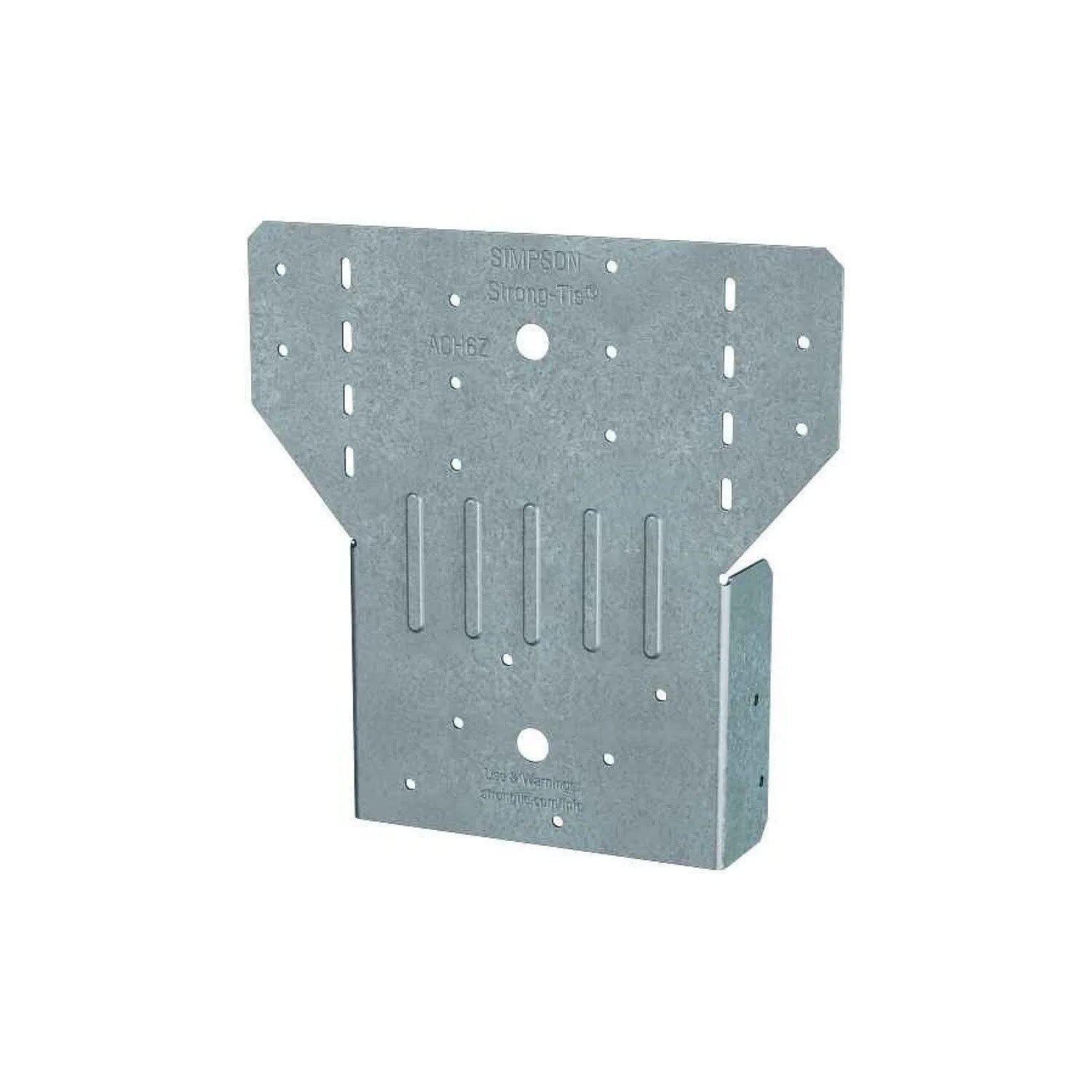

Simpson Strong-Tie ACH6Z Description
The Simpson Strong-Tie ACH6Z is a heavy-duty post cap designed for 6x nominal posts, providing secure connections between beams and posts. It features a ZMAX finish for durability and is suitable for both new and retrofit applications.
Simpson Strong-Tie ACH6Z Includes
- (1) Adjustable Post Cap for 6x Nominal Post
Simpson Strong-Tie ACH6Z Features
- ZMAX finish for corrosion resistance
- Field-bendable flanges for end-beam conditions
- Load rated when installed in pairs
- Compatible with Strong-Drive SD Connector screws for increased loads
Simpson Strong-Tie ACH6Z Applications
- Structural support for beams and posts
- New or retrofit construction projects
- Medium- to high-capacity uplift load applications

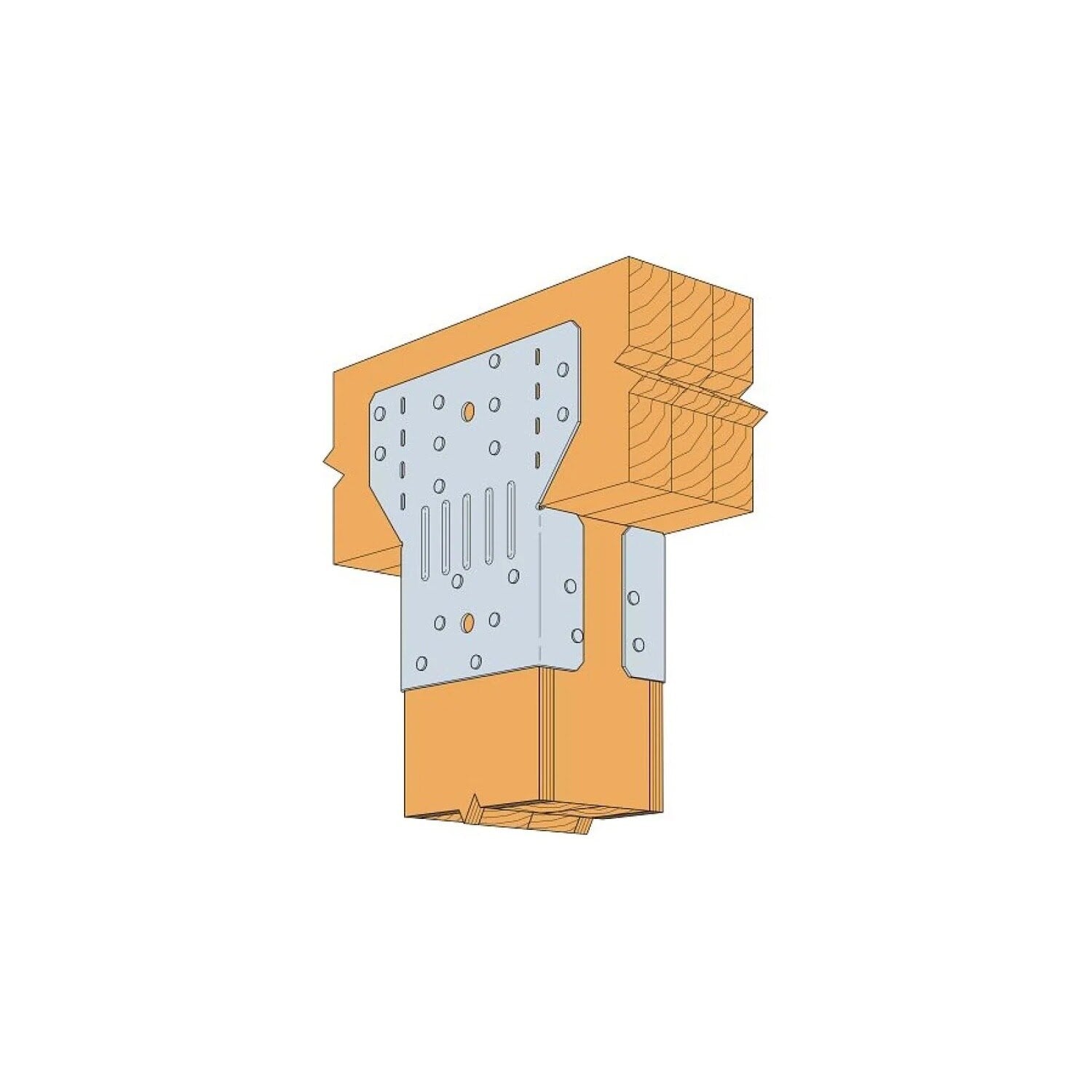

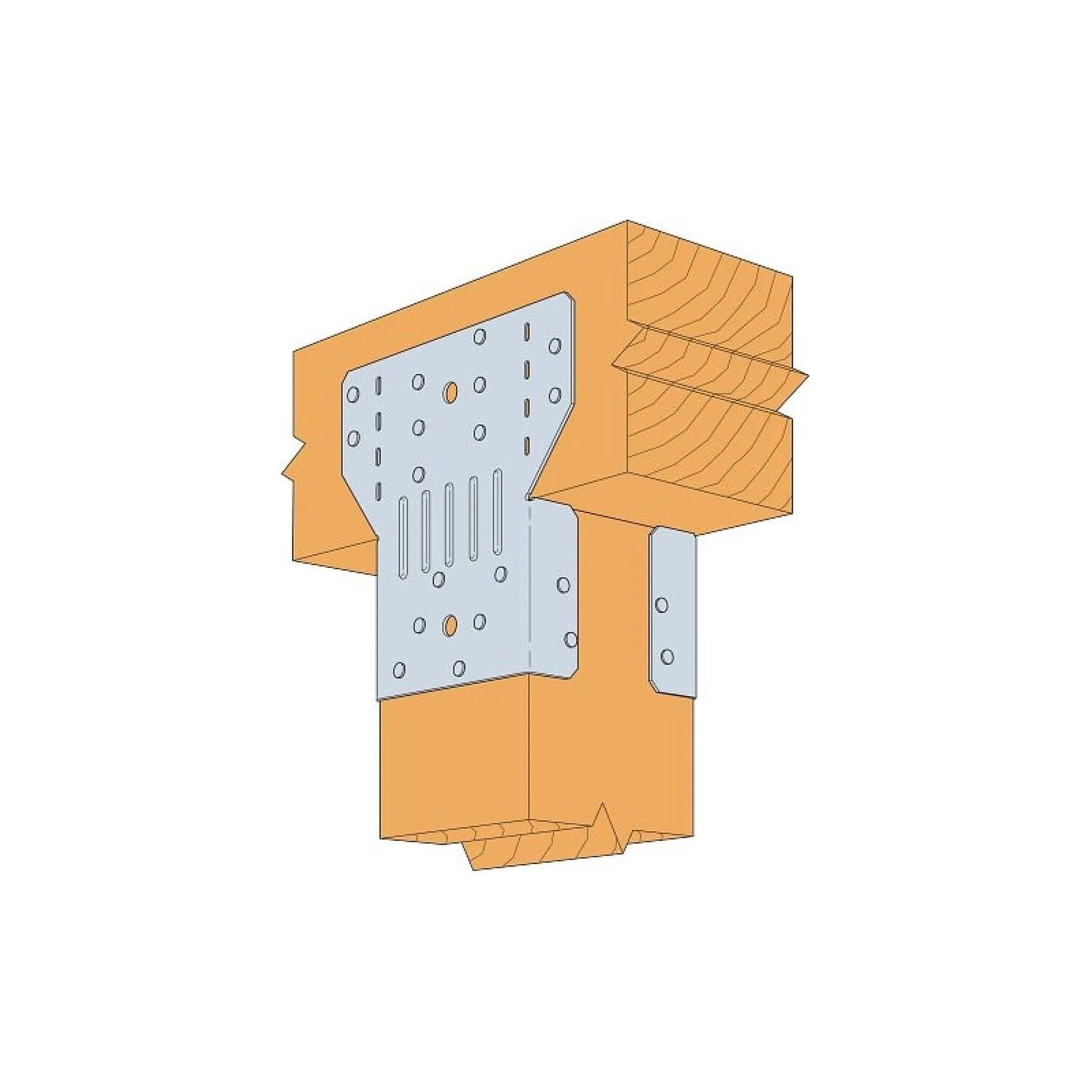

Simpson Strong-Tie ACH6Z Installation Overview
- Position the post cap on the 6x nominal post
- Secure using (40) 0.162 in. x 2-1/2 in. nails or (40) #10 x 2-1/2 in. Strong-Drive SD screws
- Ensure flanges are field bent if required for end-beam conditions
Simpson Strong-Tie ACH6Z Specifications
| Finish | ZMAX |
| Material | Steel |
| Post size | 6x |
| Width | Post-cap inner width: 5-1/2 in. |
