Simpson Anchors | SKU:
BCS2-3/6Z

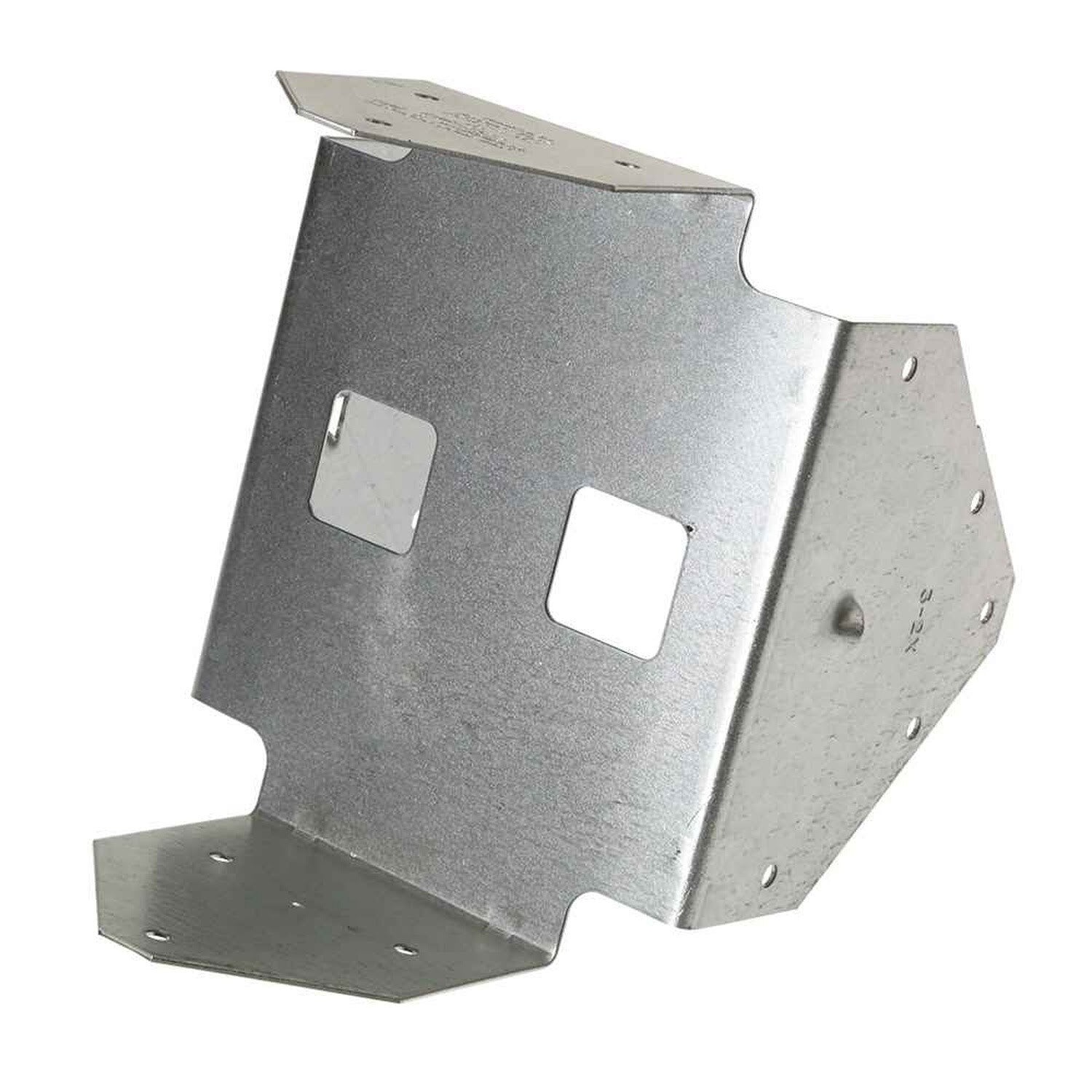

Simpson BCS2-3/6Z Strong-Tie Post Cap for Triple 2x Beam, 6x Post
$15.60
Unit price
/
Unavailable
Description
Description
Simpson BCS2-3/6Z Description
The Simpson BCS2-3/6Z Post Cap is designed for secure connections between triple 2x beams and 6x posts, featuring ZMAX finish for corrosion resistance.
Simpson BCS2-3/6Z Includes
- (1) Post Cap for Triple 2x Beam, 6x Post
Simpson BCS2-3/6Z Features
- Opposing flanges provide increased lateral resistance
- Double-shear nailing for optimal strength
- Sized specifically for multi-2x widths
- Made from durable 18-gauge steel
- Finished with ZMAX coating for corrosion resistance
Simpson BCS2-3/6Z Applications
- Wood-to-wood fastening for structural support
- Connecting multi-ply beams to posts in construction projects
- Suitable for decks, fences, and other wood-framed structures
Simpson BCS2-3/6Z Installation Overview
- Use all specified fasteners as per guidelines
- Do not install bolts into pilot holes
- Install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads
Simpson BCS2-3/6Z Specifications
| Material | 18-Gauge Steel |
| Finish | ZMAX |
| Beam Size | Triple 2x |
| Post Size | 6x |
| Thickness | 18 Gauge |
| Fasteners Required | Beam Flange - (12) 0.162 x 3-1/2" Nails, Post Flange - (6) 0.162 x 3-1/2" Nails |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
