Simpson Anchors | SKU:
CCO6
Simpson CCO6 Strong-Tie Heavy-Duty Column Cap for 6x Beam - Strapless Steel Connector for Structural Wood-to-Wood Connections
$83.95
$120.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CCO6 Description
The Simpson Strong-Tie CCO6 Column Cap enhances the strength and stability of wood construction projects, providing a durable and reliable column-to-beam connection.
Simpson Strong-Tie CCO6 Includes
- (1) Simpson CCO6 Column Cap
Simpson Strong-Tie CCO6 Features
- Uplift loads increased for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Extended surface area for load distribution
- Strapless design for field welding to steel columns
Simpson Strong-Tie CCO6 Applications
- Wood-to-wood structural connections
- Column-to-beam connections in wood construction
- Field welding to steel columns
Simpson Strong-Tie CCO6 Installation Overview
- Use all specified fasteners
- Weld by designer
- Drill bolt holes accurately to maintain tolerances
- Contact engineered wood manufacturers for specific connections

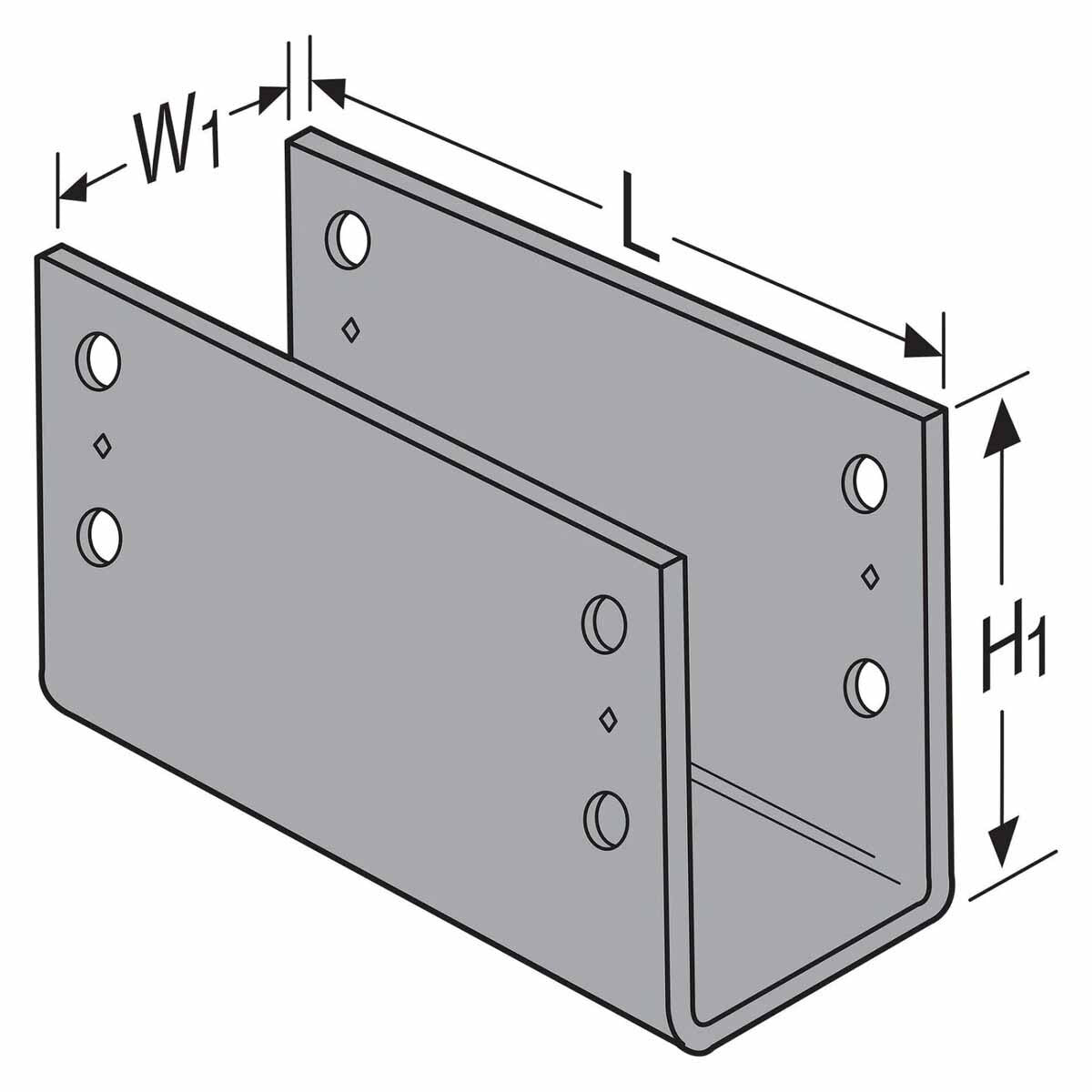

Simpson Strong-Tie CCO6 Specifications
| Material | Heavy Gauge Steel |
| Beam size | 6x |
| Thickness | 7 Gauge |
| Width | Beam 5-1/4", 5-1/2" |
| Height | 6-1/2" |
| Length | 11" |
NOTE: Ensure all specified fasteners are used and bolt holes are drilled accurately to maintain tolerances.
