Simpson CS16 Description
The Simpson CS16 strap is a continuous utility strap designed for wood construction, offering versatility and ease of installation.
Simpson CS16 Includes

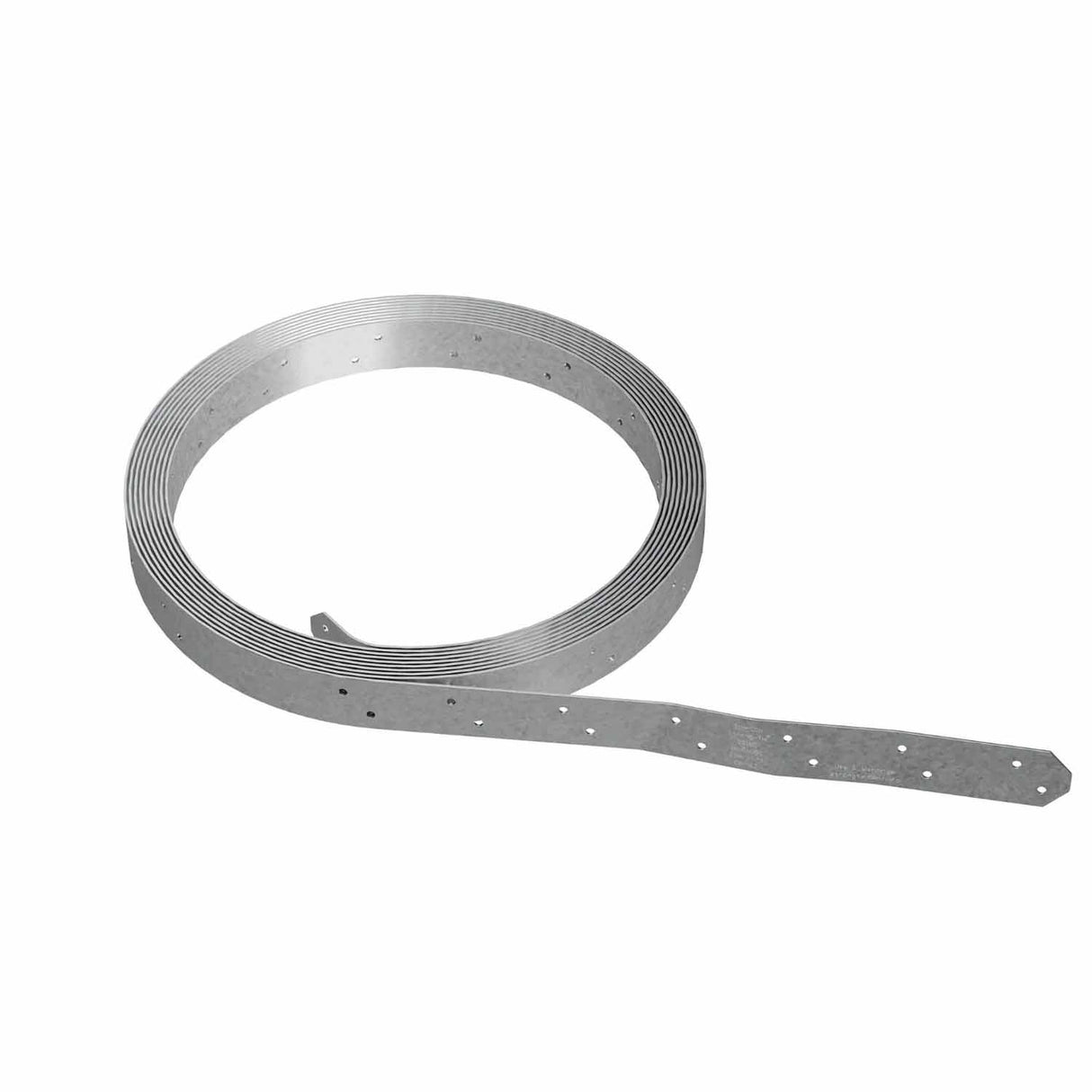

- (1) 16-Gauge Galvanized Coiled Strap for Wood Construction (150 ft.)
Simpson CS16 Features
- Available in shorter rolls for smaller projects

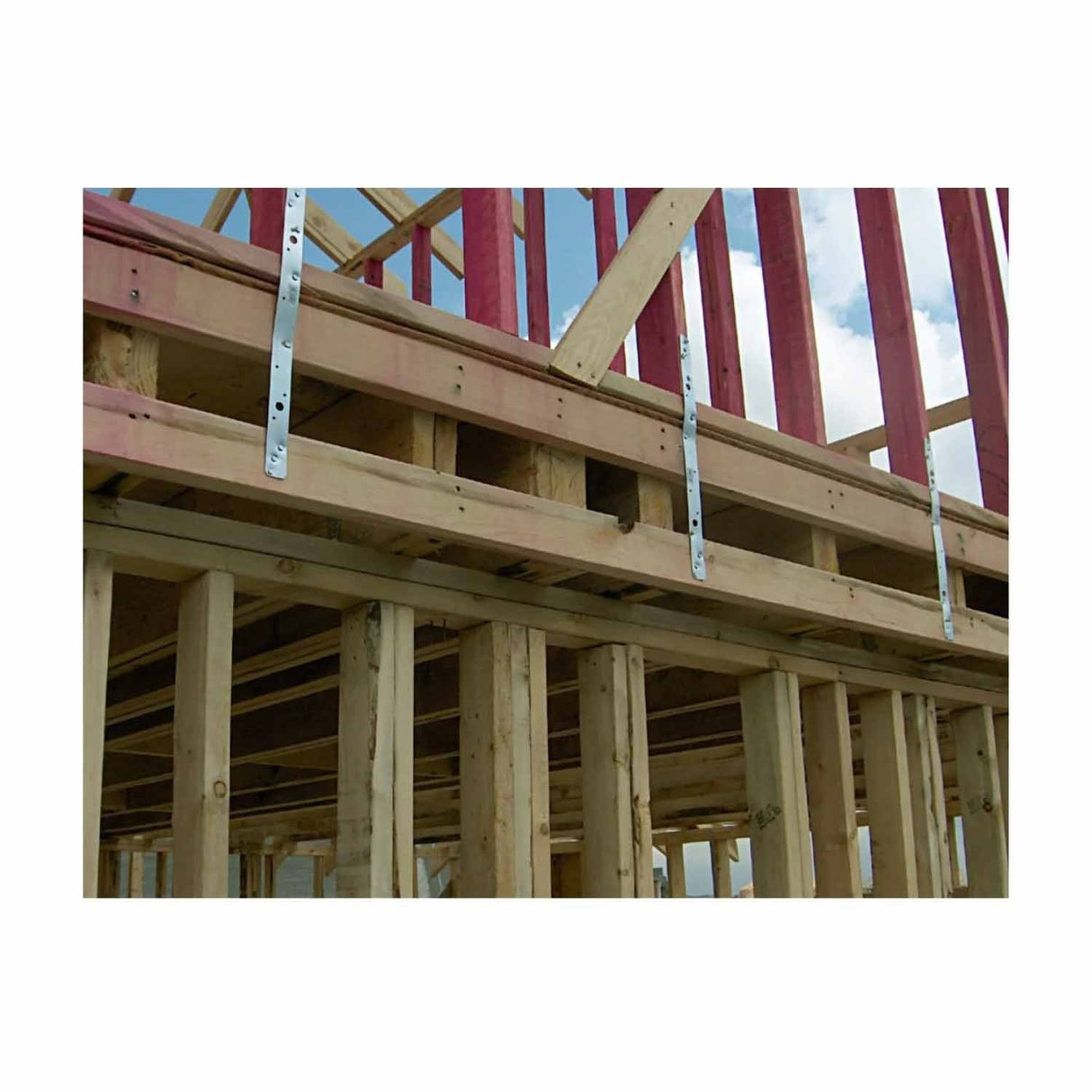

- Used for roof uplift and shear wall overturning resistance
- A cost-effective alternative to pre-cut straps
Simpson CS16 Applications
- Roof uplift resistance
- Shear wall overturning resistance
- General wood-to-wood fastening
Simpson CS16 Installation Overview
- Use all specified fasteners
- Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward
- Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances
- The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension

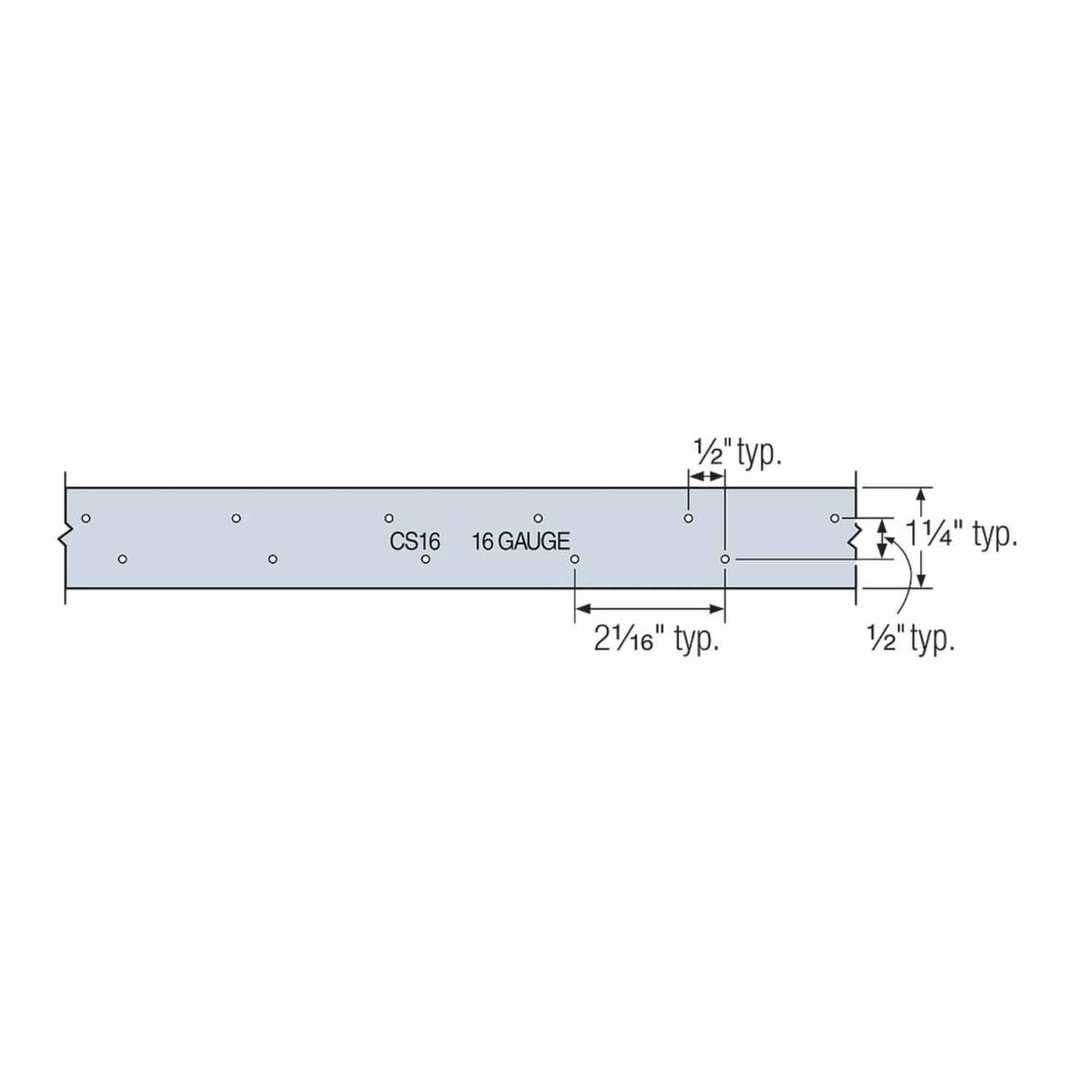

Simpson CS16 Specifications
| Gauge | 16 |
| Width | 1 1/4" |
| Length | 150 ft. |
| Finish | Galvanized (G90) |
| Weight | 39 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
820672
