Simpson Anchors | SKU:
DTT2Z-SDS2.5
Simpson DTT2Z-SDS2.5 Strong-Tie Deck Tension Tie with ZMAX Finish and 2.5" SDS Screws
$14.71
Unit price
/
Unavailable
Description
Description
Simpson DTT2Z-SDS2.5 Description
The Simpson Strong-Tie DTT2Z-SDS2.5 Deck Tension Tie is a reliable connector designed for deck construction and light-duty shearwalls, featuring a ZMAX galvanized finish for enhanced corrosion resistance.

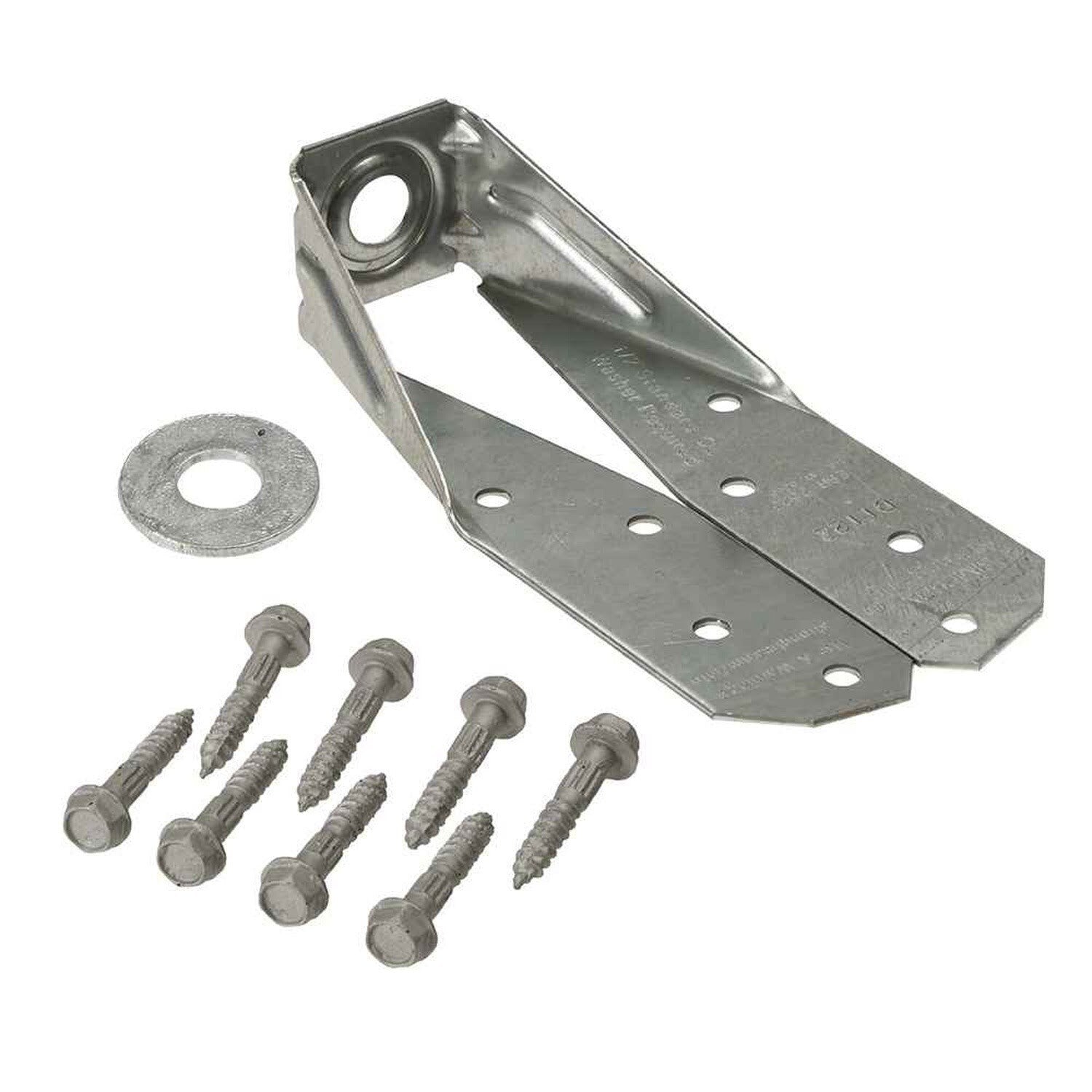

Simpson DTT2Z-SDS2.5 Includes
- (1) Deck Tension Tie
- (2) 2.5" SDS Screws
Simpson DTT2Z-SDS2.5 Features
- Safe and cost-effective connector for deck construction
- Load-rated for light-duty shearwalls and braced wall panels
- G185 ZMAX galvanized finish for corrosion resistance
- Includes 2-1/2" SDS screws for secure installation
- Compatible with ASTM A153 hot-dip galvanized fasteners
Simpson DTT2Z-SDS2.5 Applications

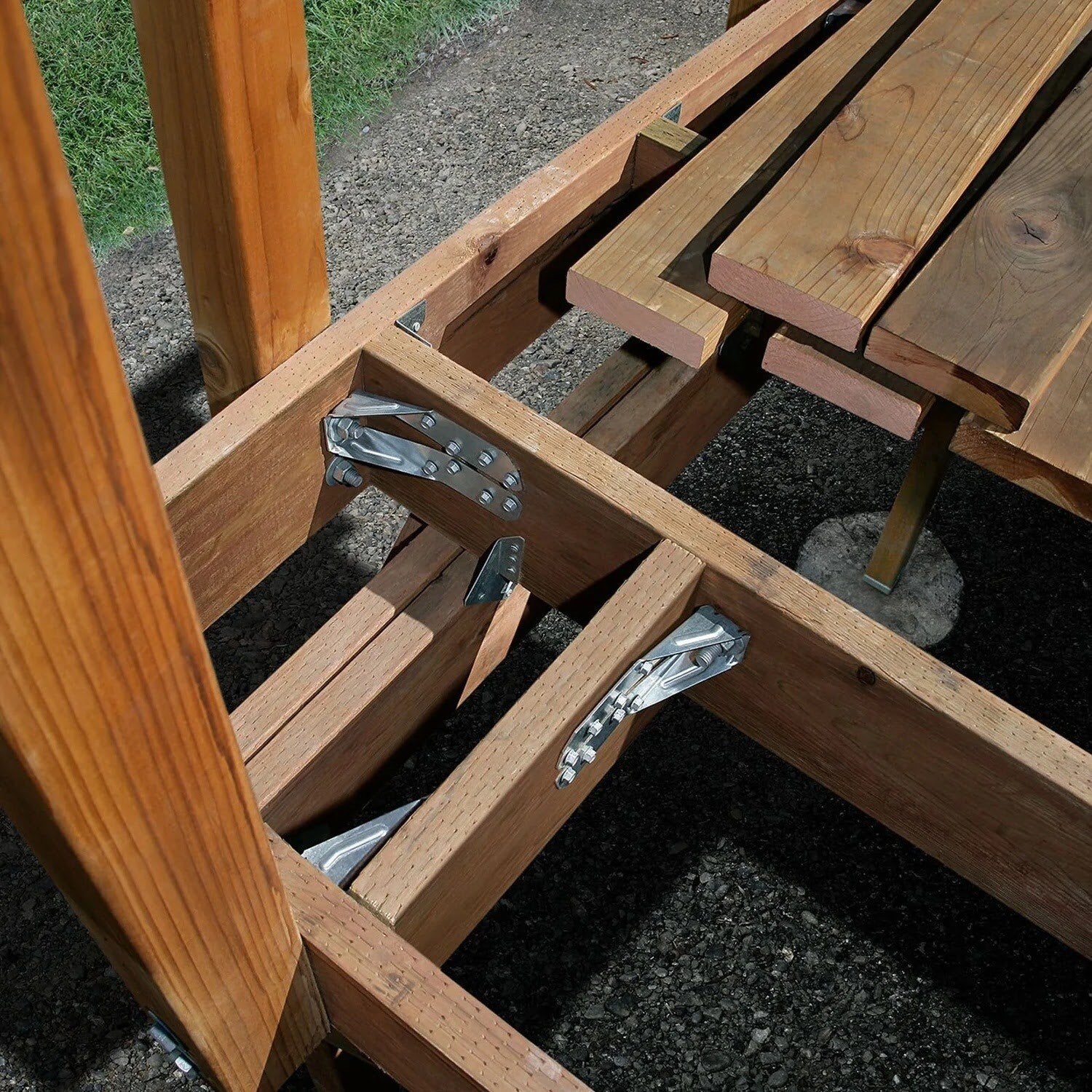

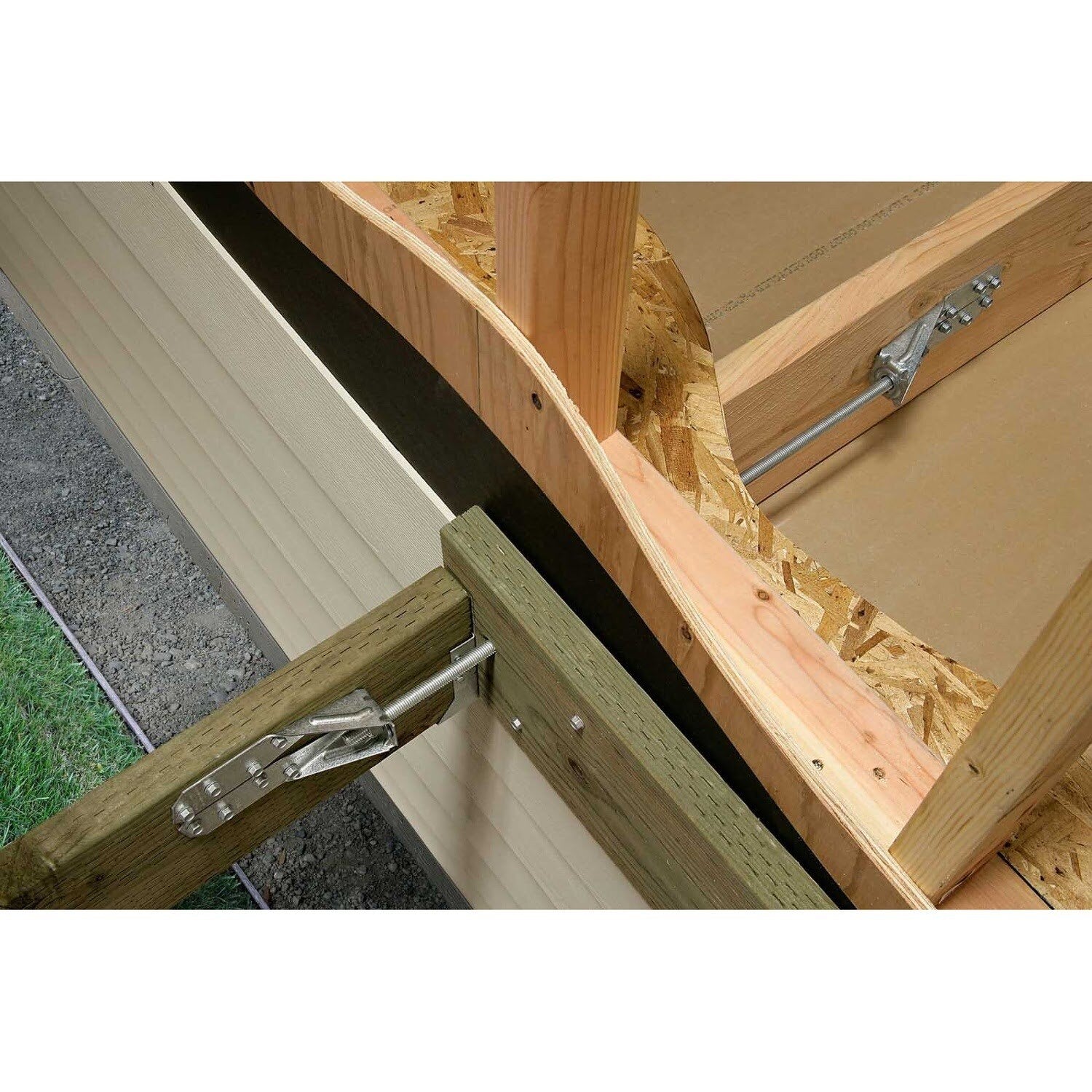

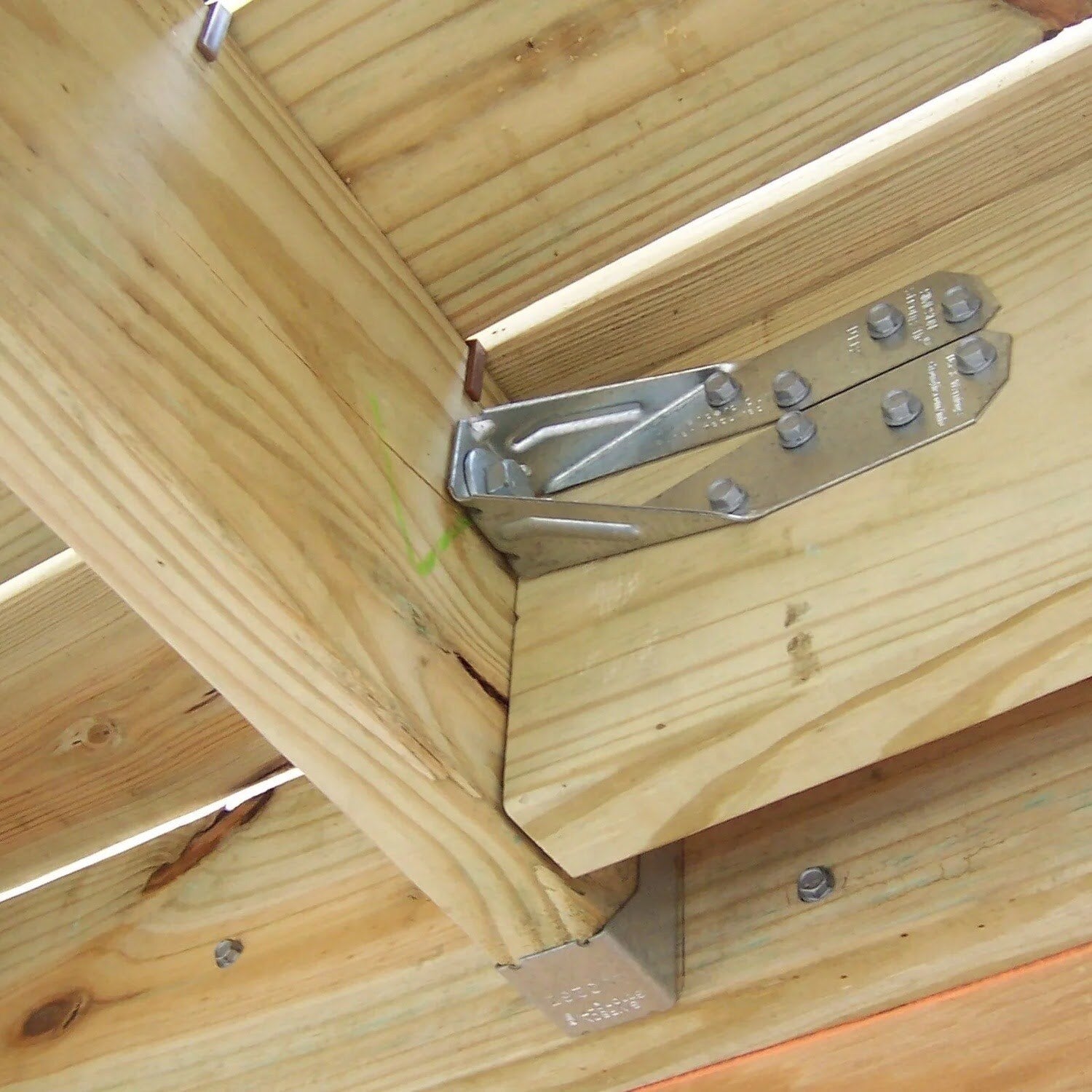

- Deck construction requiring tension ties
- Light-duty shearwalls
- Braced wall panel applications

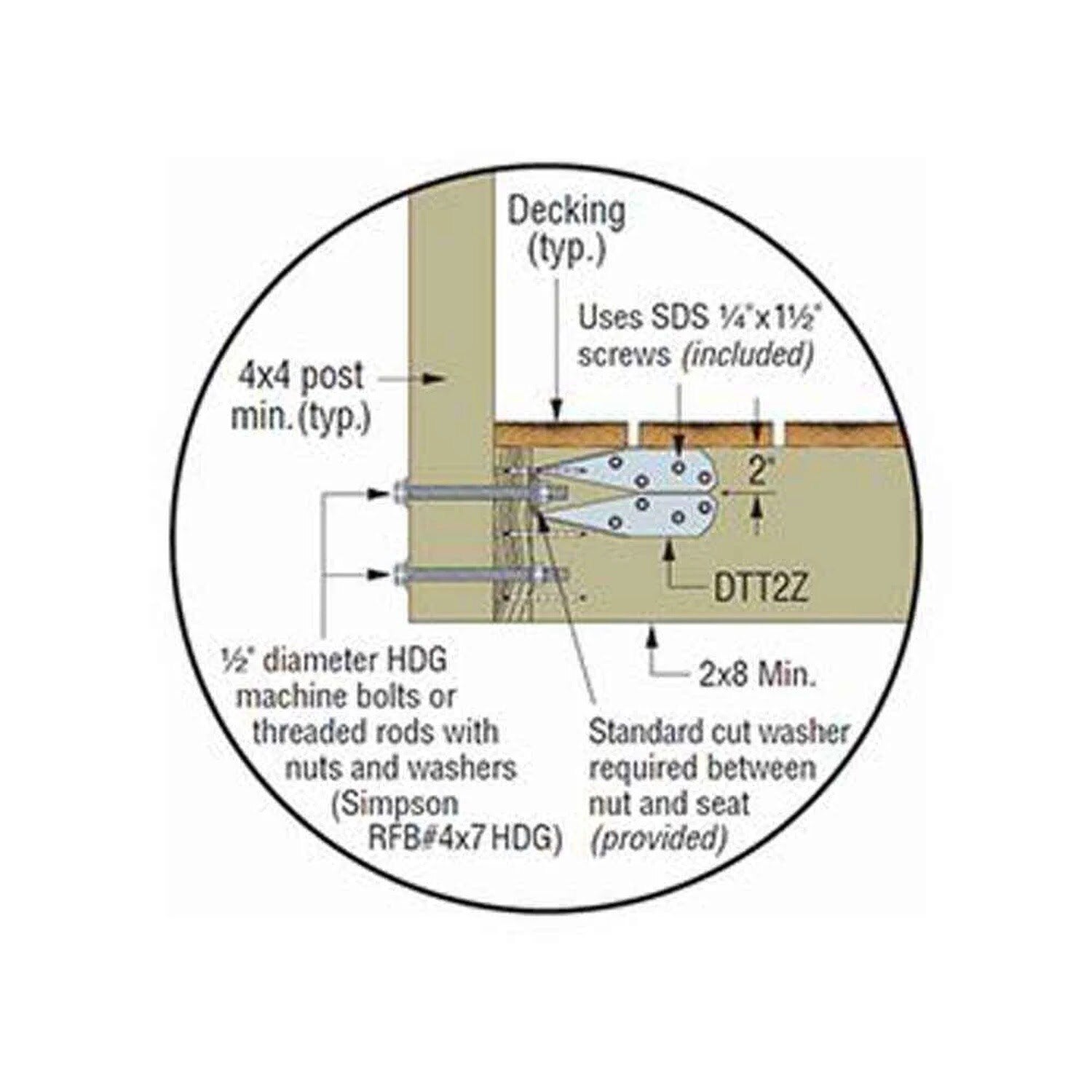

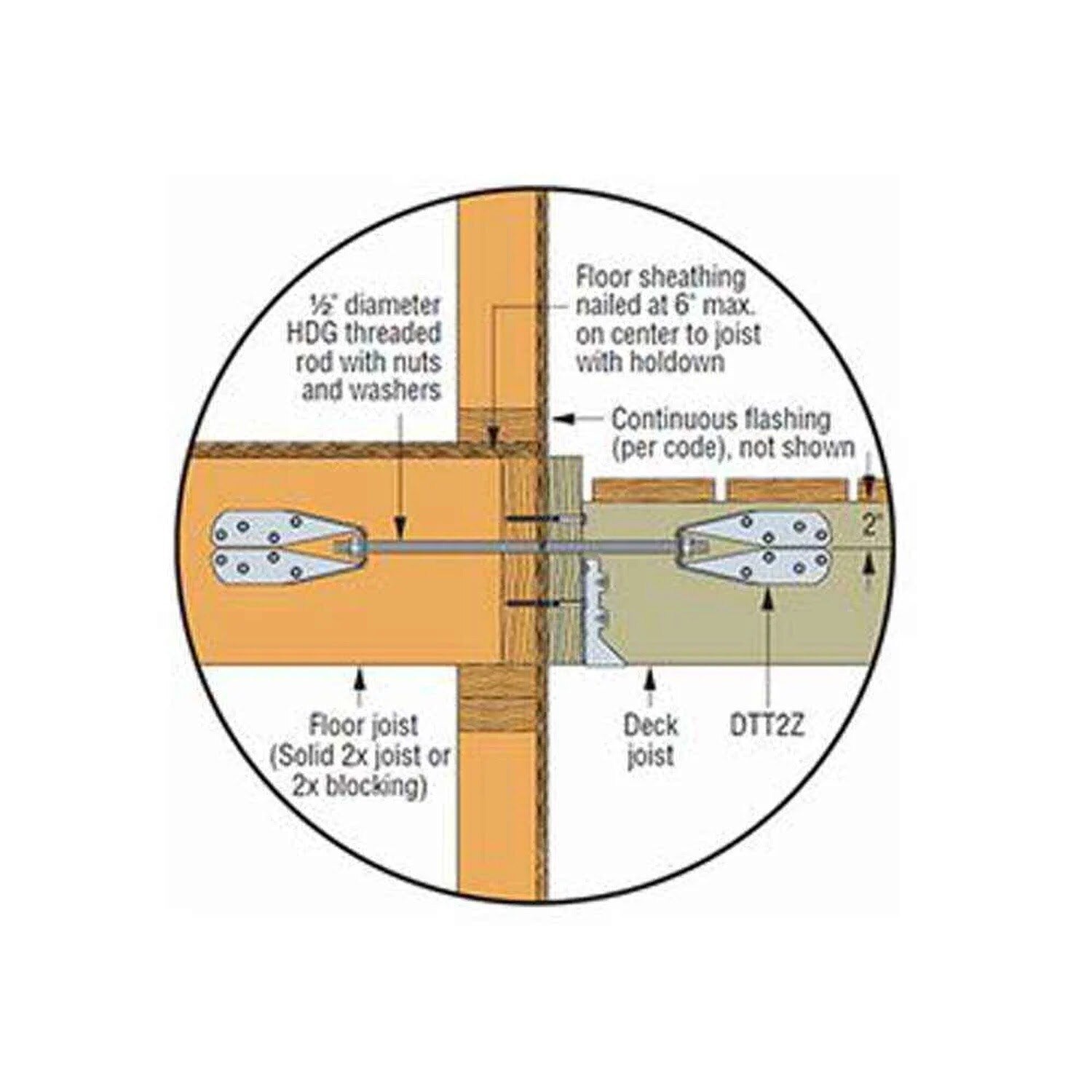

Simpson DTT2Z-SDS2.5 Installation Overview
- Install 2-1/2" SDS screws included in the package
- Place a standard cut washer between the nut and the seat
- Use a low-speed high-torque drill with a 3/8" hex head driver for SDS screws
- Install SD Connector screws with a 1/4" hex head driver
- Use a 3/8" hex head driver for SDWH Timber-Hex HDG screws

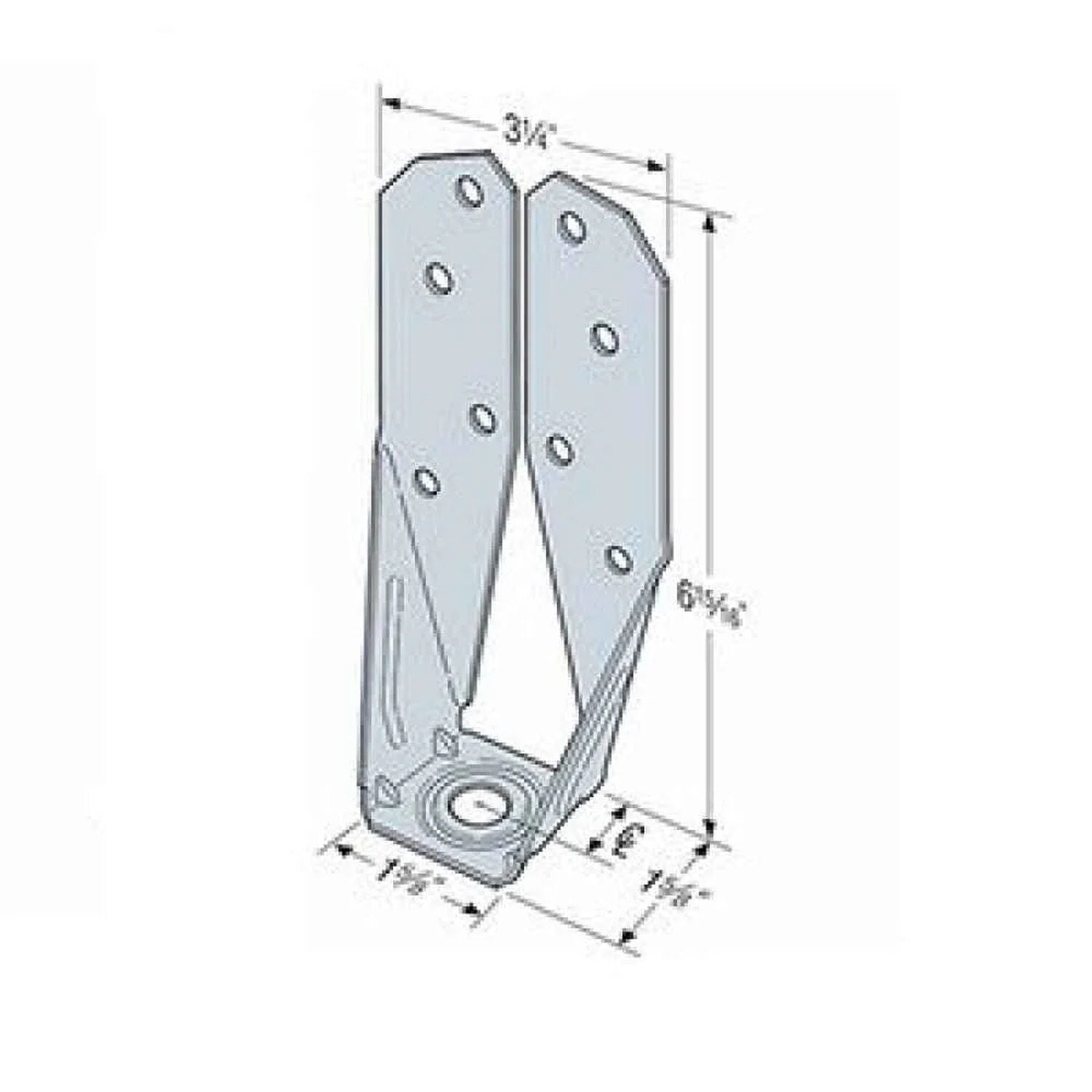

Simpson DTT2Z-SDS2.5 Specifications
| Finish | ZMAX |
| Weight | 0.8 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
