Simpson Strong-Tie ECCLR666HDG Description
The Simpson ECCLR666HDG End Column Cap enhances the strength and stability of construction projects, providing column-to-beam connections in end-of-beam applications.
Simpson Strong-Tie ECCLR666HDG Includes

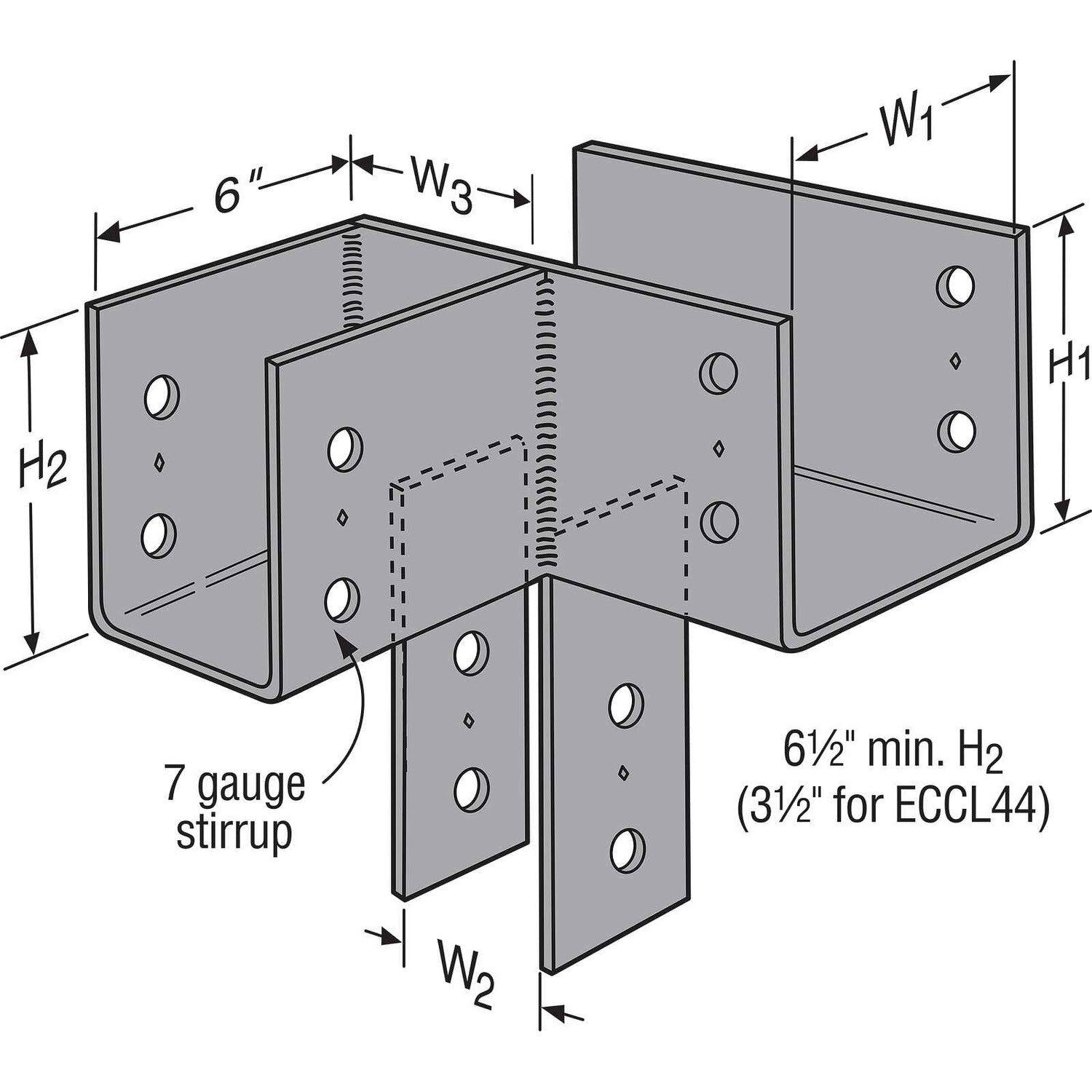

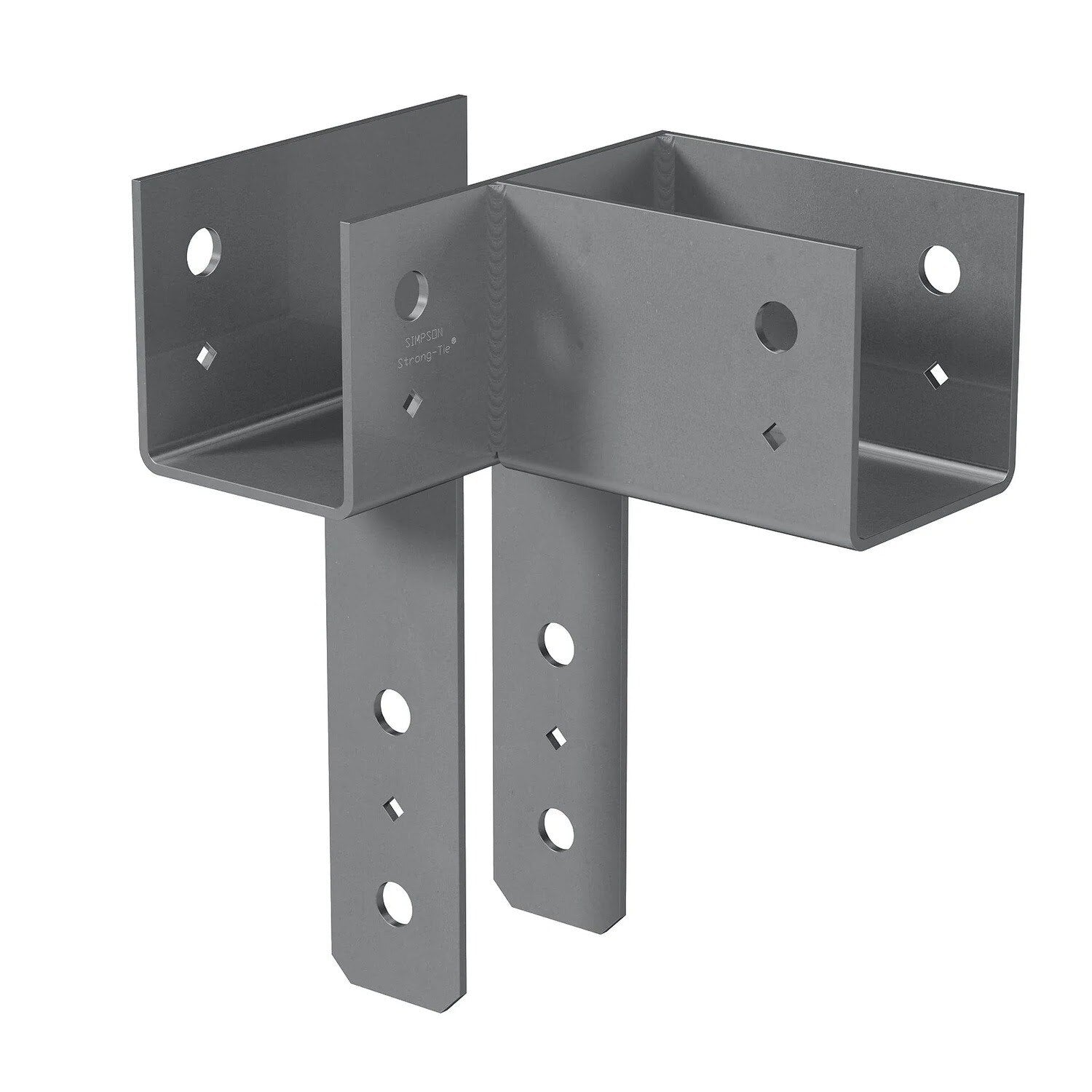

- (1) Strong-Tie L-Shape End Column Cap for 6x Beams and 6x Post, Hot-Dip Galvanized - Right Direction, Heavy-Duty Structural Connector
Simpson Strong-Tie ECCLR666HDG Features
- Certified welds for strength and loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Made from heavy-gauge steel
- Hot Dip Galvanized finish for durability
Simpson Strong-Tie ECCLR666HDG Applications
- Fastening wood-to-wood connections

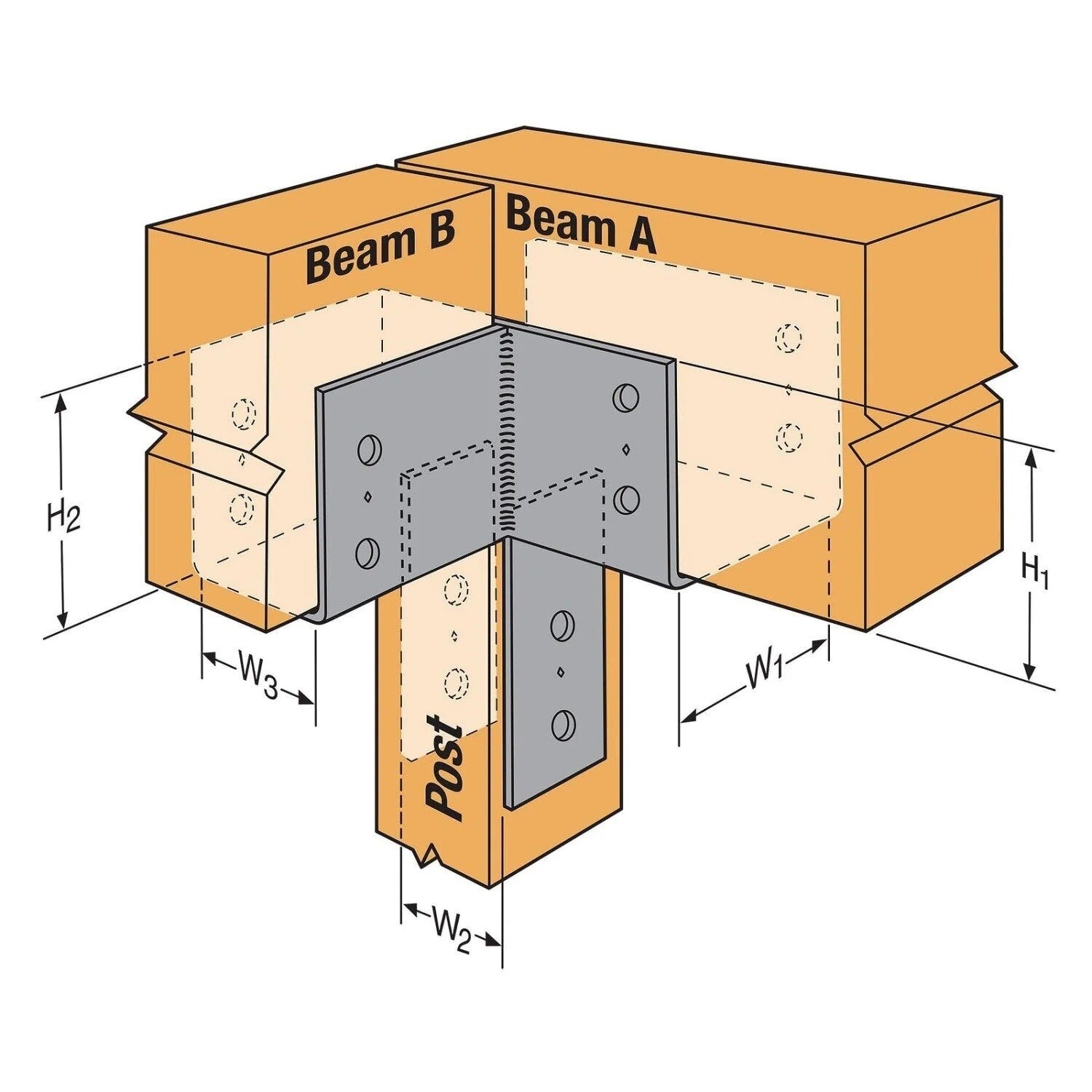

- Providing strong end-of-beam connections for column-to-beams forming an 'L'
- Enhancing structural stability in construction projects
Simpson Strong-Tie ECCLR666HDG Installation Overview
- Use all specified fasteners as per General Notes
- Ensure bolt holes are within specified size range (1/32" to 1/16" larger than bolt diameter)
Simpson Strong-Tie ECCLR666HDG Specifications
| Material | Galvanized Steel |
| Finish | Hot Dip Galvanized |
| Beam size | 6x |
| Post size | 6x |
| Thickness | 7 Gauge |
| Weight | 19.3 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
819269
