Simpson Strong-Tie ECCLRQ464SDS Description

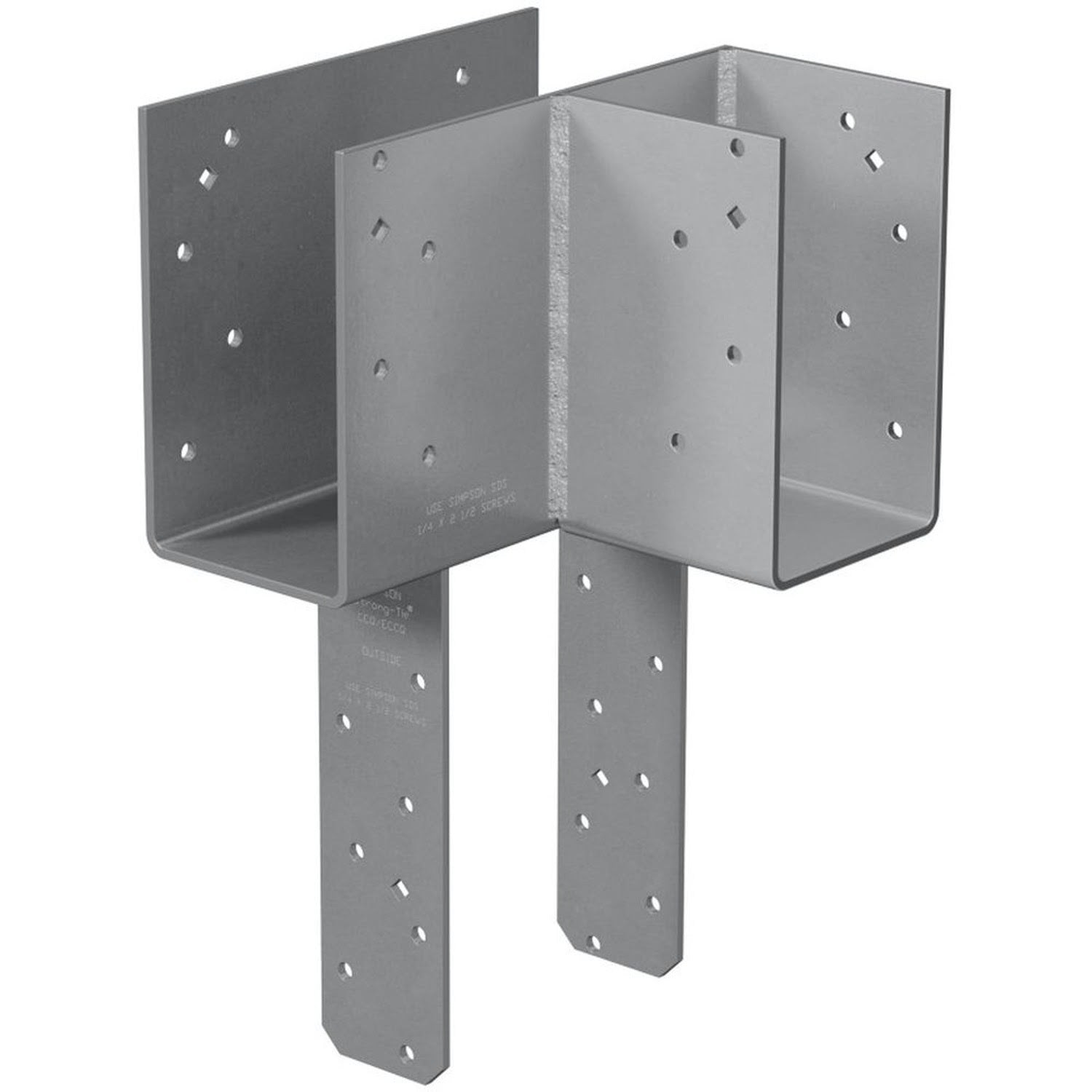

The Simpson ECCLRQ464SDS is a durable L-shaped end column cap designed for 4x beams and 6x posts, featuring SDS screws for quick installation and enhanced structural support.
Simpson Strong-Tie ECCLRQ464SDS Includes
- (1) L-Shaped End Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie ECCLRQ464SDS Features
- Provides strong end-of-beam connection for column-to-beams forming an 'L'
- Extended column seat for additional bearing surface
- Made from heavy-gauge steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Includes SDS connector screws for quick installation
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie ECCLRQ464SDS Applications
- Column-to-beam connections in end-of-beam applications
- Construction projects requiring enhanced structural support
- Wood-to-wood fastening
Simpson Strong-Tie ECCLRQ464SDS Installation Overview
- Install SDS screws in all round holes as specified
- Ensure no additional welding is performed
- Align the cap properly with the beams and column
- Securely fasten using the provided screws
Simpson Strong-Tie ECCLRQ464SDS Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| Post size | 6x |
| Thickness | 7 Gauge |
| Type | Right |
NOTE: Ensure all fasteners are installed correctly to achieve published load values.
