Simpson Strong-Tie ECCOQ6-SDS2.5 Description

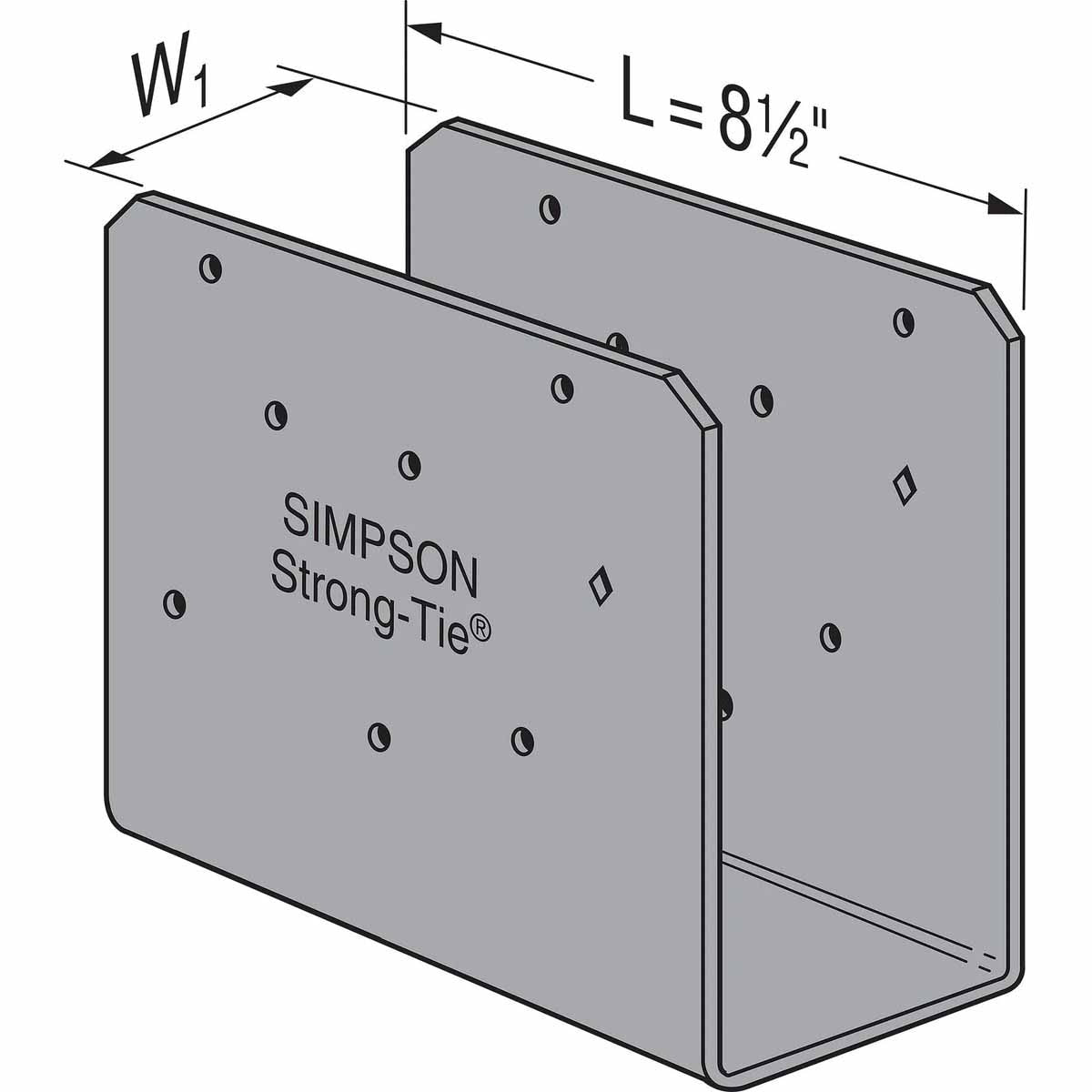

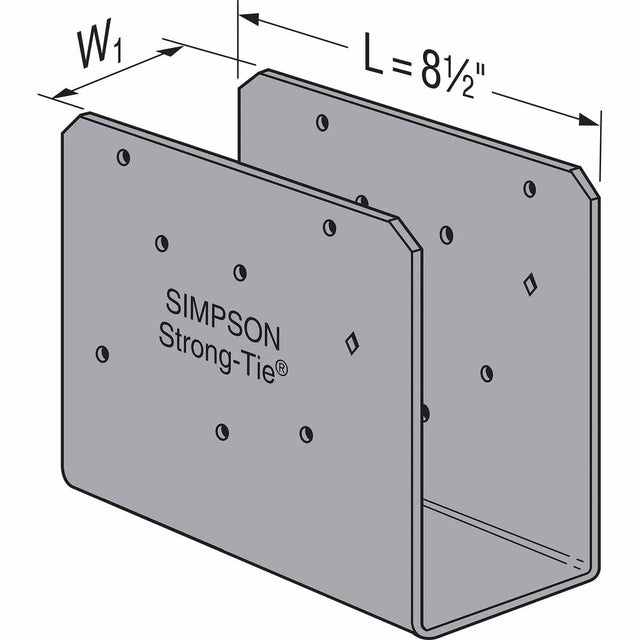

The Simpson ECCOQ6-SDS2.5 End Column Cap enhances the strength and stability of construction projects, providing a durable column-to-beam connection for 6x beams.
Simpson Strong-Tie ECCOQ6-SDS2.5 Includes
- (1) Strong-Tie Simpson End Column Cap for 6x Beam
- (14) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie ECCOQ6-SDS2.5 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from durable heavy-gauge steel
- Includes necessary SDS connector screws for quick installation
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie ECCOQ6-SDS2.5 Applications
- Wood-to-wood column-to-beam connections
- Field welding to steel columns
Simpson Strong-Tie ECCOQ6-SDS2.5 Installation Overview
- Fasten with included 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
- Ensure proper alignment and secure fastening
Simpson Strong-Tie ECCOQ6-SDS2.5 Specifications
| Material | Steel |
| Beam size | 6x |
| Fasteners required | 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws (included) |
| Height | 7" |
| Length | 8-1/2" |
| Thickness | 7 Gauge |
Toolup Part # :
820179
