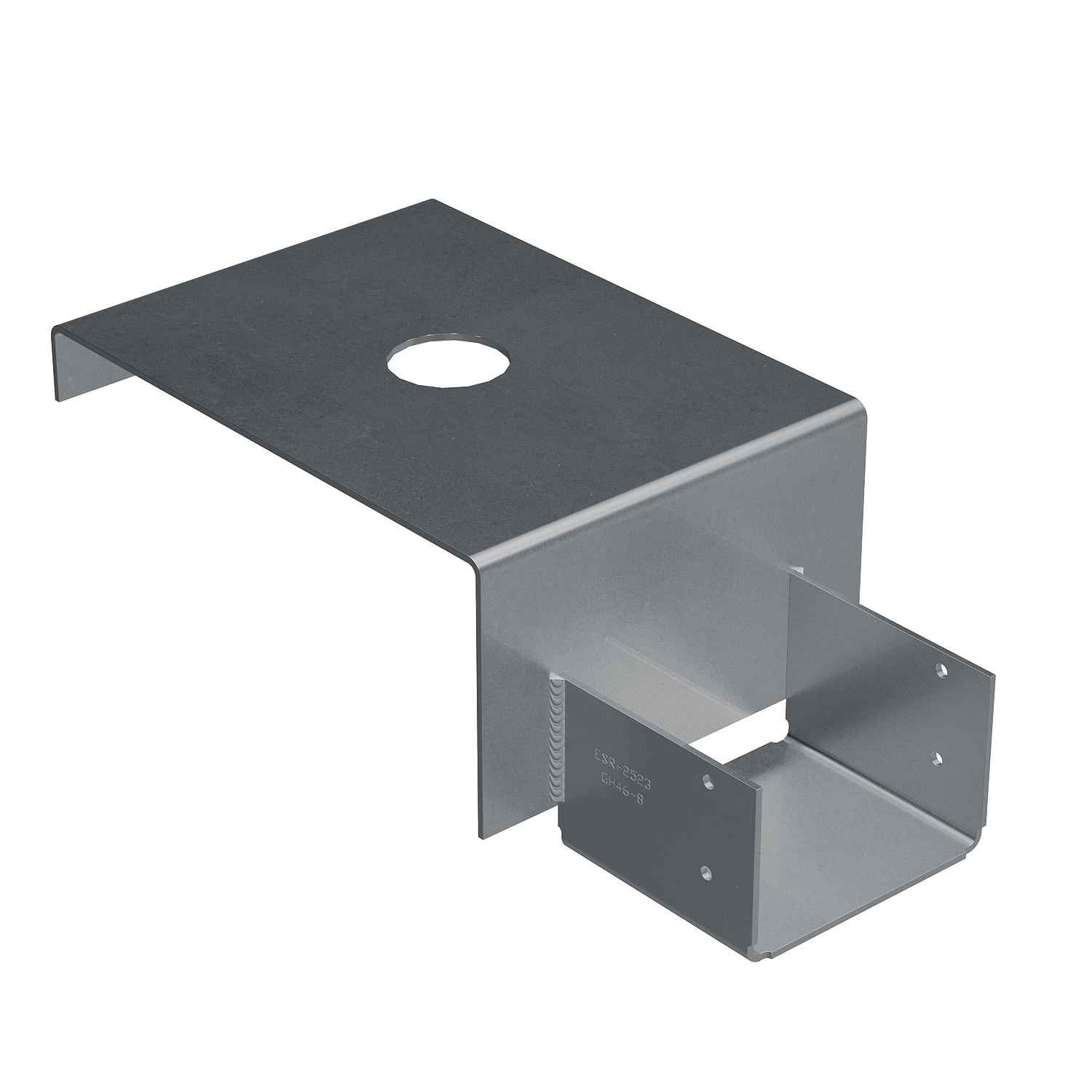

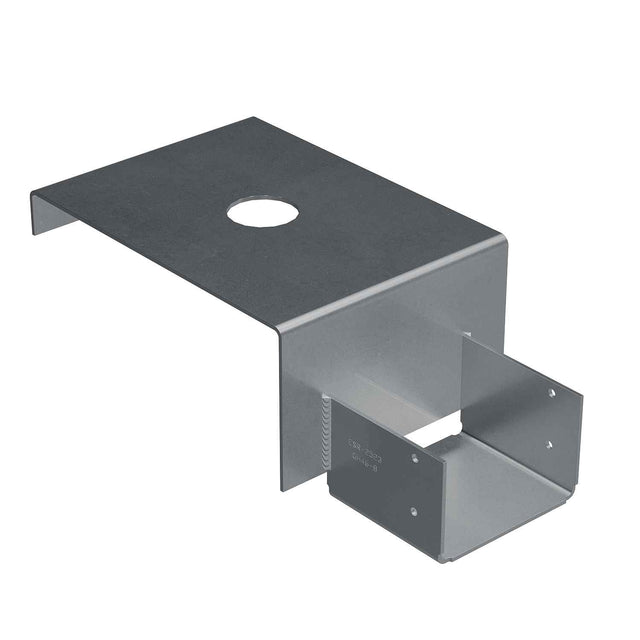

Simpson Strong-Tie GH46-8/3 Description
The GH46-8/3 Top-Flange Girder Hanger is designed for secure girder-to-foundation wall connections, offering reliable support for 4x6 girders.
Simpson Strong-Tie GH46-8/3 Includes
- (1) GH46-8/3 Top-Flange Girder Hanger
Simpson Strong-Tie GH46-8/3 Features
- Made to order and non-returnable
- Supports 4x6 girders
- Available in hot-dip galvanized finish
- Can be skewed up to 45° with bevel cut required
Simpson Strong-Tie GH46-8/3 Applications
- Girder-to-foundation wall connections
- Structural support for 4x6 girders
Simpson Strong-Tie GH46-8/3 Installation Overview
- Use all specified fasteners as per guidelines.
- Install four 0.162" x 3-1/2" nails into the girder.
- Ensure a mudsill is on top of the GH to achieve table loads.

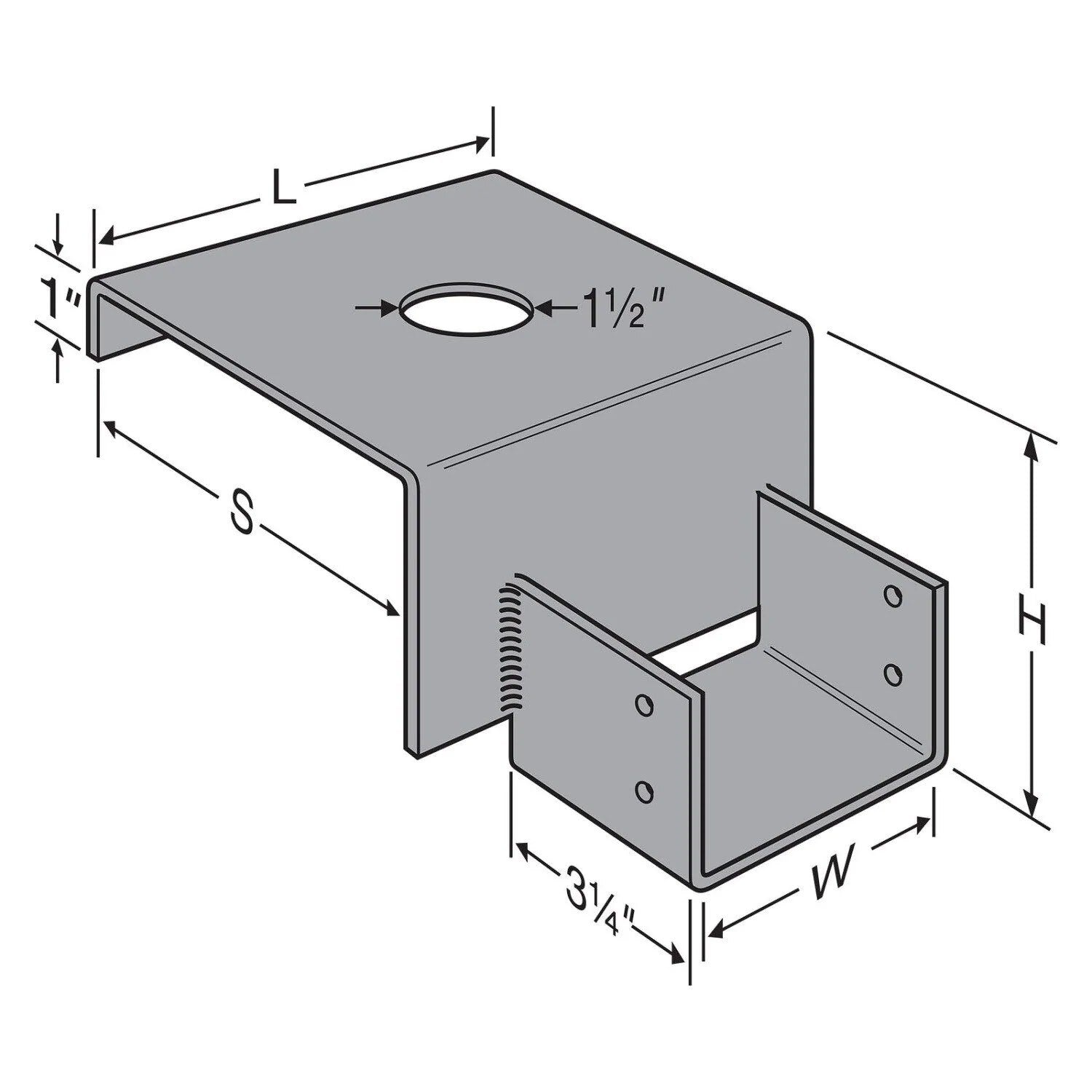

- 1-1/2" clearance hole accommodates rebar or anchor, though not required.
Simpson Strong-Tie GH46-8/3 Specifications
| Finish | Gray Paint |
| Thickness | 12 Gauge |
| Width | 3-9/16" |
| Length | 6" |
| Fasteners required | (4) 0.162 x 3-1/2 |
| Girder size | 4x6 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
823213
