Simpson Anchors | SKU:
Simpson H10AR Strong-Tie Hurricane Tie for Rough Lumber
$3.05
$4.58
Unit price
/
Unavailable
Description
Description

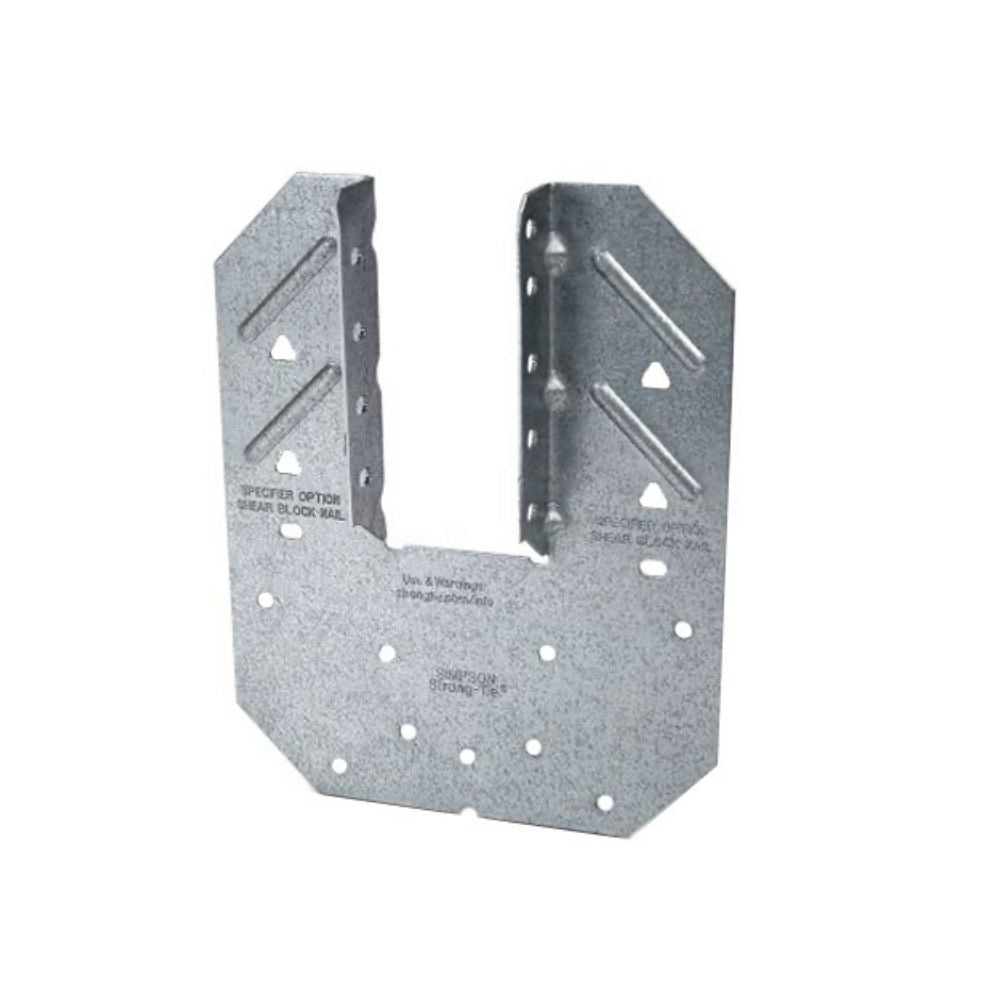

Simpson Strong-Tie H10AR Description

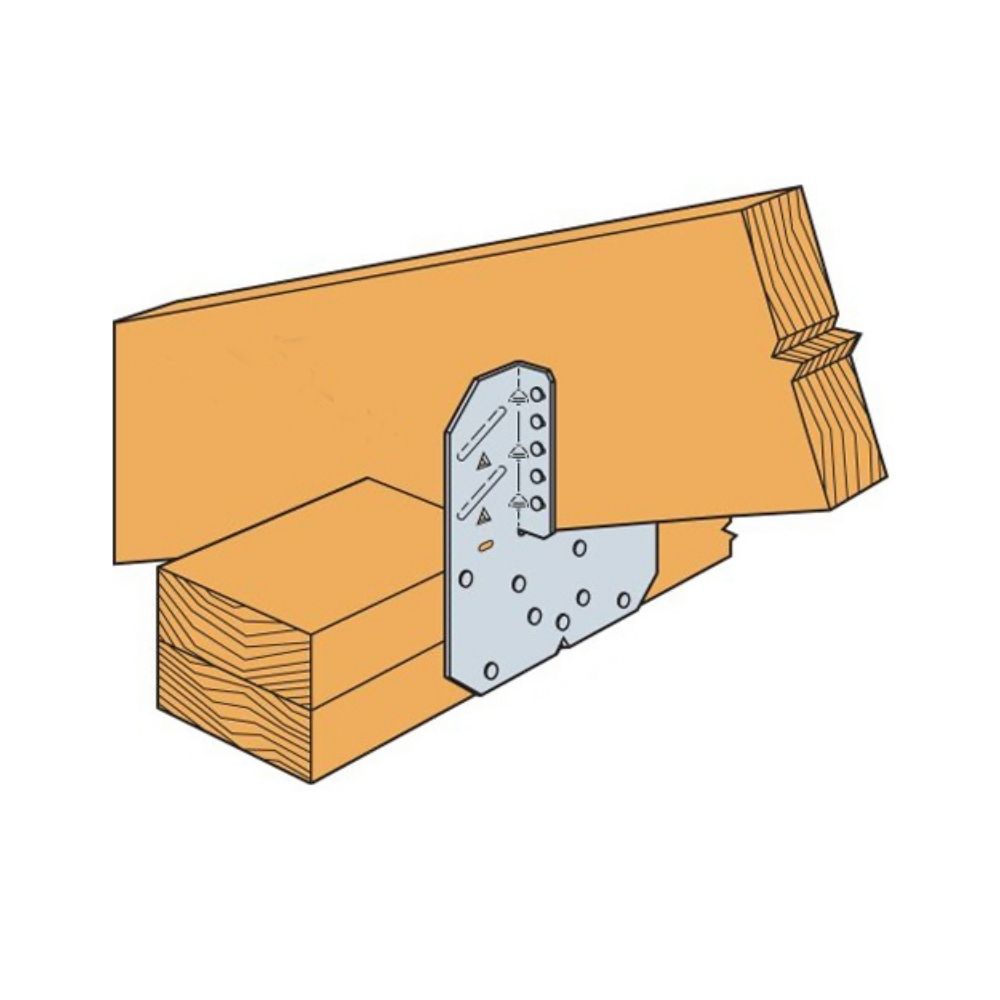

The H10A series holds the rafter or truss on both sides for higher uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.
Simpson Strong-Tie H10AR Includes
- (1) Hurricane Tie
Simpson Strong-Tie H10AR Features
- Forms part of a continuous load path to resist wind and seismic forces
- The H10AR model is designed for rough lumber
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Install with (18) 0.148-in x 1-1/2-in nails
Simpson Strong-Tie H10AR Specifications
| Length | 6.25" |
| Width | 5" |
| Material | Steel |
| Metal Gauge | 18 |
| Finish | Zinc Galvanized, G90 |
| Seat Width | 2" |
