Simpson Anchors | SKU:
HDU8-SDS2.5

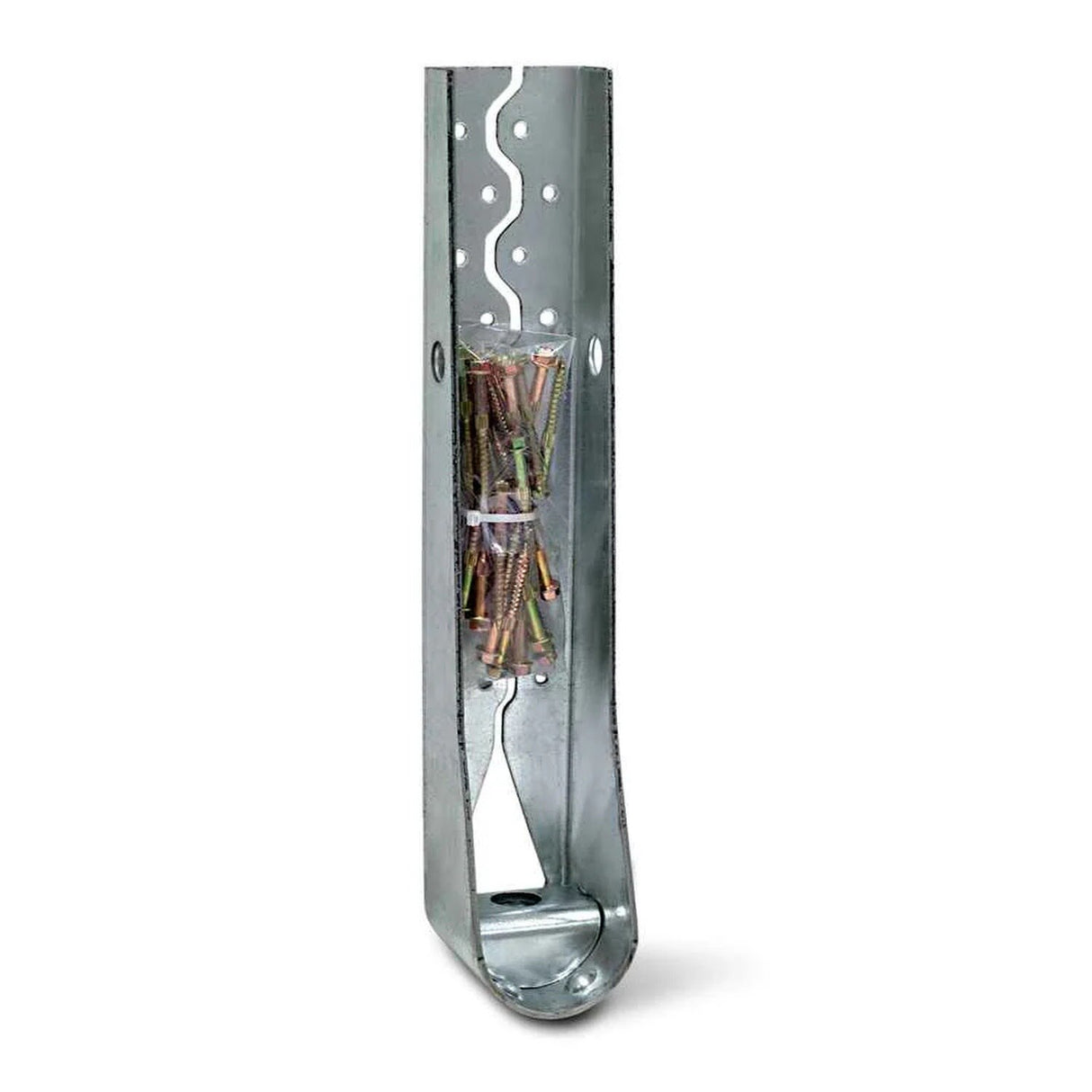

Simpson HDU8-SDS2.5 Strong-Tie Predeflected Holdown with Screws
$58.06
$3,257.63
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HDU8-SDS2.5 Description
Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer, engineered and tested to perform and manufactured to the highest quality standards. HDU holdowns are pre-deflected during the manufacturing process, virtually eliminating deflection under load due to material stretch. They use Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws (included), which install easily, reduce fastener slip and provide a greater net section when compared to bolts.
Simpson Strong-Tie HDU8-SDS2.5 Includes
- (1) Holdown
- (20) Screws
Simpson Strong-Tie HDU8-SDS2.5 Features
- Predeflected body virtually eliminates deflection due to material stretch
- Uses SDS screws, which install easily, reduce fastener slip and provide a greater net section area of the post compared to bolts
- SDS screws are supplied with the holdowns to ensure proper fasteners are used
- No stud bolts to countersink at openings
- Made from 10-Gauge steel
- Galvanized (G90) for extra corrosion resistance
- Install with 7/8 in. anchor bolt and 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
Simpson Strong-Tie HDU8-SDS2.5 Specifications
| Height | 16-5/8" |
| Gauge | 10 |
| Material | Steel |
| Anchor Bolt Diameter | 7/8" |
| Finish | G90 Galvanized |
