Simpson Anchors | SKU:
HDU14-SDS2.5

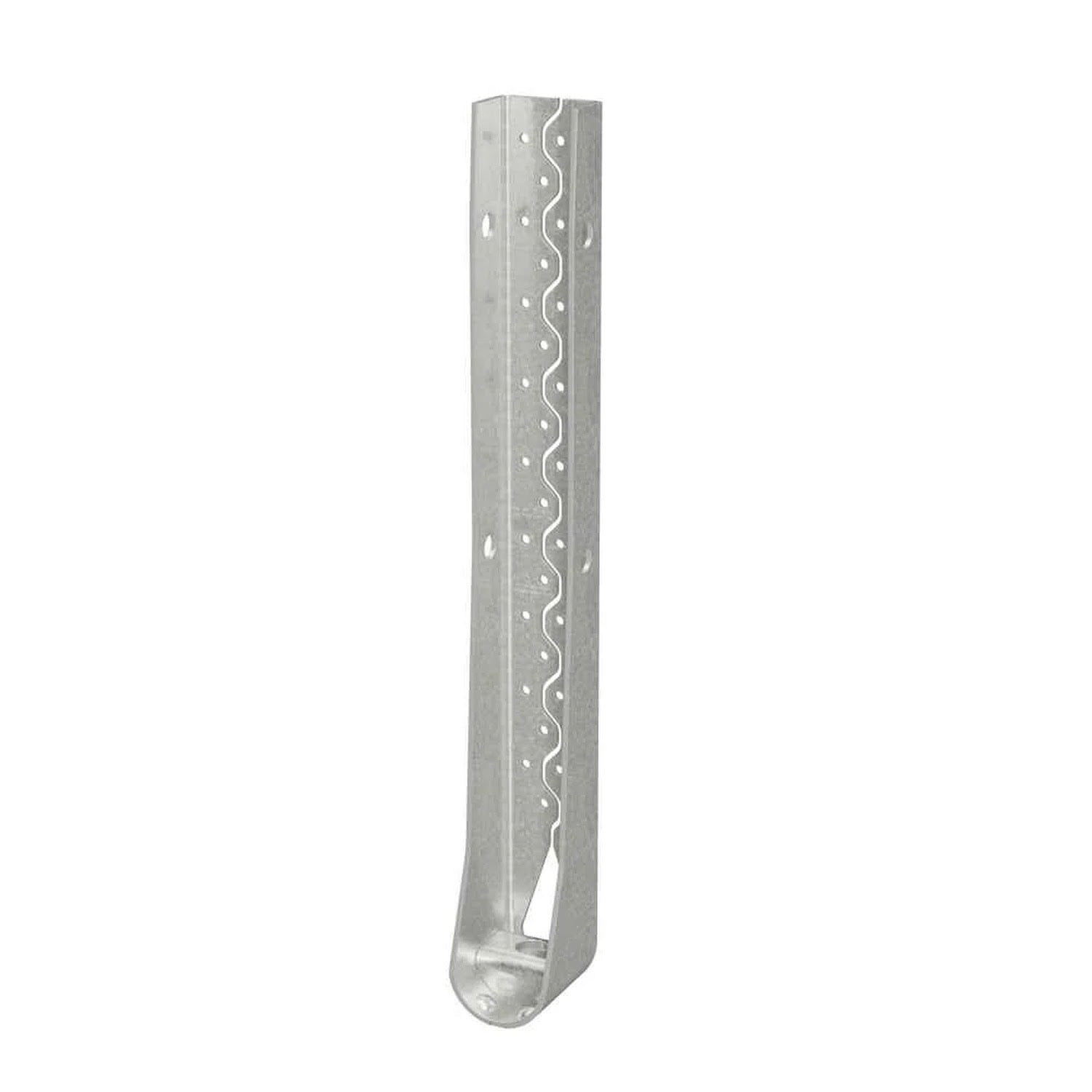

Simpson Strong-Tie HDU14-SDS2.5 (25-11/16") 7Ga Predeflected Holdown with Screws - G90 Galvanized
$96.51
$127.60
Unit price
/
Unavailable
Description
Description
Simpson HDU14-SDS2.5 Description
The Simpson HDU14-SDS2.5 Predeflected Holdown is designed to virtually eliminate deflection under load due to material stretch, ensuring reliable performance in structural applications.
Simpson HDU14-SDS2.5 Includes
- (1) Predeflected Holdown
- (1) Set of Strong-Drive SDS Heavy-Duty Connector Screws
Simpson HDU14-SDS2.5 Features
- Pre-deflected design minimizes deflection under load
- Includes Strong-Drive SDS Heavy-Duty Connector screws
- No need for stud bolts to countersink at openings
- Easy installation with low-speed high-torque drill
Simpson HDU14-SDS2.5 Applications
- Structural reinforcement in wood-framed construction
- Securing posts and beams in residential and commercial buildings
- Providing reliable load-bearing support in framing applications
Simpson HDU14-SDS2.5 Installation Overview
- Use all specified fasteners
- No additional washer required for HDU
- Install screws with a low-speed high-torque drill using a 3/8" hex head driver
Simpson HDU14-SDS2.5 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 25-11/16" |
| Fasteners required | All Fasteners Included |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
