Simpson Strong-Tie HF34NZ Description

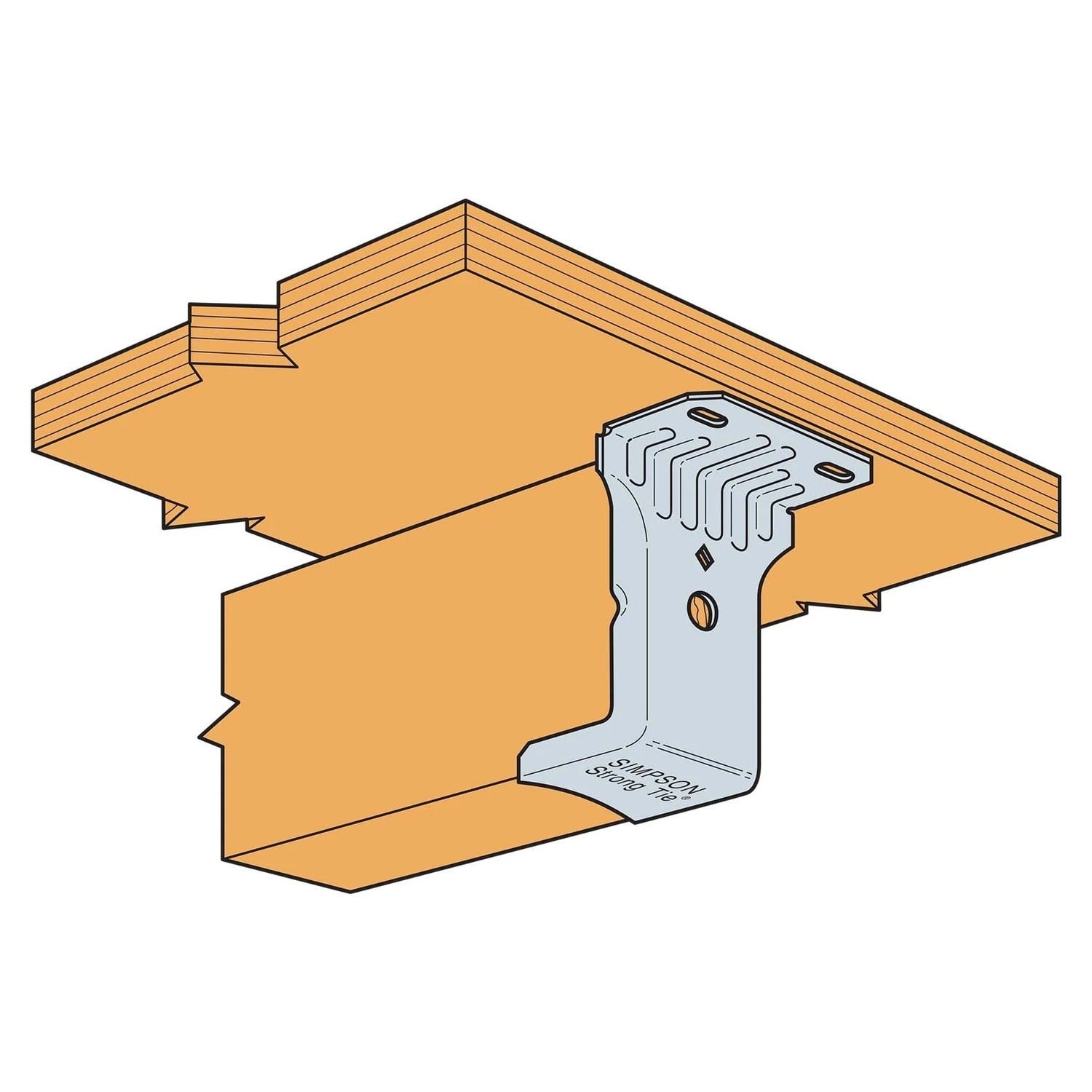

The Simpson Strong-Tie HF34NZ Panelized Construction Hanger ZMAX is designed for reliable connections in panelized wood-frame construction, offering superior corrosion resistance and high-strength performance.
Simpson Strong-Tie HF34NZ Includes

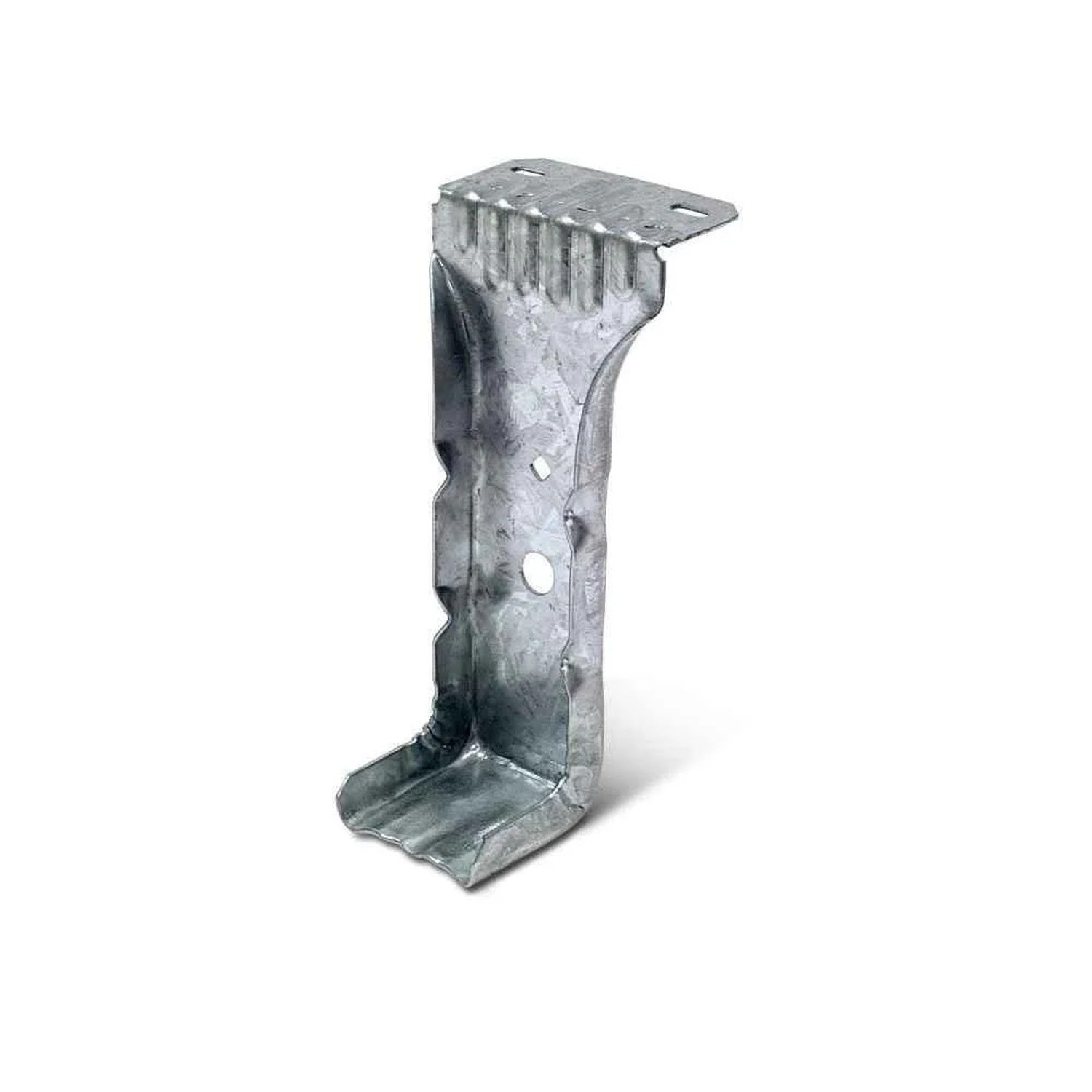

- (1) Panelized Construction Hanger ZMAX
Simpson Strong-Tie HF34NZ Features
- ZMAX Galvanized Coating for enhanced corrosion resistance
- High-strength performance for heavy loads
- Efficient installation with no field modifications required
- Versatile compatibility with various wood types
- Reliable structural connection for purlins and supporting members
Simpson Strong-Tie HF34NZ Applications
- Panelized roof systems for strong purlin-to-girder connections
- Solid sawn lumber installations for reinforced wood framing
- Glulam beam construction for handling higher loads
Simpson Strong-Tie HF34NZ Installation Overview

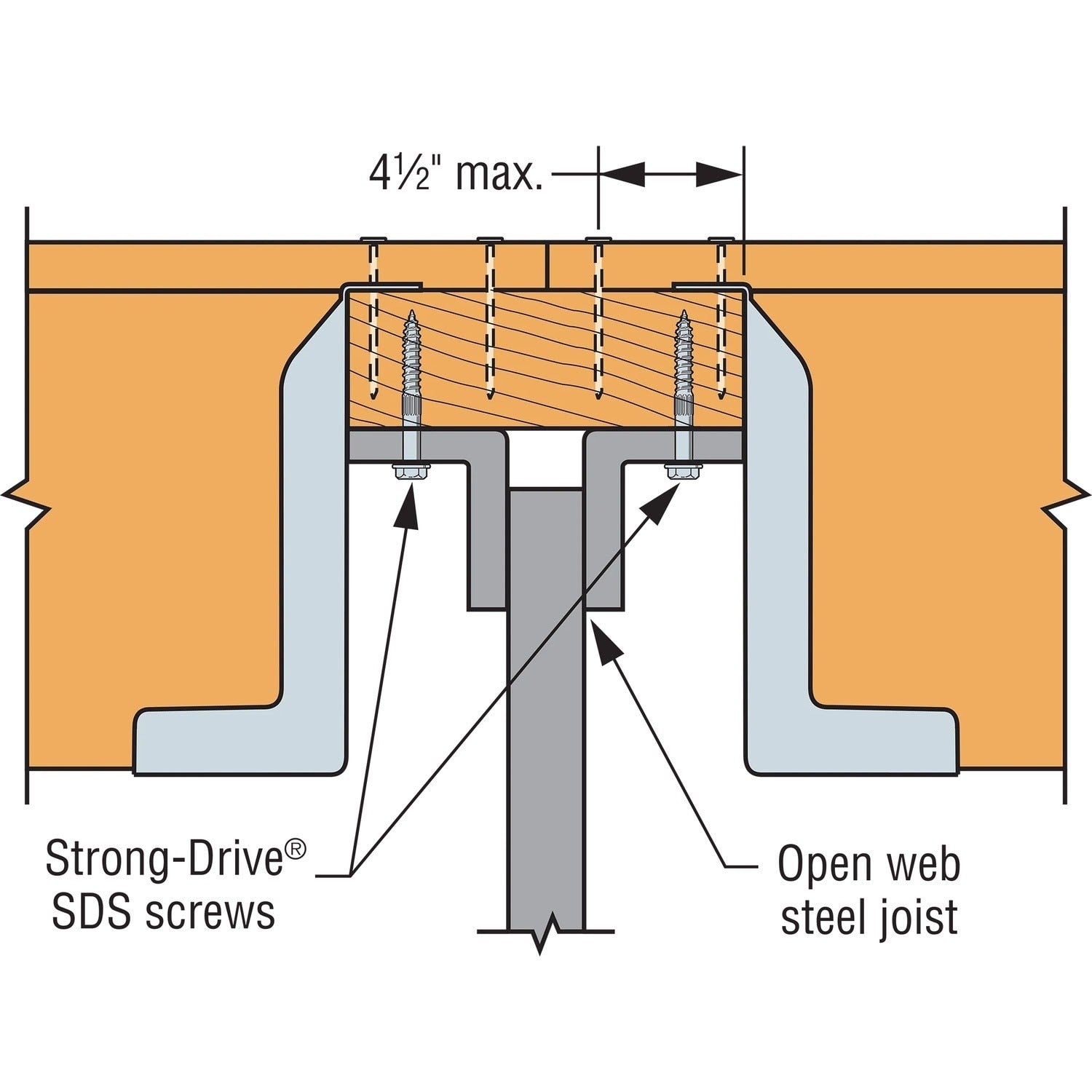

- Use manufacturer-specified nails or screws for secure connections
- Ensure connection points are clean and properly aligned
- Attach the hanger to the supporting beam first, then install the purlin
- Avoid field modifications as the hanger is pre-engineered
Simpson Strong-Tie HF34NZ Specifications
| Finish | ZMAX |
| Material | Galvanized Steel |
| Fasteners required | (2) 0.148 x 2-1/8" |
| For Treated Lumber | Yes |
| Height | 3-3/8" |
| Joist size | 3" X 4" |
| Thickness | 18 Gauge |
| Width | 2-9/16" |

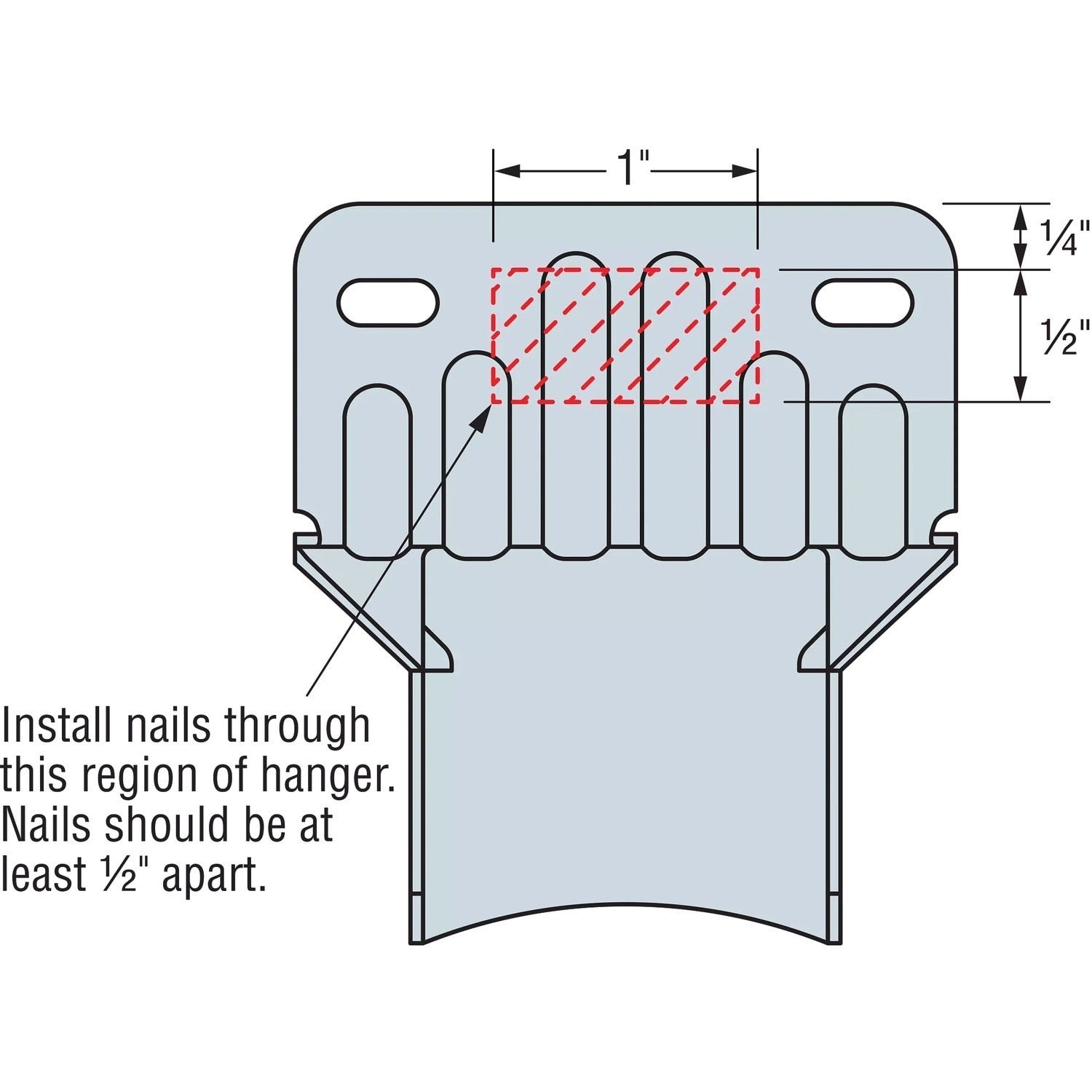

NOTE: Ensure the correct fasteners are used and installed in the specified positions to achieve the published load values.
