Simpson Hangers | SKU: HHUS5.50/10 | Barcode: 044315209604

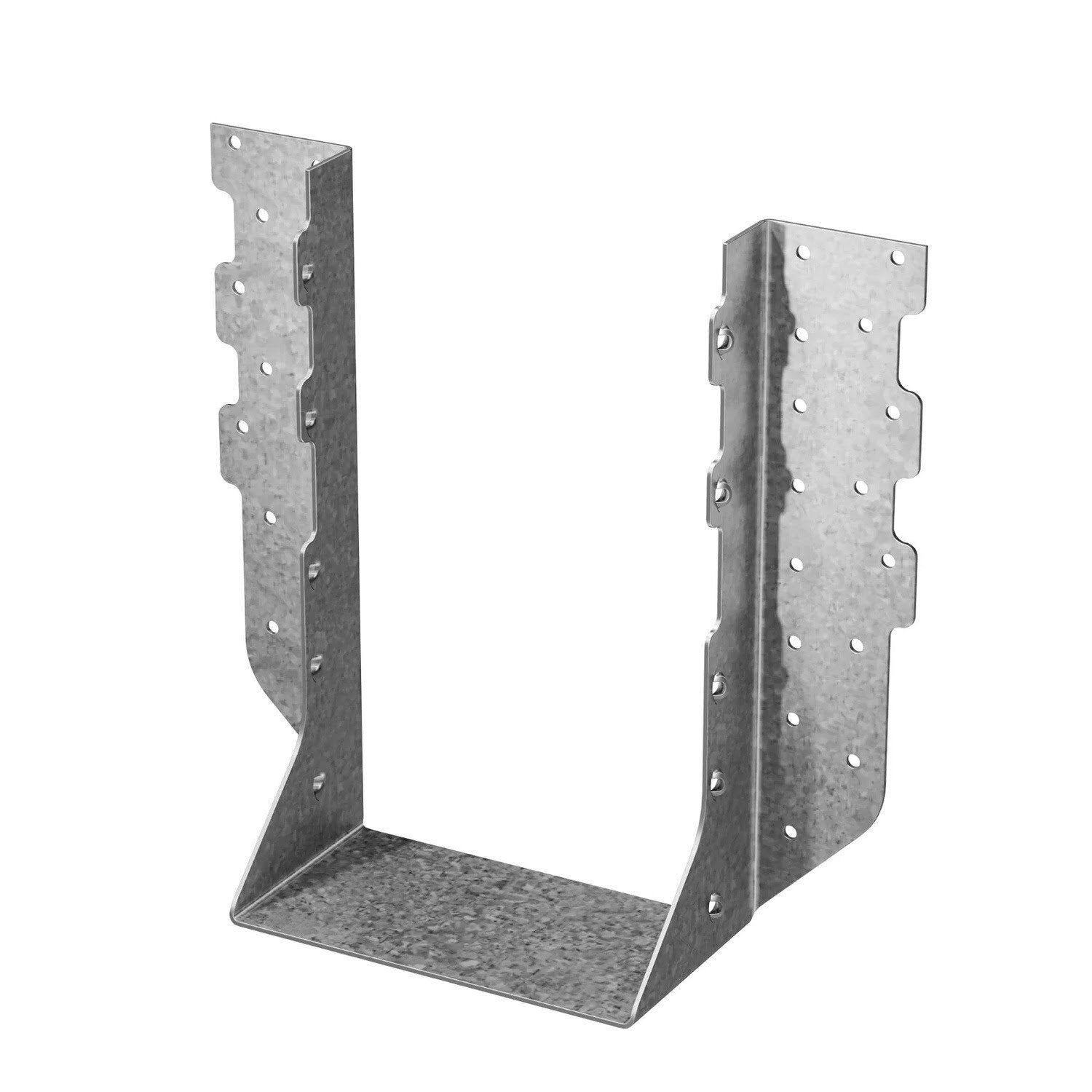

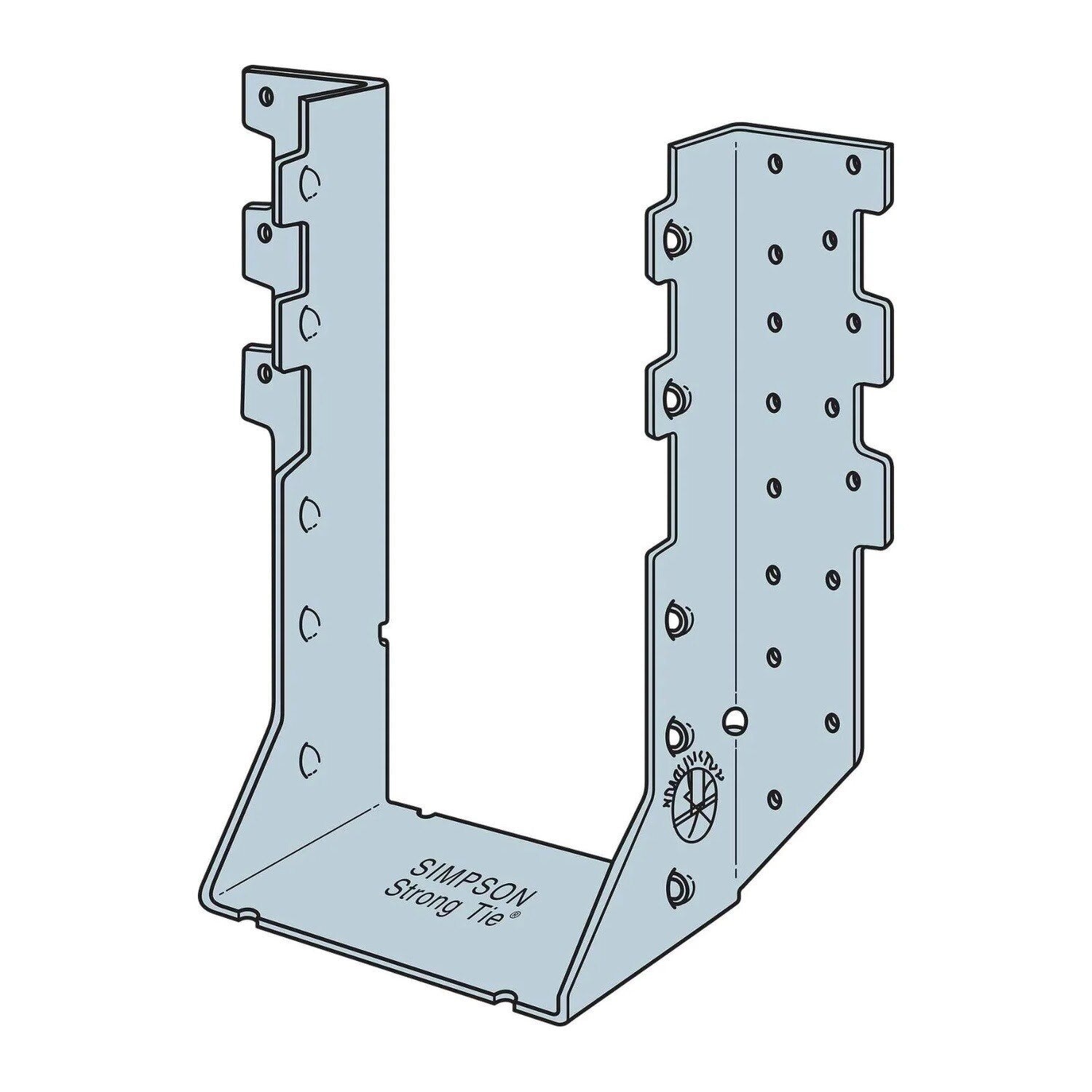

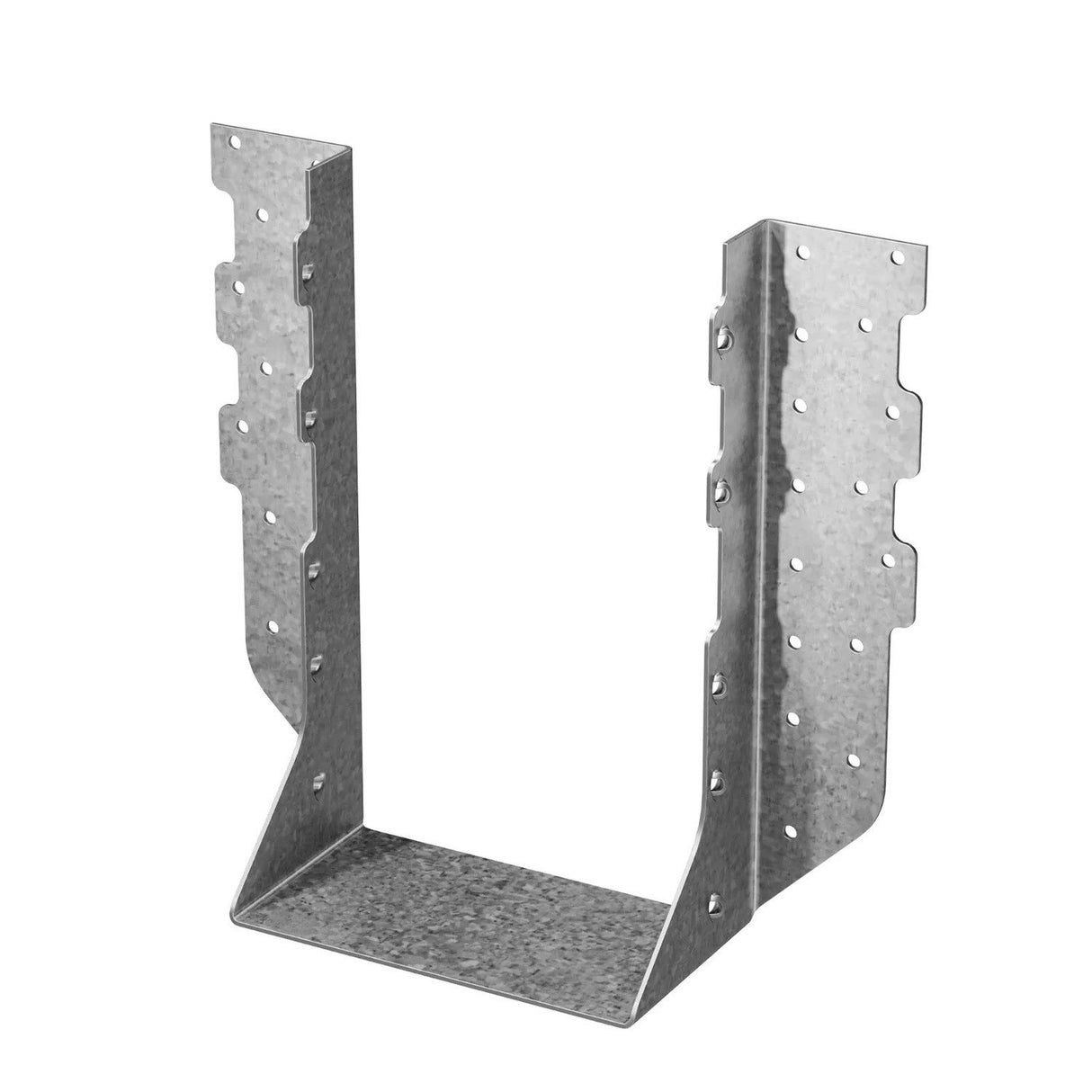

Simpson Strong-Tie HHUS5.50/10 (5-1/4" x 9-1/2") Face Mount I-Joist Hanger for Engineered Wood

Name: Simpson Strong-Tie HHUS5.50/10 (5-1/4" x 9-1/2") Face Mount I-Joist Hanger for Engineered Wood
Brand: Simpson Hangers
SKU: 667279
Price: 29.06 USD
Availability: InStock

$29.06 ~~$37.76~~

Description

Simpson HHUS5.50/10 Description

The Simpson HHUS5.50/10 Face Mount I-Joist Hanger is designed for engineered wood applications, offering high load capacity and durability.

Simpson HHUS5.50/10 Includes

(1) Face Mount I-Joist Hanger for Engineered Wood

Simpson HHUS5.50/10 Features

Can be installed after the beam is secured in place
Value-engineered hanger designed to carry high loads at an economical price
Tested, load rated, and code compliant
G90 Galvanized Coating for corrosion resistance
Double-Shear Nailing for increased connection strength

Simpson HHUS5.50/10 Applications

Framing & Structural Support: Provides secure connections for floor and ceiling joists in residential and commercial buildings.
Deck Construction: Ideal for attaching deck joists to beams in outdoor applications.
Post & Beam Connections: Ensures reliable fastening of horizontal members to vertical supports.
Plated Trusses: Designed to connect plated trusses efficiently while maintaining structural integrity.

Simpson HHUS5.50/10 Installation Overview

Use all specified fasteners as per General Notes.

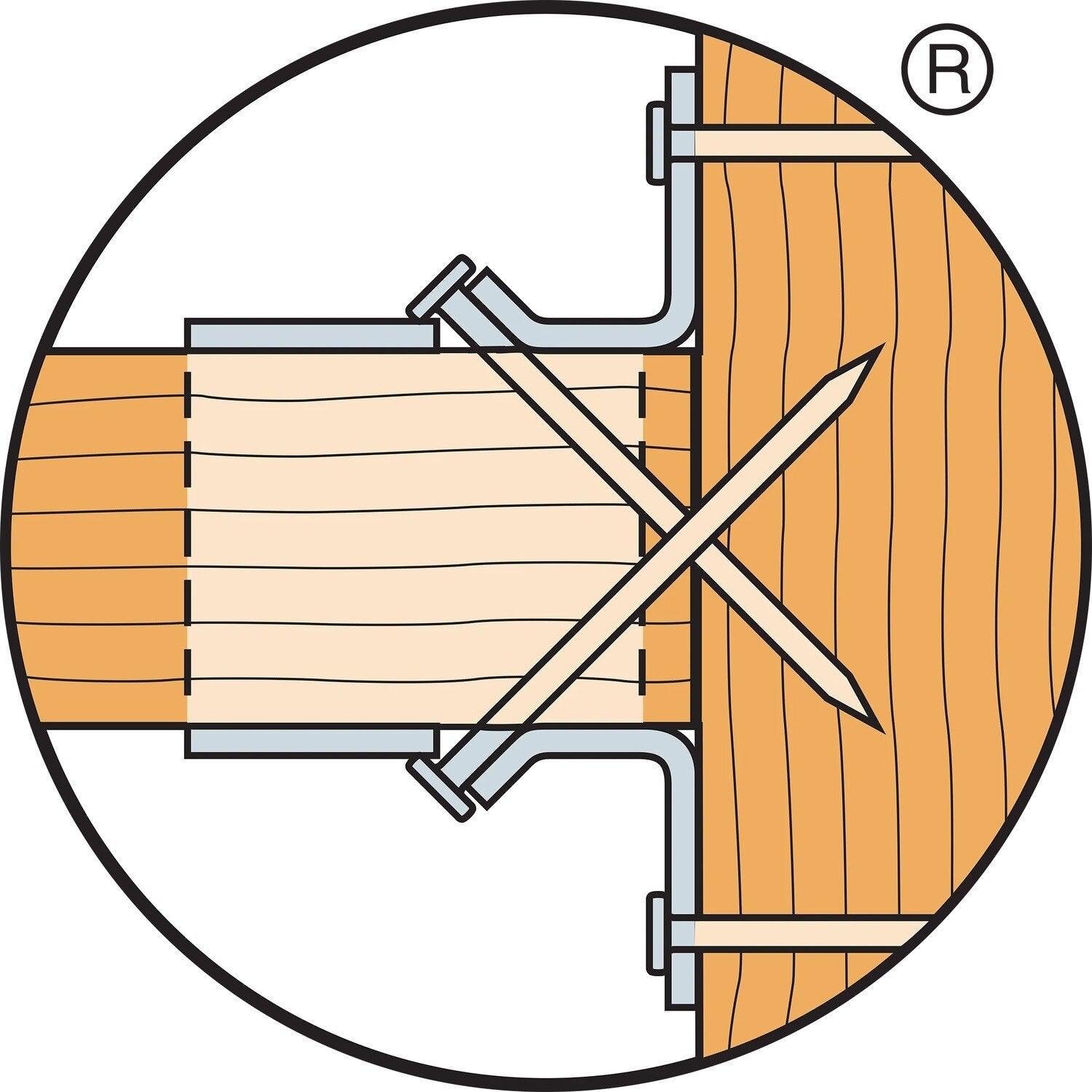

Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
Not designed for welded or nailer applications.
Do not use double-shear hangers with I-joists.
Follow specific nail specifications for 3x and 2x carrying members to ensure load capacity.

Simpson HHUS5.50/10 Specifications

Material	Carbon Steel
Finish	G90 Galvanized
Thickness	14 Gauge
Width	5.5"
Height	9"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
