Simpson Strong-Tie HRC22 Description
The Simpson HRC22 Hip-Ridge Connector is designed for secure and efficient hip-to-ridge beam connections, enhancing structural stability in roof framing.
Simpson Strong-Tie HRC22 Includes

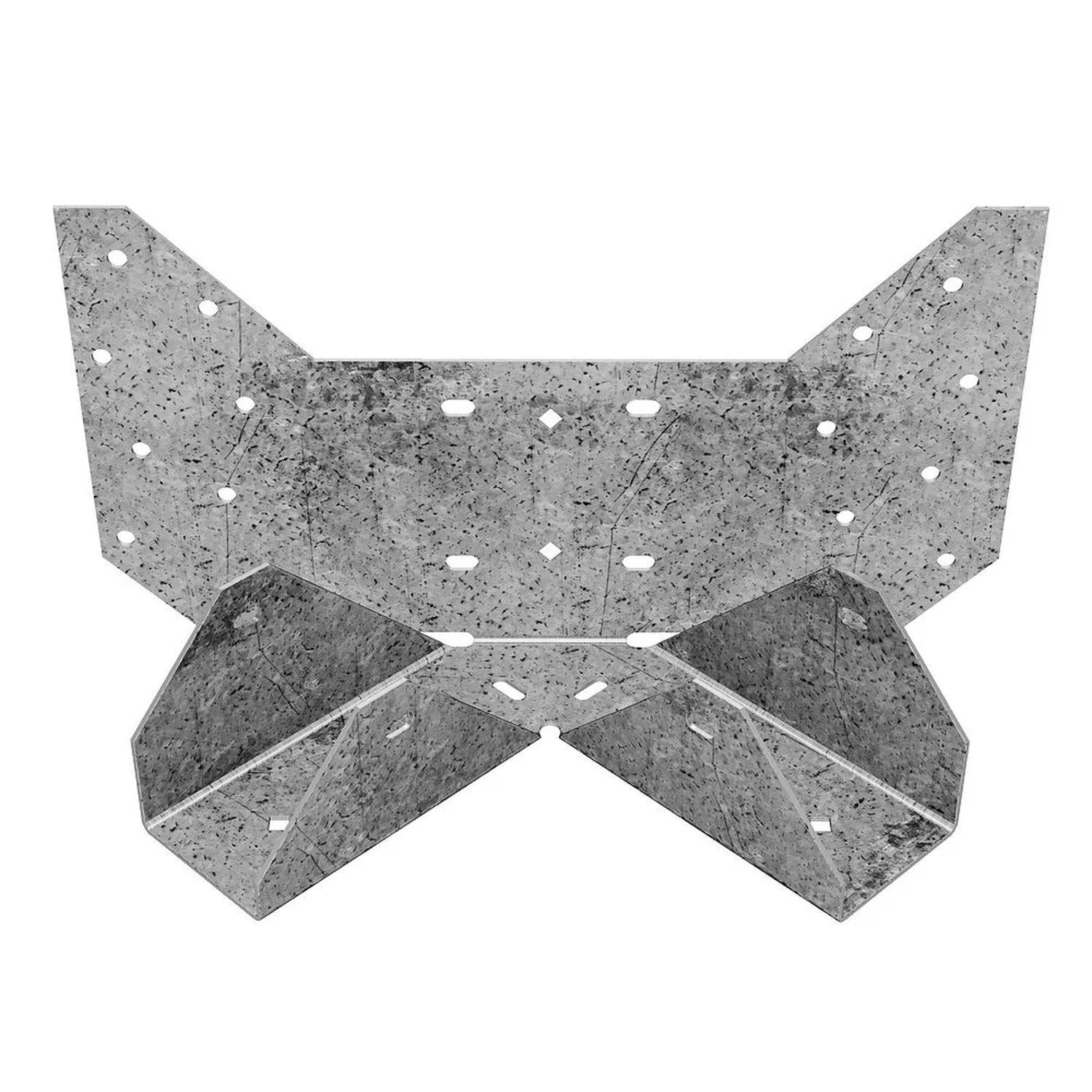

- (1) HRC22 Hip-Ridge Connector
Simpson Strong-Tie HRC22 Features
- Face-Mount Installation: Attaches directly to the ridge beam for a strong, stable connection.
- Engineered for Strength: Designed to handle high structural loads in hip and ridge applications.
- Versatile Compatibility: Works with a variety of solid sawn lumber framing configurations.
- Precision Manufacturing: Ensures a secure fit and reliable performance.
Simpson Strong-Tie HRC22 Applications

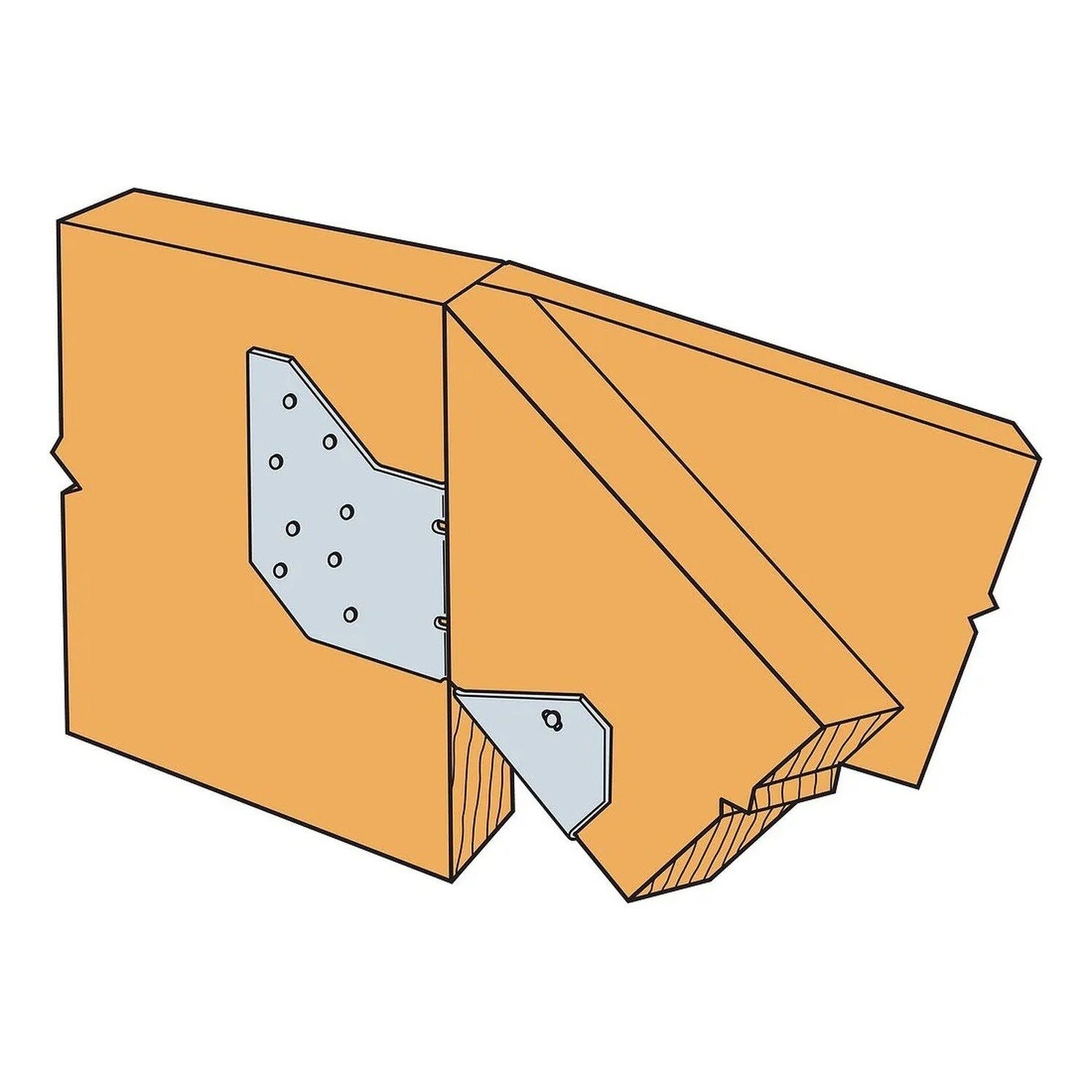

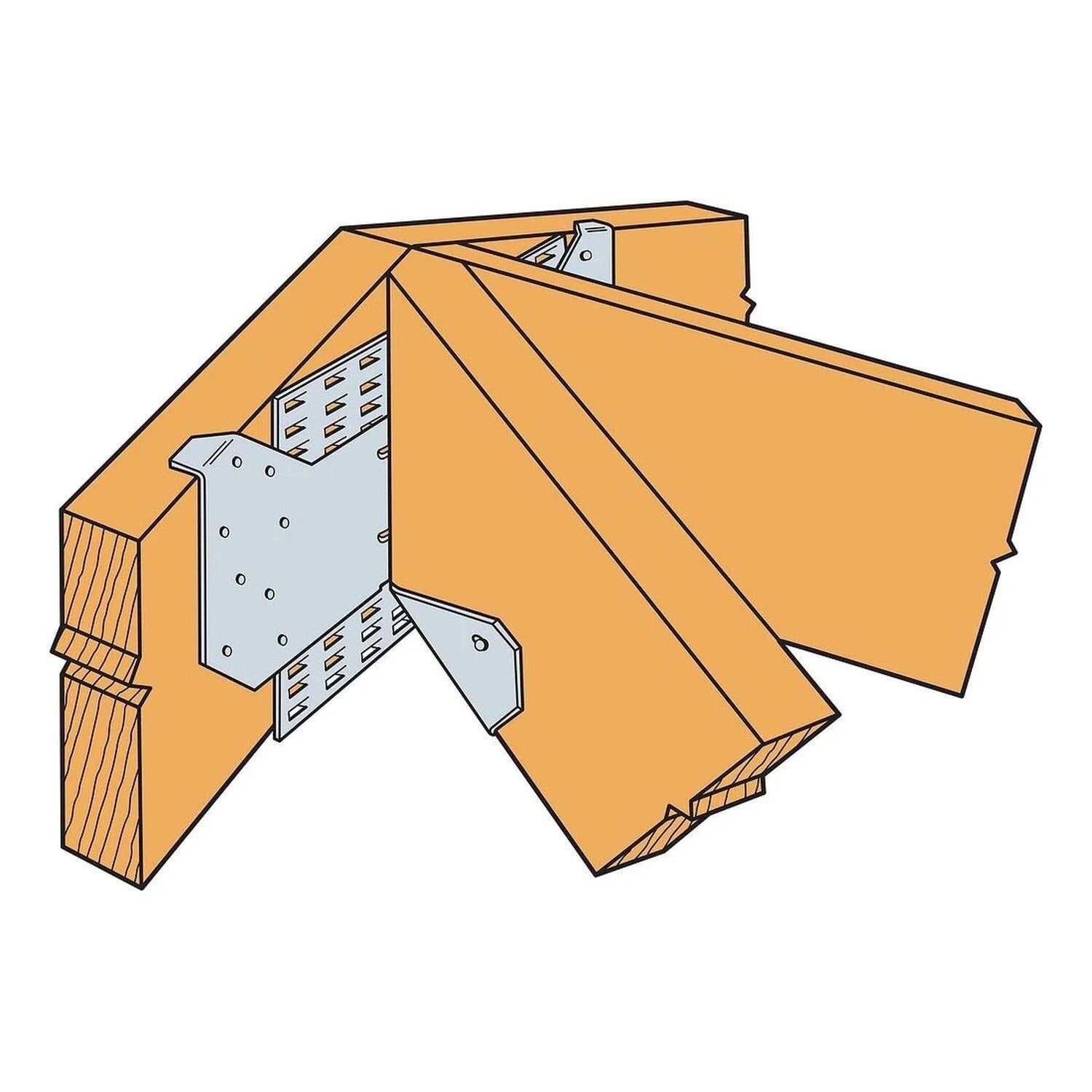

- Hip-to-Ridge Connections: Reinforces the intersection where hip rafters meet the ridge beam.
- Roof Framing Systems: Adds stability to trusses and rafters in both residential and commercial structures.
- Outdoor Structures: Suitable for pergolas, gazebos, and other timber-framed projects.
- Agricultural & Barn Construction: Provides long-lasting performance in heavy-duty framing applications.
Simpson Strong-Tie HRC22 Installation Overview
- Attach the connector directly to the ridge beam using approved Simpson Strong-Tie nails or structural screws.
- Ensure the hip rafter is properly aligned before fastening.
- Use all designated fastener holes to achieve full load capacity.
- Follow manufacturer recommendations for compatibility with framing materials.

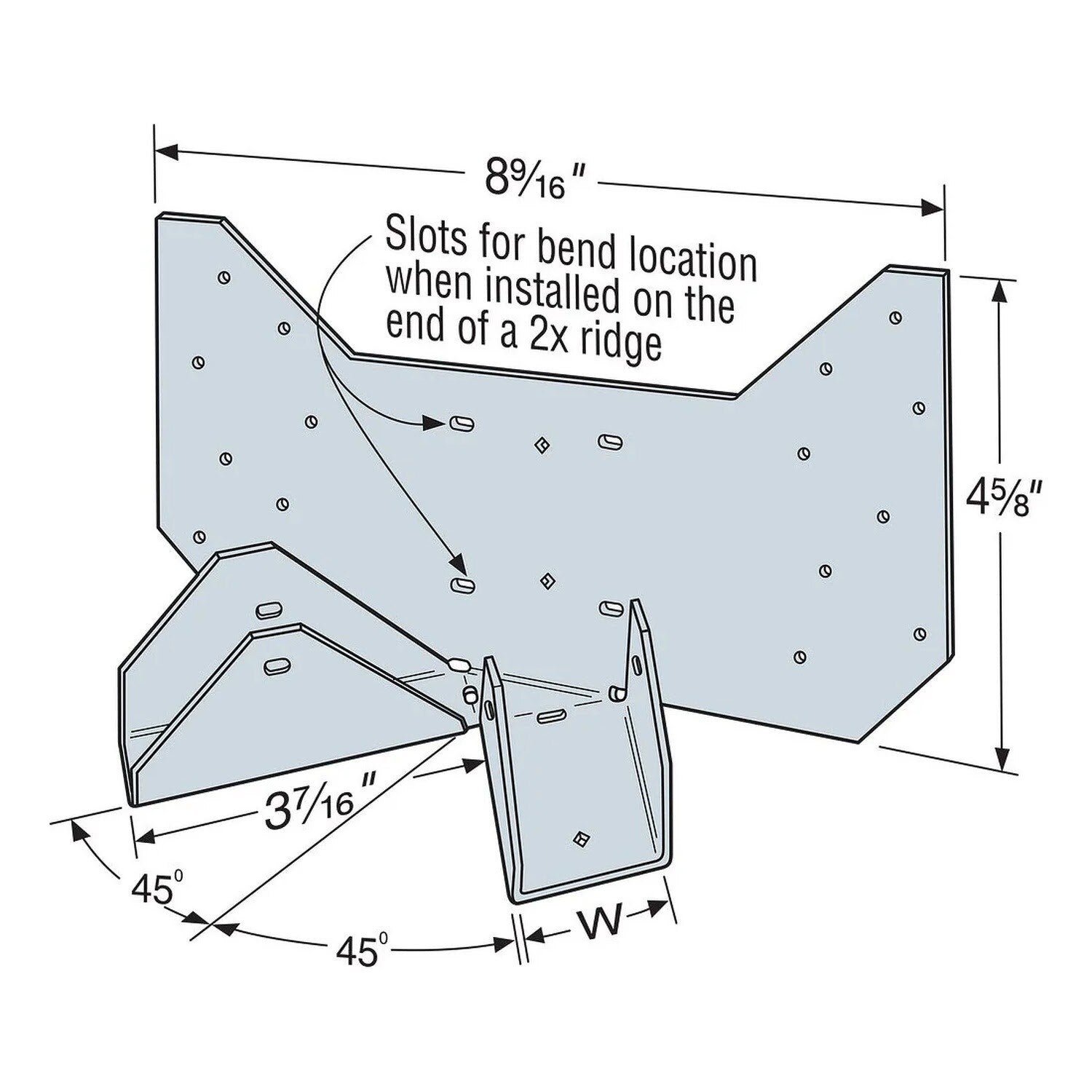

Simpson Strong-Tie HRC22 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Thickness | 16 Gauge |
| Weight | 0.9 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
819197
