Simpson Anchors | SKU:
HSKP5.75X14.5-W
Simpson Strong-Tie HSKP5.75X14.5-W (5-3/4" x 14") Heavy Seated Knife Plate Hanger - Steel
Free Shipping
$253.23
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HSKP5.75X14.5-W Description

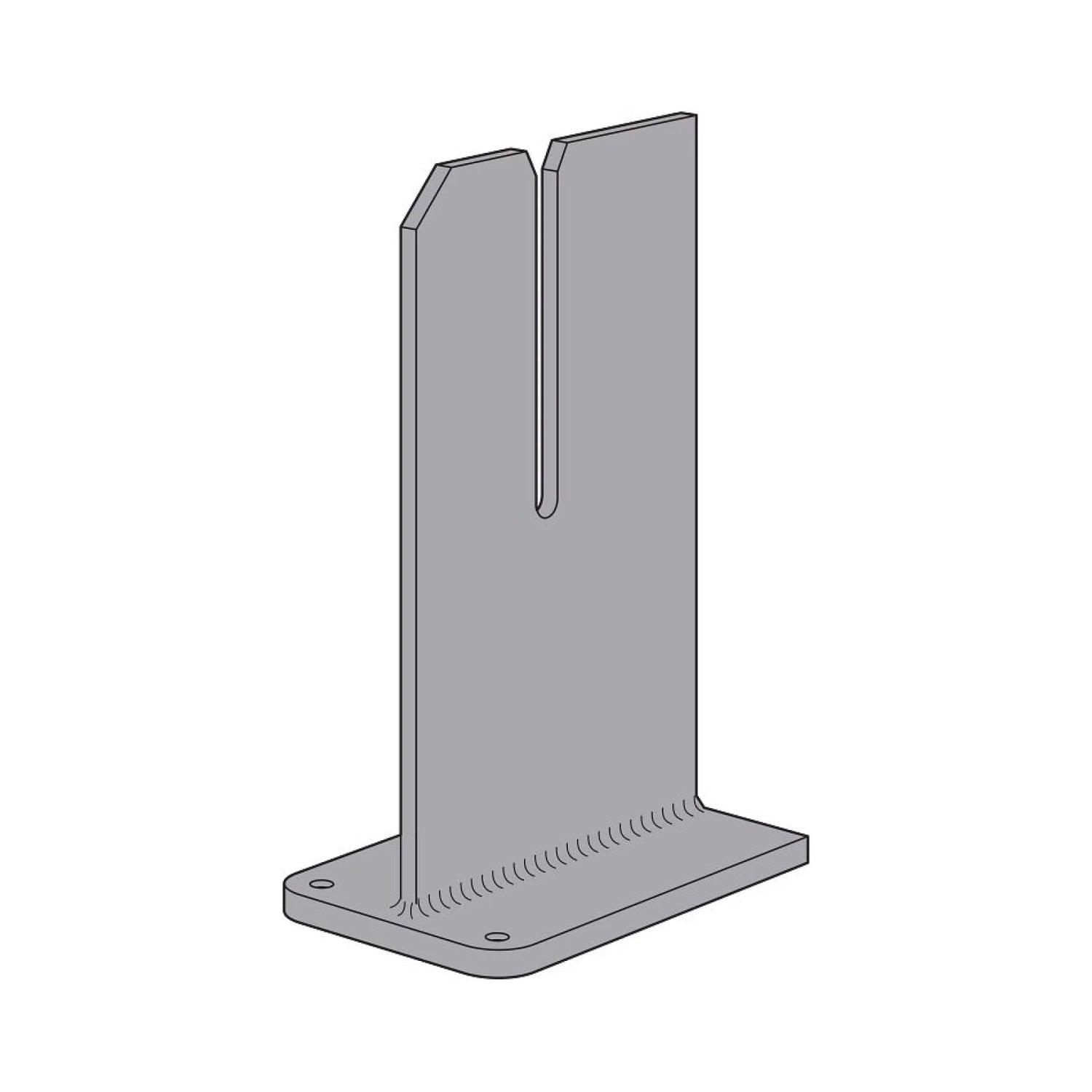

The Simpson Strong-Tie HSKP5.75X14.5-W Heavy Seated Knife Plate Hanger is engineered for mass timber construction where high strength, clean aesthetics, and fire performance matter most.

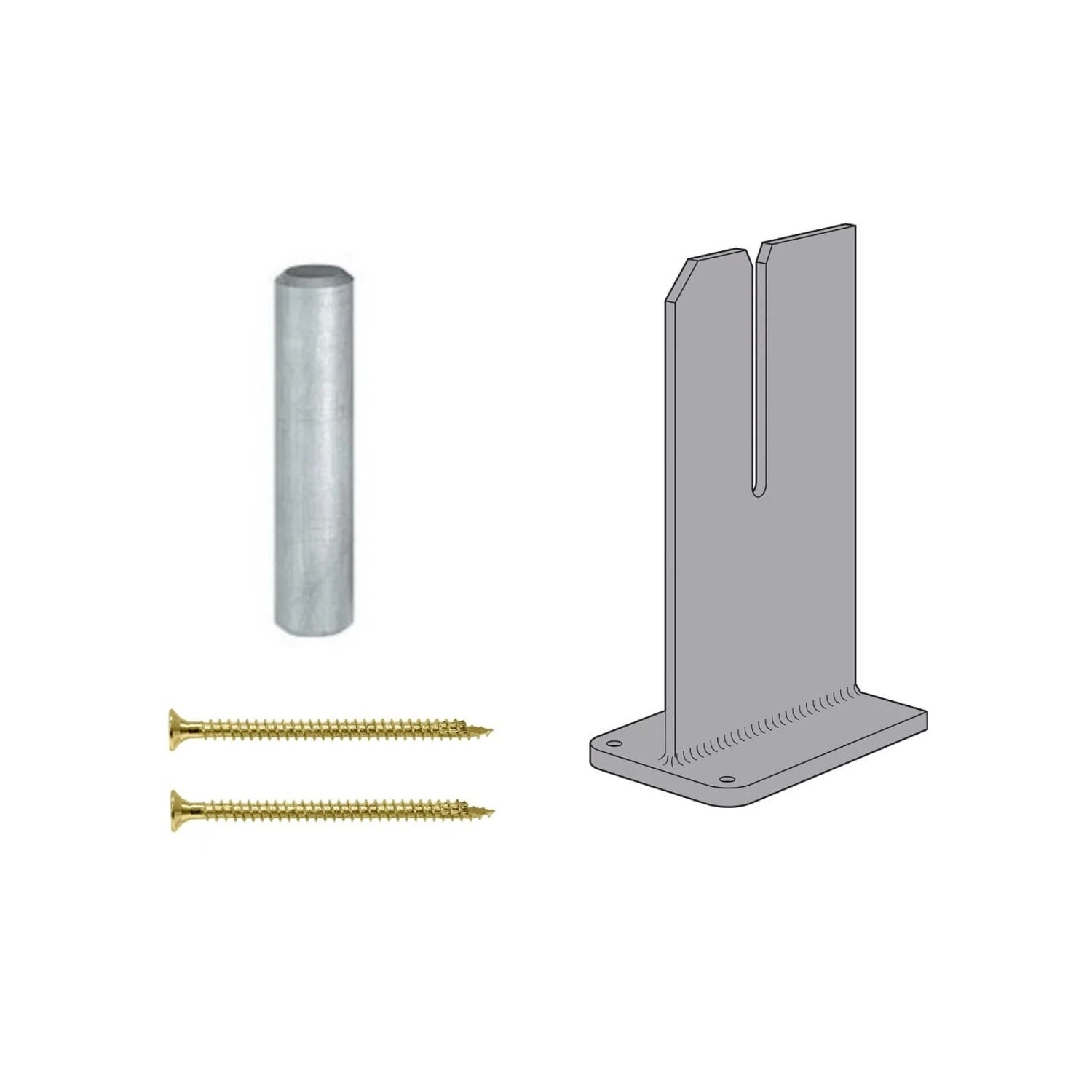

Simpson Strong-Tie HSKP5.75X14.5-W Includes
- (1) HSKP5.75X14.5-W Connector
- (1) CJTPL 1/2" Dia. Steel Dowel
- (2) SDCF27614 0.390" x 6-1/4" Strong-Drive SDCF Timber-CF Screws
Simpson Strong-Tie HSKP5.75X14.5-W Features
- High Load Capacity: Code-listed for loads ranging from 22 to 32 kips
- Concealed Appearance: Hidden connector preserves wood-only finish
- Fire Resistance: Achieves two-hour fire-resistance rating
- Angled Fastening: 45° installation of fasteners maximizes capacity and stiffness
- Factory Friendly: Designed for factory installation with generous fit-up tolerance on site
Simpson Strong-Tie HSKP5.75X14.5-W Applications

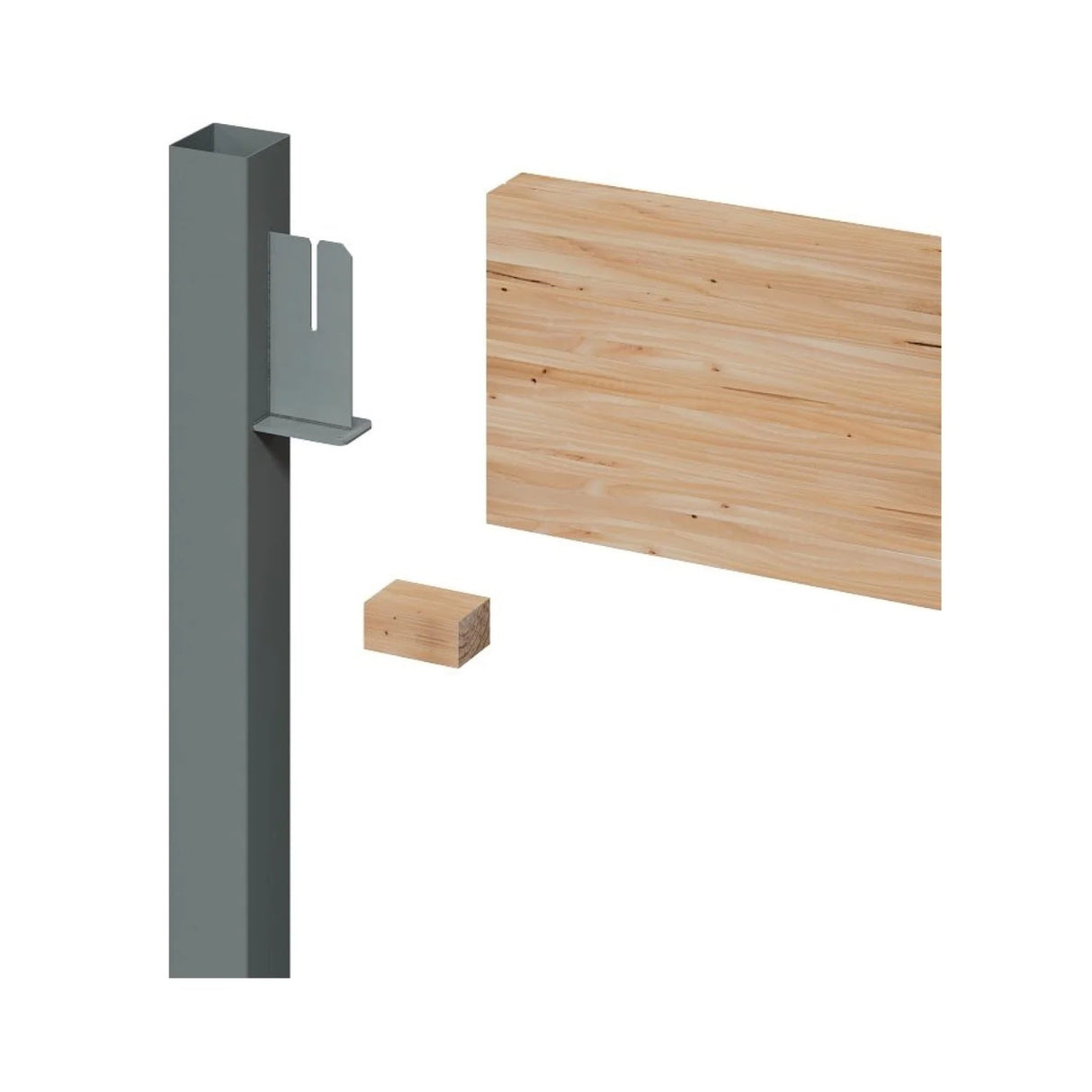

- Mass timber projects where concealed beam-to-column connections are preferred
- Wood-to-wood and wood-to-steel beam connections
- Architectural projects prioritizing exposed wood aesthetics
Simpson Strong-Tie HSKP5.75X14.5-W Installation Overview
- Verify all kit components and review installation instructions.
- Position the hanger on the column or support surface at the specified elevation.
- Fasten the hanger using the included SDCF Timber-CF screws, following the provided pattern and angles.
- Lower the beam onto the seated knife plate, taking advantage of the fit-up tolerance.
- Ensure all connections are tightened and aligned according to your project plans.
Simpson Strong-Tie HSKP5.75X14.5-W Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Additional Info | Back and Knife Plate — 3 gauge; Bearing Plate — 1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
