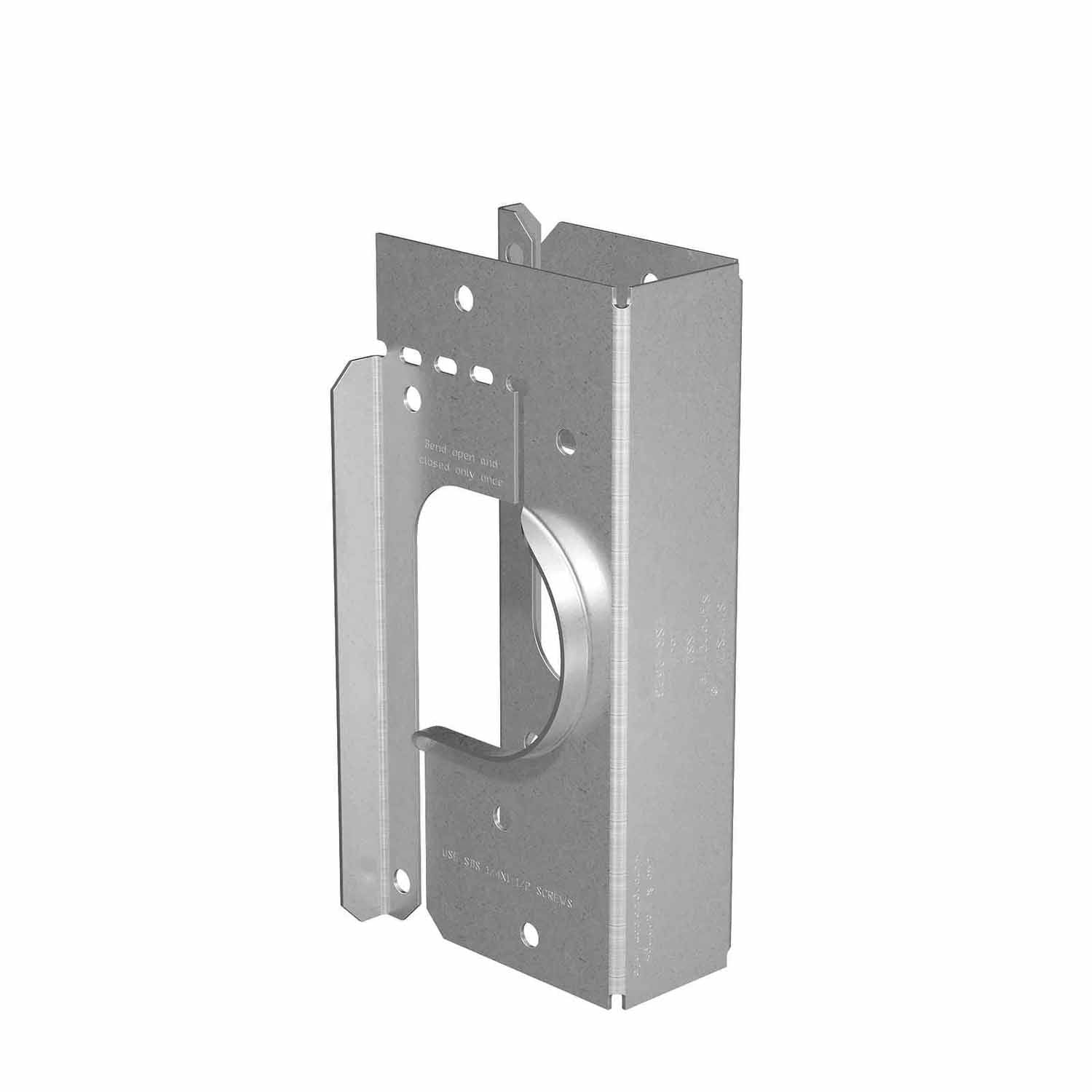

Simpson Strong-Tie HSS2KT Description
The HSS Galvanized Stud Shoe is designed to reinforce studs that have been drilled or notched during construction, providing durability and resistance to tension and compression loads.
Simpson Strong-Tie HSS2KT Includes
- (4) connectors
- (48) 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (12 screws per connector)
Simpson Strong-Tie HSS2KT Features
- Installs over pipe up to 2 3/8" outside diameter
- Code listed for both building and plumbing codes
- Made from durable galvanized steel to resist corrosion for lasting use
- Reinforces studs which have been drilled or notched during construction
- Designed to resist both tension and compression loads
- Flared flanges that provide extra strength
Simpson Strong-Tie HSS2KT Applications

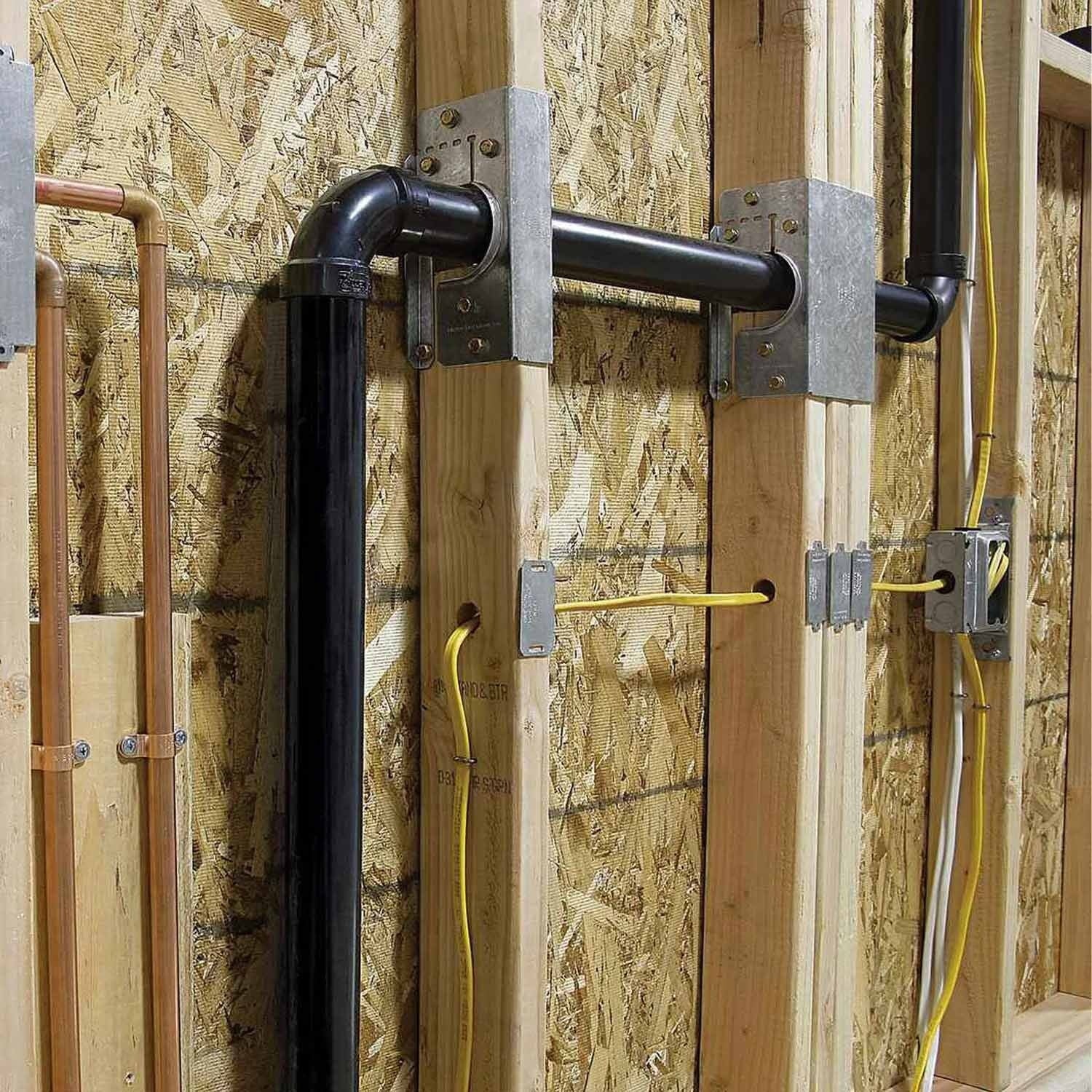

- Reinforcing notched or drilled studs in construction
- Providing structural support in wood framing
Simpson Strong-Tie HSS2KT Installation Overview
- Use all specified fasteners as per the guidelines
- Bend flanges at a 90-degree angle during installation, then bend back and screw into position
- Bend flanges only once during installation
Simpson Strong-Tie HSS2KT Specifications
| Material | 16 gauge |
| Finish | Galvanized |
| Application | Retrofit |
| API Approval | Approved - Full |
| Width | 1 9/16 in. |
| Coating/Material | Zinc Galvanized, G90 |
Toolup Part # :
821930
