Simpson Anchors | SKU:
HTS20

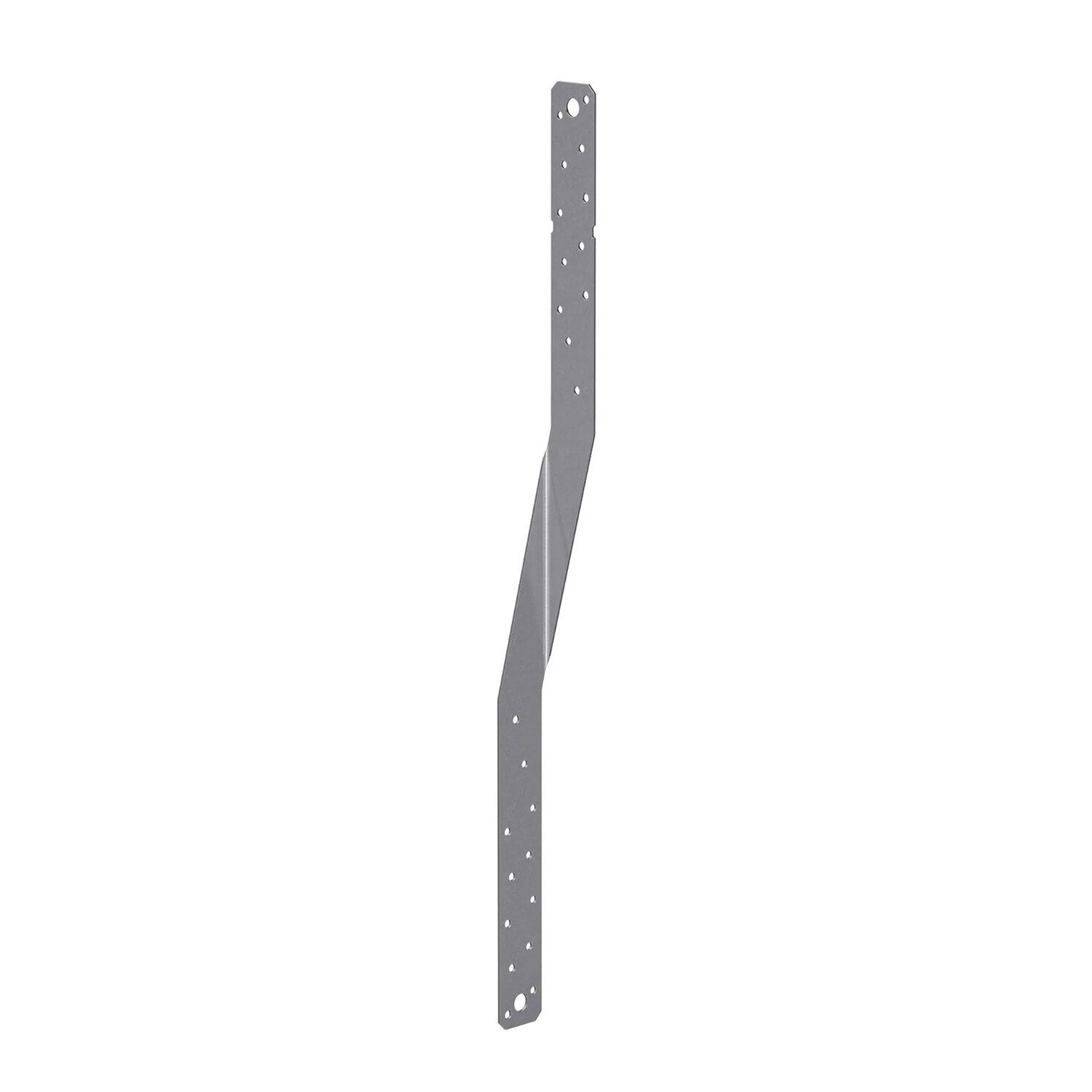

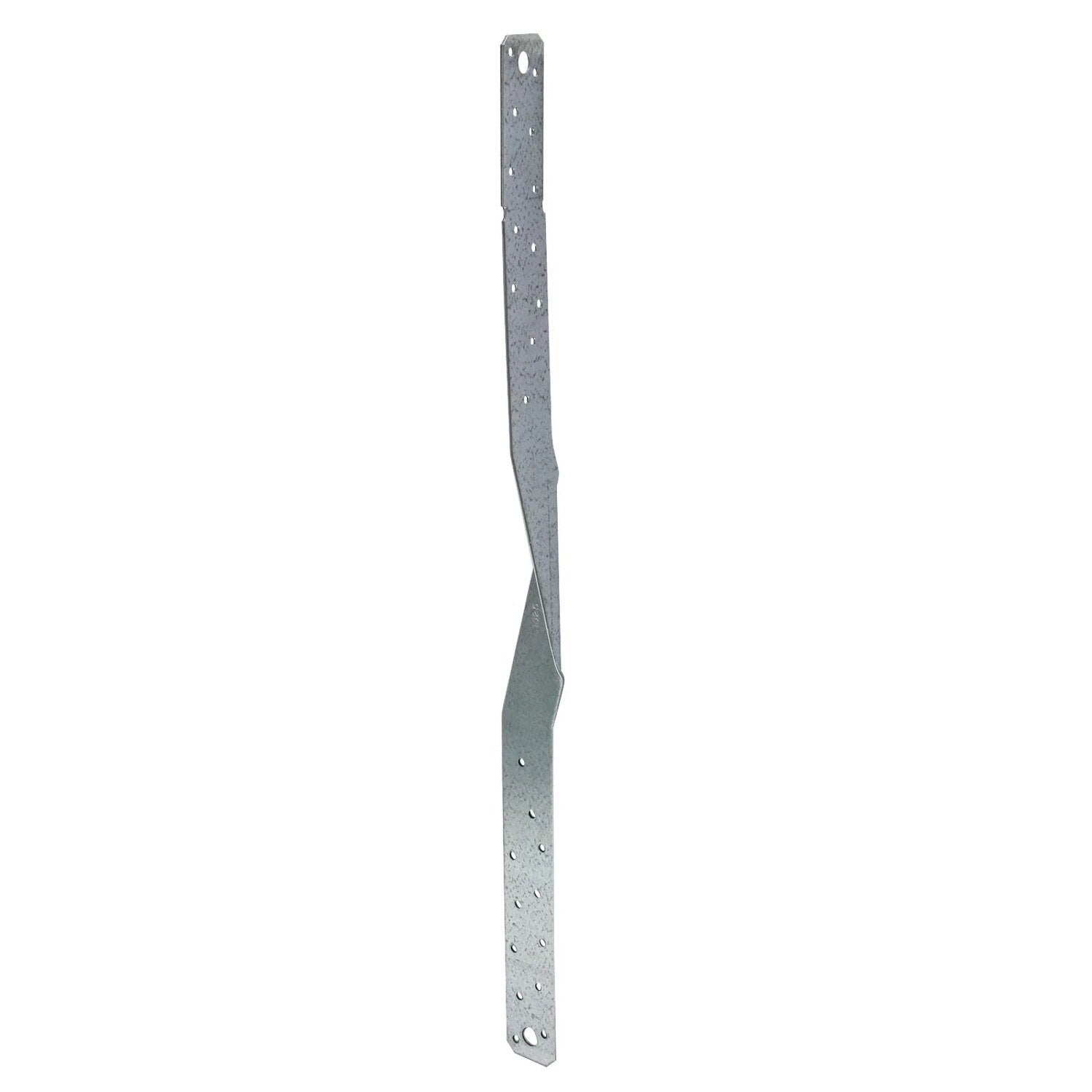

Simpson Strong-Tie HTS20 (20") 14 Gauge Heavy Twist Strap for Wood Construction - G90 Galvanized
$2.98
Unit price
/
Unavailable
Description
Description
Simpson HTS20 Description
The Simpson HTS20 Heavy Twist Strap provides a tension connection between wood members, featuring a G90 galvanized finish for corrosion resistance.
Simpson HTS20 Includes
- (1) 20" Heavy Twist Strap
Simpson HTS20 Features
- Provides a tension connection between wood members
- Resists uplift at the heel of a truss economically
- Features a 3-3/4" bend section to eliminate interference at transition points
- G90 galvanized finish for added corrosion resistance
Simpson HTS20 Applications
- High-Wind Construction
- Wood framing requiring tension connections
- Truss uplift resistance
Simpson HTS20 Installation Overview
- Use all specified fasteners, with half into each member being connected, to achieve the listed loads
- Available with the bend reversed by specifying '-REV' after the model number
Simpson HTS20 Specifications
| Material | 14 gauge |
| Finish | G90 Galvanized |
| Length | 20" |
| Weight | 0.5 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
