Simpson Hangers | SKU: HUC410 | Barcode: 044315427008

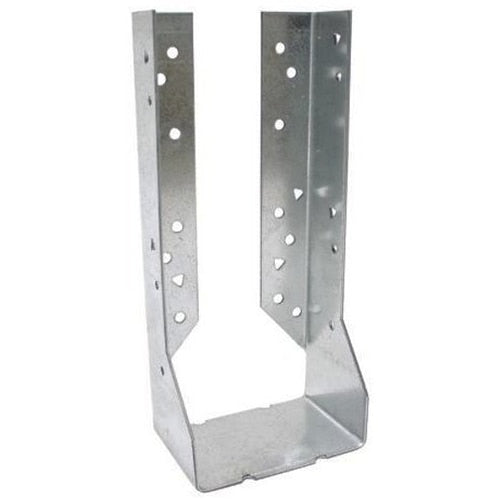

Simpson HUC410 Strong-Tie Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x10

Name: Simpson HUC410 Strong-Tie Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x10
Brand: Simpson Hangers
SKU: 41954
Price: 15.16 USD
Availability: InStock

$15.16 ~~$22.50~~

NOTE: This item is ineligible for free shipping

Description

Simpson HUC410 Description

The Simpson HUC410 is a heavy-duty concealed-flange face-mount joist hanger designed for robust support in construction applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and corrosion resistance.

Simpson HUC410 Includes

(1) Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x10

Simpson HUC410 Features

Concealed Flange Design for clean lines and close installation to beam ends
G90 Galvanized Finish for corrosion resistance
Versatile Applications for various joist sizes and materials
Code Compliance ensuring reliable structural performance

Simpson HUC410 Applications

Decks & Outdoor Structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
Floor Joists & Ceiling Framing: Ensures secure joist connections in residential and commercial construction.
Multi-Family Housing & Commercial Buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.
Engineered Wood & Steel Framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
Retrofitting & Renovation Projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.

Simpson HUC410 Installation Overview

Use hot-dip galvanized nails for maximum corrosion resistance.
Fill both round and triangle holes with common nails for maximum load capacity.

Simpson HUC410 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails
For Treated Lumber	No
Height	8-3/8"
Joist size	4" X 10"
Thickness	14 Gauge
Width	3-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
