Simpson Hangers | SKU:
HUC610

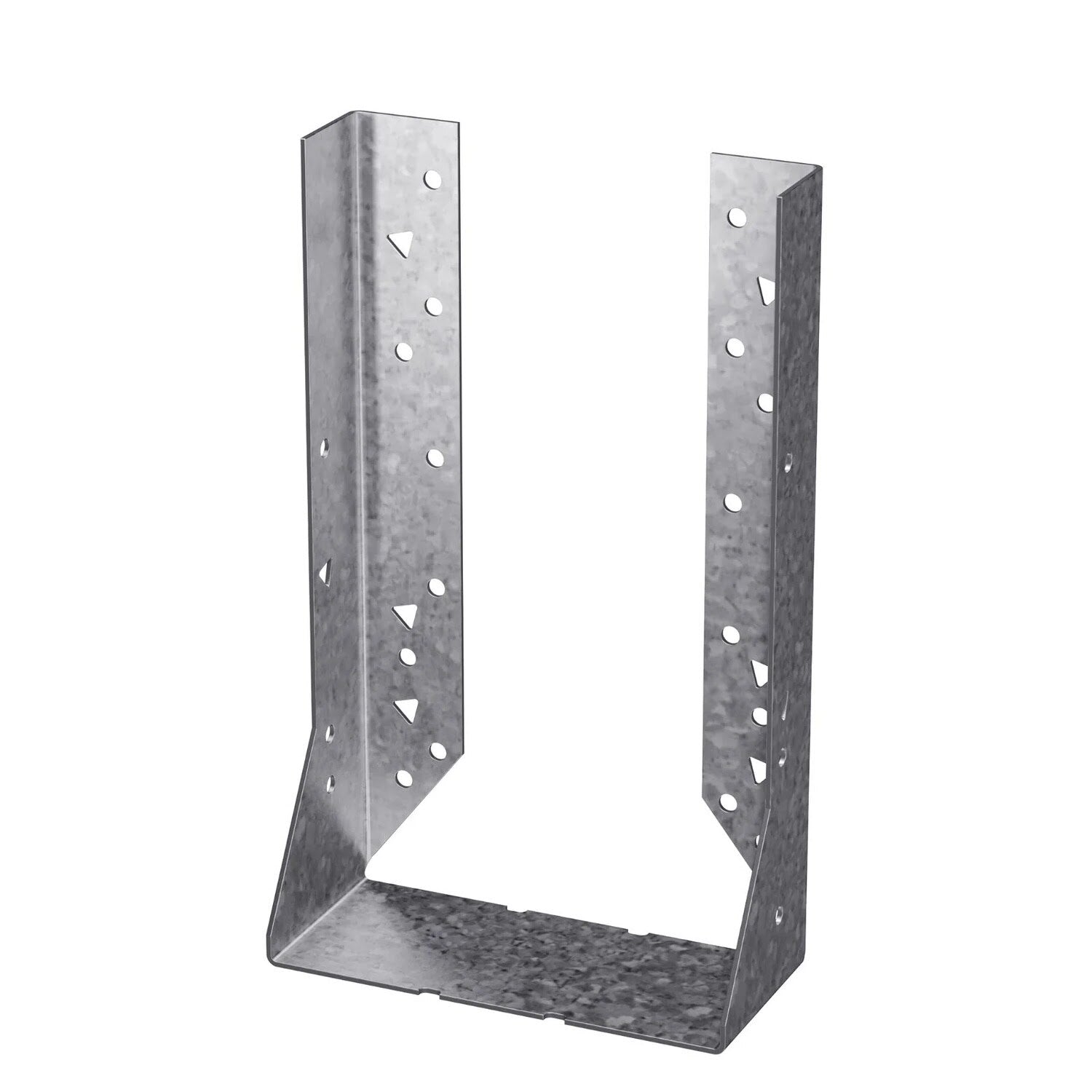

Simpson Strong-Tie HUC610 (6" x 10") Galvanized Face-Mount Concealed-Flange Joist Hanger
$19.72
$28.82
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HUC610 Description
The Simpson HUC610 is a heavy-duty concealed-flange face-mount joist hanger designed for 6x10 joists, offering robust support and corrosion resistance with its G90 galvanized finish.
Simpson HUC610 Includes
- (1) Galvanized Face-Mount Concealed-Flange Joist Hanger for 6x10
Simpson HUC610 Features
- Concealed Flange Design for clean lines and close installation to beam ends
- G90 Galvanized Finish for corrosion resistance
- Versatile Applications for various joist sizes and materials
- Code Compliance ensuring reliable performance
Simpson HUC610 Applications

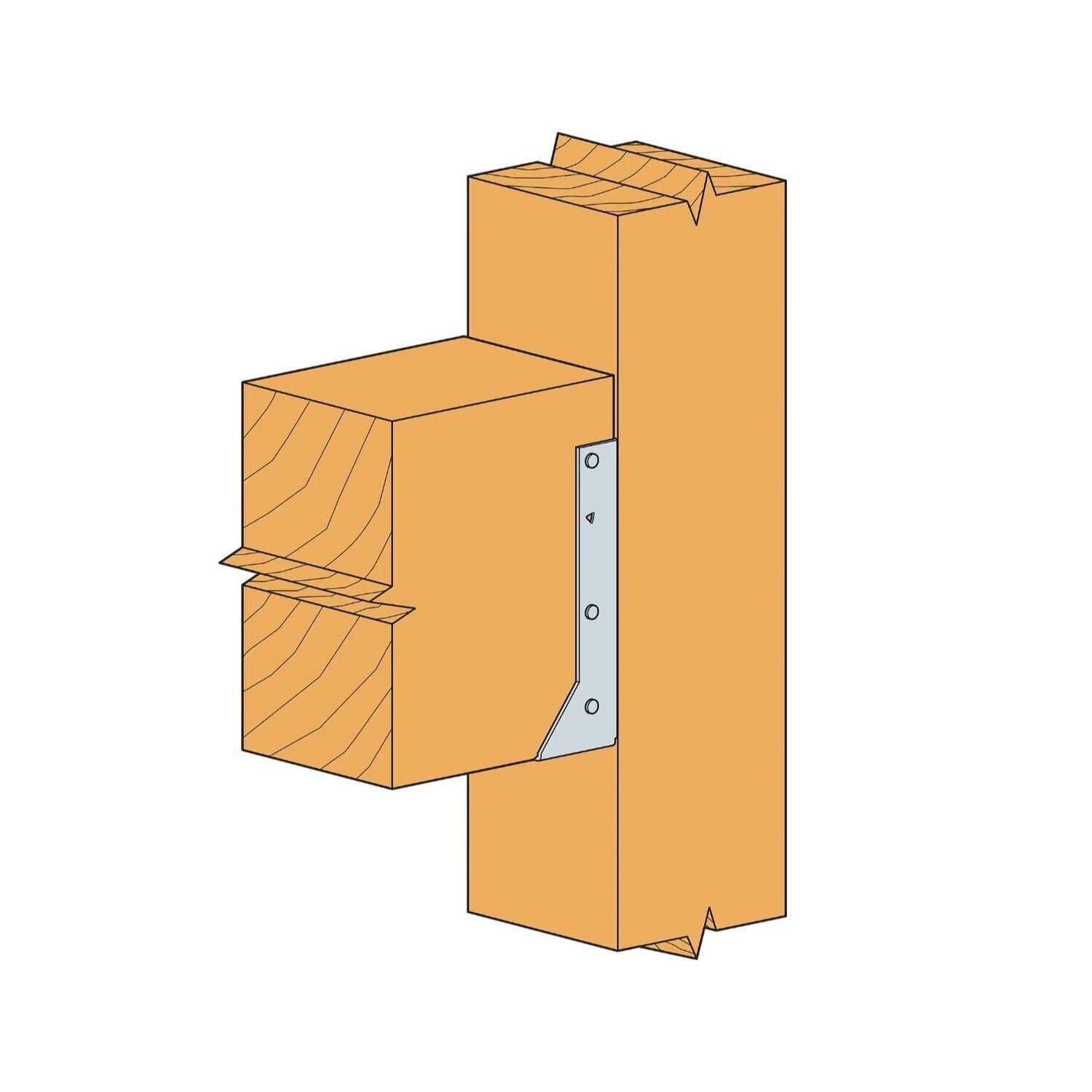

- Decks & Outdoor Structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
- Floor Joists & Ceiling Framing: Ensures secure joist connections in residential and commercial construction.
- Multi-Family Housing & Commercial Buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.

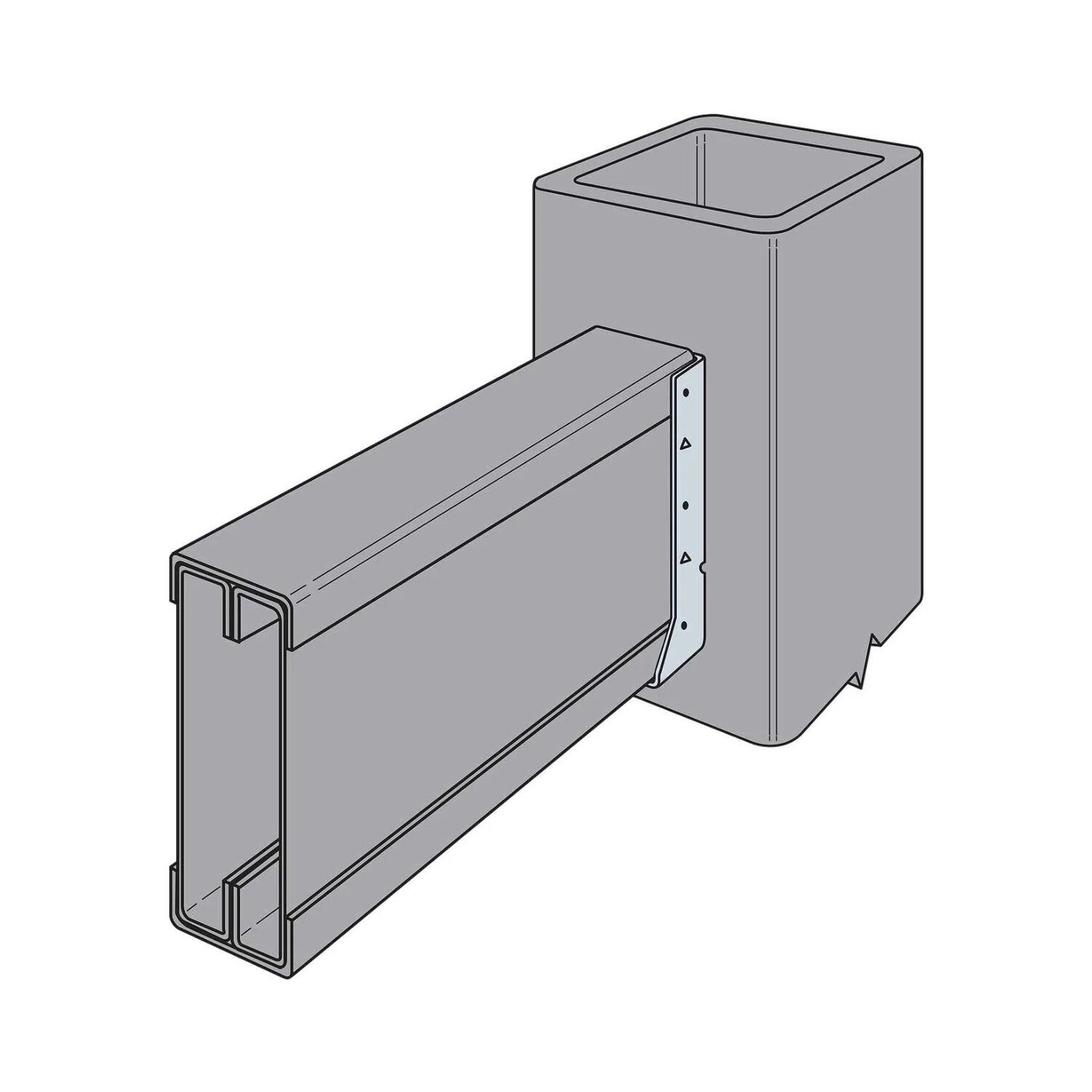

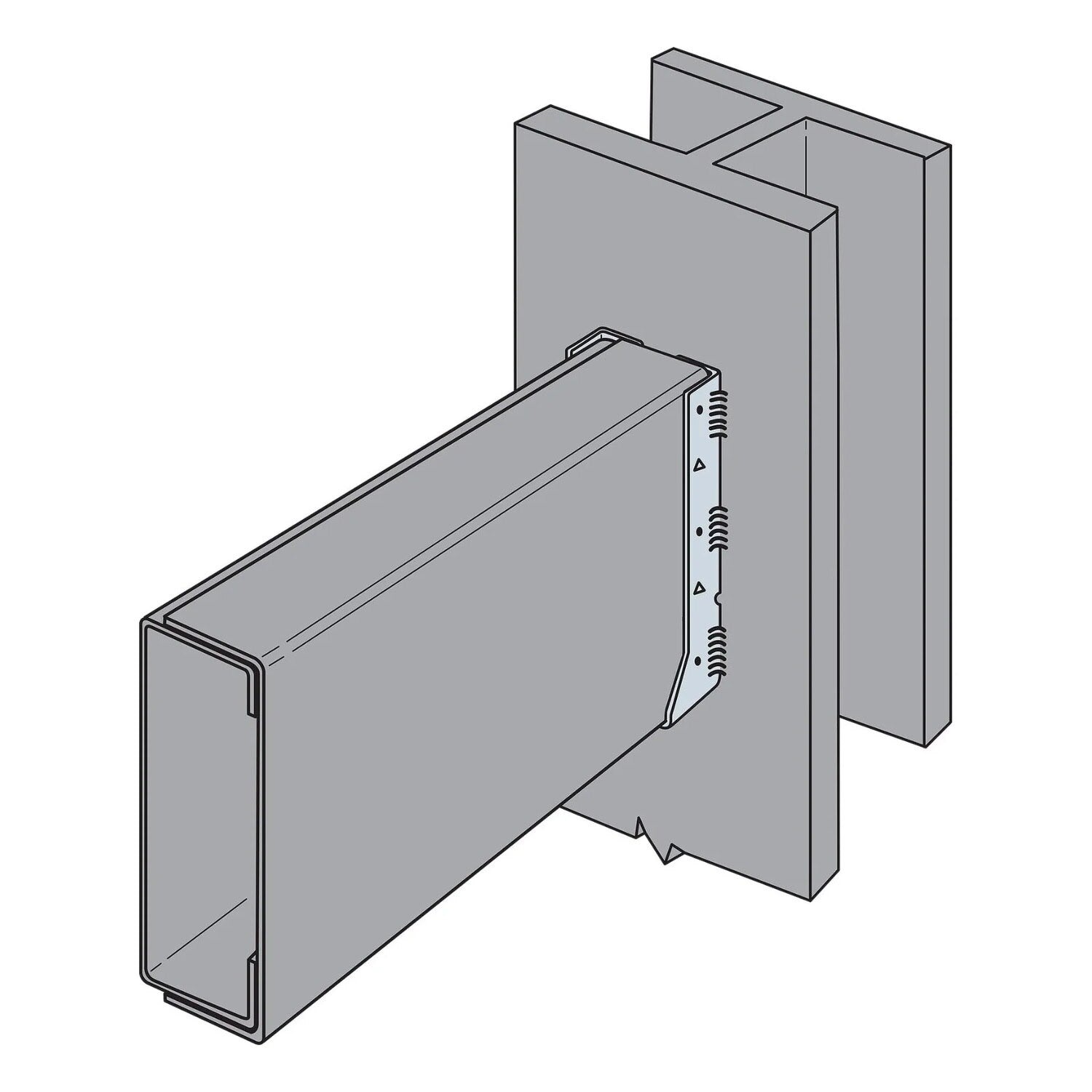

- Engineered Wood & Steel Framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
- Retrofitting & Renovation Projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.

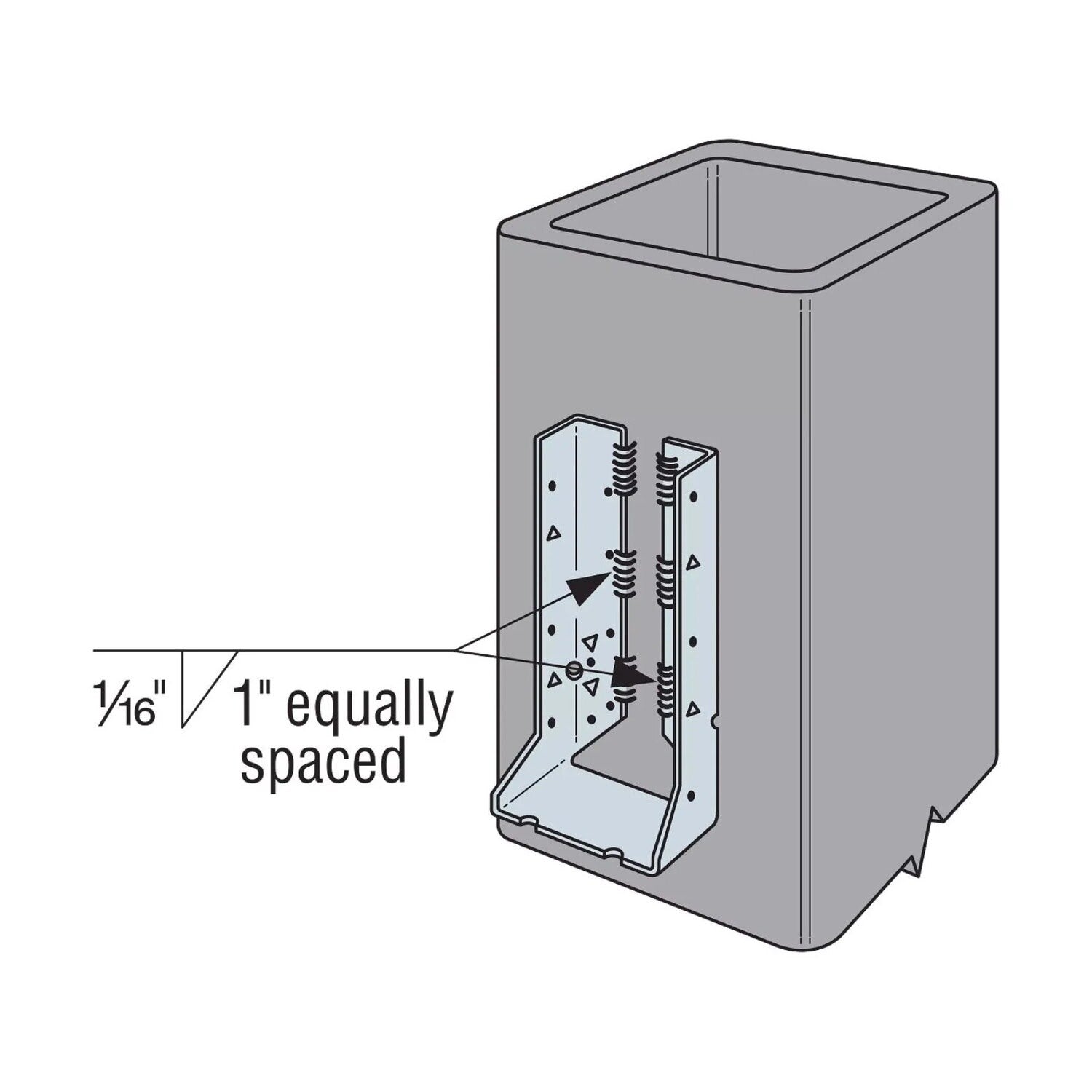

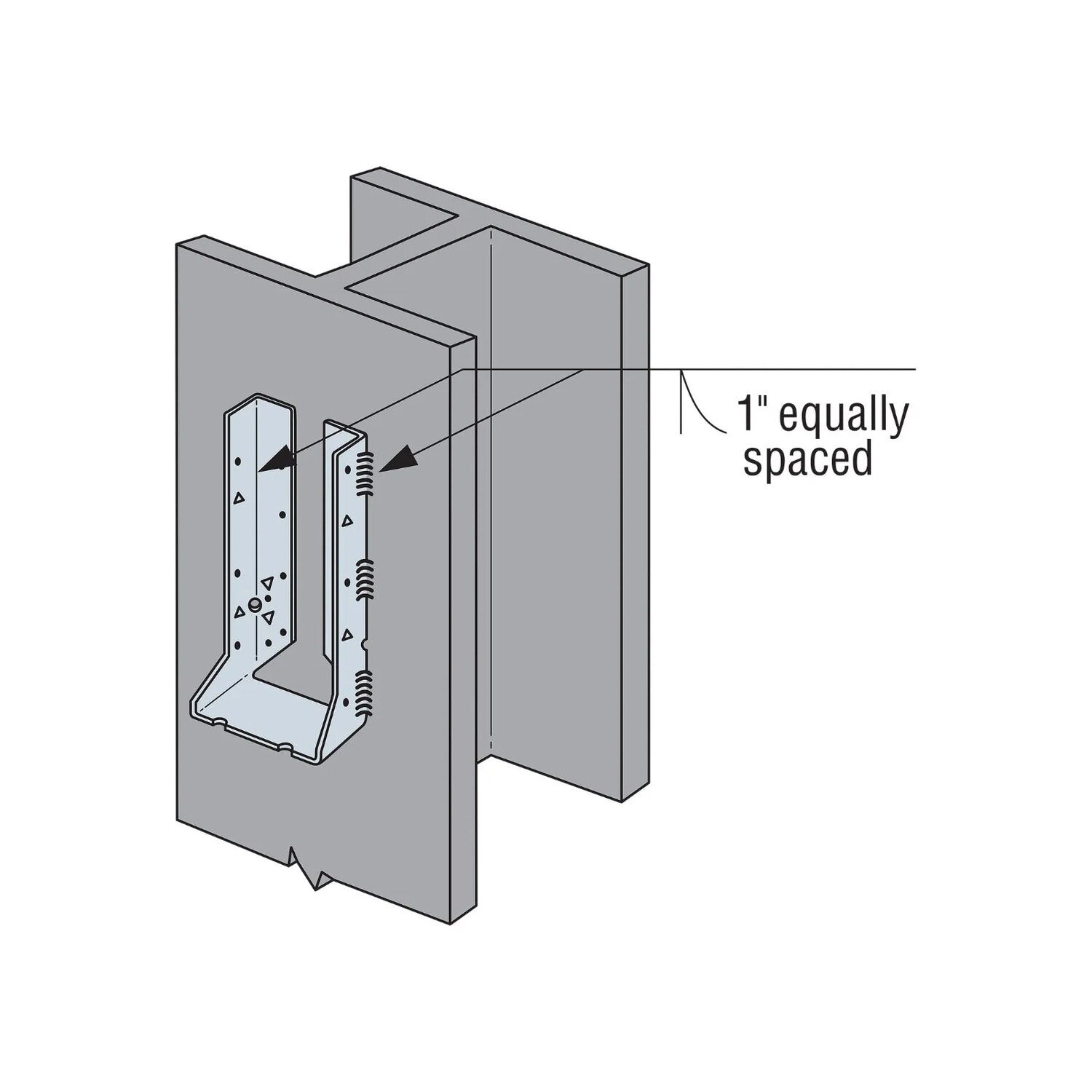

Simpson HUC610 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Fill both round and triangle holes with common nails for maximum load capacity.
Simpson HUC610 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 7-5/8" |
| Joist size | 6" X 10" |
| Thickness | 14 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
