Simpson Hangers | SKU:
HUC812
Simpson HUC812 Strong-Tie 8 x 12 Face Mount Hanger for Wood Construction
$39.38
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC812 Description

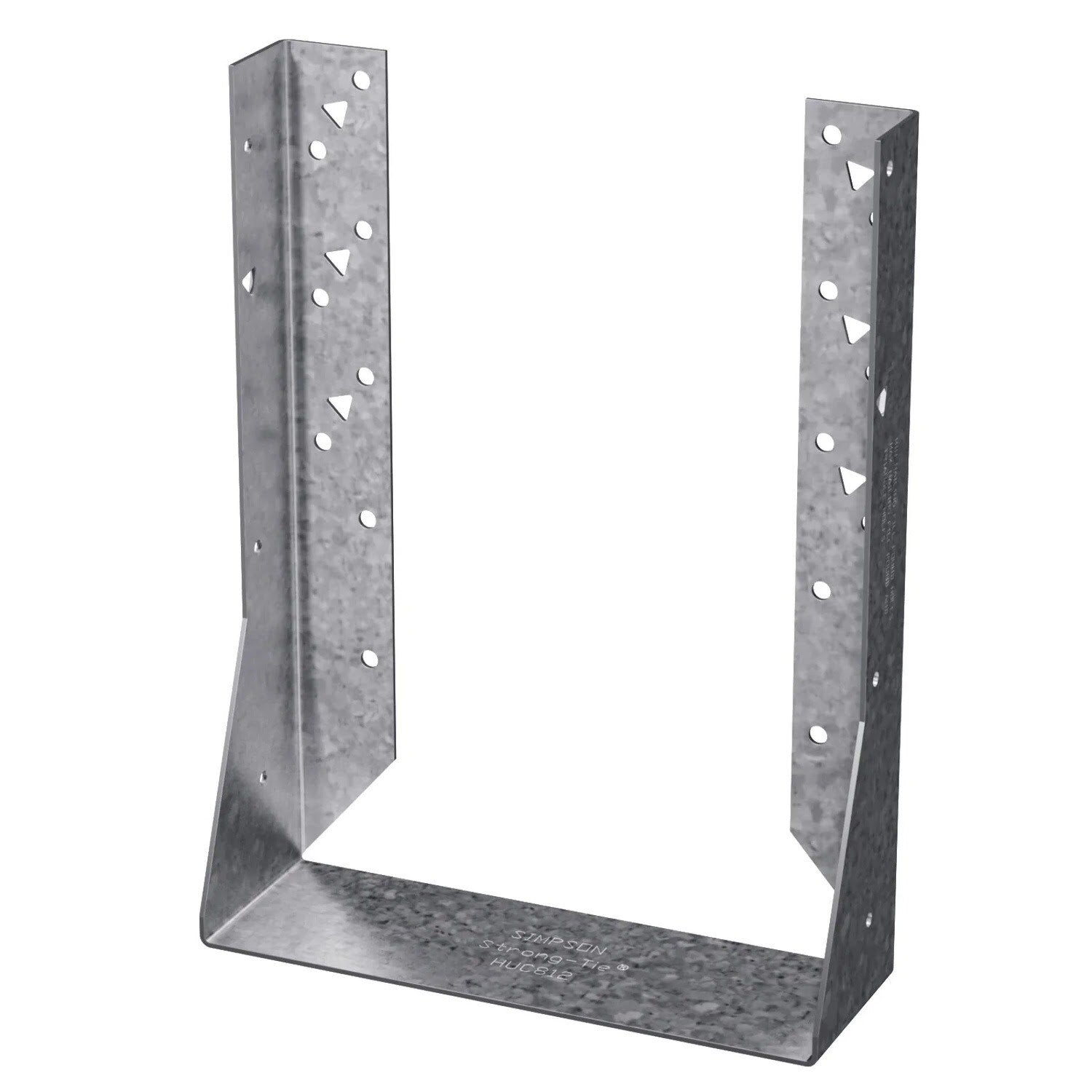

The Simpson Strong-Tie HUC812 is a heavy-duty concealed flange face mount hanger designed for 8x12 joists, offering exceptional strength and durability for wood construction.
Simpson Strong-Tie HUC812 Includes
- (1) Heavy-Duty Concealed Flange Face Mount Hanger
Simpson Strong-Tie HUC812 Features
- Concealed flange design for a clean appearance
- G90 Galvanized coating for corrosion resistance
- Heavy-duty construction for high load capacity
- Compatible with 8x12 joists
- Tested and code compliant
Simpson Strong-Tie HUC812 Applications
- Wood construction requiring concealed flange hangers
- Structural framing for schools and other buildings
- Applications demanding high strength and safety factors
Simpson Strong-Tie HUC812 Installation Overview
- Use all specified fasteners
- Install by filling round and triangle holes for maximum load values
- Joists sloped up to 1/4:12 achieve table loads

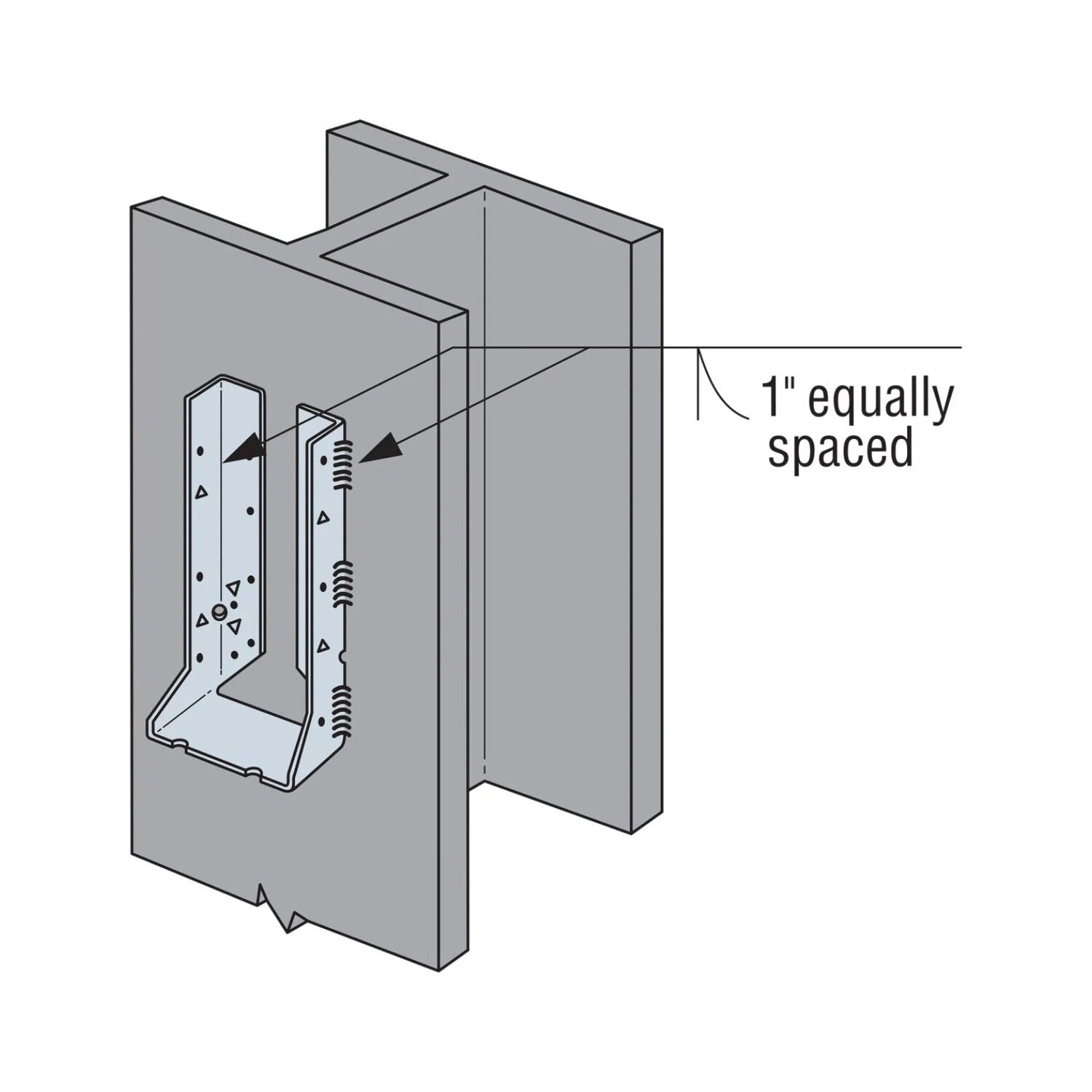

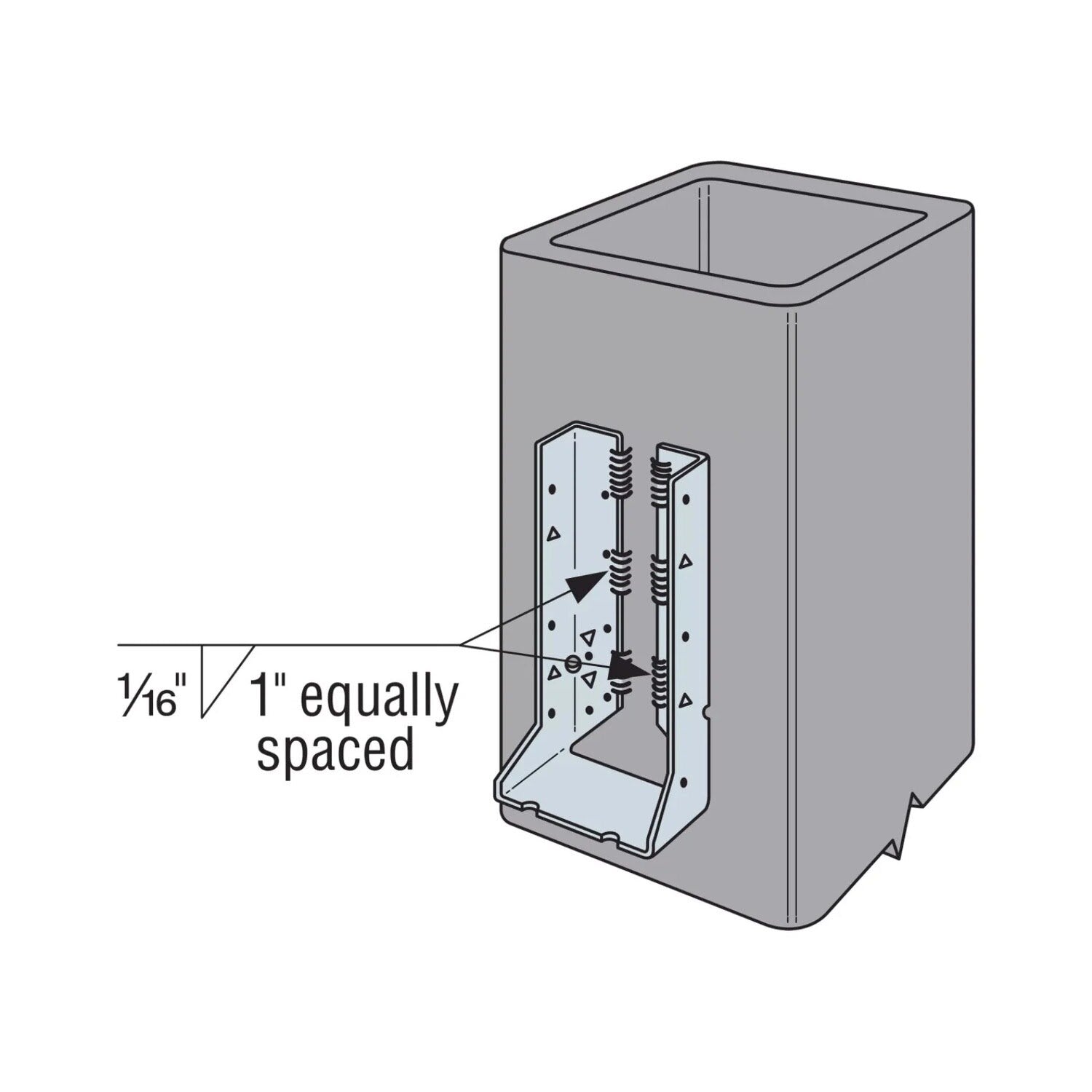

- Can be welded to steel members following technical guidelines
- Web stiffeners required for I-joist applications
Simpson Strong-Tie HUC812 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 10-1/8" |
| Joist size | 8" X 12" |
| Thickness | 14 Gauge |
| Width | 7-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
