Simpson Hangers | SKU:
HUCQ610-SDS

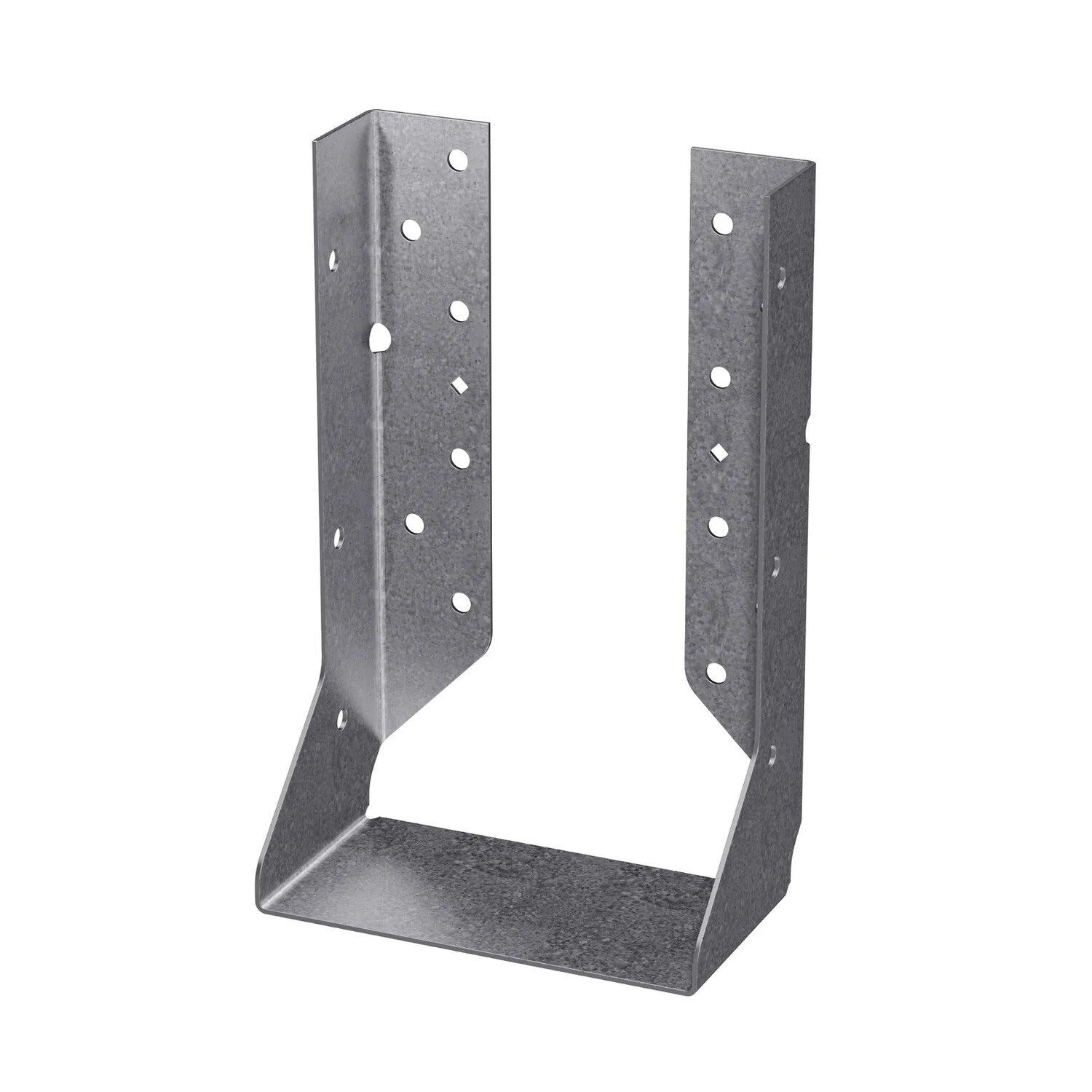

Simpson Strong-Tie HUCQ610-SDS (6x10) Heavy Concealed Flange Face-Mount Joist Hanger with SDS Screws
$49.72
Unit price
/
Unavailable
Description
Description
Simpson HUCQ610-SDS Description
The Simpson HUCQ610-SDS is a heavy-duty concealed-flange face-mount joist hanger designed for 6x10 joists, featuring a G90 galvanized finish for corrosion resistance and SDS screws for quick installation.
Simpson HUCQ610-SDS Includes
- (1) Heavy Face-Mount Concealed-Flange Joist Hanger for 6x10
- (1) Set of SDS Screws
Simpson HUCQ610-SDS Features
- Quick Install Design with SDS Screws
- Concealed Flanges for a Clean Look
- G90 Galvanized Finish
- High Load Capacity
- Code Compliant & Load Rated
Simpson HUCQ610-SDS Applications

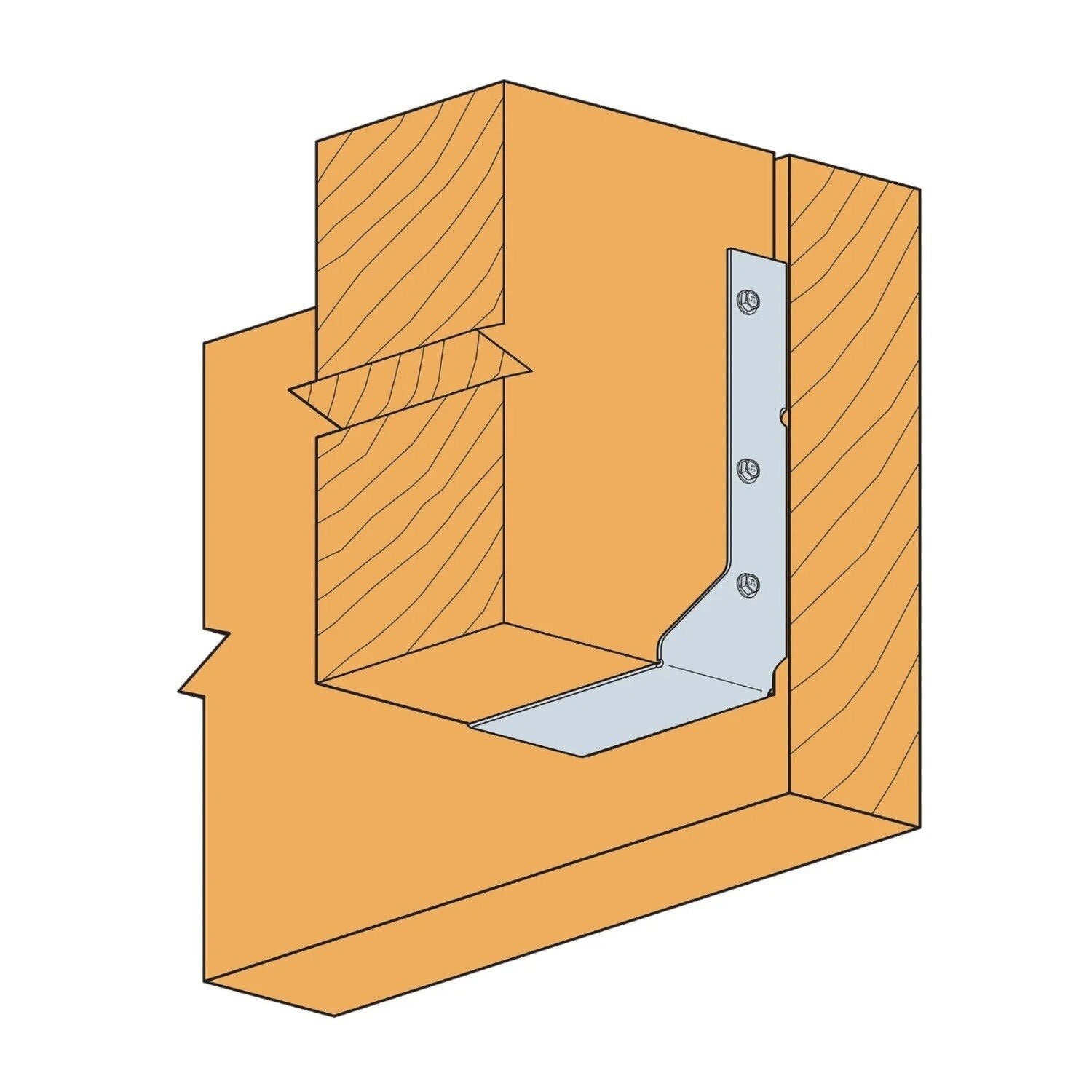

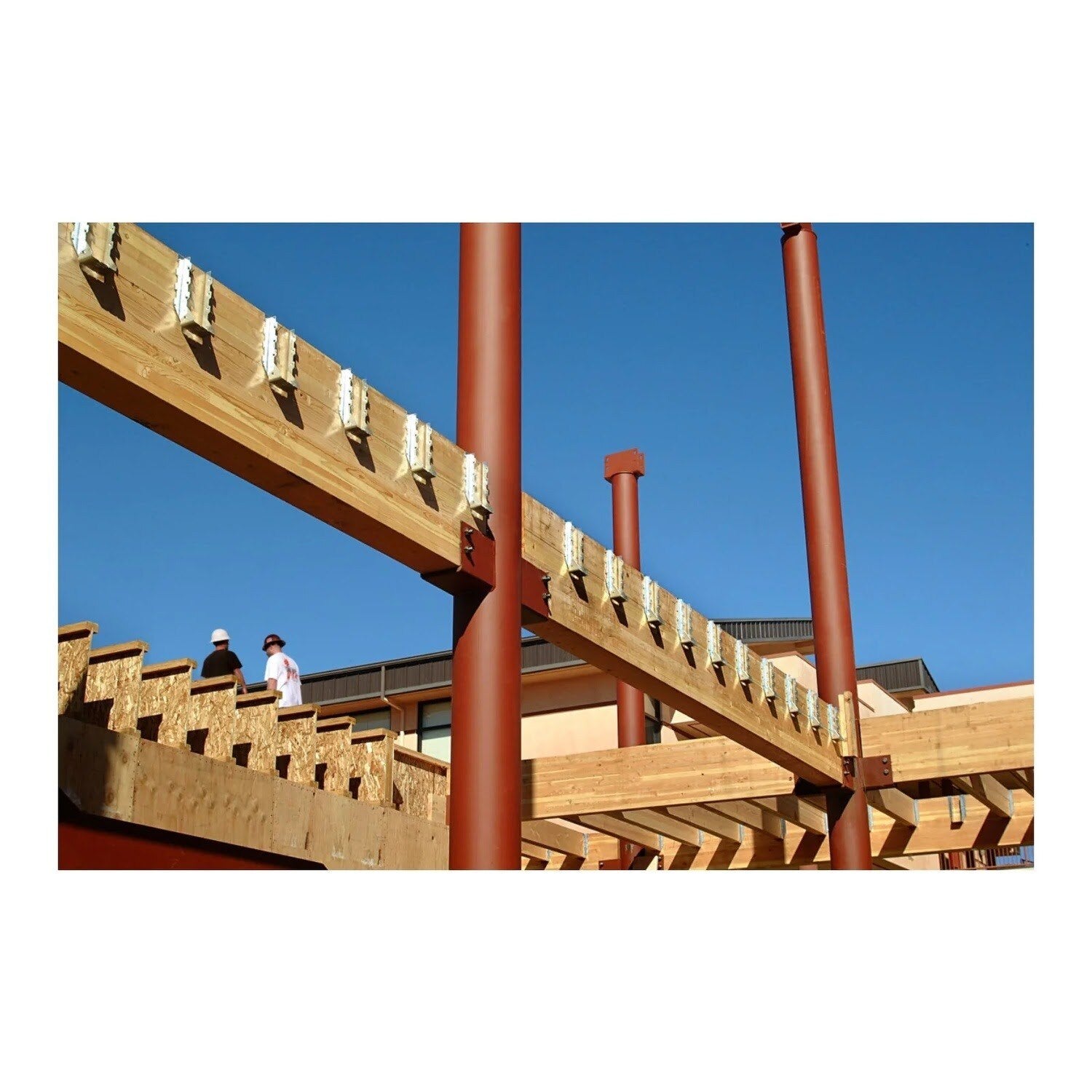

- Interior Wood Framing: Ideal for concealed, high-strength joist connections in residential and commercial wood-framed structures.

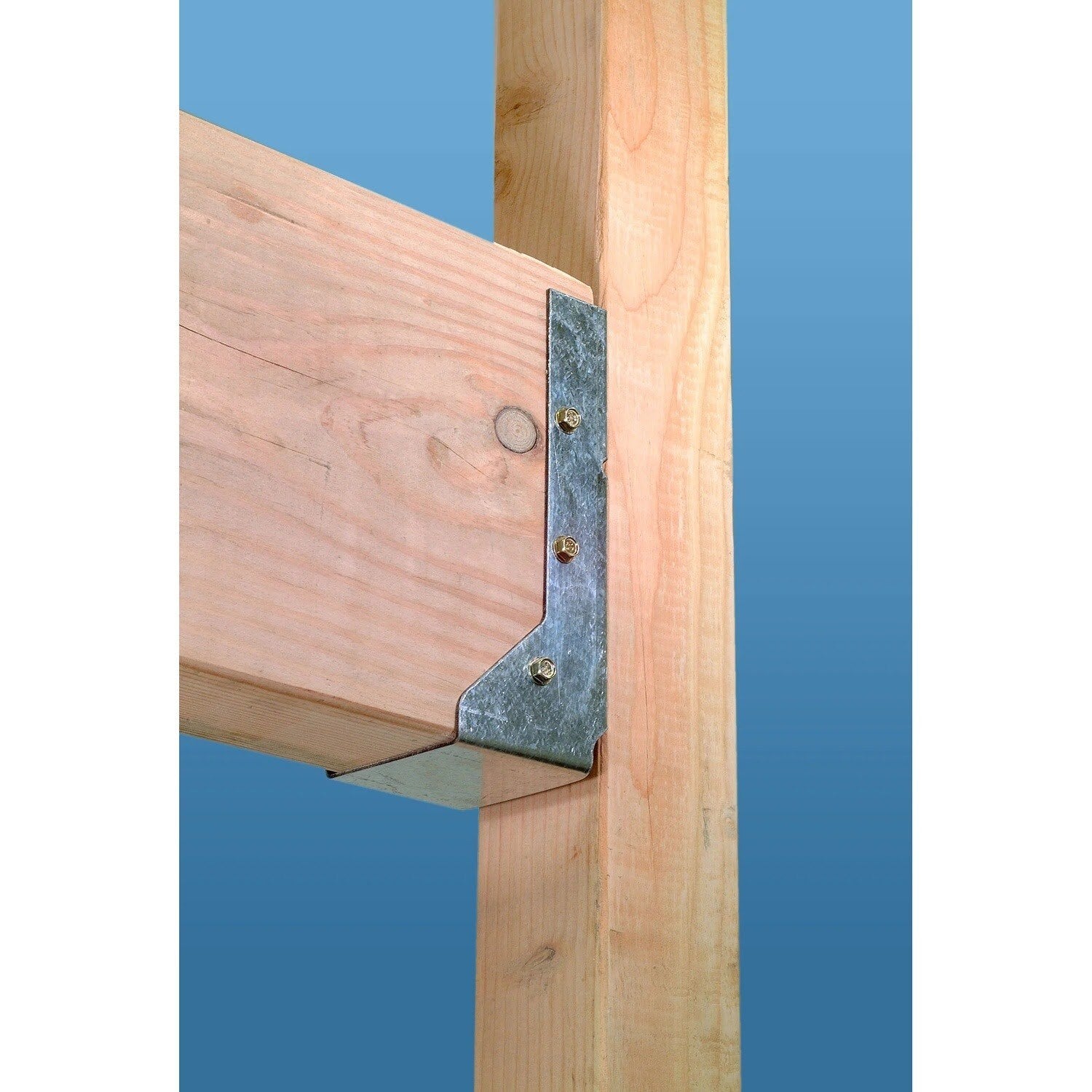

- Exposed Beam Construction: Perfect for exposed timber connections where aesthetics are important.
- Wood-to-Masonry & Concrete Framing: Provides strong joist connections in hybrid wood and masonry or concrete applications.
Simpson HUCQ610-SDS Installation Overview
- Faster Installation with SDS Screws: Simplifies fastening without predrilling.
- Close-to-End Installation Flexibility: Designed to be installed near beam ends while maintaining load strength.
- No Special Tools Required: Self-tapping SDS screws allow for quick and easy installation using standard power tools.
Simpson HUCQ610-SDS Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Height | 9" |
| Joist size | 6" X 10" |
NOTE: Ensure proper installation using the included SDS screws to achieve the specified load values
