Simpson Hangers | SKU:
HUS26
Simpson Strong-Tie HUS26 (2"x 6") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$3.25
Unit price
/
Unavailable
Description
Description
Simpson HUS26 Description

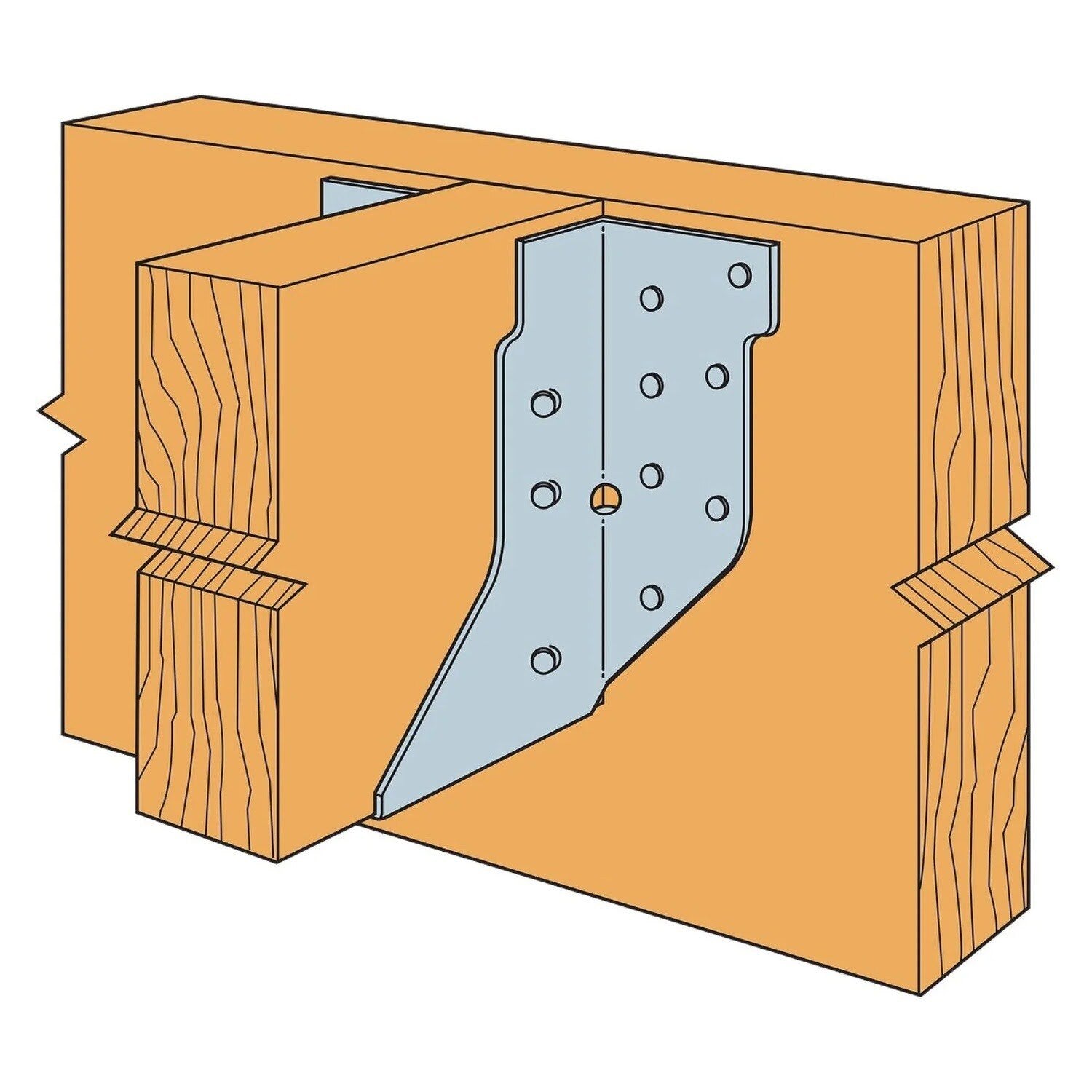

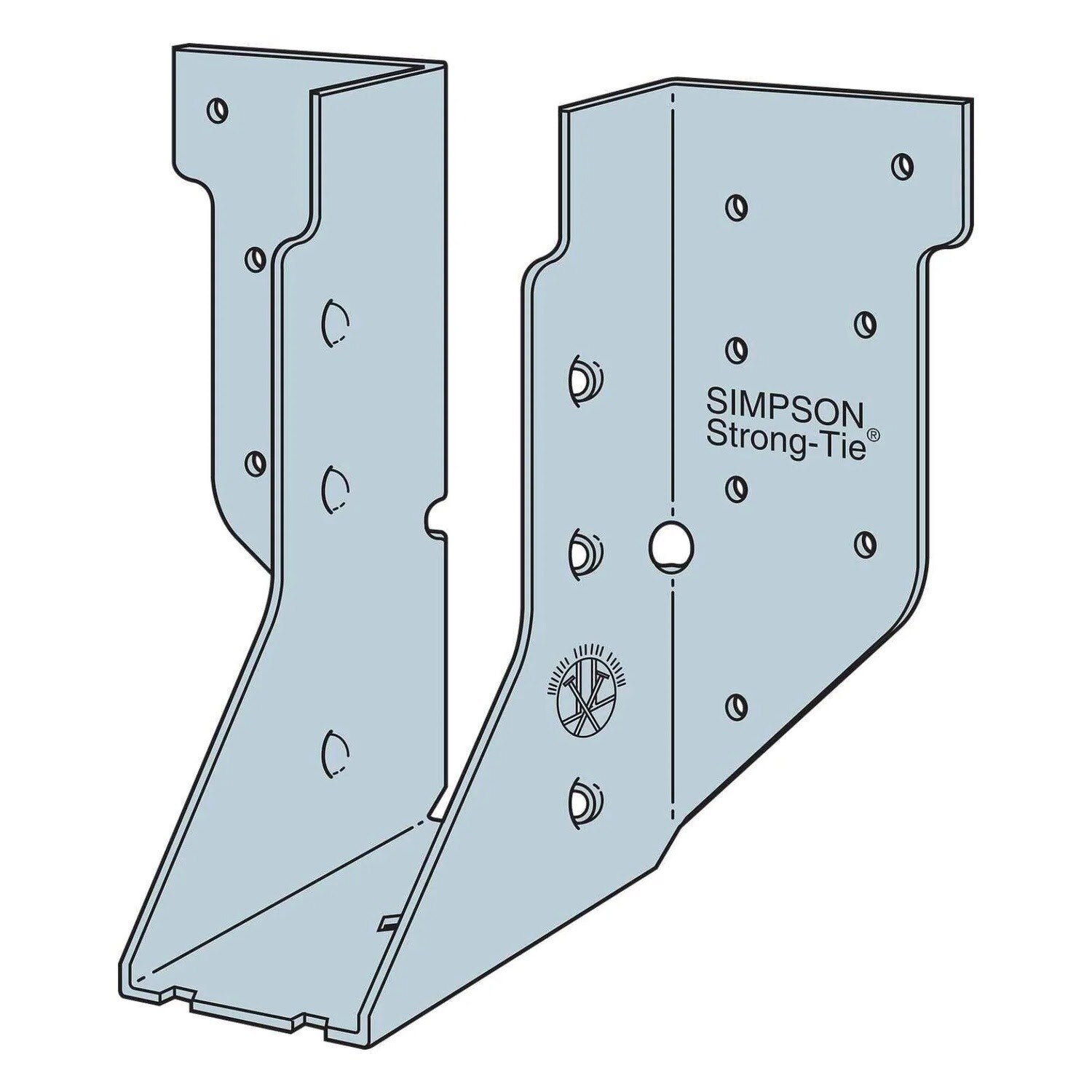

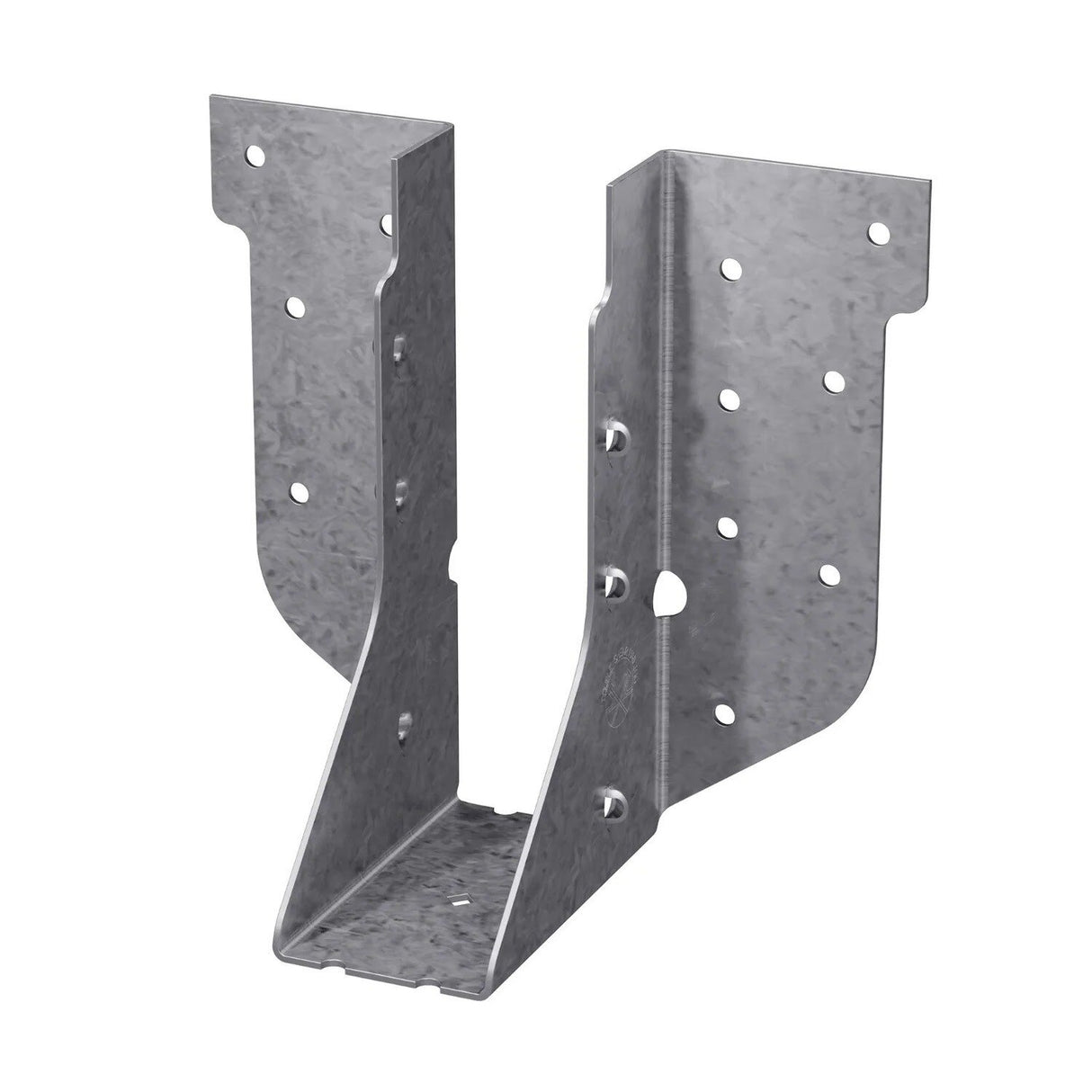

The Simpson HUS26 is a heavy-duty galvanized face-mount joist hanger designed for 2x6 lumber, offering high load capacity and corrosion resistance.
Simpson HUS26 Includes
- (1) Galvanized Face-Mount Joist Hanger for 2x6
Simpson HUS26 Features
- Heavy-duty construction for high load capacity
- G90 galvanized coating for corrosion resistance
- Versatile installation for various wood types
- Code-compliant design for safety
- Precision engineering for accurate installation
Simpson HUS26 Applications
- Floor and roof framing: Securing joists to beams or ledgers in deck, attic, and ceiling applications.
- Multi-family and commercial construction: Providing strong, code-compliant support for load-bearing structures.
- Engineered wood installations: Supporting LVL, PSL, and LSL beams in framing systems.
- Truss-to-beam connections: Ensuring stability in plated truss configurations.
Simpson HUS26 Installation Overview
- Use 10d or 16d common nails for solid wood applications.
- Use Strong-Drive SD Structural Screws for engineered wood connections.
- Ensure full bearing contact between the joist and hanger seat.
- Use the correct fasteners in all designated holes to achieve listed load ratings.
Simpson HUS26 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 5-3/8" |
| Joist size | 2" X 6" |
| Thickness | 16 Gauge |
| Width | 1-5/8" |
NOTE: Ensure full bearing contact between the joist and hanger seat.
