Simpson Anchors | SKU:
LSSR2.1Z

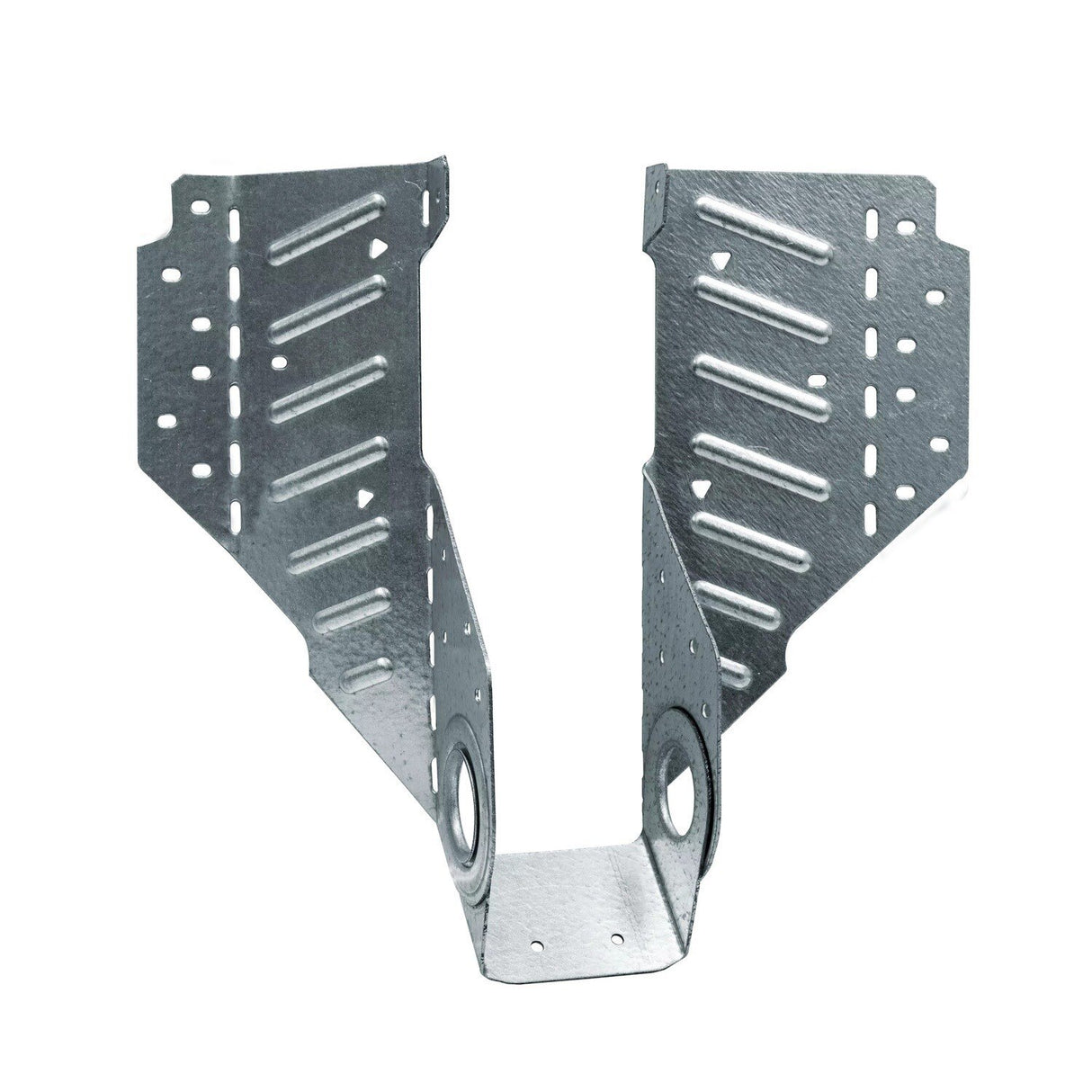

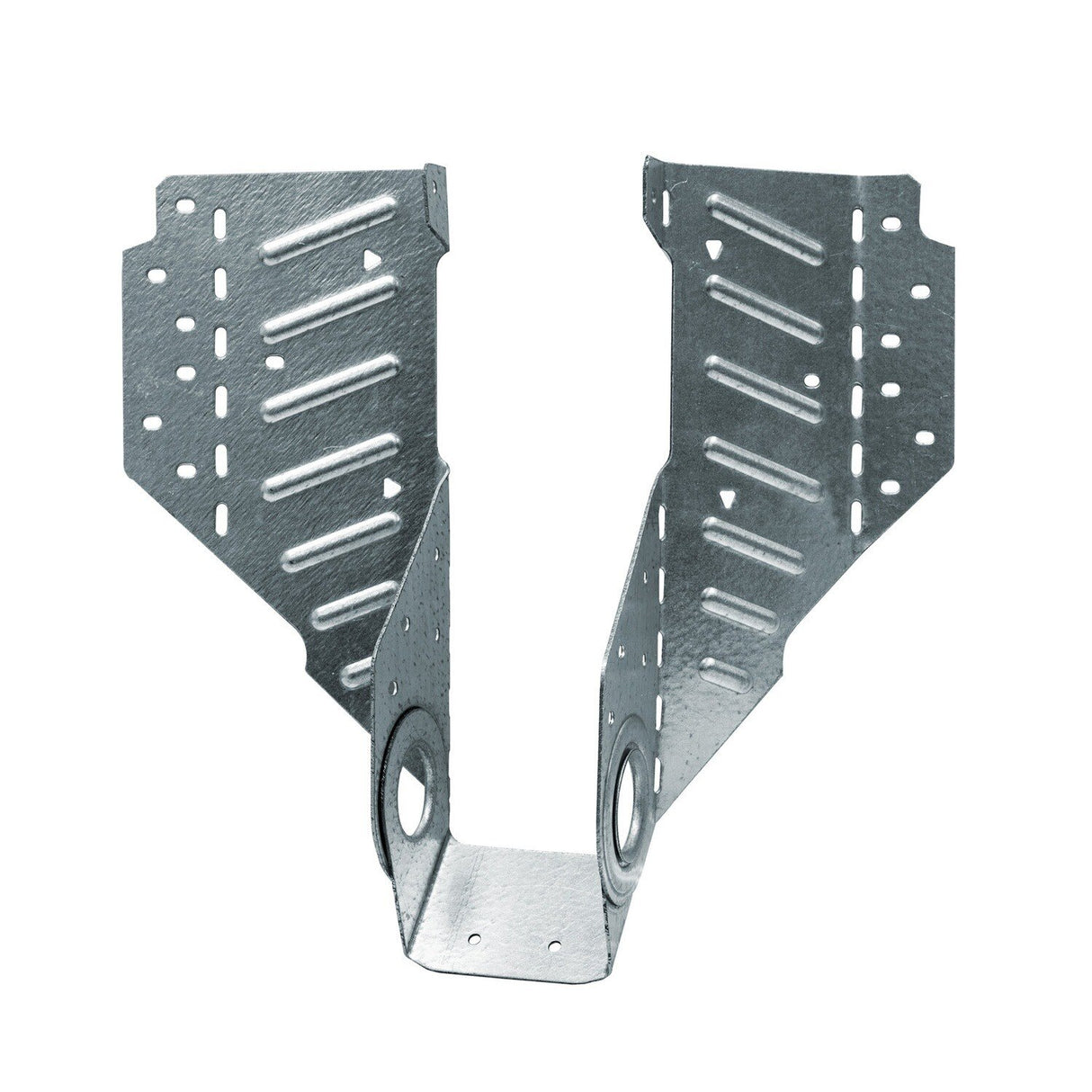

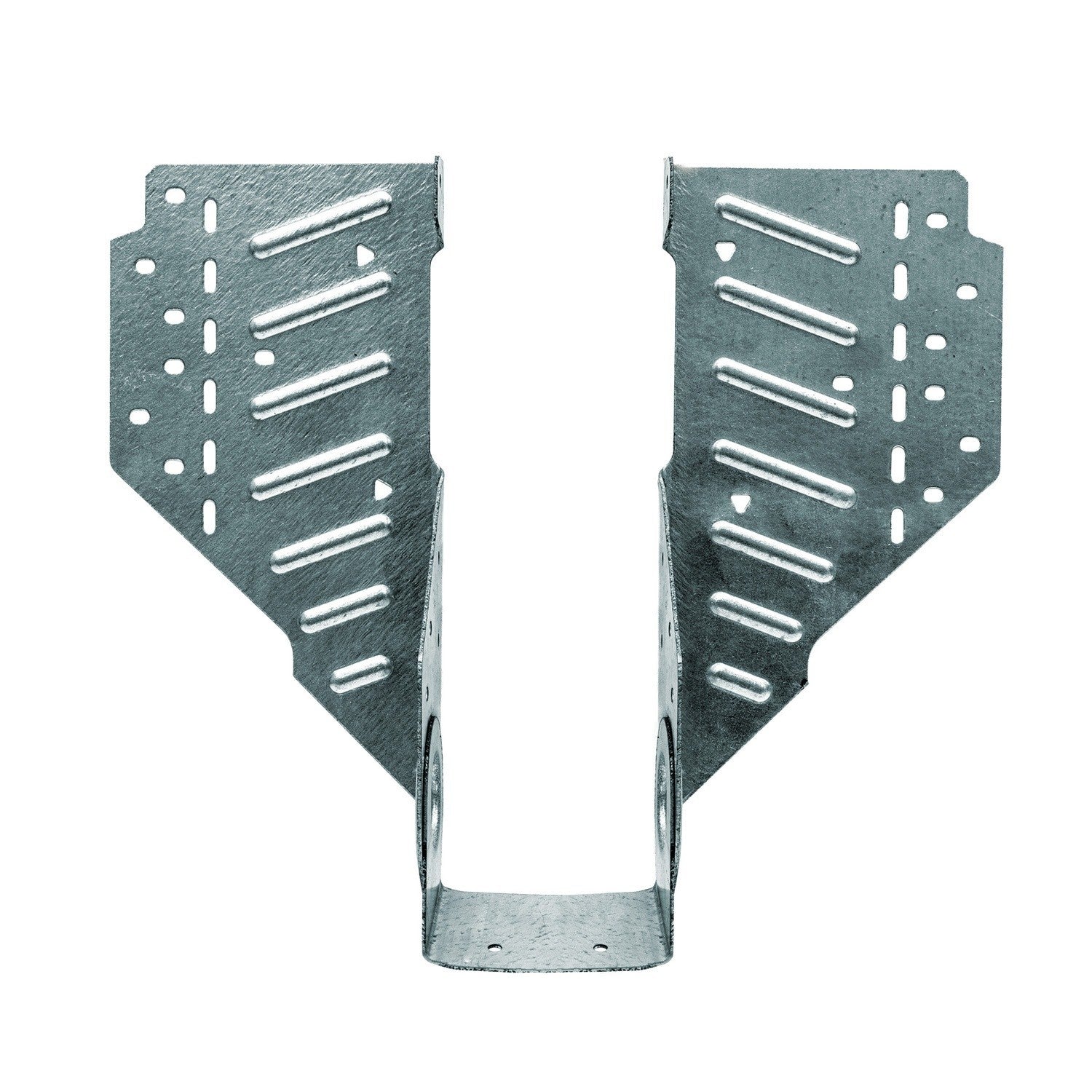

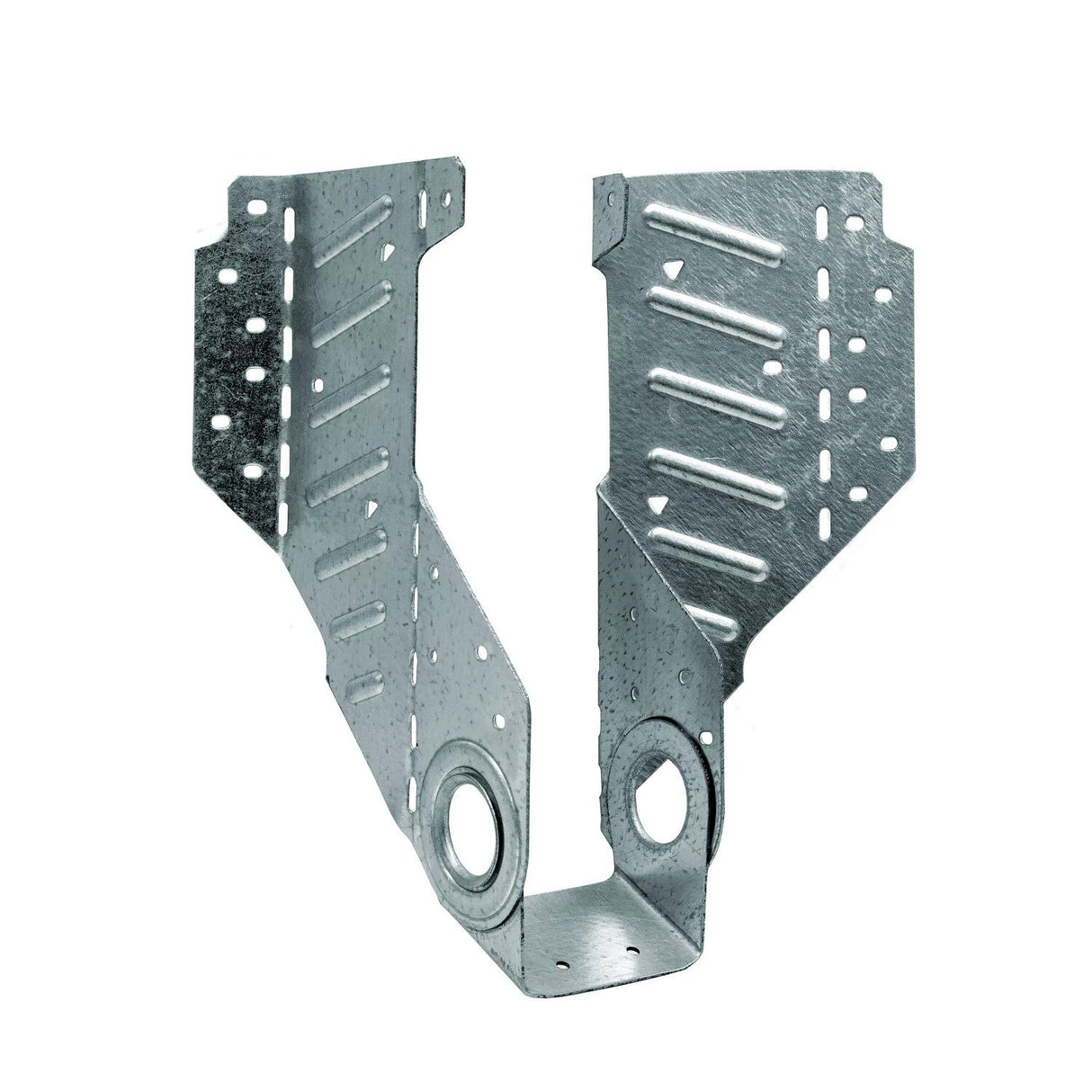

Simpson LSSR2.1Z Strong-Tie Light Field-Adjustable Rafter Hanger for 2-in. Engineered Wood
$18.71
Unit price
/
Unavailable
Description
Description
Simpson LSSR2.1Z Description
The Simpson LSSR2.1Z Field Adjustable Rafter Hanger is designed for secure rafter connections in engineered wood applications, featuring ZMAX coating for corrosion resistance.
Simpson LSSR2.1Z Includes
- (1) Field Adjustable Rafter Hanger for 2-in. Engineered Wood
Simpson LSSR2.1Z Features
- Slope and Skew Adjustability: Accommodates up to a 45° skew and 45° slope.
- ZMAX Coating: Provides enhanced corrosion resistance.
- Reversible Design: Allows installation on either side of the rafter.
- No Special Tools Required: Simplifies installation with standard framing tools.
- High-Load Capacity: Ensures strong rafter-to-wall and beam connections.
Simpson LSSR2.1Z Applications
- Roof Framing: Ensures strong rafter-to-wall connections in sloped or skewed roof structures.
- Pergolas & Gazebos: Provides secure connections for outdoor structures.
- Deck Construction: Offers reliable support for rafters and beams.
- Timber Framing: Enhances stability in wood framing applications.
- Carports & Patio Covers: Delivers strong performance in outdoor structures.
Simpson LSSR2.1Z Installation Overview
- Use specified Simpson Strong-Tie nails or screws for optimal performance.
- Adjust flanges up to 45° for slope and skew applications.
- Install on either side of the rafter for versatility.
- Ensure compatibility with solid sawn and engineered wood.
Simpson LSSR2.1Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.148" x 2-1/2" Nails, Joist - (12) 0.148" x 1-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 8-15/16" |
| Joist size | 2" - 2-1/16" |
| Width | 2-1/8" |
NOTE: Ensure the correct fasteners are installed in the specified positions to achieve published load values
