Simpson Anchors | SKU:
LTB40
Simpson Strong-Tie LTB40 (39") 22-Gauge Galvanized Tension Bridging
$1.47
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LTB40 Description

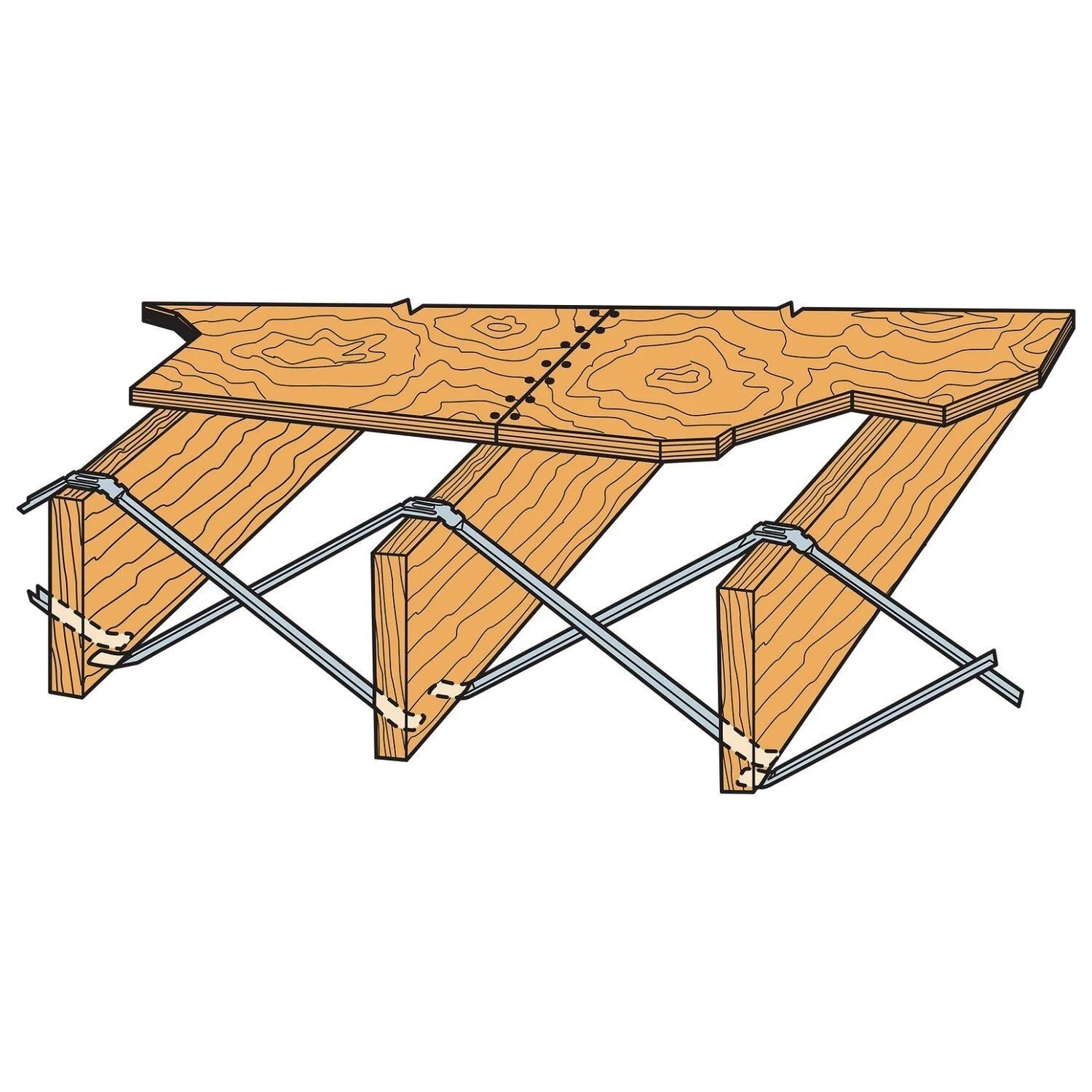

The Simpson LTB40 Light Tension Bridging provides bracing between floor joists, enhancing structural strength and preventing joist rotation.
Simpson Strong-Tie LTB40 Includes
- (1) 39" 22-Gauge Light Tension Bridging
Simpson Strong-Tie LTB40 Features
- Galvanized for corrosion resistance
- Keeps floor system continuity and prevents joist rotation
- Installation flexibility with six nail holes on each end and a staggered nail pattern
Simpson Strong-Tie LTB40 Applications
- Bracing between floor joists to enhance structural strength
- Preventing joist rotation in floor systems
- Distributing loads across multiple joists
Simpson Strong-Tie LTB40 Installation Overview
- Install in pairs for optimal performance
- Use the staggered nail pattern for secure attachment
- Ensure correct fasteners are used as per guidelines
Simpson Strong-Tie LTB40 Specifications

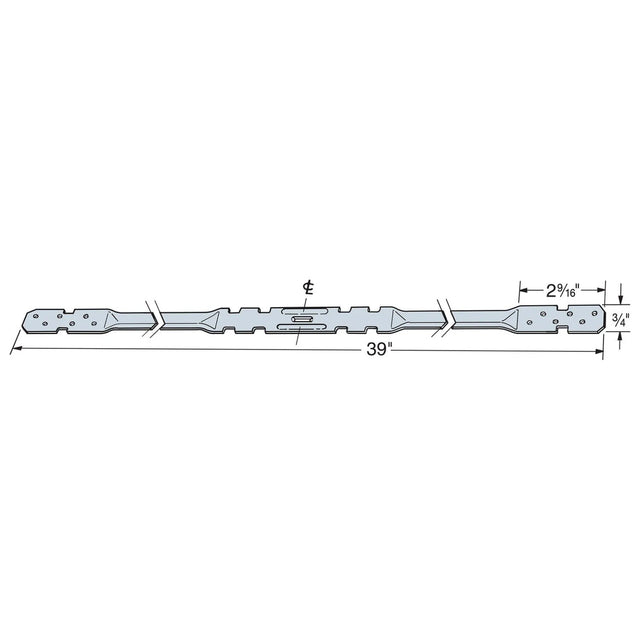

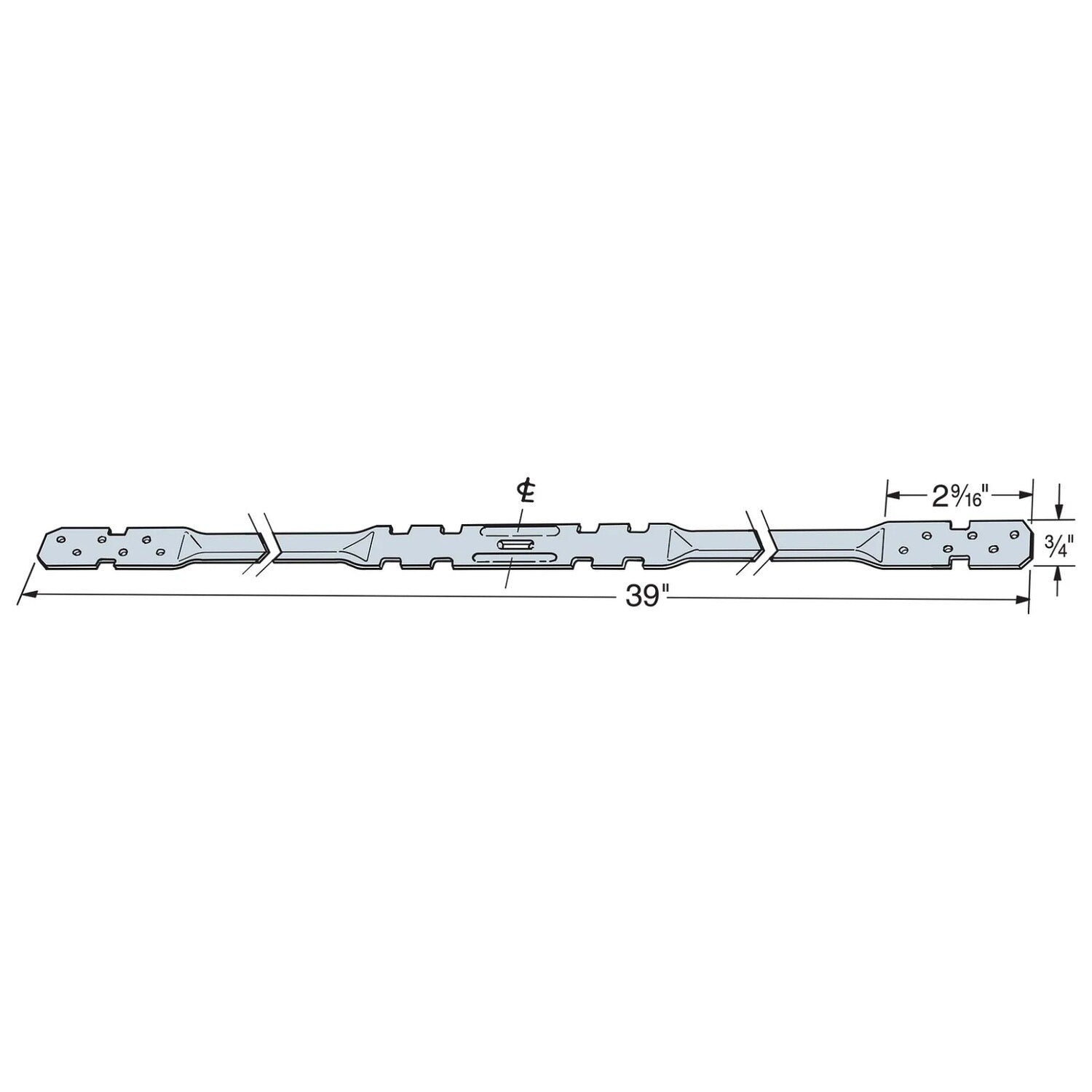

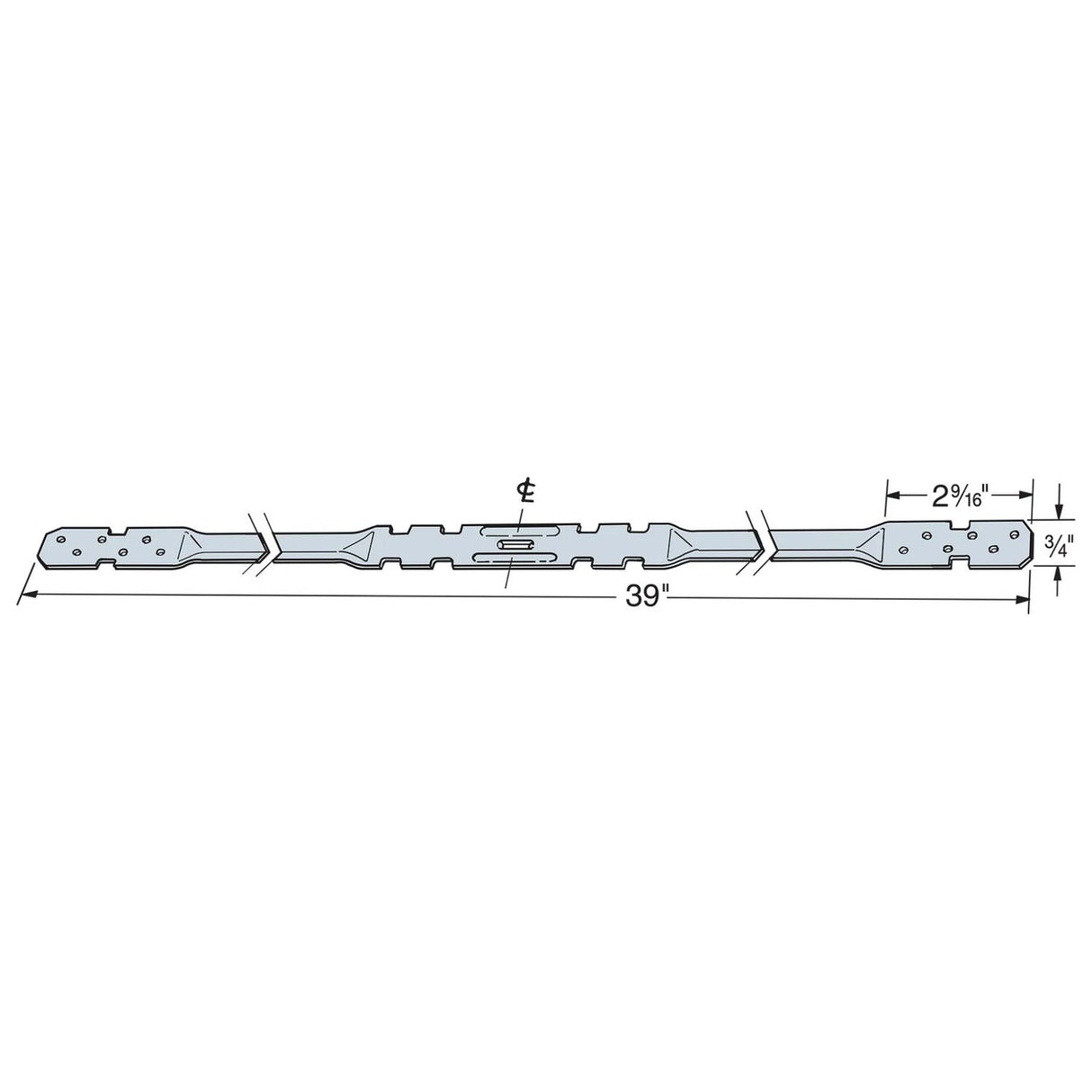

| Length | 39" |
| Fasteners required | (2) 0.113 in. x 2 in. nails per end |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
