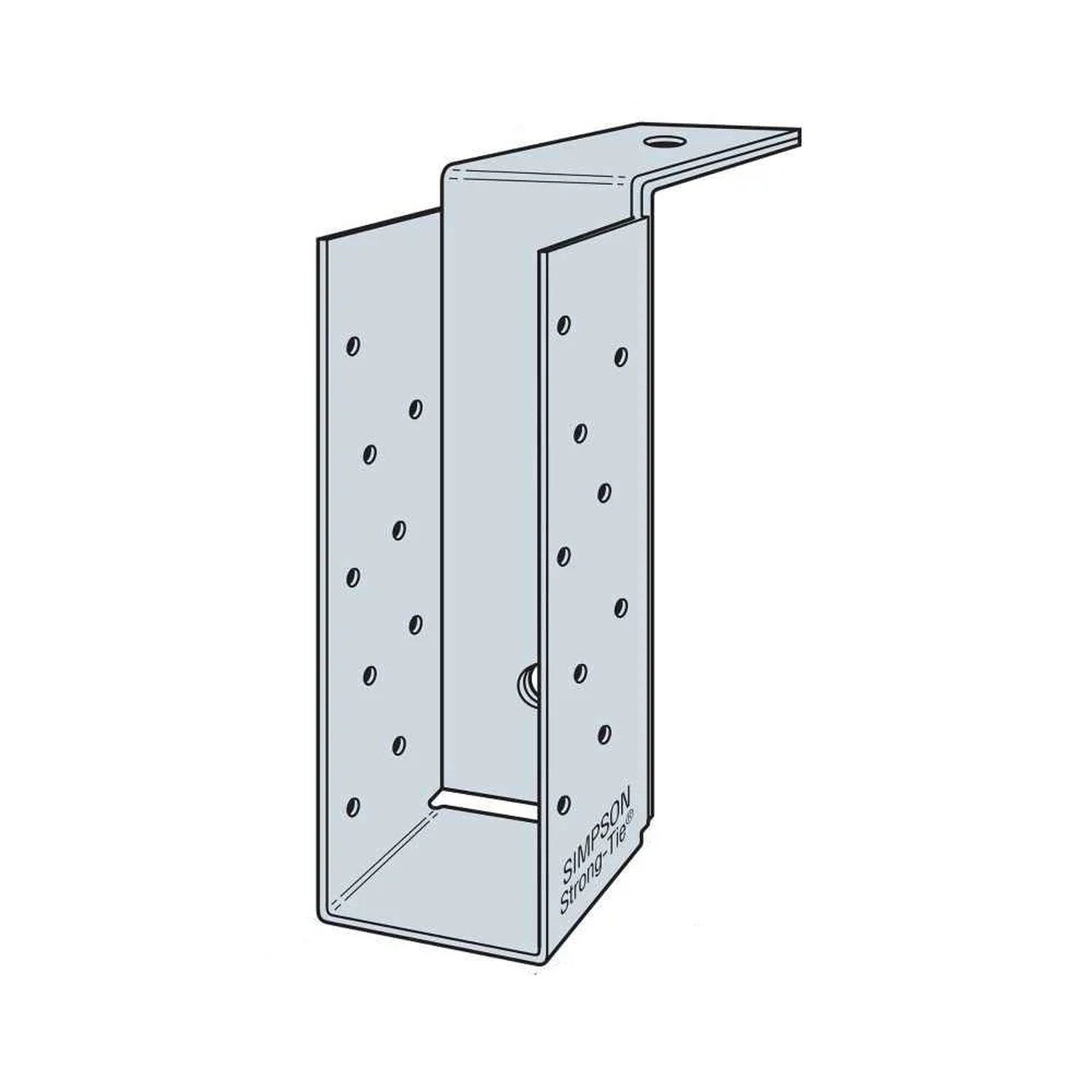

Simpson Strong-Tie MBHA3.56/7.25 Description
The MBHA is a single piece, non-welded connector available for solid sawn, truss, and engineered wood products. It features a G90 galvanized coating, not suitable for treated lumber or exterior applications.
Simpson Strong-Tie MBHA3.56/7.25 Includes
- (2) All Thread Rod 3/4"
- (18) 0.148" x 3" Nails
Simpson Strong-Tie MBHA3.56/7.25 Features
- Single piece, non-welded design
- Compatible with solid sawn, truss, and engineered wood products
- G90 galvanized coating for durability
Simpson Strong-Tie MBHA3.56/7.25 Applications
- Engineered wood applications
- Solid sawn and truss wood connections
Simpson Strong-Tie MBHA3.56/7.25 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure proper alignment and secure attachment
Simpson Strong-Tie MBHA3.56/7.25 Specifications
| Fasteners required | Header - (2) All Thread Rod 3/4", Joist - (18) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 7-1/4" |
| Width | 3-9/16" |
| Weight | 6.1 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
