Simpson Strong-Tie MBHU3.56/9.25SSKT Description

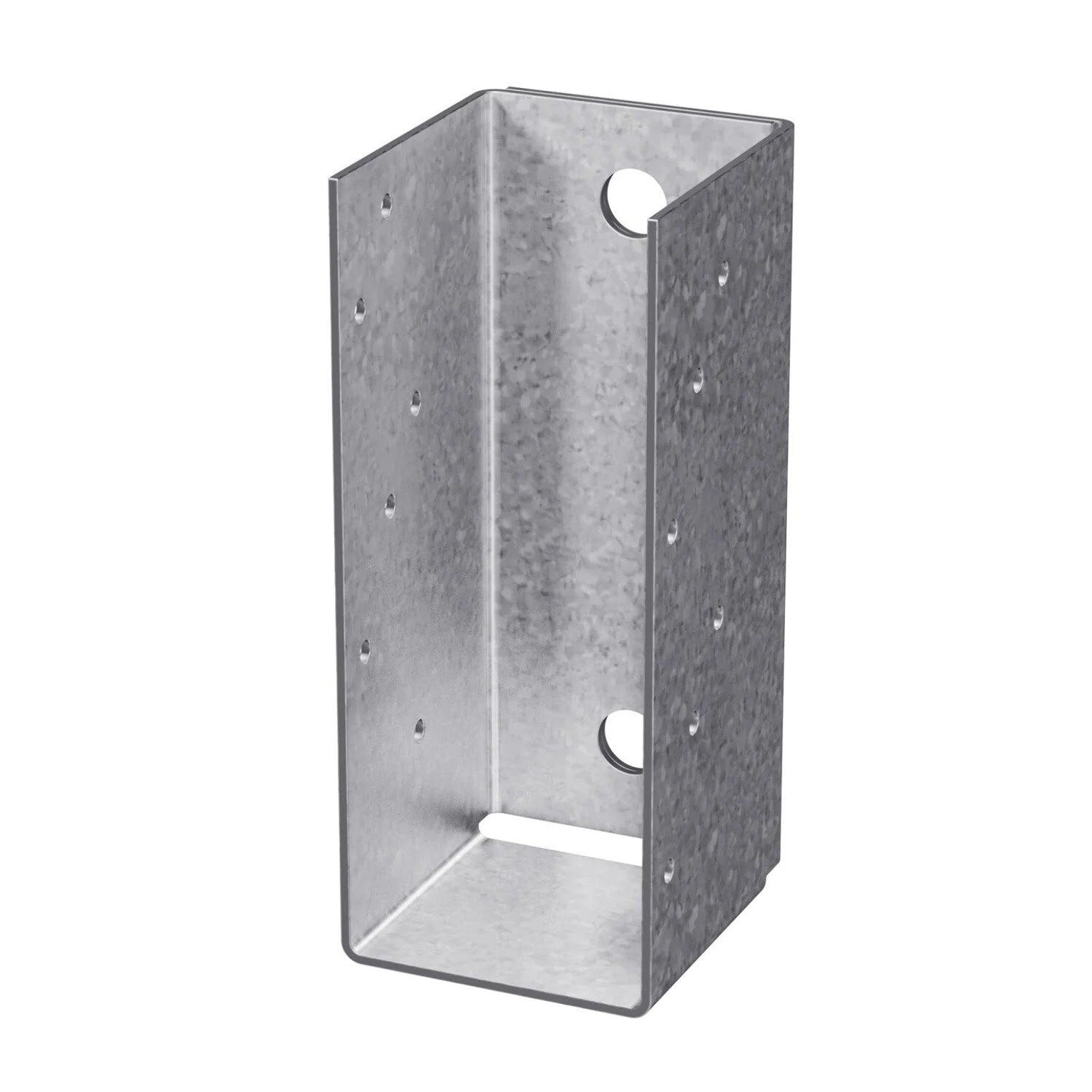

The MBHU Masonry Beam Face-Mount Hanger is a stainless steel, one-piece connector designed for secure wood-to-masonry connections. It includes all necessary fasteners for easy installation.
Simpson Strong-Tie MBHU3.56/9.25SSKT Includes
- (1) Strong-Tie Stainless-Steel Masonry Beam Hanger
- (2) 3/4" x 5" Titen HD anchors
- (12) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie MBHU3.56/9.25SSKT Features
- Stainless steel construction for high corrosion resistance
- Includes all necessary fasteners for installation
- Designed for wood-to-masonry connections
- One-piece, non-welded design for durability
Simpson Strong-Tie MBHU3.56/9.25SSKT Applications

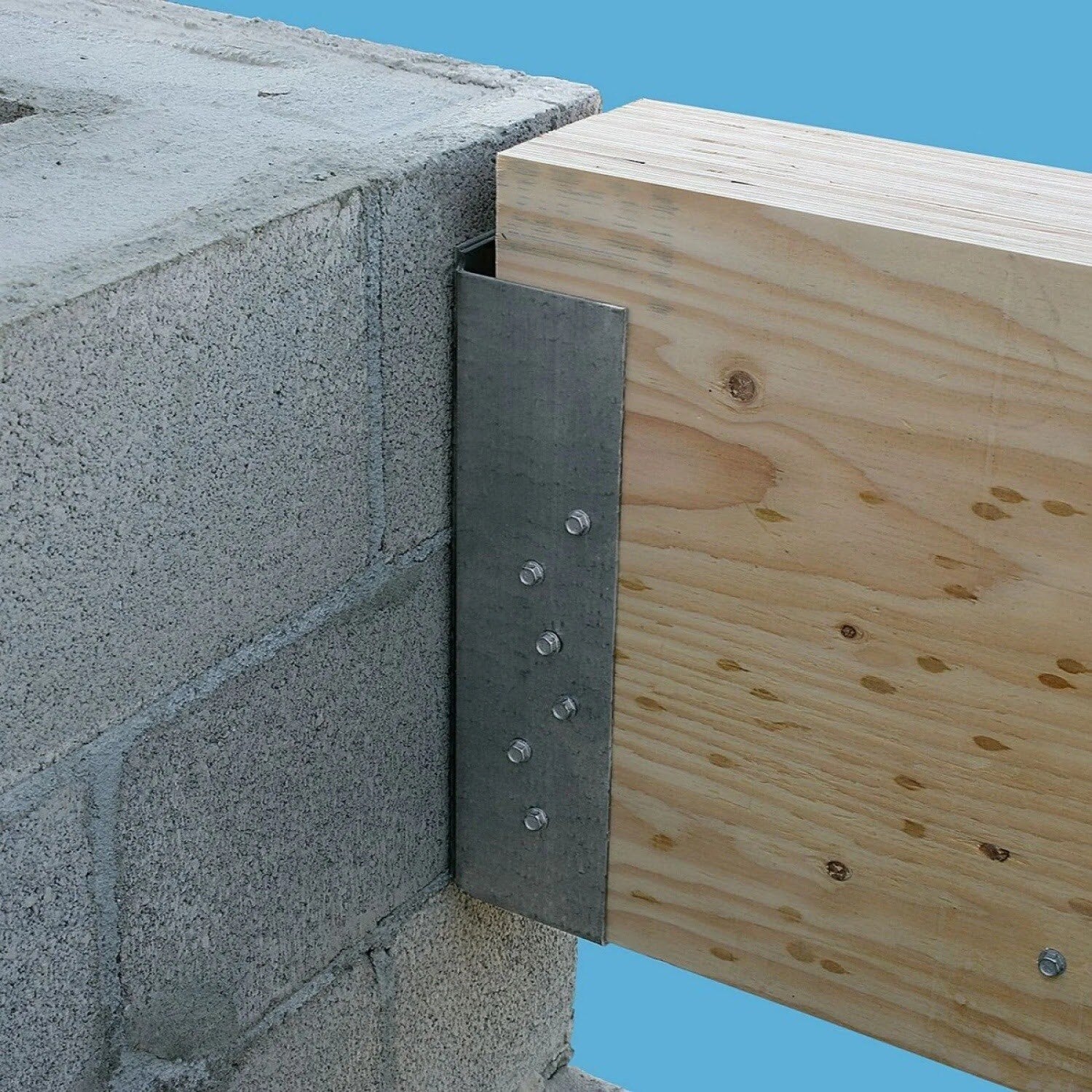

- Wood-to-masonry connections in construction
- Securing beams to concrete or masonry walls
- Use in environments requiring high corrosion resistance
Simpson Strong-Tie MBHU3.56/9.25SSKT Installation Overview
- Use all specified fasteners included in the package.

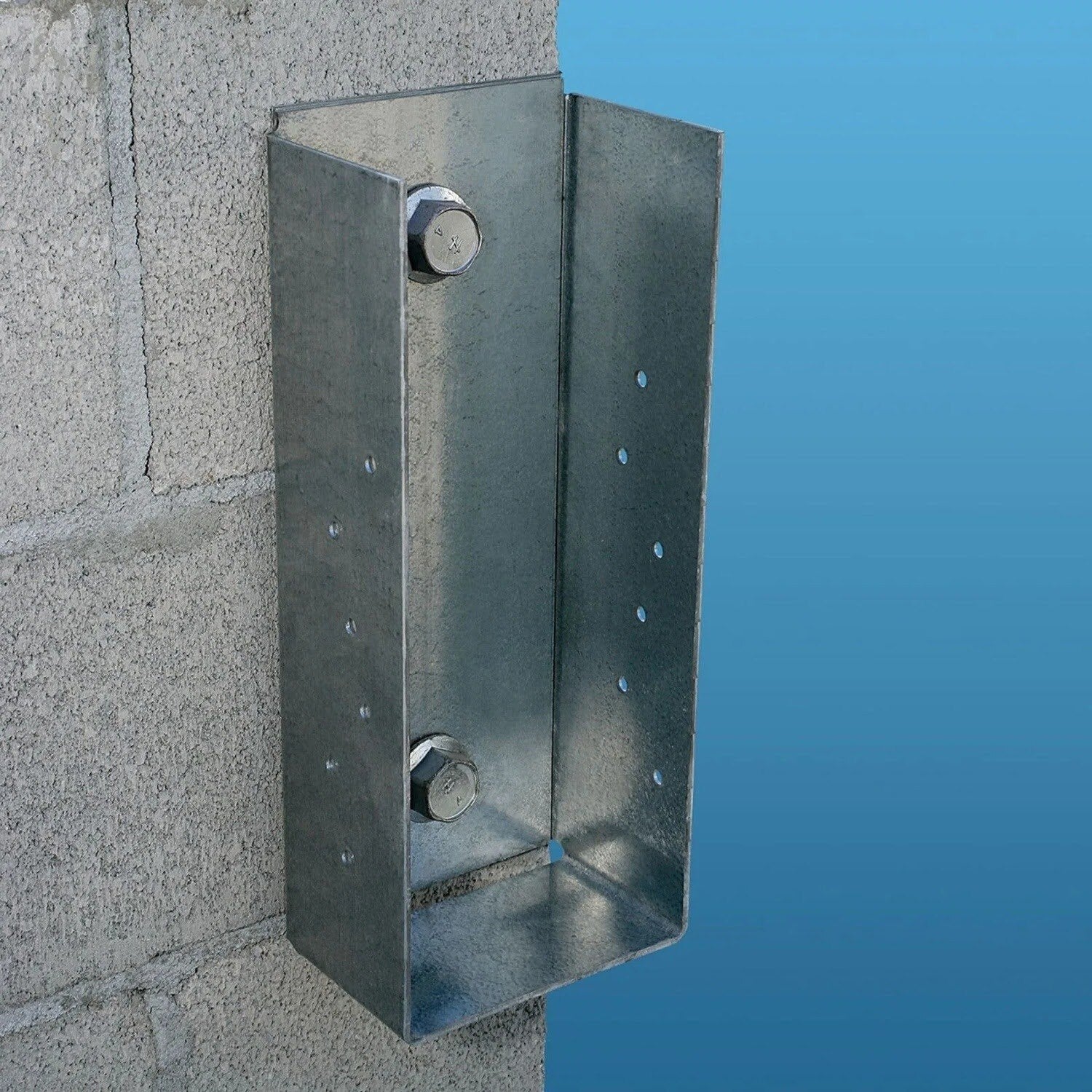

- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Ensure holes are drilled 1/2" deeper than the specified Titen HD length.
- Provide a moisture barrier between the beam and wall as per jurisdictional requirements.

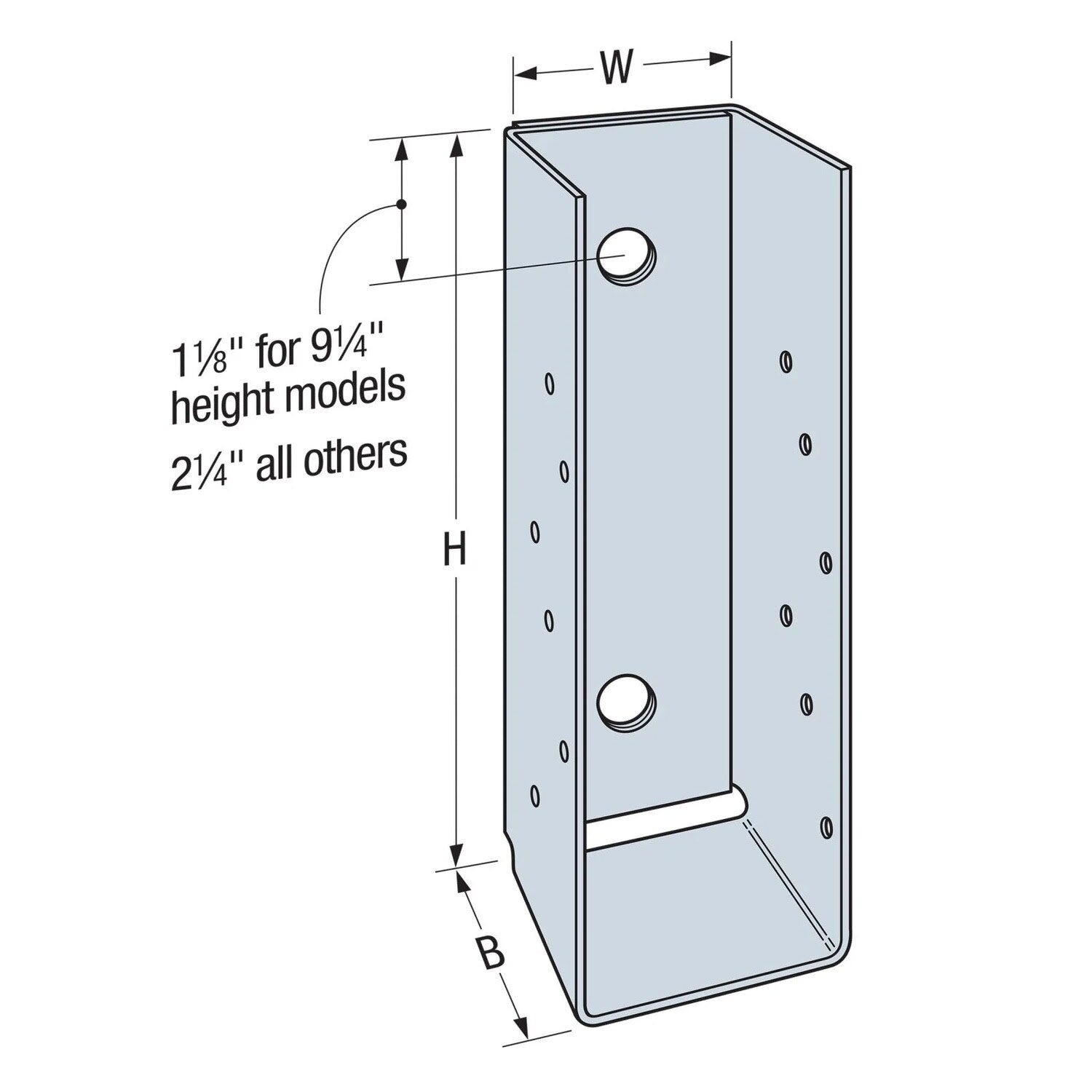

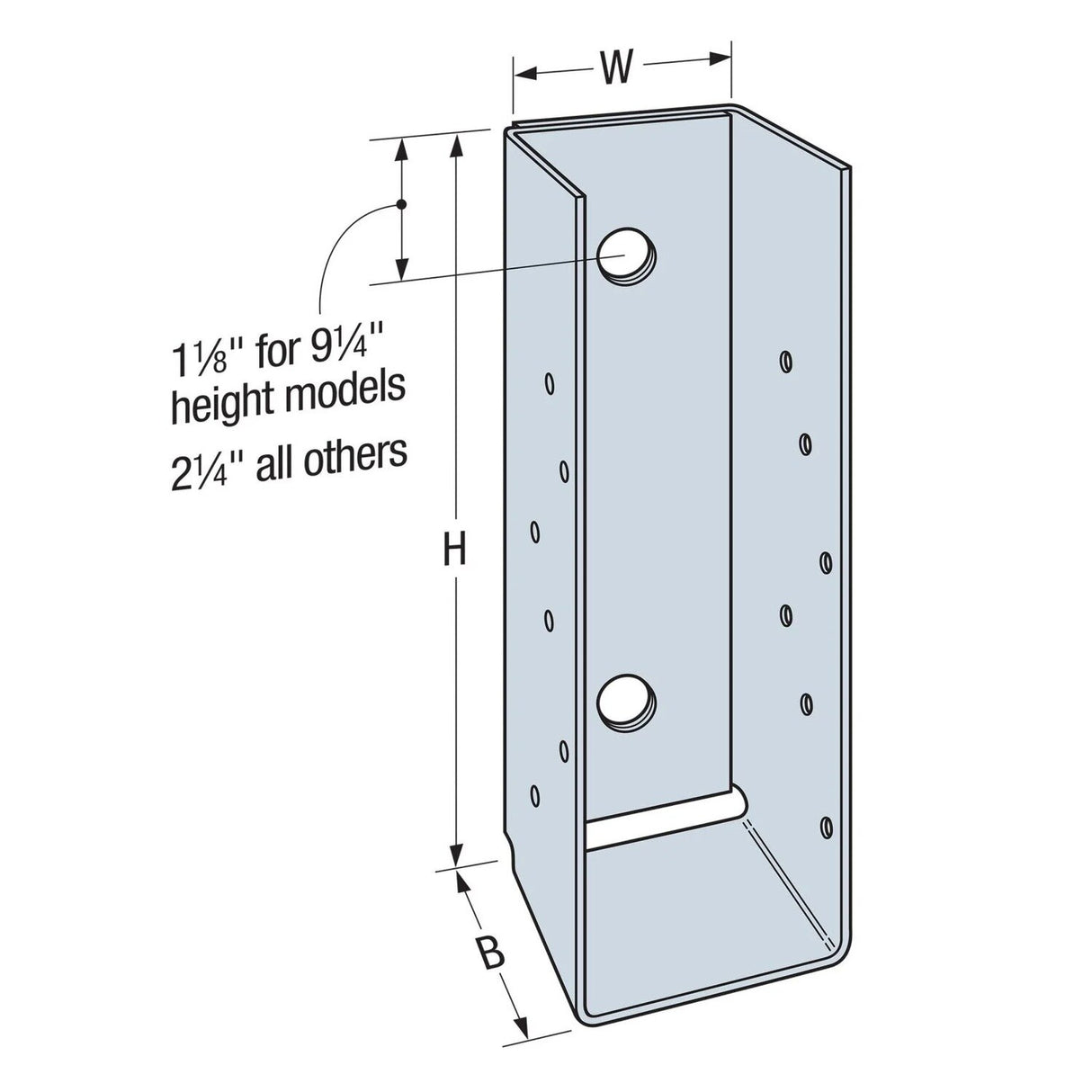

Simpson Strong-Tie MBHU3.56/9.25SSKT Specifications
| Material | Stainless Steel |
| Finish | Stainless Steel |
| Thickness | 10 Gauge |
| Width | 3-9/16" |
| Height | 9-1/4" |
| Weight | 7.6 lb |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate the fasteners specified in the table.
