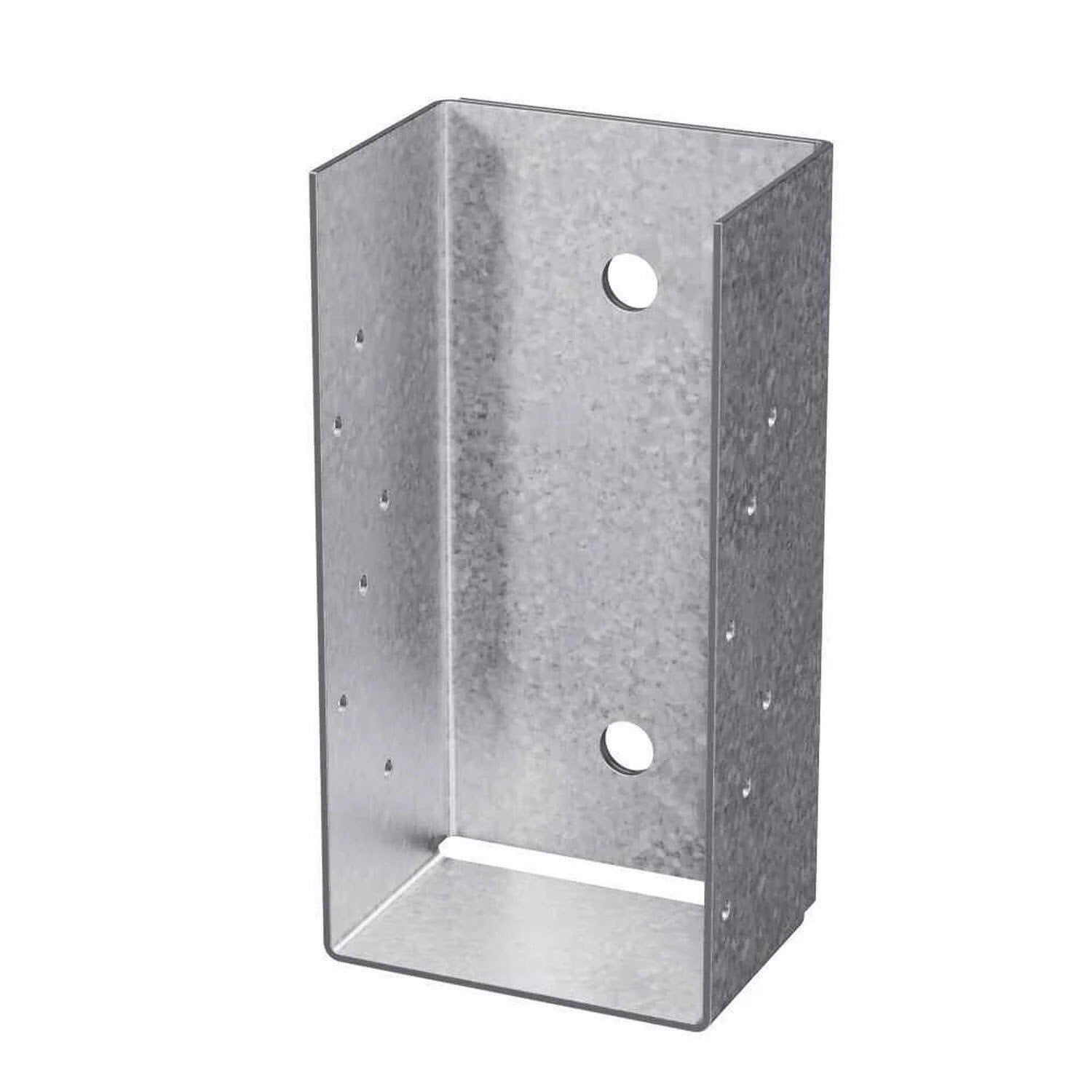

Simpson Strong-Tie MBHU5.50/11.88KT Description
The MBHU beam hanger provides a face-mounted solution for connecting beams to masonry or concrete walls, suitable for solid sawn and engineered wood beams as well as trusses.
Simpson Strong-Tie MBHU5.50/11.88KT Includes
- (1) MBHU5.50/11.88KT Masonry Beam Hanger
- (2) 3/4 in. x 5 in. Titen HD Anchors
- (12) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie MBHU5.50/11.88KT Features
- Face-mounted solution for connecting beams to masonry or concrete walls
- Suitable for solid sawn and engineered wood beams as well as trusses
- Includes Titen HD heavy-duty screw anchor and Strong-Drive SDS Heavy-Duty Connector screws
- Simplified installation process
Simpson Strong-Tie MBHU5.50/11.88KT Applications
- Connecting beams to masonry or concrete walls
- Suitable for solid sawn and engineered wood beams
- Applicable for trusses
Simpson Strong-Tie MBHU5.50/11.88KT Installation Overview
- Use all specified fasteners (included).
- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Holes shall be drilled 1/2" deeper than the specified Titen HD length.
- Provide moisture barrier between beam and wall per jurisdictional requirements.
Simpson Strong-Tie MBHU5.50/11.88KT Specifications
| Material | 10 gauge |
| Finish | Galvanized; available in stainless steel |
| Application | Engineered Wood |
| Height | 11-7/8" |
| Width | 5-1/2" |
| Packaging Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
819151
