Simpson Strong-Tie MBHU5.50/18SSKT Description

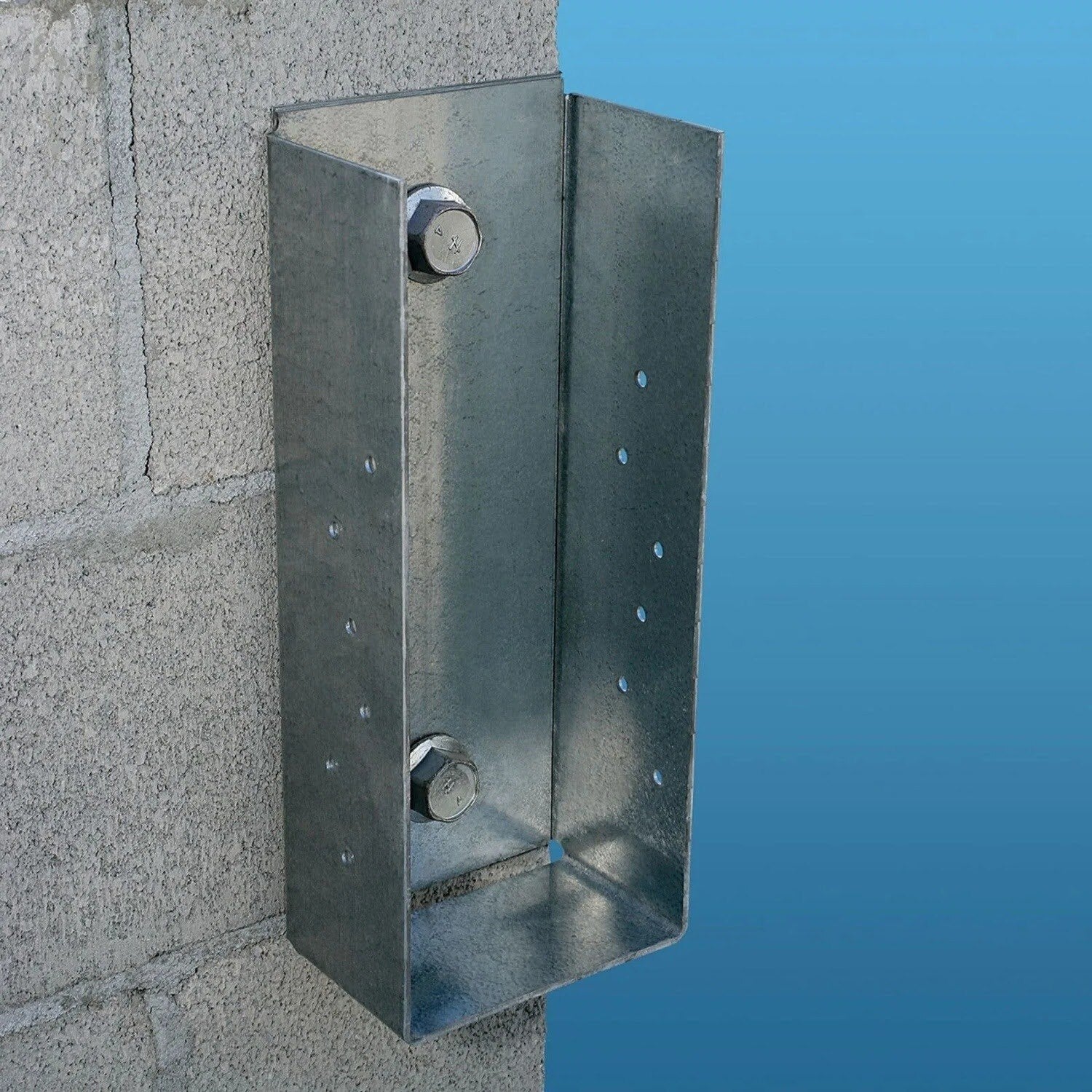

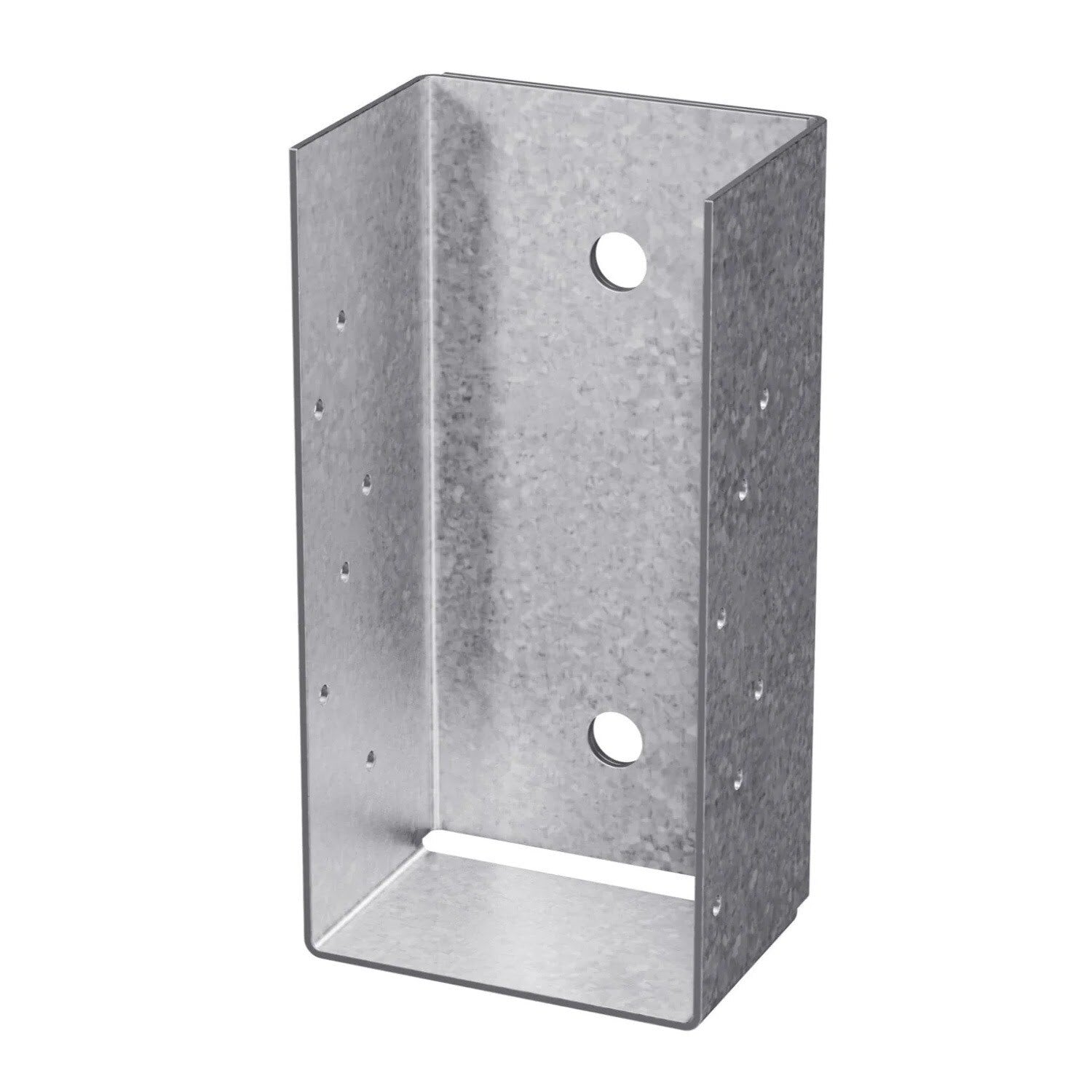

The MBHU Masonry Beam Face-Mount Hanger is a stainless steel, one-piece connector designed for secure wood-to-masonry connections. It includes all necessary fasteners for easy installation.
Simpson Strong-Tie MBHU5.50/18SSKT Includes
- (1) MBHU Masonry Beam Face-Mount Hanger
- (2) 3/4" x 5" Titen HD anchors
- (12) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie MBHU5.50/18SSKT Features
- Stainless steel construction for high corrosion resistance
- Includes all necessary fasteners for installation
- Designed for wood-to-masonry connections
- One-piece, non-welded design for durability
Simpson Strong-Tie MBHU5.50/18SSKT Applications

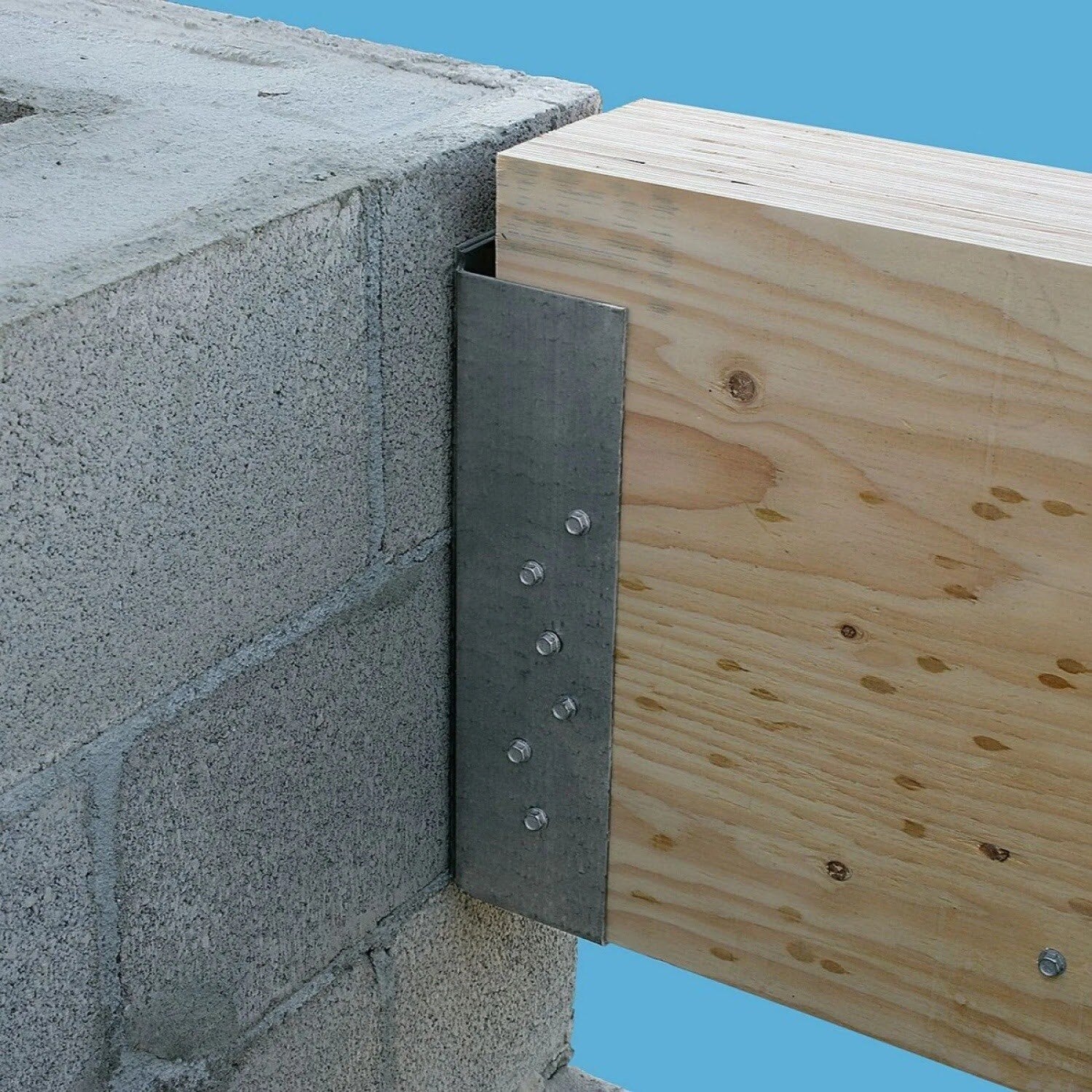

- Wood-to-masonry connections in construction
- Securing beams to concrete or masonry walls
Simpson Strong-Tie MBHU5.50/18SSKT Installation Overview
- Use all specified fasteners included in the package.
- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Ensure holes are drilled 1/2" deeper than the specified Titen HD length.
- Provide a moisture barrier between the beam and wall as per jurisdictional requirements.

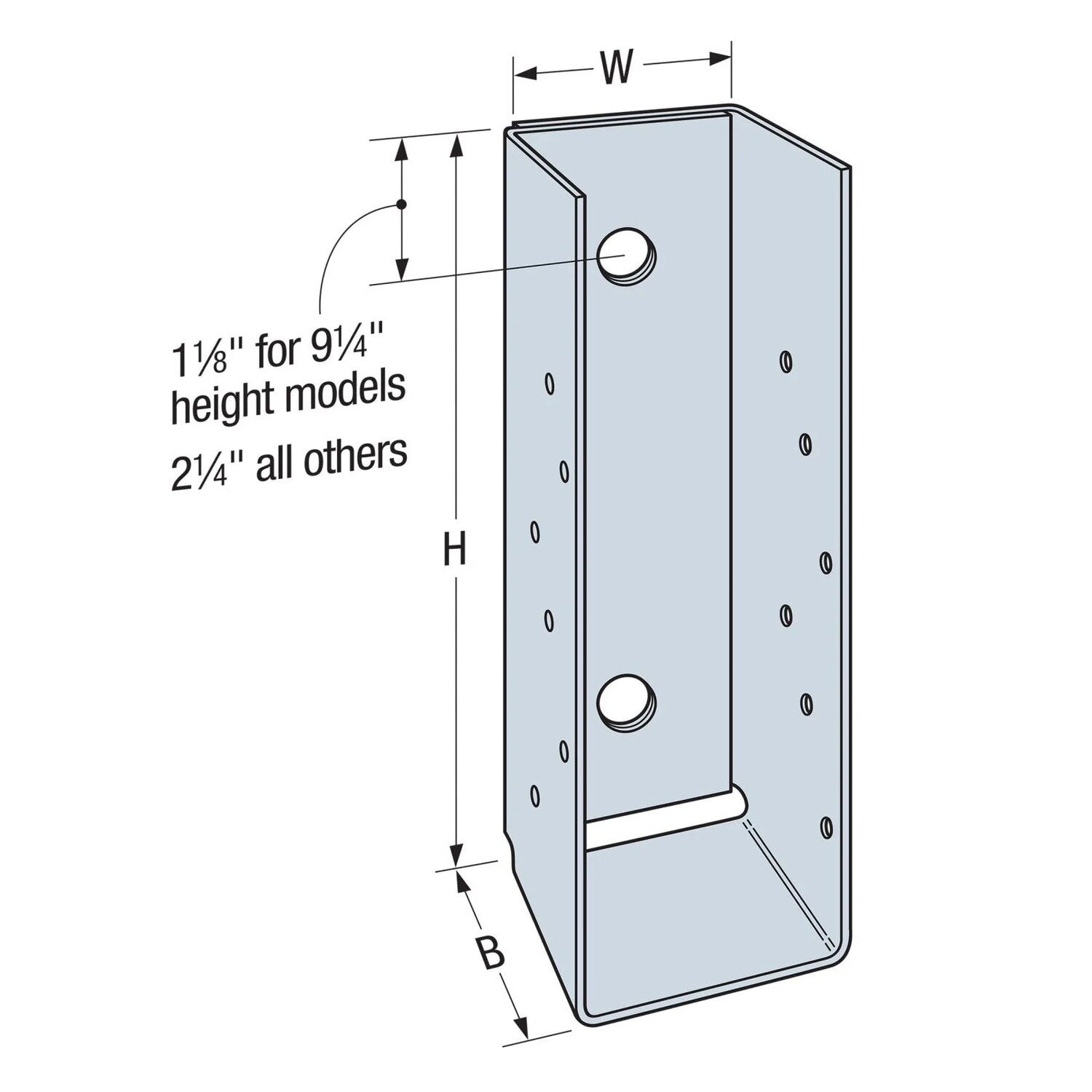

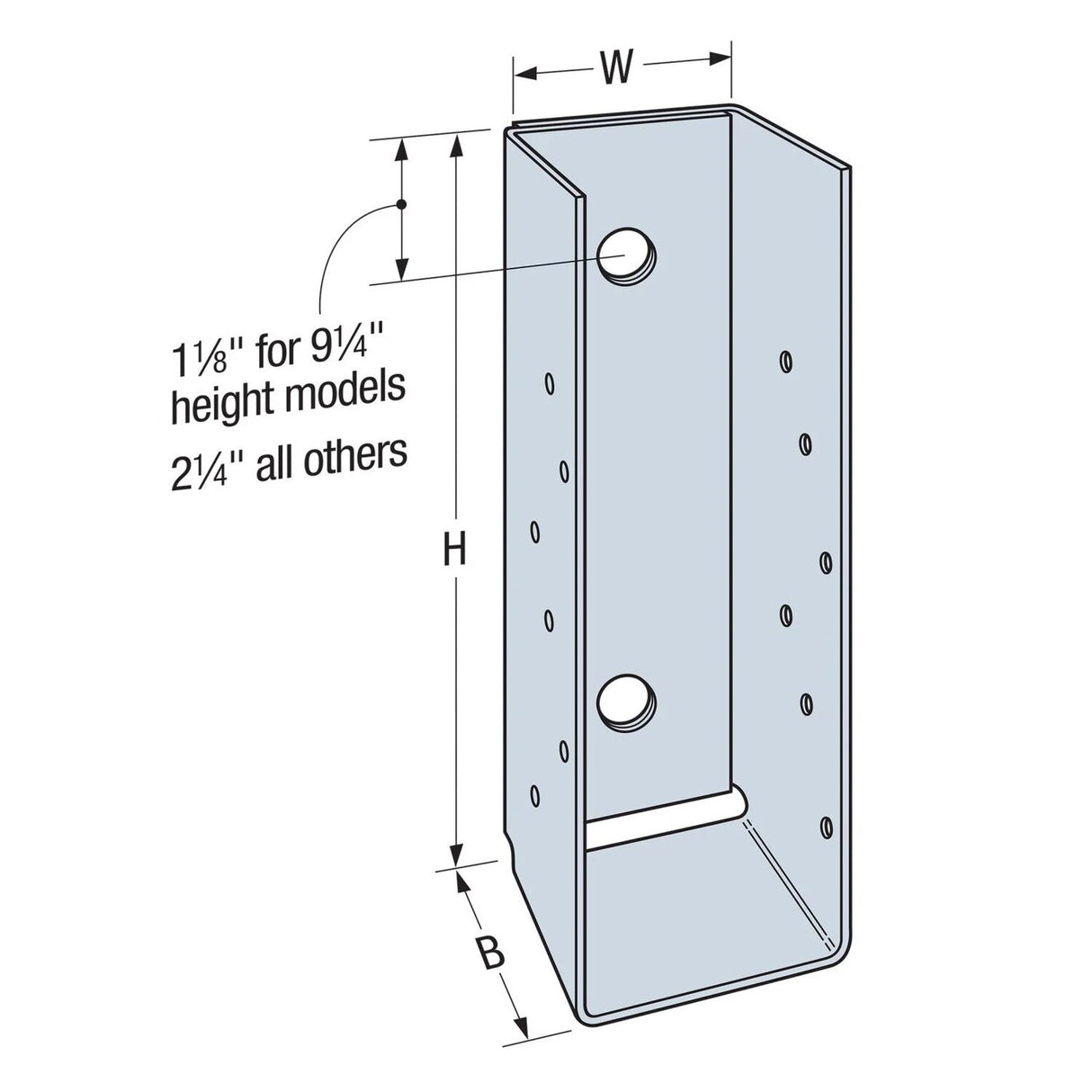

Simpson Strong-Tie MBHU5.50/18SSKT Specifications
| Material | Stainless Steel |
| Finish | Stainless Steel |
| Thickness | 10 Gauge |
| Width | 5-1/2" |
| Height | 18" |
| Fasteners Included | (2) 3/4" x 5" Titen HD anchors, (12) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate the fasteners specified in the table.
