Simpson Hangers | SKU:
MIT318

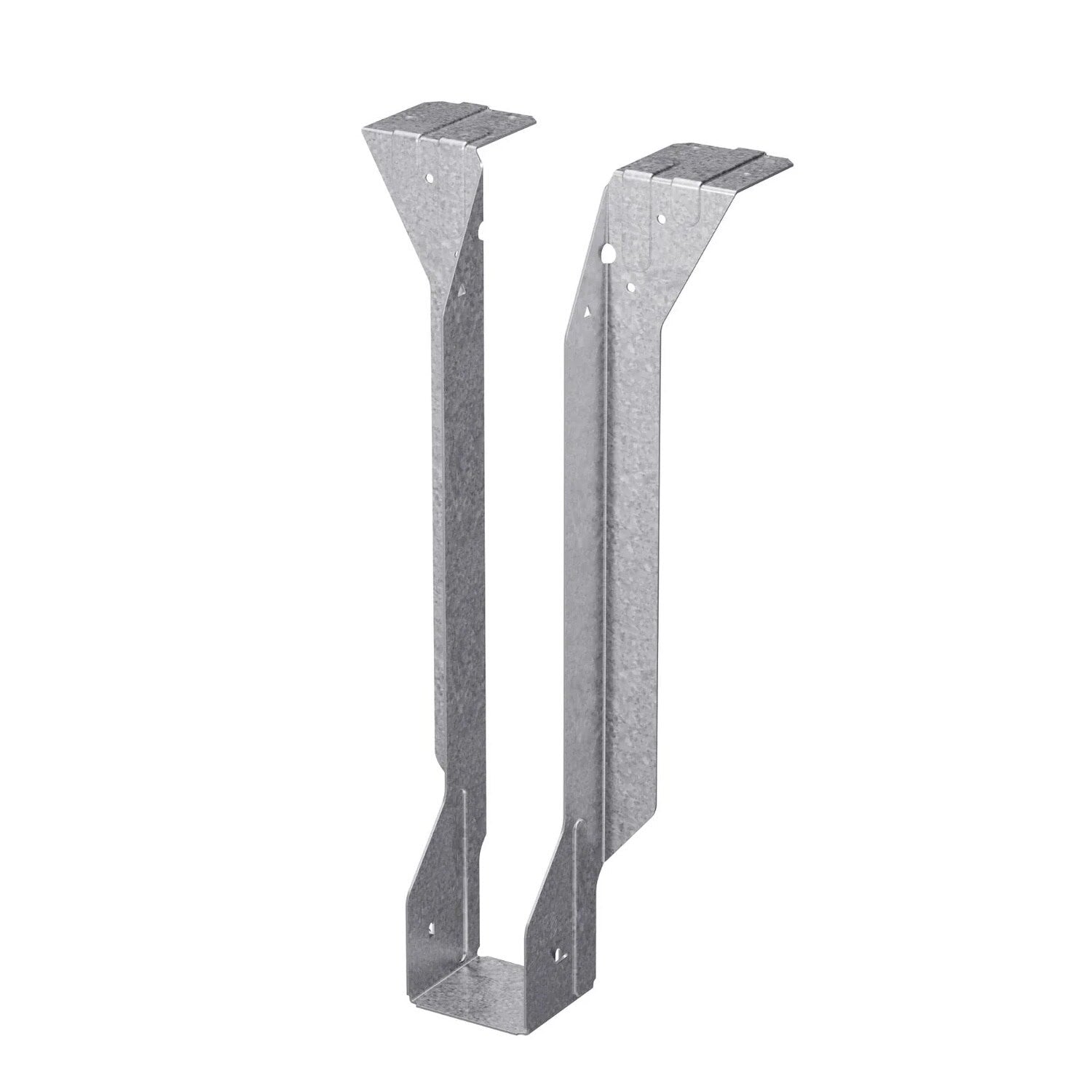

Simpson MIT318 Strong-Tie Top Flange I-Joist Hanger for Engineered Wood
$15.27
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIT318 Description
The Simpson Strong-Tie MIT318 Top Flange I-Joist Hanger provides a reliable and concealed connection for engineered wood I-joists, ideal for residential, multifamily, and commercial construction.
Simpson Strong-Tie MIT318 Includes
- (1) MIT318 Top Flange I-Joist Hanger
Simpson Strong-Tie MIT318 Features
- Reliable concealed connection for engineered wood I-joists
- Precision-formed steel construction
- Top-flange design for flush installation
- Tested to exceed code requirements
- Versatile for various framing applications
Simpson Strong-Tie MIT318 Applications

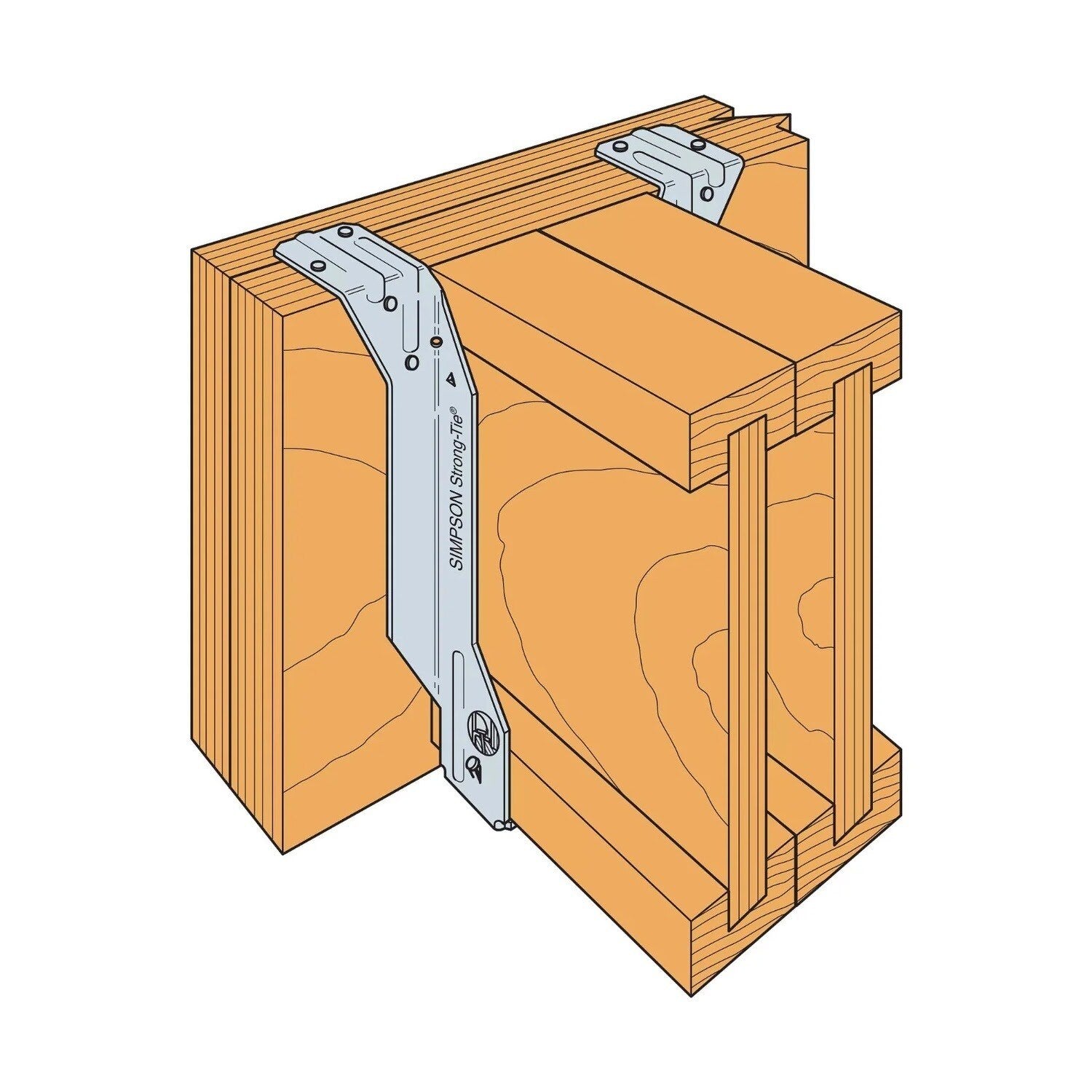

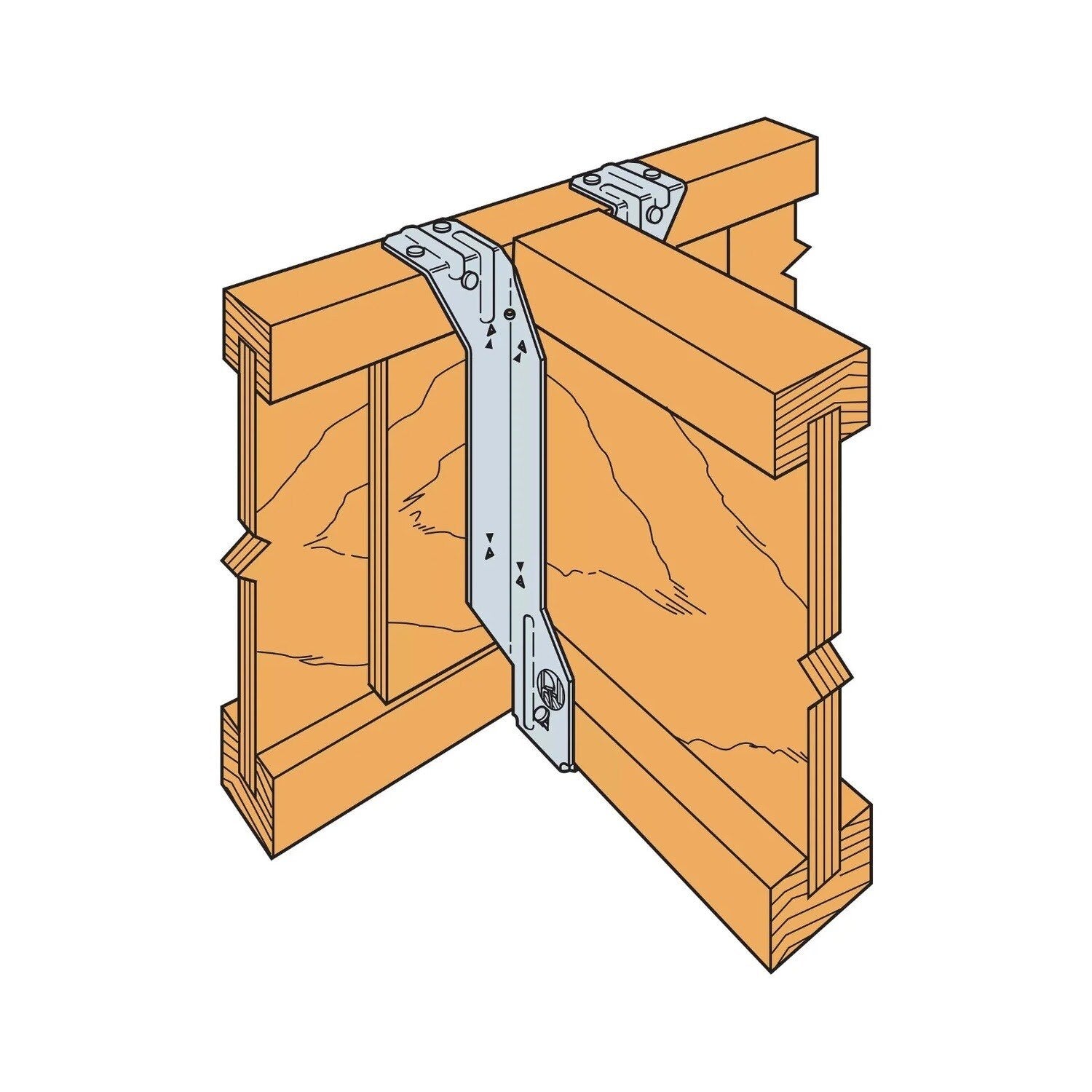

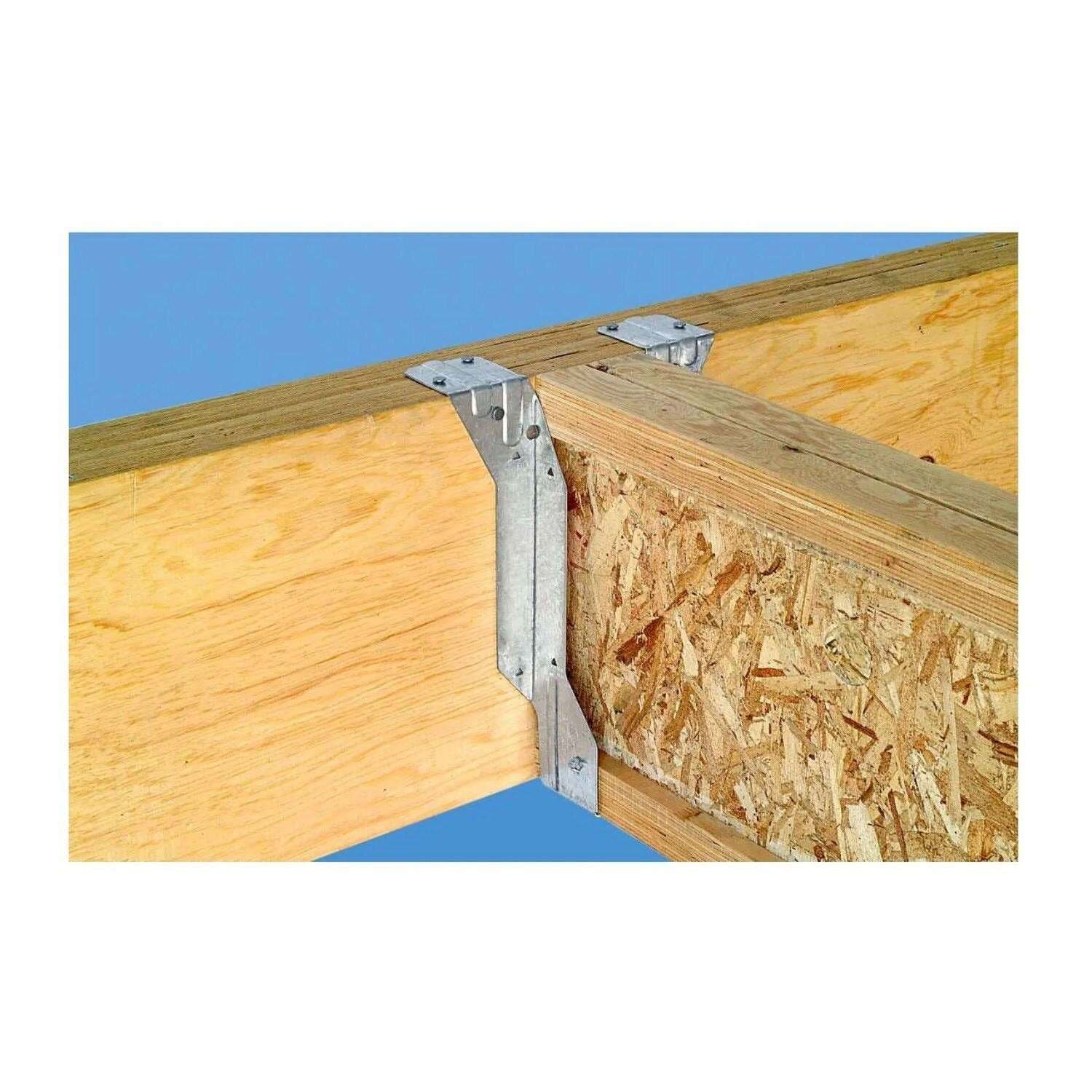

- Floor Joist Connections: Securely connects I-joists to supporting beams in wood floor systems.
- Multi-Family Framing: Ideal for repetitive framing layouts and tight spacing in apartment and condo construction.
- Commercial Wood Construction: Provides high-load capacity for larger wood framing projects.

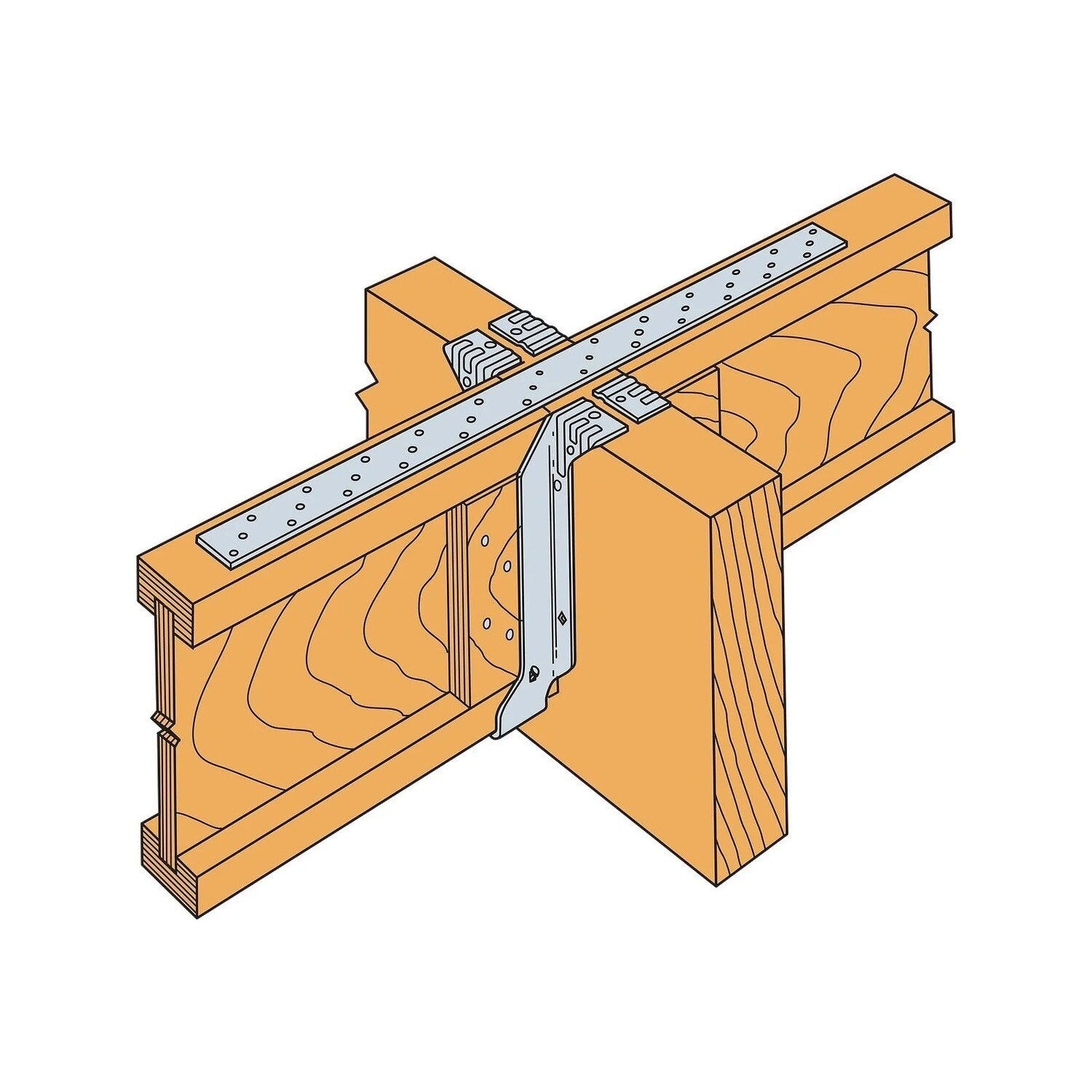

- Flush Beam Systems: Top-flange profile allows for flush installation with minimal height buildup.
- Offset Joist Conditions: Compatible with applications requiring minor adjustments in joist alignment.
Simpson Strong-Tie MIT318 Installation Overview
- Use all specified fasteners as per guidelines.
- Install hangers flush with the header or beam surface.
- Do not bend or modify the hanger.
- Ensure proper fastener schedule is followed.
- Refer to manufacturer guidelines for installation.

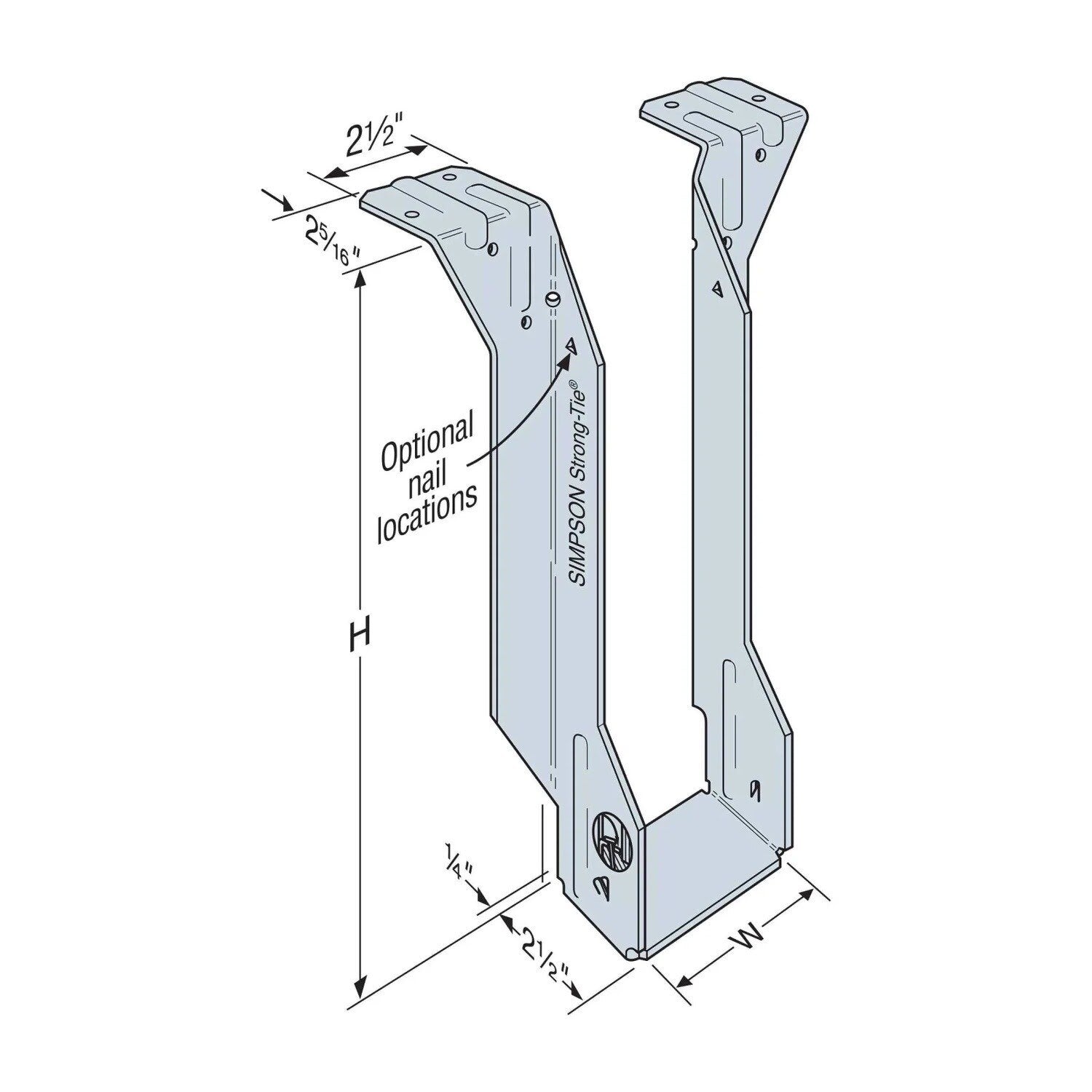

Simpson Strong-Tie MIT318 Specifications
| Material | 16 Gauge |
| Finish | G90 Galvanized |
| Joist Size | 2-1/2" X 18" |
| Width | 2-9/16" |
| Height | 18" |
| For Treated Lumber | No |
