Simpson Hangers | SKU:
MIU4.12/14
Simpson Strong-Tie MIU4.12/14 (4 in. x 14 in.) Face Mount I-Joist Hanger - G90 Galvanized
$32.34
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MIU4.12/14 Description

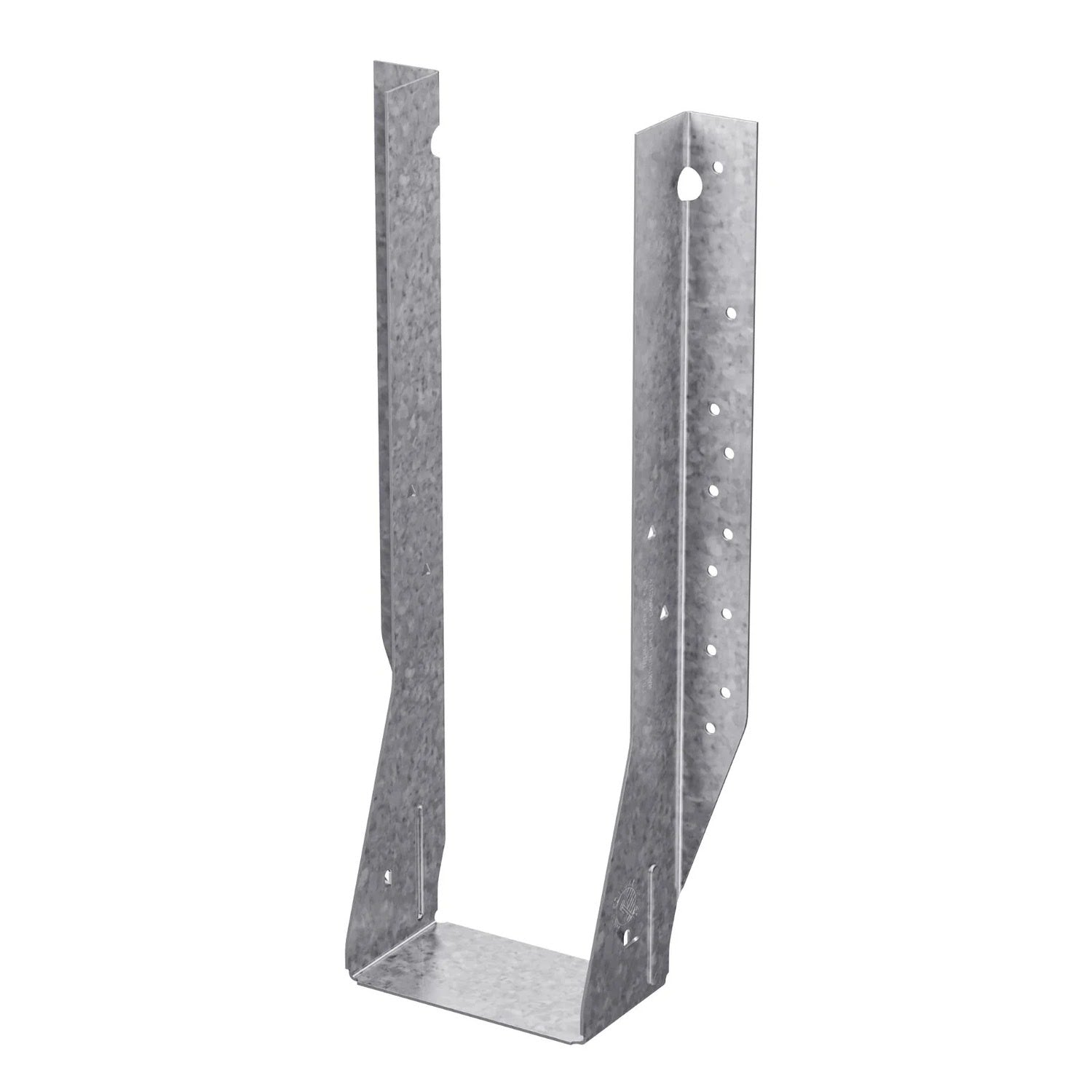

The Simpson Strong-Tie MIU Medium Face-Mount I-Joist Hanger is a durable, high-capacity connector designed for securing engineered wood joists in a variety of framing applications.
Simpson Strong-Tie MIU4.12/14 Includes
- (1) Face Mount I-Joist Hanger
Simpson Strong-Tie MIU4.12/14 Features
- G90 Galvanized Finish: Provides standard corrosion protection for indoor and covered exterior applications.
- Full-Height Joist Support: Minimizes joist rotation and enhances load capacity for stronger connections.
- Precision-Engineered Construction: 14-gauge steel ensures durability and reliability under heavy loads.
- Face-Mount Design: Allows direct attachment to headers and beams for a secure connection.
- Versatile Compatibility: Works with a variety of engineered wood products, including LVL, LSL, and PSL.
Simpson Strong-Tie MIU4.12/14 Applications
- Interior Floor Framing: Creates a strong, load-bearing connection between engineered wood joists and headers.
- Roof Framing: Provides superior uplift resistance, reinforcing the stability of engineered wood roof systems.
- Deck Framing (Covered Applications): Ideal for covered outdoor structures where G90 galvanized protection is sufficient.
- General Wood Construction: Used in residential and commercial projects requiring high-capacity engineered wood connections.

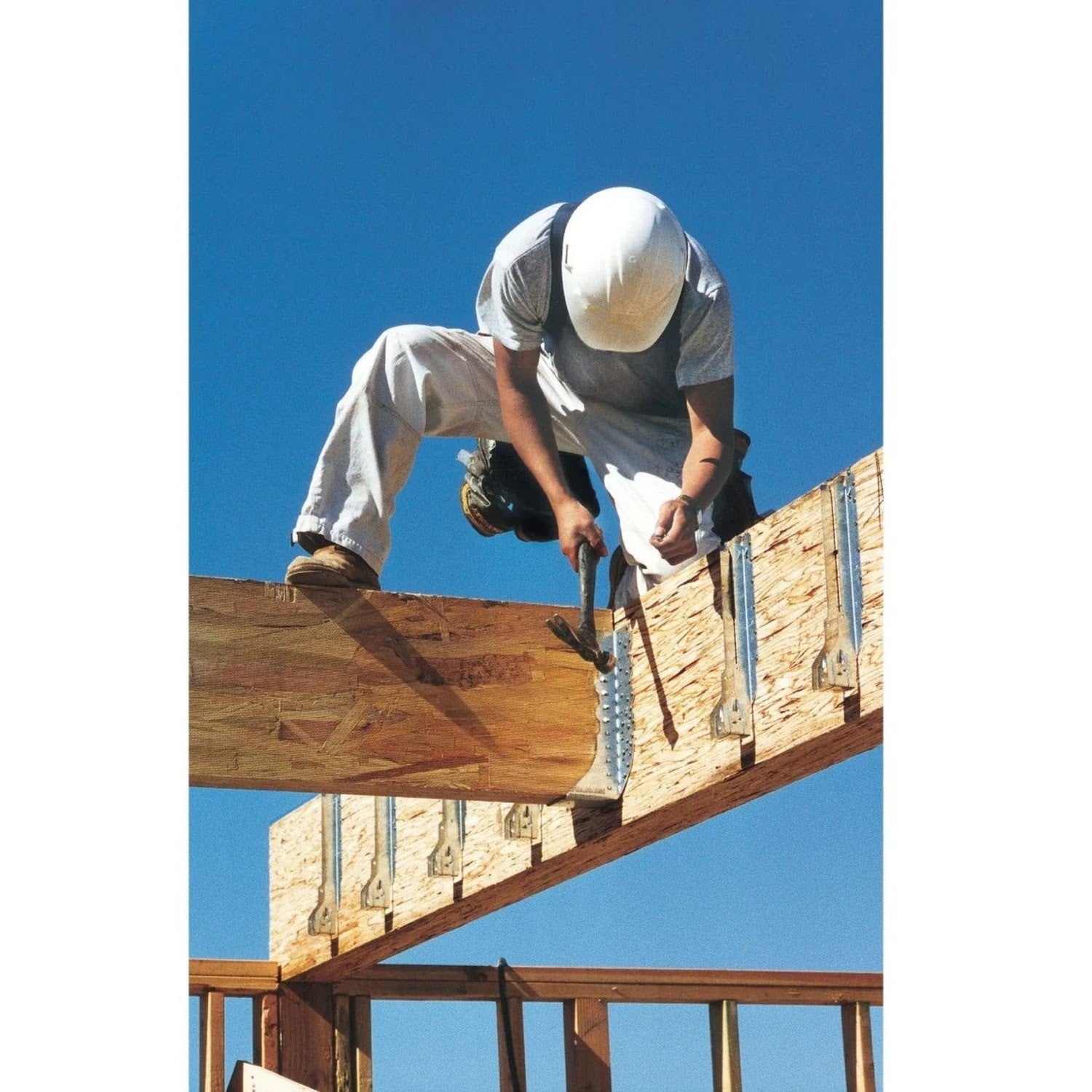

Simpson Strong-Tie MIU4.12/14 Installation Overview
- Fastener Requirements: Install using 10d common nails or Simpson Strong-Tie SD screws to achieve full load capacity.

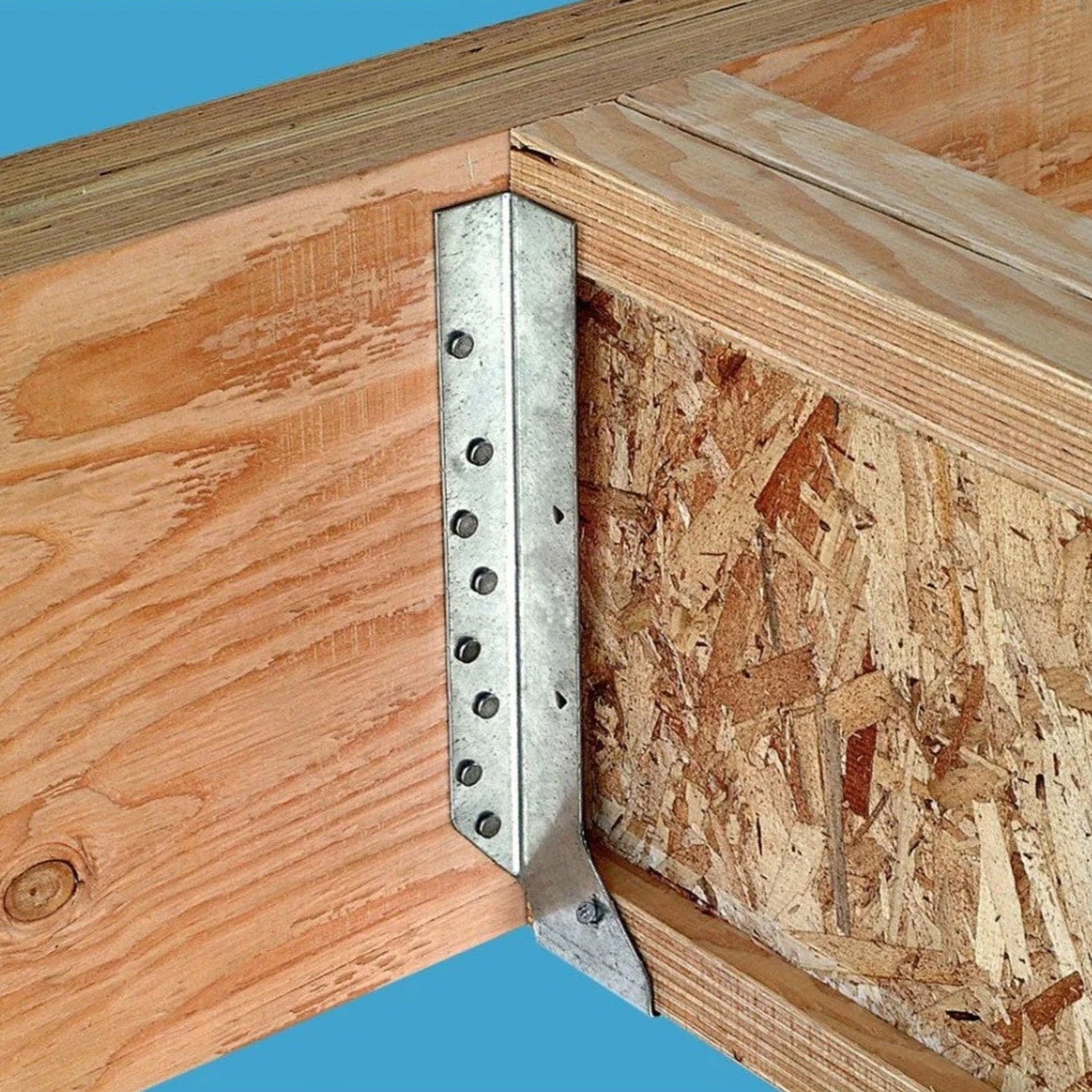

- Face-Mount Installation: Secure the hanger to the header with all available nail holes filled for maximum strength.

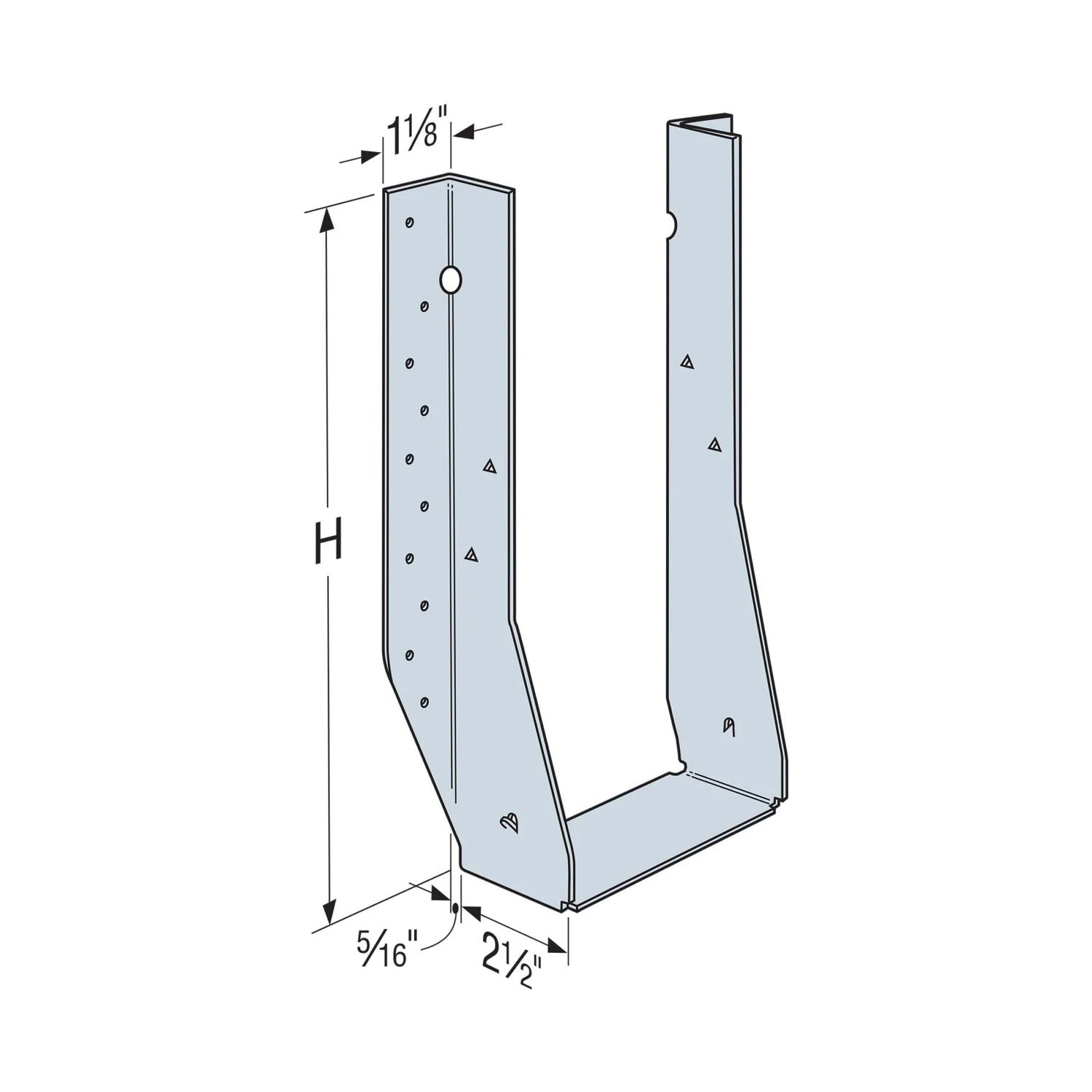

Simpson Strong-Tie MIU4.12/14 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails Joist - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 13-9/16" |
| Joist size | 4" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 4-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
