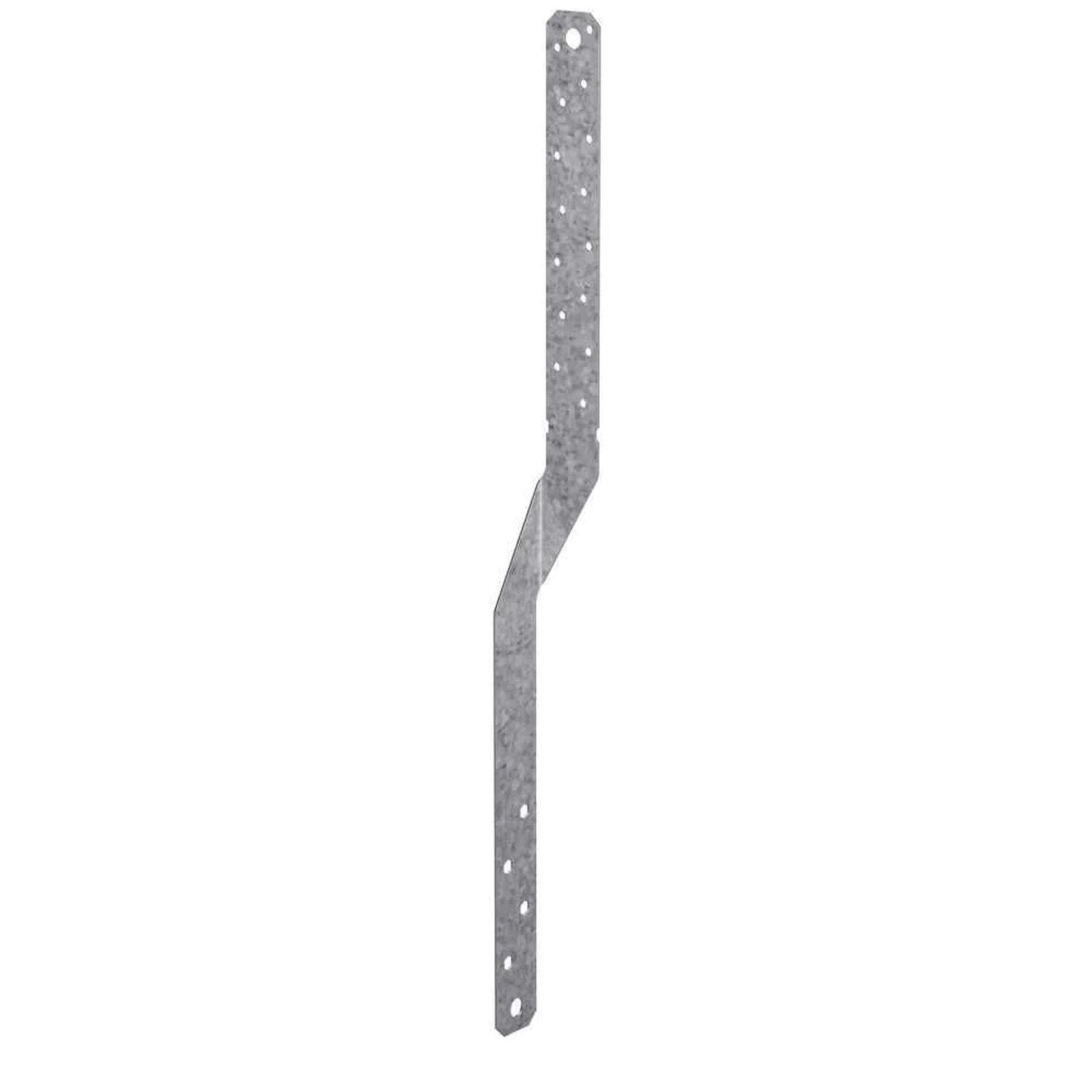

Simpson Strong-Tie MTSM20 Description
The MTSM20 Medium Twist Strap for Masonry by Simpson Strong-Tie provides a reliable and economical solution for truss-to-masonry connections, featuring a G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie MTSM20 Includes
- (1) Medium Twist Strap for Masonry
Simpson Strong-Tie MTSM20 Features
- Straps do not need to be wrapped over the truss to achieve the allowable load
- Can be field bent once to a 45° angle
- G90 galvanized finish for corrosion resistance
- Designed for truss-to-masonry connections
Simpson Strong-Tie MTSM20 Applications
- Truss-to-masonry connections
- Securing wood to concrete or masonry
Simpson Strong-Tie MTSM20 Installation Overview
- Use all specified fasteners as per guidelines
- Install with hex-head Titen Turbo screws
- Attach to either side of grouted concrete block with a minimum one #5 rebar horizontal
- Ensure Titen Turbo screws are not exposed to the exterior environment
Simpson Strong-Tie MTSM20 Specifications
| Material | 16 gauge (54 mil) |
| Finish | G90 Galvanized |
| Length | 20 in. |
| Fasteners required | Nails - (7) 0.148" x 1-1/2" Nails, GFCMU - (4) 1/4" x 2-1/4" Titen Screw, Concrete - (4) 1/4" x 1-3/4" Titen Screw |
| For Treated Lumber | No |
| Weight | 0.4 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
