Simpson Anchors | SKU:
PFDS28B

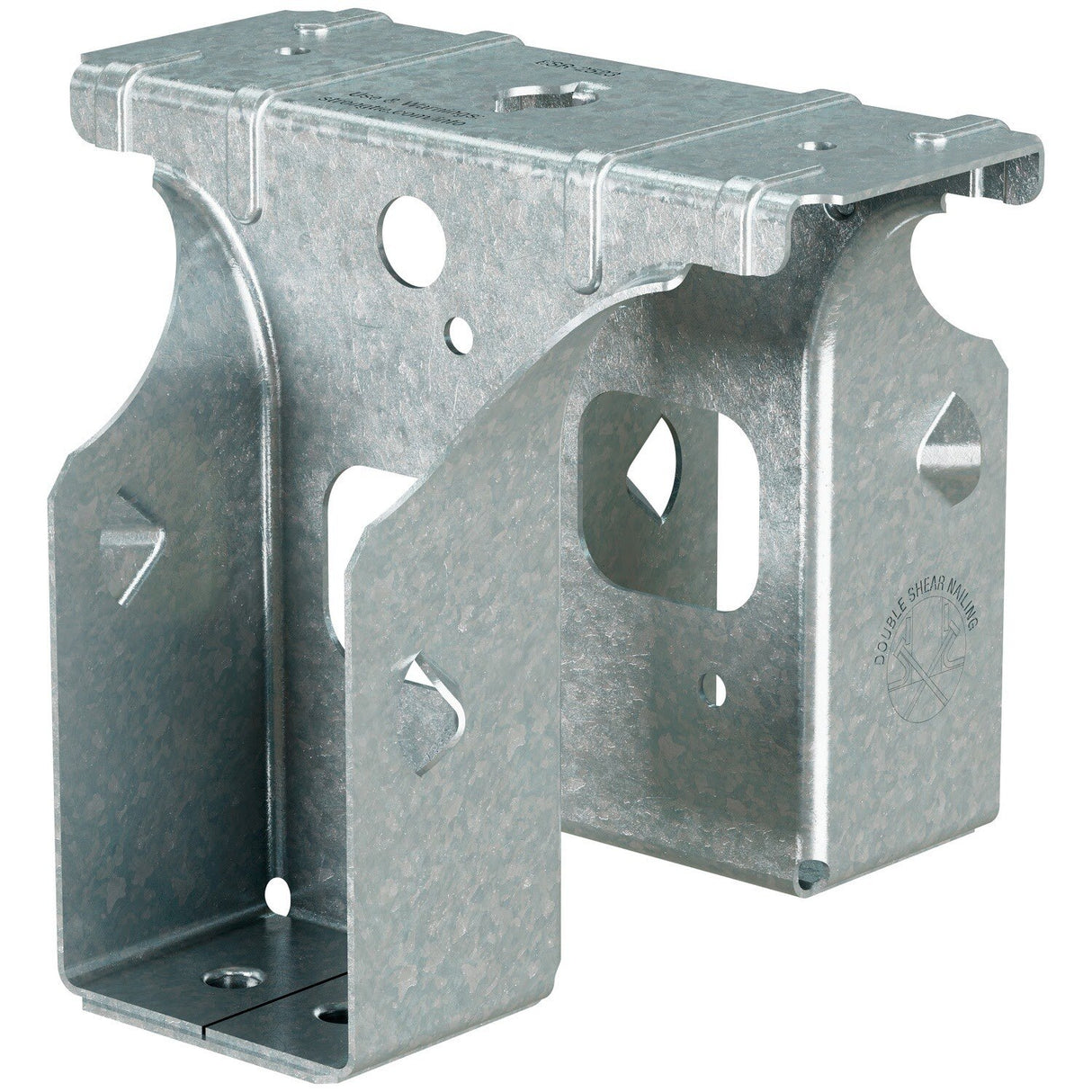

Simpson PFDS28B Strong-Tie Galvanized Post-Frame Saddle Hanger for Double 2x8
$6.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PFDS28B Description
The PFDS28B Post-Frame Saddle Hanger is designed to provide strong, reliable support for double 2x8 joists in post-frame construction. It features a durable galvanized finish and heavy-gauge steel construction for superior load capacity and corrosion resistance.
Simpson Strong-Tie PFDS28B Includes
- (1) PFDS28B Post-Frame Saddle Hanger
Simpson Strong-Tie PFDS28B Features
- High-Strength Construction: Manufactured from heavy-gauge steel for superior load-bearing capacity.
- Corrosion-Resistant Finish: Hot-dip galvanized coating enhances durability and longevity in demanding environments.
- Top-Flange Saddle Design: Provides stable, uniform support for 2x joists while simplifying installation.
- Code-Compliant Engineering: Meets industry standards for post-frame construction, ensuring a secure and durable connection.
- Versatile Application: Compatible with wood and concrete beams, making it ideal for multiple framing scenarios.
Simpson Strong-Tie PFDS28B Applications
- Post-Frame Buildings: Ensures secure joist support in pole barns, agricultural structures, and storage facilities.
- Commercial & Residential Framing: Provides strong, stable connections for decks, pavilions, and other structures.
Simpson Strong-Tie PFDS28B Installation Overview
- Face Nails (Joist Connection): Attach the joist to the hanger using common nails or Strong-Drive SD Connector Screws for increased holding power.
- Top-Flange Attachment (Beam Connection): Secure the top flange to the supporting beam using structural nails or screws, ensuring proper embedment for maximum strength.
- Concrete Applications: When attaching to a concrete beam, use mechanical or adhesive anchors as specified by the project engineer.
Simpson Strong-Tie PFDS28B Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 7-1/8" |
| Joist size | 2" X 8" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 20 Gauge |
| Width | 1-9/16" |
