Simpson Anchors | SKU:
PINW-150

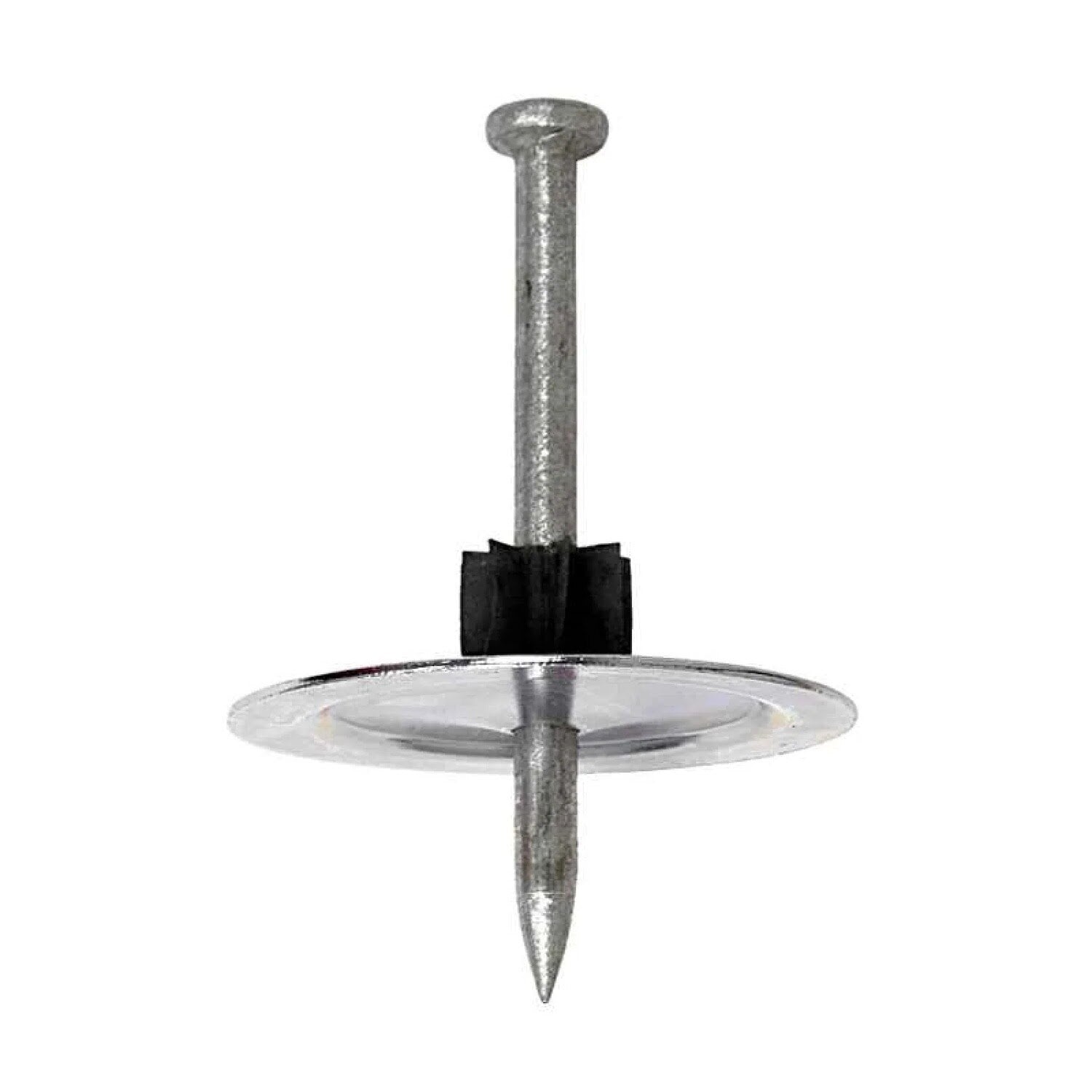

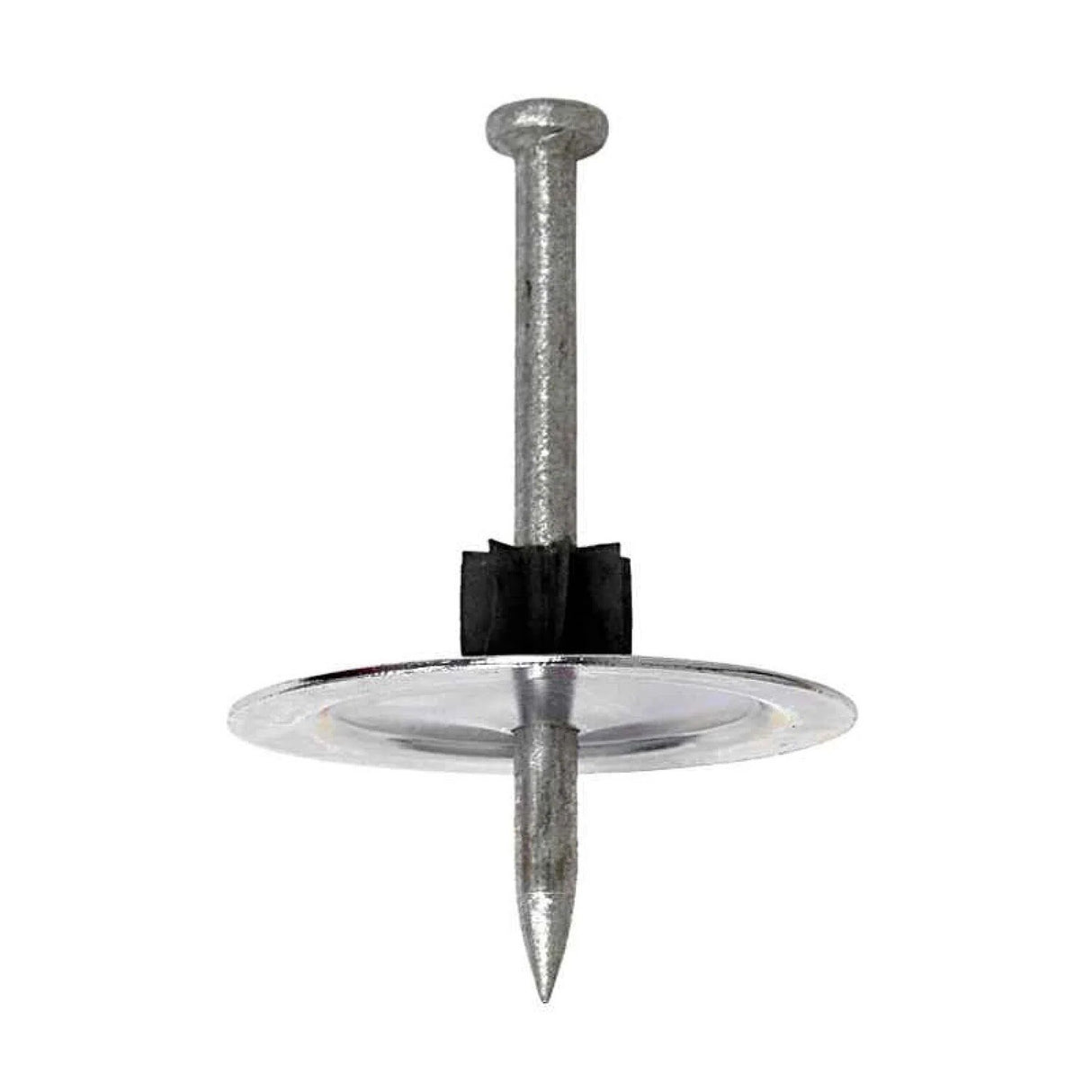

Simpson Strong-Tie PINW-150 (1-1/2") Powder-Actuated Metal-Washered Pin for Insulation Board (50 Pack)
$12.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PINW-150 Description
The PINW-150 Powder-Actuated Metal-Washered Pin is designed for attaching rigid insulation boards to buildings, featuring a 0.300" head and a 1 7/16" pre-mounted flat metal washer for effective fastening into concrete and steel.
Simpson Strong-Tie PINW-150 Includes
- (50) Powder-Actuated Metal-Washered Pins
Simpson Strong-Tie PINW-150 Features
- Minimum effective shank length must equal or exceed the combined thickness of the attached material and the minimum embedment depth
- Code-listed per ICC-ES ESR-2138 and Florida FL15730
- Designed for use with Simpson Strong-Tie powder-actuated tools and compatible with many competitive tools
Simpson Strong-Tie PINW-150 Applications
- Attaching rigid insulation boards to buildings
- Fastening into concrete and steel in high-volume applications
Simpson Strong-Tie PINW-150 Specifications
| Length | 1-1/2" |
| Drive type | Powder-Actuated |
| Pin Head Diameter | 0.300" |
| Pin Shank Diameter | 0.145" |
| Compatible Tools | PTP-27L, PT-27, PT-22A, PT-22HA |
| Pack Quantity | 50 |
| Carton Quantity | 500 |
| Weight | 1.2 lb |
