Simpson Anchors | SKU:
PINW-300
Simpson Strong-Tie PINW-300 (3") Powder-Actuated Metal-Washered Pin for Insulation Board (50 Pack)
$14.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PINW-300 Description

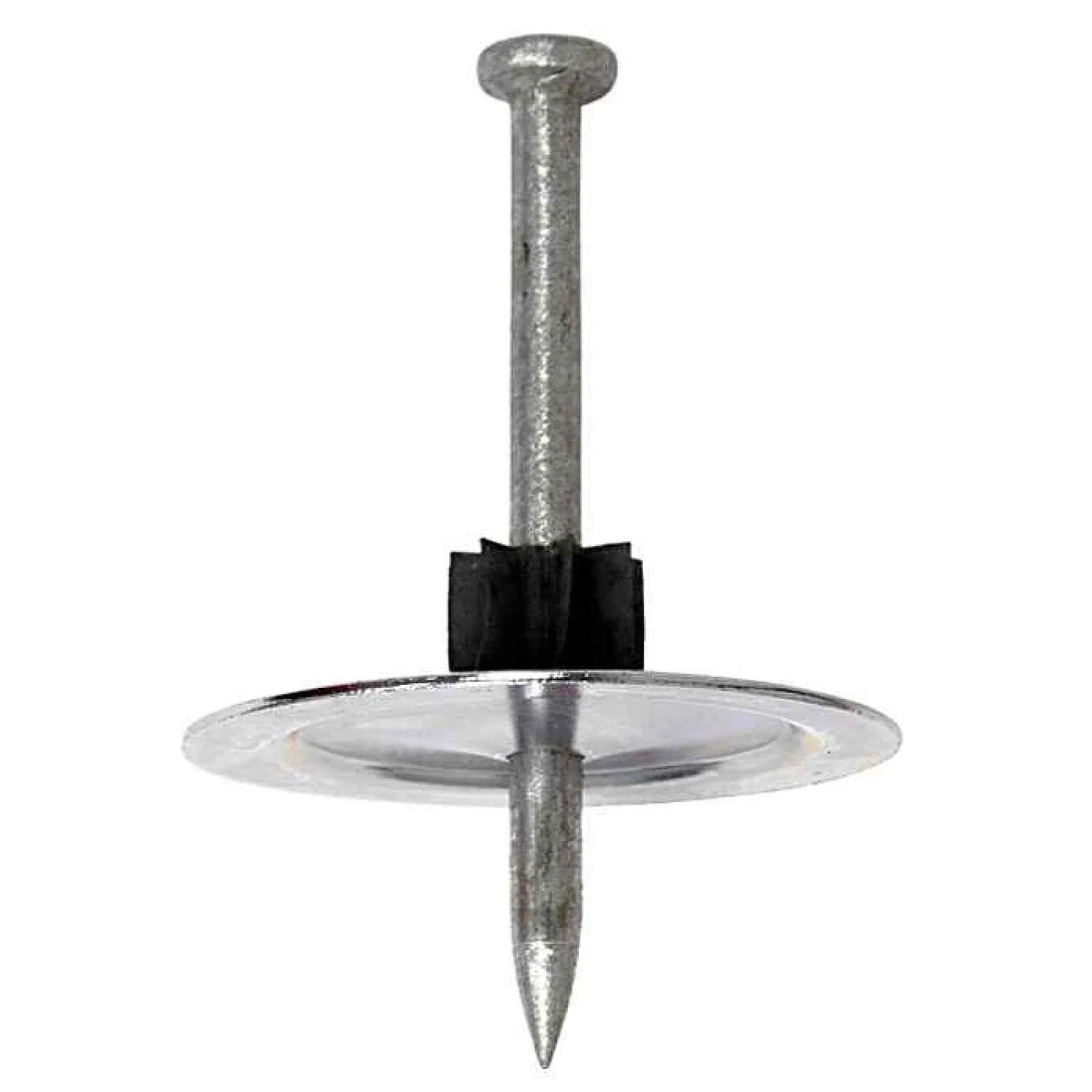

The PINW-300 is a powder-actuated fastener designed to secure rigid insulation boards to structures. It features a 0.3" head and is equipped with a 1 7/16" pre-mounted metal washer. This fastener is well-suited for high-volume applications, offering reliable performance when affixing into concrete and steel.
Simpson Strong-Tie PINW-300 Includes
- (50) Powder-Actuated 3 in. Metal-Washered Pins
Simpson Strong-Tie PINW-300 Features
- Minimum effective shank length must equal or exceed the combined thickness of the attached material and the minimum embedment depth
- Code-listed per ICC-ES ESR-2138 and Florida FL15730
- Designed for use with Simpson Strong-Tie powder-actuated tools and compatible with many competitive tools
Simpson Strong-Tie PINW-300 Applications
- Fastening rigid insulation boards to concrete and steel
- High-volume applications requiring reliable performance
Simpson Strong-Tie PINW-300 Specifications
| Length | 3 in. |
| Drive type | Powder-Actuated |
| Pin Head Diameter | 0.300 in. |
| Pin Shank Diameter | 0.145 in. |
| Compatible Tools | PTP-27L, PT-27, PT-22A, PT-22HA |
| Pack Quantity | 50 |
| Carton Quantity | 500 |
| Weight | 1.5 lb |
