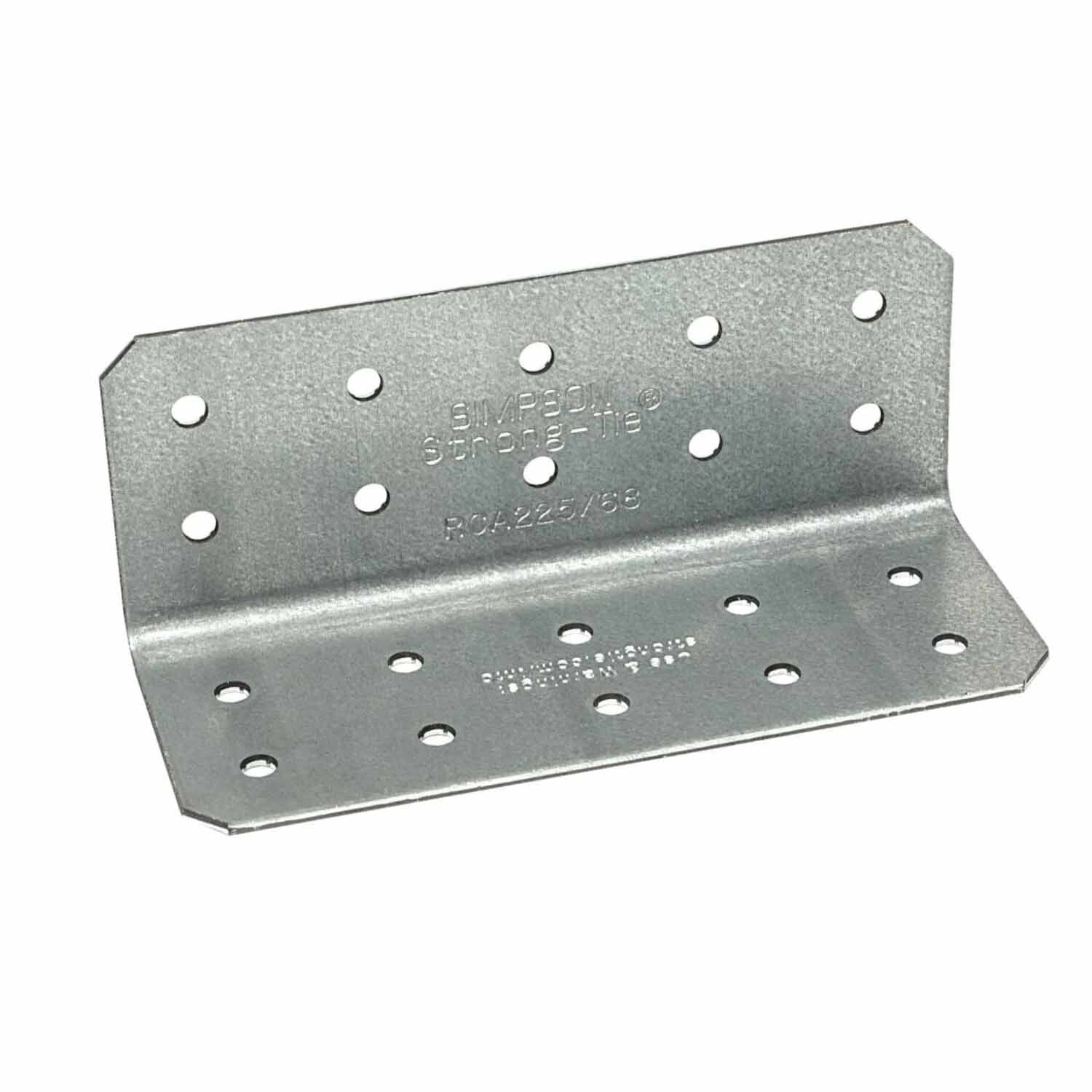

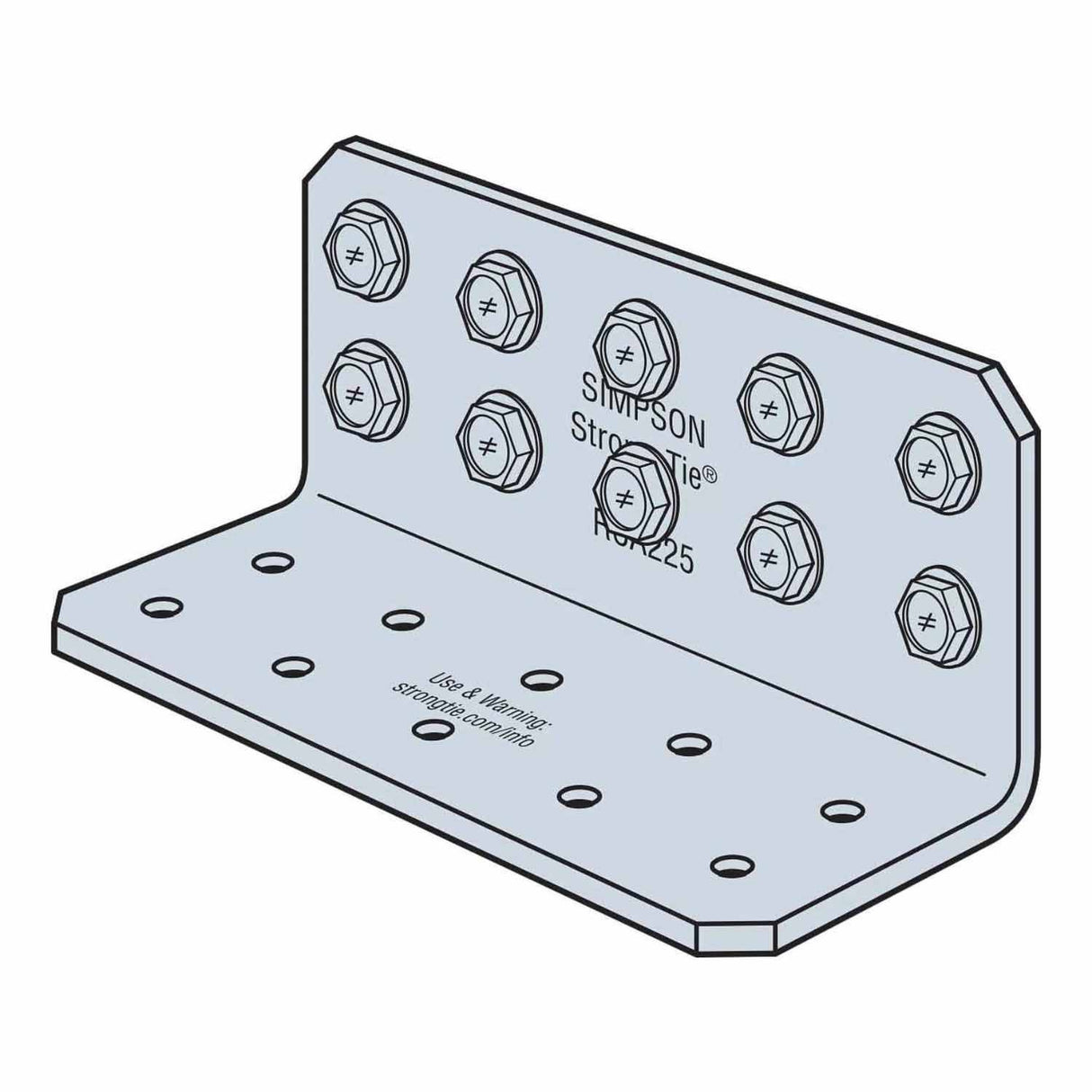

Simpson RCA225/54-R90 Description
The RCA rigid connector angle is a versatile clip angle designed for various structural connections, featuring pre-punched holes for easy installation.
Simpson RCA225/54-R90 Includes
- (90) 2 in. x 2 in. x 5 in. 16-Gauge Galvanized Rigid Connector Angle
Simpson RCA225/54-R90 Features
- Versatile application for structural connections
- Pre-punched holes for quick and accurate fastener attachment
- Made from durable 16-gauge galvanized steel

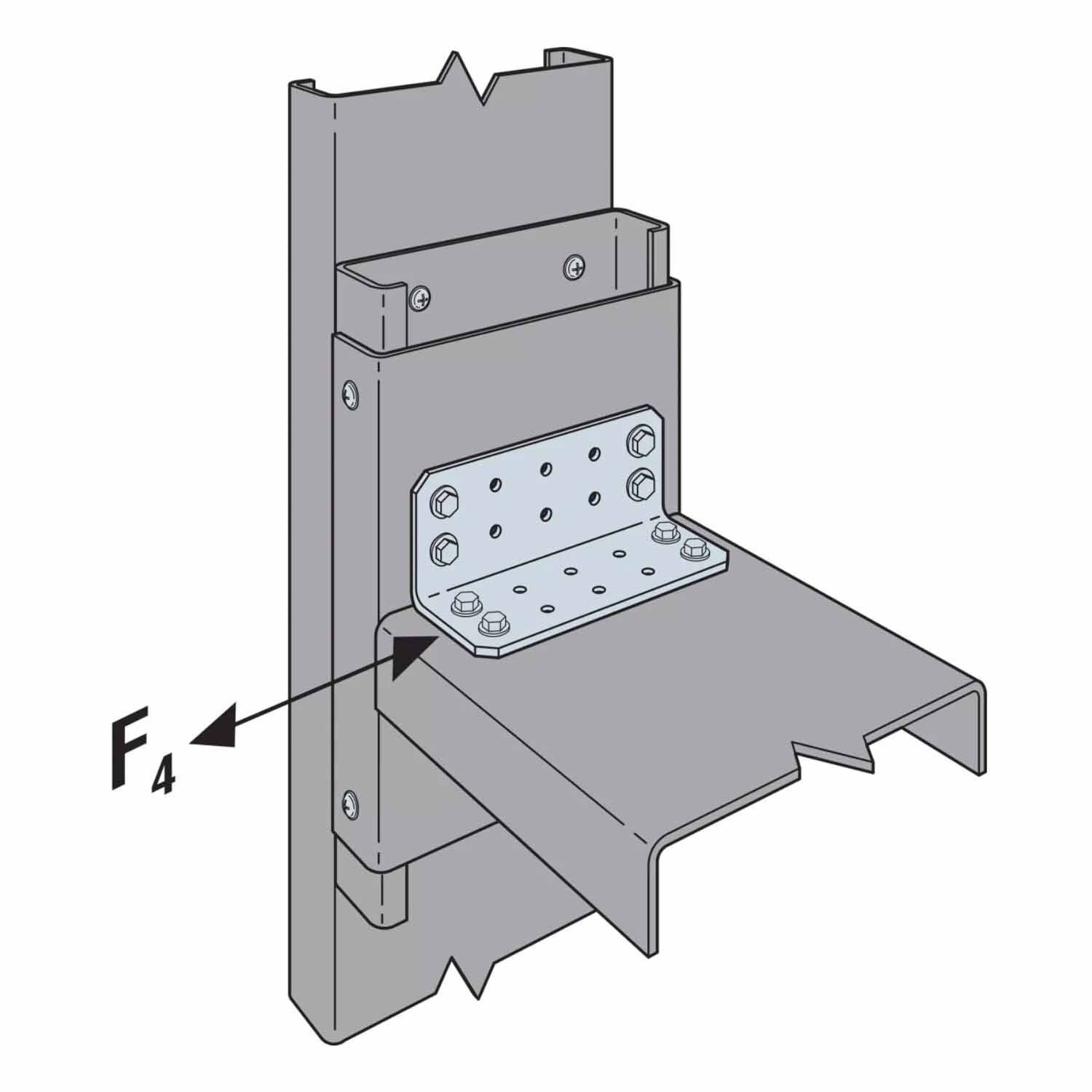

Simpson RCA225/54-R90 Applications
- Miscellaneous header/sill connections to jamb studs
- Jamb stud reinforcement at track
- U-channel bridging
- Stud-blocking
- Bypass curtain-wall framing
- Joist connections
Simpson RCA225/54-R90 Installation Overview
- Use all specified anchors/fasteners

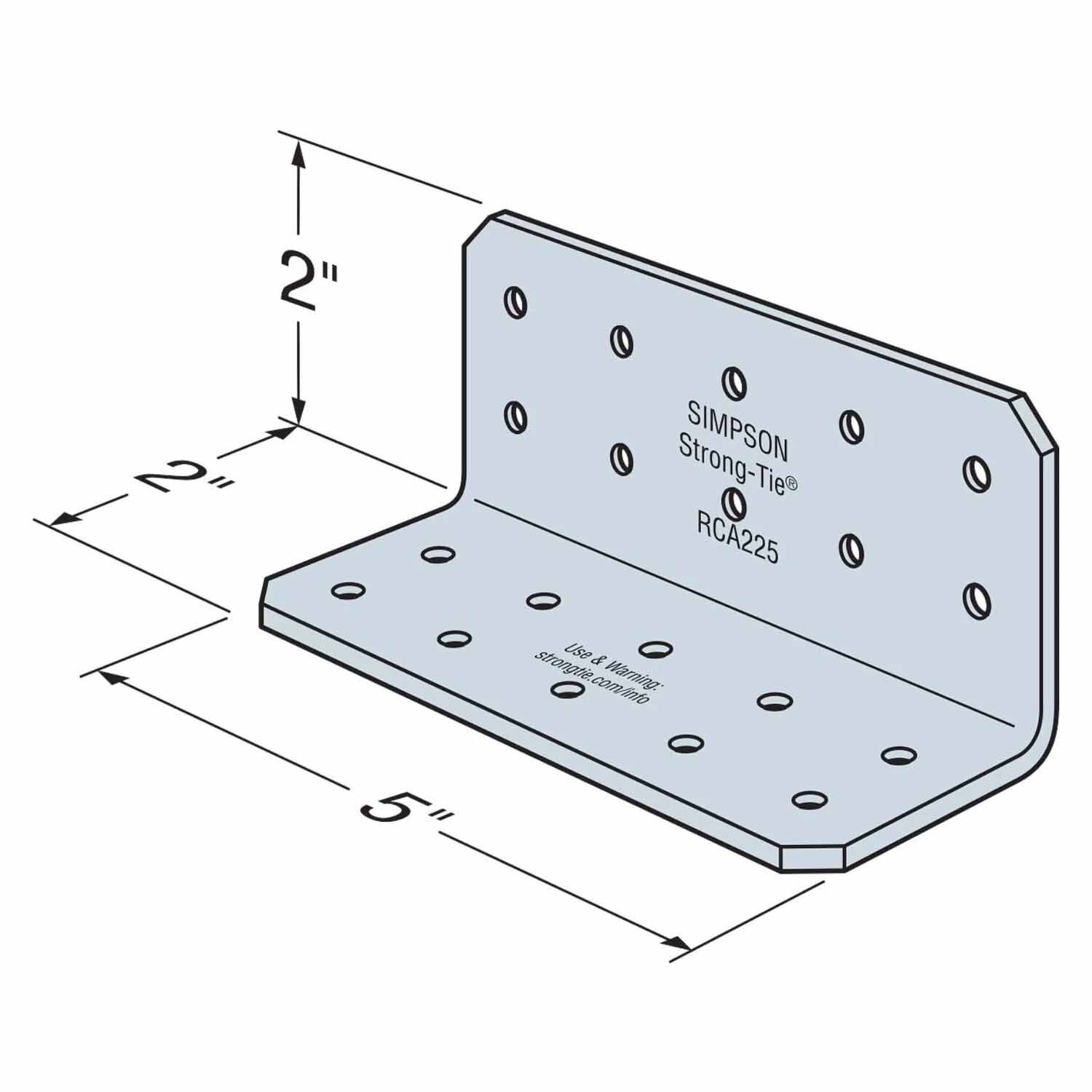

Simpson RCA225/54-R90 Specifications
| Finish | G90 Galvanized |
| Length | 5" |
| Thickness | 16 Gauge |
| Material | Galvanized Steel |
| Packaging Quantity | 90 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
821406
