Simpson Anchors | SKU:
RST-3

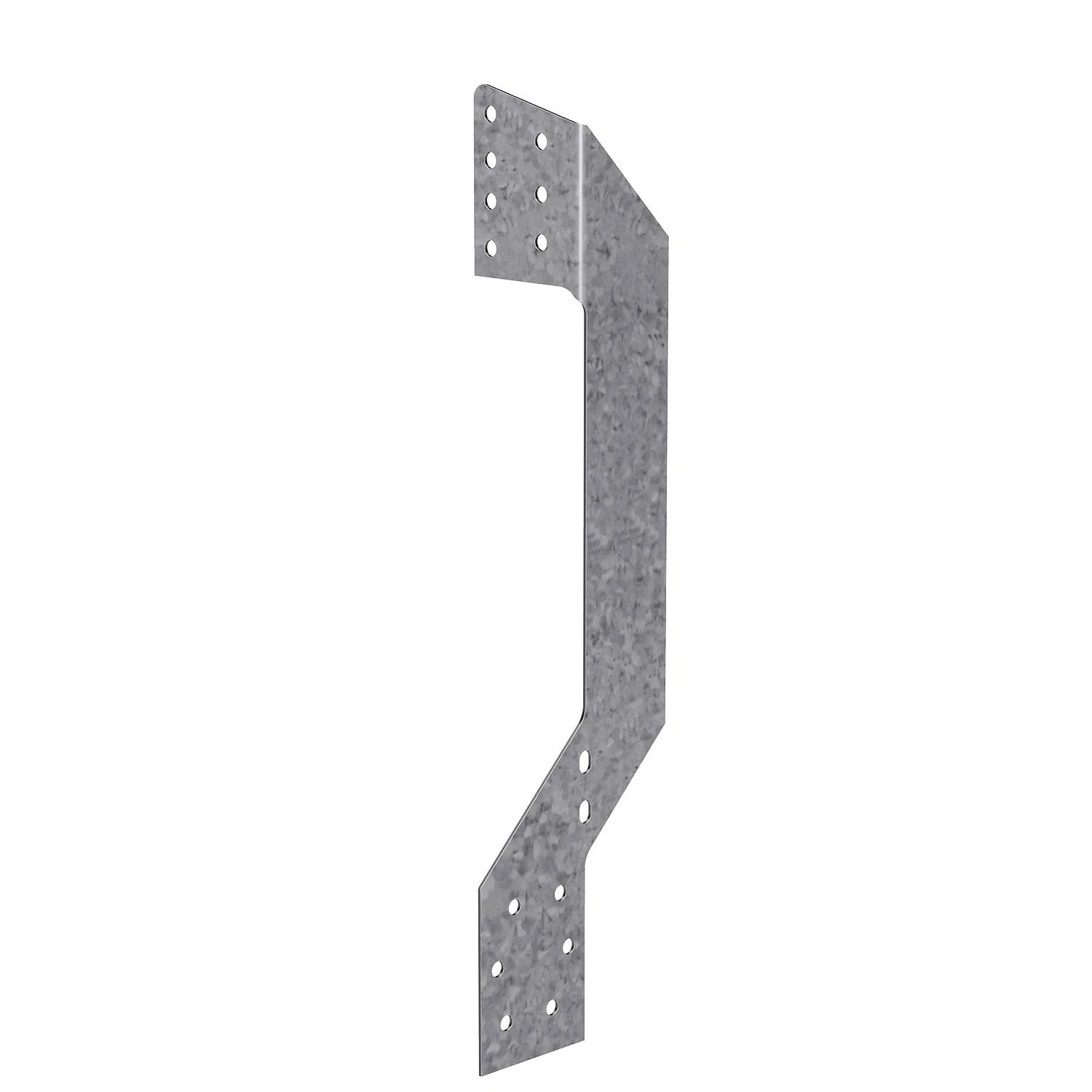

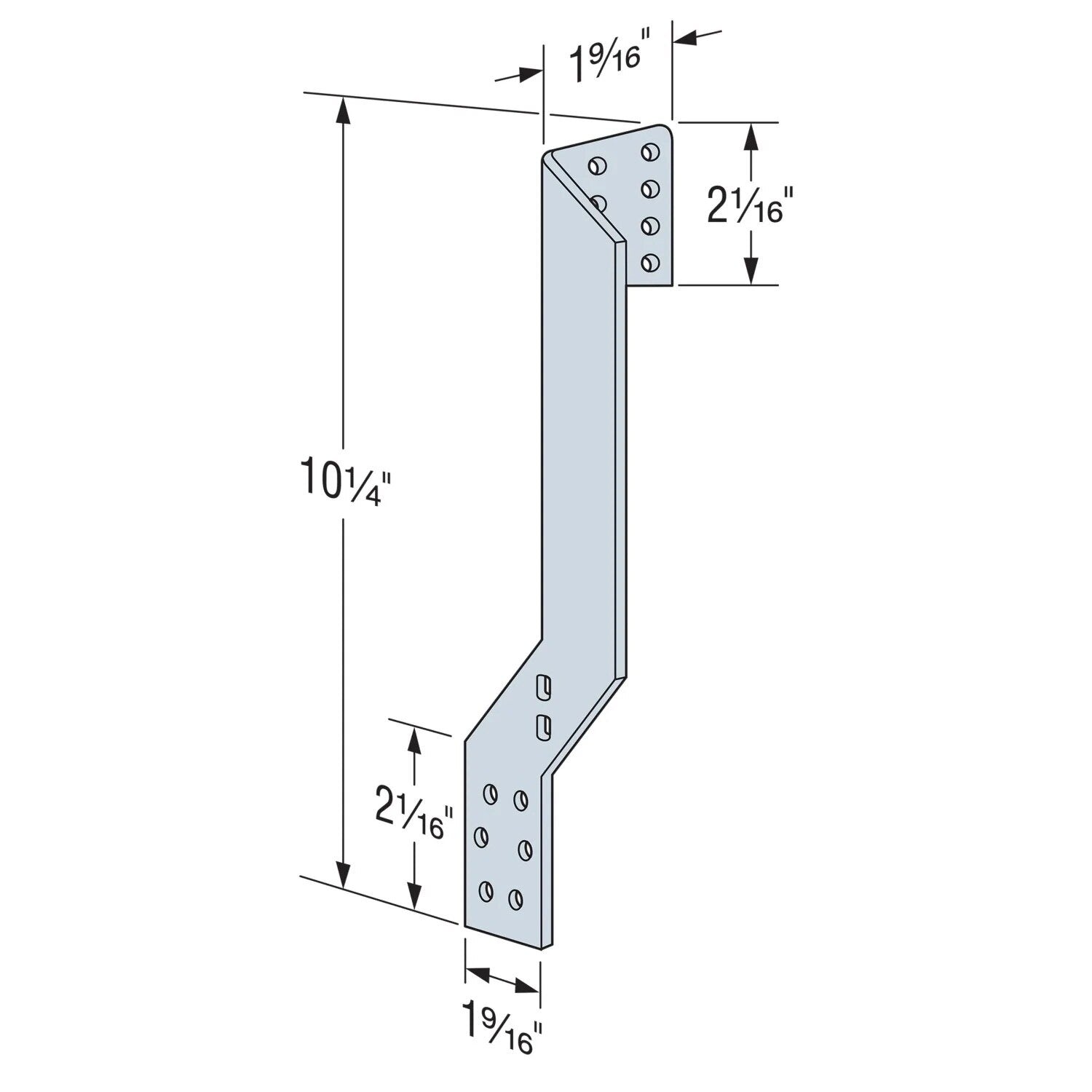

Simpson Strong-Tie RST-3 (10-1/4") Hurricane Tie, Galvanized
$1.86
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie RST-3 Description
The Simpson RST-3 Hurricane Tie provides uplift resistance for roof trusses and rafters, designed for attachment to wall studs rather than top plates.
Simpson Strong-Tie RST-3 Includes
- (1) Hurricane Tie
Simpson Strong-Tie RST-3 Features
- Provides uplift resistance for roof trusses and rafters
- Designed for attachment to wall studs
- Can straddle a double 2x top plate
- Compatible with 5/8" bearing strips
- Bendable strap portion for versatile connections
Simpson Strong-Tie RST-3 Applications
- Roof truss and rafter uplift resistance
- Wall stud attachment for structural support
- Double 2x top plate connections
- Residential and commercial framing
Simpson Strong-Tie RST-3 Installation Overview
- Verify dimensions and alignment of trusses and rafters.
- Position the Hurricane Tie on the wall stud or top plate.
- Secure using specified nails or screws.
- Ensure the strap portion is bent appropriately for the connection.
- Confirm all fasteners are properly installed.
Simpson Strong-Tie RST-3 Specifications
| Finish | Galvanized |
| Fasteners required | Nails: 8d x 1 1/2= 0.131" x 1 1/2" 10d x 1 1/2= 0.148" x 1 1/2" Screws: Strong-Drive SD #9 x 1 1/2" (model SD9112) = 0.131" x 1 1/2" |
| Quantity | 1 |
| Thickness | 18 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
