Simpson Anchors | SKU:
SET-XP10

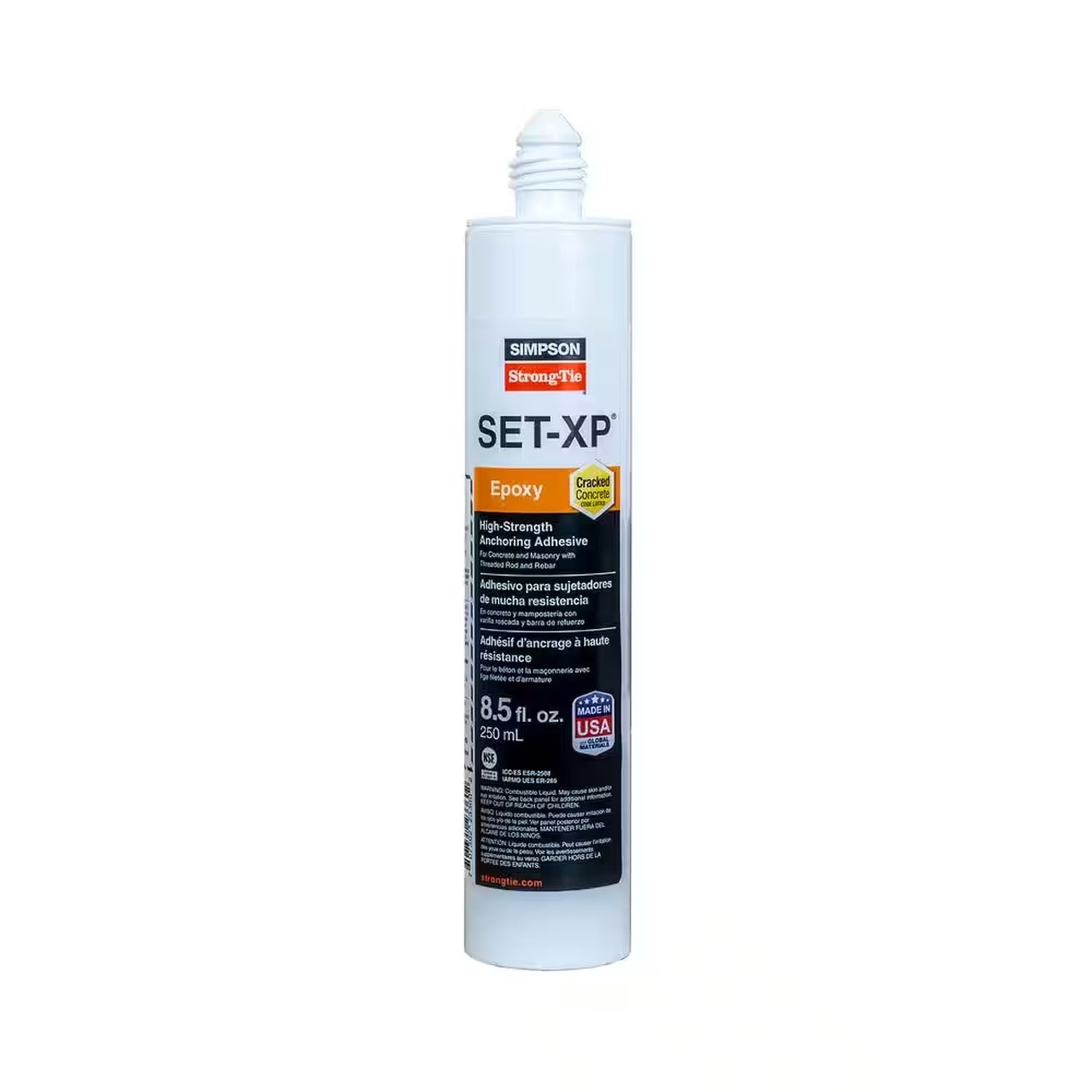

Simpson Strong-Tie SET-XP10 (8.5 oz) High-Strength Epoxy Adhesive Cartridge with Nozzle and Extension
$27.67
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SET-XP10 Description
Simpson SET-XP10 is a high-strength epoxy adhesive designed for anchoring threaded rod and rebar doweling in cracked and uncracked concrete.

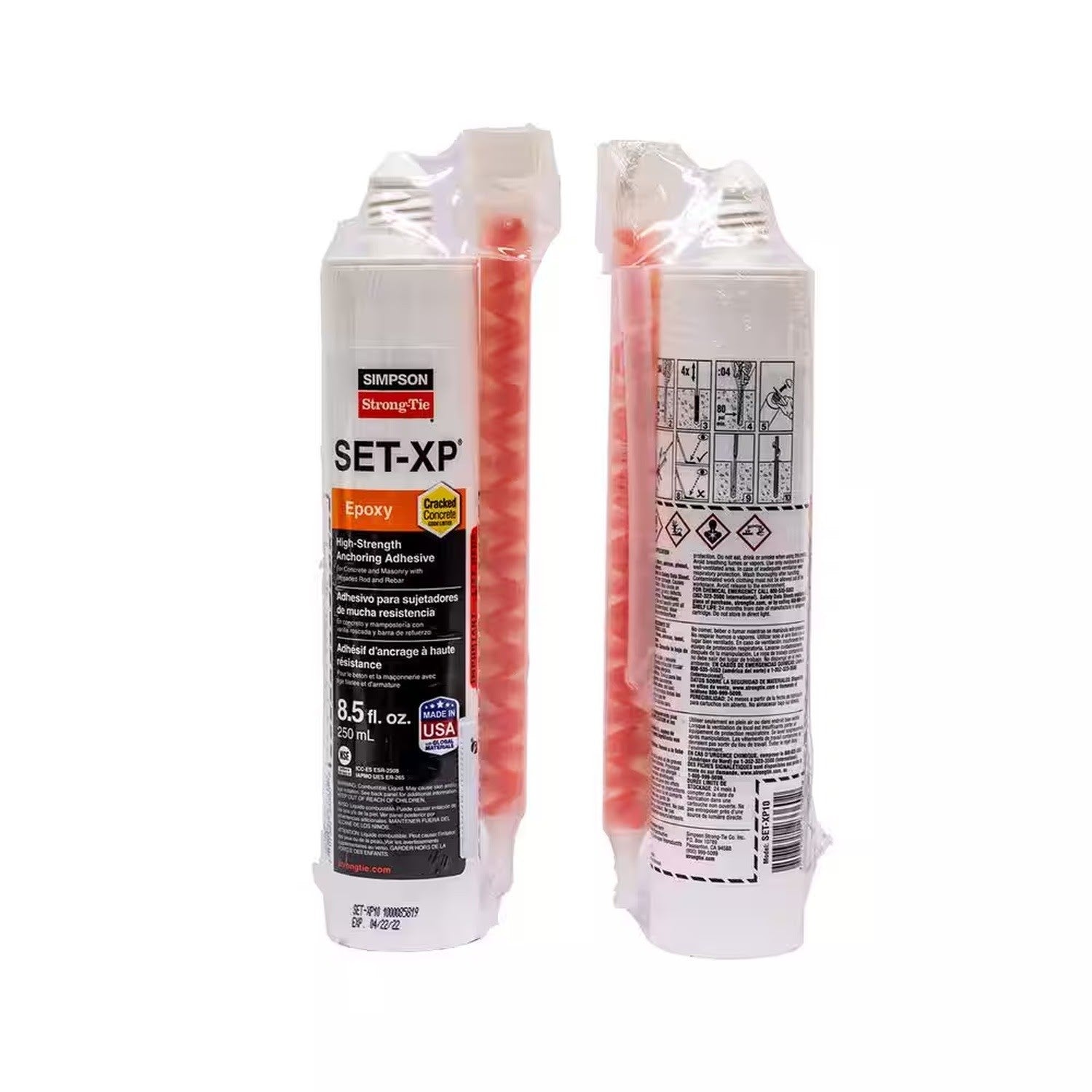

Simpson Strong-Tie SET-XP10 Includes
- (1) 8.5 oz. single cartridge
- (1) EMN22i mixing nozzle
- (1) extension
Simpson Strong-Tie SET-XP10 Features
- Design flexibility for sustained load performance at elevated temperatures
- Suitable for dry and damp conditions with in-service temperatures from -40°F to 150°F
- Recognized for rebar development and splice length design provisions of ACI 318
- Approved for installation with vacuum-drill bit system without further hole cleaning
- Easy hole-cleaning without power-brushing
- Manufactured in the USA using global materials
Simpson Strong-Tie SET-XP10 Applications
- Threaded rod anchoring and rebar doweling into concrete and masonry
- Recognized for rebar development and splice length design provisions of ACI 318
- Suitable for horizontal, vertical, and overhead applications
- Multiple DOT listings
Simpson Strong-Tie SET-XP10 Installation Overview
- Ensure surfaces to receive epoxy are clean
- Base material temperature must be 50°F or above during installation
- Store cartridges in a warm area to maintain optimal material temperature
- Mixed material in nozzle hardens in 30 minutes at 70°F or above
- Use only Simpson Strong-Tie mixing nozzles as per instructions
Simpson Strong-Tie SET-XP10 Specifications
| Mix Ratio/Type | 1:1 epoxy |
| Mixed Color | Teal |
| Base Materials | Concrete (cracked and uncracked), Masonry (uncracked) |
| Base Material Conditions | Dry, water-saturated |
| Anchor Type | Threaded rod or rebar |
| Substrate Installation Temperature | 50°F to 110°F |
| In-Service Temperature Range | -40°F to 150°F |
| Storage Temperature | 45°F to 90°F |
| Shelf Life | 24 months |
| Volatile Organic Compound (VOC) | 3 g/L |
NOTE: This item is NOT eligible for express shipping, and must ship via Ground only.
